Getting started with Première utilisation Logitech® Wireless Mouse M325 OnOn 1 2 3 English Help with setup: Mouse is not working 1. Is the mouse powered on? 2. Is the Unifying receiver securely plugged into a computer USB port? Try changing USB ports. 3. If the Unifying receiver is plugged into a USB hub, try plugging it directly into a USB port on your computer. 4. Check the orientation of the batteries inside the mouse. To check battery power, turn the mouse OFF and then ON. If the battery indicator light glows red or does not glow at all, replace the batteries. 5. Try using the mouse on a different surface. Remove metallic objects between the mouse and the Unifying receiver. 6. Try moving the Unifying receiver to a USB port closer to the mouse. If you are using a tower PC, go to www.logitech.com/usbextender for a USB extender. 7. Try reconnecting the mouse and Unifying receiver using the Logitech Unifying software (refer to the Unifying section of this guide). Español Ayuda con la instalación: El mouse no funciona 1. ¿Has encendido el mouse? 2. ¿Está el nano receptor conectado correctamente a un puerto USB? Prueba otros puertos USB. 3. Si el nano receptor está conectado a un concentrador USB, conéctalo directamente a un puerto USB de la computadora. 4. Comprueba la orientación de la batería dentro del mouse. Para comprobar la carga de las pilas, apague y encienda el ratón. Si el indicador de estado de las pilas se ilumina de color rojo, o no se ilumina, cambie las pilas. 5. Prueba el mouse en otra superficie. Retira cualquier objeto metálico situado entre el mouse y el nano receptor. 6. Lleva el nano receptor a un puerto USB más cercano al mouse. Si utilizas una torre de PC, en www.logitech.com/usbextender encontrarás un extensor USB. 7. Vuelva a conectar el ratón y el receptor Unifying mediante el software Logitech Unifying (consulte la sección Unifying de esta guía). Français Aide à la configuration: La souris ne fonctionne pas 1. La souris est-elle sous tension? 2. Le Nano-récepteur est-il branché sur un port USB? Réessayez en changeant de port USB. 3. Si le nano-récepteur est branché dans un hub USB, branchez-le directement sur l’ordinateur. 4. Vérifiez l’orientation de la pile dans la souris. Vérifiez le niveau de charge des piles en mettant la souris hors tension, puis sous tension. Si le témoin de niveau des piles s’allume en rouge ou reste éteint, remplacez les piles. 5. Essayez une autre surface. Déplacez tout objet métallique se trouvant entre la souris et le nano-récepteur. 6. Branchez le Nano-récepteur sur un port USB plus proche de la souris. Si vous utilisez un PC tour, accédez au site www.logitech.com/ usbextender pour vous procurer une extension USB. 7. Essayez de reconnecter la souris et le récepteur Unifying à l’aide du logiciel Logitech Unifying (reportez-vous à la section Unifying de ce guide). Português Ajuda para a configuração: O mouse não funciona 1. O mouse está ligado? 2. O receptor Nano está conectado corretamente a uma porta USB? Experimente uma outra porta USB. 3. Se o receptor Nano estiver conectado a um concentrador USB, tente conectá-lo diretamente a uma porta USB no computador. 4. Verifique a orientação das pilhas dentro do mouse. Verifique a carga das pilhas desligando o rato e ligando-o novamente. Se o indicador de pilhas acender a luz vermelha ou não acender luz nenhuma, substitua as pilhas. 5. Experimente uma superfície diferente. Remova objetos metálicos entre o mouse e o receptor Nano. 6. Experimente mover o receptor Nano para uma porta USB mais próxima do mouse. Se estiver usando um PC de torre, vá para www.logitech.com/usbextender para obter um extensor de USB. 7. Tente voltar a ligar o rato e o receptor Unifying com o software Logitech Unifying (consulte a secção Unifying deste manual). Getting started with Première utilisation Logitech® Wireless Mouse M325 AA 4 6 1 2 3 5 English Features 1. Scroll wheel 2. Middle button. The function of this button depends on your operating system and the application being used. For example, if you are browsing the Internet in Windows® and click on a link using the Middle button, typically the link opens in a new tab. 3. Internet back/forward. Tilt the scroll wheel right to move forward one page. Tilt the scroll wheel left to move back one page.* 4. On/Off slider switch 5. Battery door release 6. Unifying receiver storage. When the mouse is not in use, you can store the Unifying receiver inside the mouse. * On a Mac® the Internet back/forward feature is not supported. You can assign Dashboard, Exposé, or Spaces to the tilt wheel features within System Preferences. Español Componentes 1. Botón rueda 2. Botón central. La función de este botón varía según el sistema operativo y la aplicación que se use. Por ejemplo, si estás navegando por Internet en Windows y haces clic en un vínculo mediante el botón central, normalmente el vínculo se abre en una ficha nueva. 3. Avance/retroceso en Internet. Inclina el botón rueda hacia la derecha para avanzar una página. Inclina el botón rueda hacia la izquierda para retroceder una página.* 4. Conmutador de encendido/ apagado 5. Botón de compartimento de baterías 6. Almacenamiento de receptor Unifying. Puedes guardar el receptor Unifying en el mouse cuando no utilices este último. * En los equipos Mac® no se admite la función de avance/retroceso en Internet. Es posible asignar Dashboard, Exposé o Spaces a las funciones de botón rueda inclinable en Preferencias del Sistema. Français Fonctionnalités 1. Roulette de défilement 2. Bouton central. La fonction de ce bouton dépend de votre système d’exploitation et de l’application utilisée. Par exemple, si vous naviguez sur Internet sous Windows® et cliquez sur un lien à l’aide du bouton central, ce lien ouvre généralement un nouvel onglet. 3. Navigation Internet. Inclinez la roulette de défilement vers la droite pour passer à la page suivante. Inclinez la roulette de défilement vers la gauche pour revenir à la page précédente.* 4. …

Text truncated - open the document above for the full version.

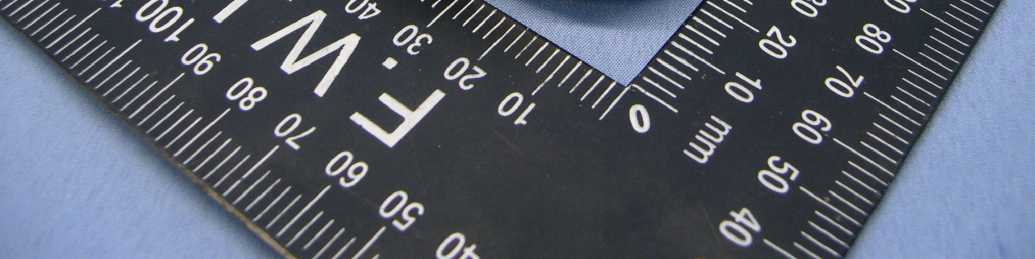

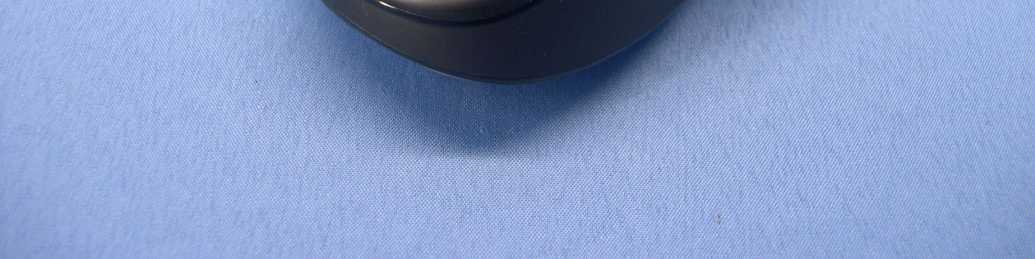

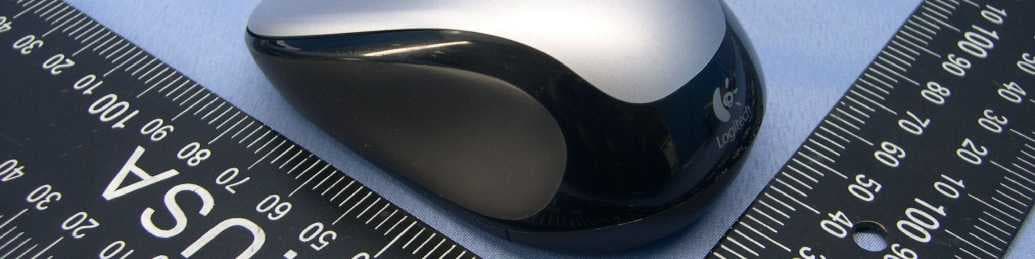

Page 1 CONSTRUCTION PHOTOS OF EUT Model No.: M-R0021

rev 001_PDM-640-002889 rev 001_PDM-640-002889 rev 002_change the marketing name to Wireless Mouse M325 rev 003_Change model name

(Fig.1) FCC ID: JNZMR0021 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 2 Model No.: M-R0021 Page 3 Page 4

Report No.: RF991213E04 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF991213E04 MODEL NO.: M-R0021 FCC ID: JNZMR0021 RECEIVED: Dec. 13, 2010 TESTED: Dec. 14, 2010 ISSUED: Dec. 23, 2010 APPLICANT: LOGITECH FAR EAST LTD. ADDRESS: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 25 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF991213E04 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD.................................................................................3 1 CERTIFICATION.............................................................................................4 2 SUMMARY OF TEST RESULTS.....................................................................5 2.1 MEASUREMENT UNCERTAINTY..................................................................5 3 GENERAL INFORMATION.............................................................................6 3.1 GENERAL DESCRIPTION OF EUT................................................................6 3.2 DESCRIPTION OF TEST MODES..................................................................7 3.3 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..................7 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS.................................8 3.5 DESCRIPTION OF SUPPORT UNITS............................................................9 3.6 CONFIGURATION OF SYSTEM UNDER TEST.............................................9 4 TEST PROCEDURES AND RESULTS.........................................................10 4.1 RADIATED EMISSION MEASUREMENT.....................................................10 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT...................................10 4.1.2 TEST INSTRUMENTS...................................................................................11 4.1.3 TEST PROCEDURES...................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD.........................................................12 4.1.5 TEST SETUP................................................................................................13 4.1.6 EUT OPERATING CONDITIONS..................................................................13 4.1.7 TEST RESULTS............................................................................................14 4.2 CONDUCTED - OUT BAND MEASUREMENT.............................................21 4.2.1 LIMITS OF CONDUCTED - OUT BAND MEASUREMENT..........................21 4.2.2 TEST INSTRUMENTS..................................................................................21 4.2.3 TEST PROCEDURE.....................................................................................21 4.2.4 DEVIATION FROM TEST STANDARD.........................................................21 4.2.5 EUT OPERATING CONDITION....................................................................21 4.2.6 TEST RESULTS............................................................................................22 5 INFORMATION ON THE TESTING LABORATORIES..................................24 6 APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB........................................................25 Report No.: RF991213E04 3 Report Format Version 4.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Dec. 23, 2010 Report No.: RF991213E04 4 Report Format Version 4.0.0 1 CERTIFICATION PRODUCT : 2.4GHz Cordless Mouse BRAND NAME : Logitech MODEL NO. : M-R0021 TESTED : Dec. 14, 2010 TEST SAMPLE : ENGINEERING SAMPLE APPLICANT : LOGITECH FAR EAST LTD. STANDARDS : FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 ANSI C63.10-2009 The above equipment (Model: M-R0021) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Dec. 23, 2010 ( Sunny Wen, Specialist ) APPROVED BY : , DATE: Dec. 23, 2010 ( May Chen, Deputy Manager ) Report No.: RF991213E04 5 Report Format Version 4.0.0 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C Standard Paragraph Test Type Result Remark 15.207 Conducted Emission Test NA Not Applicable 15.249 Radiated Emission Test PASS Minimum passing margin is -6.3dB at 44.69MHz 15.249 Conducted - Out Band Measurement PASS Meet the requirement of limit 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement Value Radiated emissions (30MHz-1GHz) 3.94 dB Radiated emissions (1GHz-18GHz) 2.49 dB Radiated emissions (18GHz-40GHz) 2.70 dB Report No.: RF991213E04 6 Report Format Version 4.0.0 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT 2.4GHz Cordless Mouse MODEL NO. M-R0021 FCC ID JNZMR0021 POWER SUPPLY DC 1.5V from battery MODULATION TYPE GFSK OPERATING FREQUENCY 2405MHz ~ 2474MHz NUMBER …

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
