JNZMR00262.4GHz Cordless Mouse

Saf ety , R egulator y, and Warranty English Important ergonomic information. Long periods of repetitive motion using an improperly set-up workspace, incorrect body position, and poor work habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. If you feel pain, numbness, weakness, swelling, burning, cramping, or stiffness in your hands, wrists, arms, shoulders, neck, or back, see a qualified health professional. For more information, please read the Comfort Guidelines located on the Logitech® web site at http://www.logitech.com/comfort, or on the Logitech® Software CD. Do not immerse product in any liquid or expose it to heat or moisture. There are no serviceable parts. Class 1 LED products. The product contains Class 1 LED. Operating temperature between 5°C (41°F) to 40°C (104° F). Class 1 laser products. International standards and safety. Logitech Class 1 laser products comply with International Standard IEC/EN 60825-1: 2007, Class 1 Laser Product, and also comply with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007: 1) Emission of one parallel beam or two parallel beams (for devices that can track on glass) of infrared user- invisible light; 2) Maximum power of 716 microwatts CW, wavelength range 832 — 865 nanometers; 3) Operating temperature between 5°C (41°F) and 40°C (104° F). CAUTION! There is a risk of radiation exposure if product is misused or disassembled. Class 1M laser products. International standards and safety. Logitech Class 1M laser products comply with International Standard IEC/EN 60825-1: 2007, Class 1M Laser Product. Logitech Class 1M laser products also comply with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007, as follows: 1) Emission of diverging beam of minimum +/-2° of infrared user-invisible light; 2) Maximum power of 1.4 milliwatts CW, wavelength range 832 — 865 nanometers; 3) Operating temperature between 5°C (41°F) and 40°C (104° F). CAUTION! Invisible Laser Radiation. There is a risk of radiation exposure if product is misused or disassembled. Viewing the laser output with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) within a distance of 100mm may pose an eye hazard. Additional compliance information. To obtain additional information about Class 1 LED, Class 1 lasers, Class 1M lasers, or other compliance-related matters, go to http://www.logitech.com/compliance, or call Logitech customer support. (Customer support telephone numbers are listed in the product documentation.) Battery warning! Risk of explosion or personal injury if batteries are replaced by incorrect type, mutilated, or exposed to conducting materials, liquid, fire, or heat (above 54° C or 130° F). Do not use or recharge damaged rechargeable batteries. Do not mix battery types. Dispose of spent or damaged batteries according to manufacturer instructions and local laws. Power supply warning! Caution electric shock/fire hazard! For indoor use only. Do not expose to moisture, liquid, or heat. Do not use any other power supply with your Logitech product. Device pairing limitations. Some Unifying devices may be limited in the number of times they can be paired (connected) to a Unifying receiver. Although the number of pairings possible may vary, the minimum number of available pairings is 45. UL statement. Your product is UL approved. Use only with UL listed ITE computers. FCC – United States and Canada This hardware device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Compliance Information Statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) Reorient or relocate the receiving antenna. 2) Increase the separation between the equipment and receiver. 3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4) Consult the dealer or an experienced radio/TV technician for help. Modifications to this product not authorized by Logitech could void your right to use or operate this product by the FCC Where shielded interface cables or accessories have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations. Canada (IC) Statements: Corded products: This Class B digital apparatus complies with Canadian ICES-003. Cordless (Radio Transmitter) products: Section A. RSS-310 (27 MHz transmitters and receivers): This Category II radio communication device complies with Industry Canada Standard RSS-310. Section B. RSS-210 (2.4 GHz transmitters or transceivers): This Category I radio communication device complies with RSS-210 of Industry Canada. Logitech hardware product limited warranty Logitech warrants to the original purchaser that your Logitech hardware product shall be free from defects in material and workmanship for the period of time, identified on your product packag…

Text truncated - open the document above for the full version.

Getting started with Logitech® Cube Getting started with Logitech® Cube USB The Logitech® Cube is ready to use. To learn more about the Unifying receiver, visit www.logitech.com/unifying 1234 Logitech Cube features 1. Point: Move Cube to control pointer. 2. Click: Press for left-button click. 3. Secondary click: Press for right-button click. 4. Scroll: Swipe up, down for scrolling. What do you think? Please take a minute to tell us. Thank you for purchasing our product. www.logitech.com/ithink www.logitech.com/support Australia 1800 025 544 New Zealand 0800 447 361 United States +1 646-454-3200 www.logitech.com USB © 2011 Logitech. All rights reserved. Logitech, the Logitech logo, and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners. Logitech assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice. 620-003479.006 A red indicator warns you when the battery is low. It takes up to 1.5 hours to reach a full charge. To learn more about the extended capability of the Logitech Cube, visit www.logitech.com/cube Troubleshooting: Cube not working • Is the Cube powered on? If not, move the On/Off slider to the On position. • You may need to recharge the Cube battery. • Is the Unifying receiver plugged into a computer USB port? Try changing USB ports. • If the Unifying receiver is plugged into a USB hub, plug it directly into a USB port on your computer. • For more troubleshooting information visit www.logitech.com/support/cube

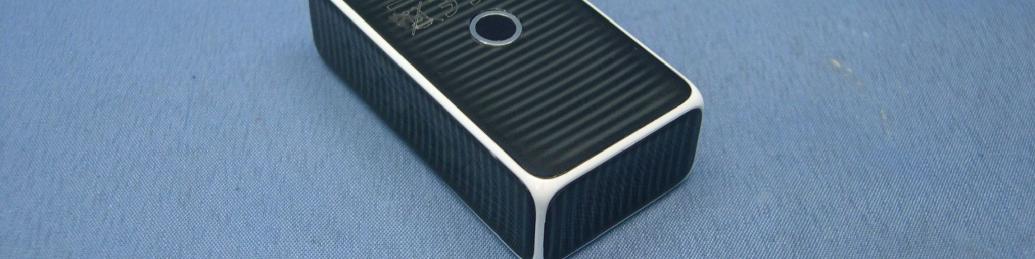

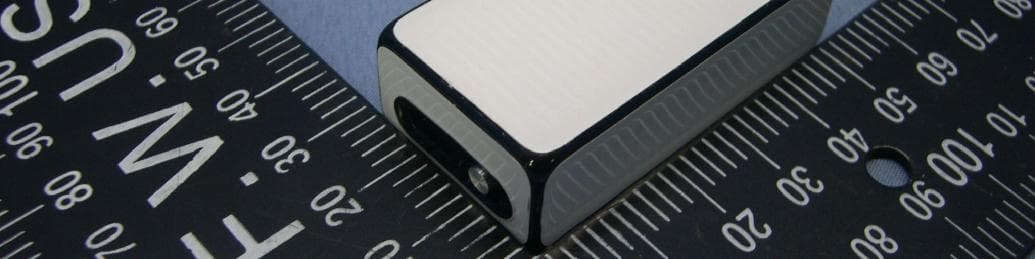

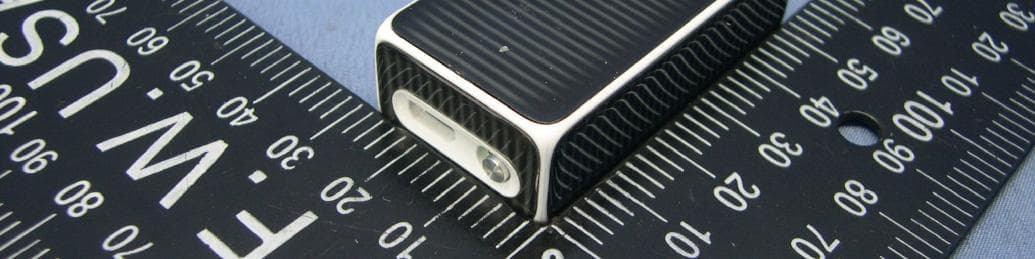

Report No.: 111017E03 1 CONSTRUCTION PHOTOS OF EUT Report No.: 111017E03 2 Report No.: 111017E03 3 Report No.: 111017E03 4

Report No.: 111017E03 5 Report No.: 111017E03 6 Report No.: 111017E03 7 Report No.: 111017E03 8 Report No.: 111017E03 9 Report No.: 111017E03 10

Report No.: RF111017E03 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF111017E03 MODEL NO.: M-R0026 FCC ID: JNZMR0026 RECEIVED: Oct. 17, 2011 TESTED: Oct. 19 to 24, 2011 ISSUED: Oct. 26, 2011 APPLICANT: LOGITECH FAR EAST LTD. ADDRESS: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 27 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF111017E03 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD.................................................................................3 1 CERTIFICATION.............................................................................................4 2 SUMMARY OF TEST RESULTS.....................................................................5 2.1 MEASUREMENT UNCERTAINTY..................................................................5 3 GENERAL INFORMATION.............................................................................6 3.1 GENERAL DESCRIPTION OF EUT................................................................6 3.2 DESCRIPTION OF TEST MODES..................................................................7 3.3 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..................7 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS.................................9 3.5 DESCRIPTION OF SUPPORT UNITS..........................................................10 3.6 CONFIGURATION OF SYSTEM UNDER TEST...........................................10 4 TEST PROCEDURES AND RESULTS..........................................................11 4.1 RADIATED EMISSION MEASUREMENT......................................................11 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT....................................11 4.1.2 TEST INSTRUMENTS..................................................................................12 4.1.3 TEST PROCEDURES...................................................................................14 4.1.4 DEVIATION FROM TEST STANDARD.........................................................14 4.1.5 TEST SETUP................................................................................................15 4.1.6 EUT OPERATING CONDITIONS..................................................................15 4.1.7 TEST RESULTS............................................................................................16 4.2 CONDUCTED - OUT BAND MEASUREMENT.............................................23 4.2.1 LIMITS OF CONDUCTED - OUT BAND MEASUREMENT..........................23 4.2.2 TEST INSTRUMENTS..................................................................................23 4.2.3 TEST PROCEDURE.....................................................................................23 4.2.4 DEVIATION FROM TEST STANDARD.........................................................23 4.2.5 EUT OPERATING CONDITION....................................................................23 4.2.6 TEST RESULTS............................................................................................24 5 INFORMATION ON THE TESTING LABORATORIES..................................26 6 APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB.........................................................27 Report No.: RF111017E03 3 Report Format Version 4.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF111017E03 Original release Oct. 26, 2011 Report No.: RF111017E03 4 Report Format Version 4.0.0 1 CERTIFICATION PRODUCT : 2.4GHz Cordless Mouse BRAND NAME : Logitech MODEL NO. : M-R0026 TEST SAMPLE : ENGINEERING SAMPLE APPLICANT : LOGITECH FAR EAST LTD. TESTED : Oct. 19 to 24, 2011 STANDARDS : FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 ANSI C63.10-2009 The above equipment (Model: M-R0026) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Oct. 26, 2011 ( Midoli Peng, Specialist ) APPROVED BY : , DATE: Oct. 26, 2011 ( May Chen, Deputy Manager ) Report No.: RF111017E03 5 Report Format Version 4.0.0 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C Standard Paragraph Test Type Result Remark 15.207 Conducted Emission Test NA Power supply is DC 3.7 V from battery 15.249 Radiated Emission Test PASS Minimum passing margin is -12.3dB at 2400.00MHz 15.249 Conducted - Out Band Measurement PASS Meet the requirement of limit 15.203 Antenna Requirement PASS No antenna connector is used. 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement Value Radiated emissions (30MHz-1GHz) 3.89 dB Radiated emissions (1GHz -18GHz) 2.…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
