JNZMR00502.4GHz Cordless Mouse

Saf ety , R egulator y, and Warranty English Important ergonomic information. Long periods of repetitive motion using an improperly set-up workspace, incorrect body position, and poor work habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. If you feel pain, numbness, weakness, swelling, burning, cramping, or stiffness in your hands, wrists, arms, shoulders, neck, or back, see a qualified health professional. For more information, please read the Comfort Guidelines located on the Logitech® web site at http://www.logitech.com/comfort, or on the Logitech® Software CD. Do not immerse product in any liquid or expose it to heat or moisture. There are no serviceable parts. Class 1 LED products. The product contains Class 1 LED. Operating temperature between 5°C (41°F) to 40°C (104° F). Class 1 laser products. International standards and safety. Logitech Class 1 laser products comply with International Standard IEC/EN 60825-1: 2007, Class 1 Laser Product, and also comply with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007: 1) Emission of one parallel beam or two parallel beams (for devices that can track on glass) of infrared user- invisible light; 2) Maximum power of 716 microwatts CW, wavelength range 832 — 865 nanometers; 3) Operating temperature between 5°C (41°F) and 40°C (104° F). CAUTION! There is a risk of radiation exposure if product is misused or disassembled. Class 1M laser products. International standards and safety. Logitech Class 1M laser products comply with International Standard IEC/EN 60825-1: 2007, Class 1M Laser Product. Logitech Class 1M laser products also comply with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007, as follows: 1) Emission of diverging beam of minimum +/-2° of infrared user-invisible light; 2) Maximum power of 1.4 milliwatts CW, wavelength range 832 — 865 nanometers; 3) Operating temperature between 5°C (41°F) and 40°C (104° F). CAUTION! Invisible Laser Radiation. There is a risk of radiation exposure if product is misused or disassembled. Viewing the laser output with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) within a distance of 100mm may pose an eye hazard. Additional compliance information. To obtain additional information about Class 1 LED, Class 1 lasers, Class 1M lasers, or other compliance-related matters, go to http://www.logitech.com/compliance, or call Logitech customer support. (Customer support telephone numbers are listed in the product documentation.) Battery warning! Risk of explosion or personal injury if batteries are replaced by incorrect type, mutilated, or exposed to conducting materials, liquid, fire, or heat (above 54° C or 130° F). Do not use or recharge damaged rechargeable batteries. Do not mix battery types. Dispose of spent or damaged batteries according to manufacturer instructions and local laws. Power supply warning! Caution electric shock/fire hazard! For indoor use only. Do not expose to moisture, liquid, or heat. Do not use any other power supply with your Logitech product. Device pairing limitations. Some Unifying devices may be limited in the number of times they can be paired (connected) to a Unifying receiver. Although the number of pairings possible may vary, the minimum number of available pairings is 45. UL statement. Your product is UL approved. Use only with UL listed ITE computers. FCC – United States and Canada This hardware device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Compliance Information Statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) Reorient or relocate the receiving antenna. 2) Increase the separation between the equipment and receiver. 3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4) Consult the dealer or an experienced radio/TV technician for help. Modifications to this product not authorized by Logitech could void your right to use or operate this product by the FCC Where shielded interface cables or accessories have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations. Canada (IC) Statements: Corded products: This Class B digital apparatus complies with Canadian ICES-003. Cordless (Radio Transmitter) products: Section A. RSS-310 (27 MHz transmitters and receivers): This Category II radio communication device complies with Industry Canada Standard RSS-310. Section B. RSS-210 (2.4 GHz transmitters or transceivers): This Category I radio communication device complies with RSS-210 of Industry Canada. Logitech hardware product limited warranty Logitech warrants to the original purchaser that your Logitech hardware product shall be free from defects in material and workmanship for the period of time, identified on your product packag…

Text truncated - open the document above for the full version.

DIE LINES SPOT COLORS PROCESS COLORS COLOR SPECIFICATIONS BRAND / LAUNCH: Logitech 2010 PROJECT TITLE: GomeraDETAILS: AMR / GSW Guide K525507595 SPECIFICATIONS / NOTES: Final files Job is grey scale MODIFICATION DATE: January 18, 2010 THIS PRINT SIZE / SCALE: 100% of original Designer: Gregory Gomez Location: Fremont, CA, USA DIE LINE COLOR (NO PRINT) DIELINE NAME: n/a DIELINE RECEIVED: n/a M/N:C-U0003 CMIIT ID: 2009DJ1025 Approval No.: ETA-0035/2009/WRLO CCAI09LP0060T1 Z855 DZL-C-U0003 5 , M/N:C-U0007 CMIIT ID: 2010DJ0355 Approval No.: ETA-418/2010/WRLO CCAI10LP0020T1 DZL-C-U0007 5 , 14418/POSTEL/2010 2100 11059/POSTEL/2009 2100 Important information Safety, compliance, and warranty por tant S afe ty, c Getting started with Logitech ® Wireless Mouse M310 Getting started with Logitech ® Wireless Mouse M310 1. 2. USB 3. 4. 5. USB 6. USB USB 设置帮助 简体中文 指针不移动或无规律移动 1. 电源是否开启？ 2. 检查 USB Nano 接收器，尝试更换 USB 端口。 3. 检查电池。 4. 尝试在其它表面上使用。 5. 移开鼠标与 USB Nano 接收器之间的金属物体。 6. 如果 USB Nano 接收器是插入到 USB 集线器中，请尝试将 其直接插入电脑中。 설치 도움말 한국어 포인터가 움직이지 않거나 잘못 움직임 1. 전원이 켜져 있습니까? 2. USB Nano 수신기 상태를 확인하고 포트를 바꾸어 보십시오. 3. 배터리를 확인하십시오. 4. 다른 표면에서 움직여 보십시오. 5. 마우스와 USB Nano 수신기 사이에 있는 금속 물체를 제거하십시오. 6. USB Nano 수신기가 USB 허브에 연결되어 있는 경우, 컴퓨터에 직접 꽂아 보십시오. www.logitech.com © 2010 Logitech. All rights reserved. Logitech, the Logitech logo, and other Logitech marks are owned by Logitech and may be registered. Microsoft, Windows Vista, Windows, and the Windows logo are trademarks of the Microsoft group of companies. Mac and the Mac logo are trademarks of Apple Inc., registered in the U.S. and other countries. All other trademarks are the property of their respective owners. Logitech assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice. 620-002818.004 1 34 English Congratulations! You are now ready to use your mouse. Advanced features. Software is optional for this mouse! Download the free mouse software (Logitech Setpoint for Windows® or Logitech Control Center for Macintosh®) at www.logitech.com/downloads to customize the mouse buttons and to enable the middle button feature. www.logitech.com/downloads (Logitech Setpoint for Windows® Logitech Control Center for Macintosh®) 简体中文 恭喜您！您现在即可开始使用鼠标。 高级功能。本鼠标的软件是非强制性 的！请从 www.logitech.com/downloads 下载 免费的鼠标软件 (适用于 Windows® 的 Logitech SetPoint 或适用于 Macintosh® 的 Logitech Control Center)， 以自定义鼠标按键和启用中键功能。 한국어 축하합니다! 이제 마우스를 사용할 수 있습니다. 고급 기능. 이 마우스의 소프트웨어는 선택 사항입니다. www.logitech.com/downloads 에서 무료 마우스 소프트웨어 (Logitech Setpoint for Windows® 또는 Logitech Control Center for Macintosh®) 를 다운로드하여 마우스 버튼을 사용자 정의하고 가운데 버튼 기능을 설정할 수 있습니다. 2 English 1. Install the AA mouse battery. 2. The ON/Off slider should be in the ON position. 1. 3 2. ON 简体中文 1. 安装 AA 电池。 2. ON/Off 滑动开关应处于 ON (打开) 的位置。 한국어 1. A A 마우스 배터리를 넣습니다. 2. ON/Off 슬라이더는 ON 위치에 있어야 합니다. Engli 1. Insta 2. The in th 1.1. 2. 简体 1. 安装 Turn on computer. 打开电脑的电源。 컴퓨터를 켭니다. ␭䚨Gⱨ㉔㉘缶⏈G㤸䑀䝰㐔Gᴴ⏙㉥㢨G㢼㡰⳴⦐G 㢬⮹㙼㤸ḰGḴ⥜═G㉐缶㏘⏈G䚔G㍌G㛺㢀 English Features 1. Battery LED flashes red when battery power is low 2. Vertical scrolling 3. On/Off slider 4. Press down and slide to release battery door 5. USB Nano receiver storage 1. 2. 3. 4. 5. USB 简体中文 功能 1. 电池电量指示灯，当电池电量较低时会呈 红灯闪烁 2. 垂直滚动 3. On/Off 滑动开关 4. 按下滑开可打开电池盖 5. USB Nano 接收器存放空间 한국어 기능 1. 배터리 전력이 부족한 경우 배터리의 LED 점멸 2. 수직 스크롤 3. On/Off 슬라이더 4. 누르고 밀어 여는 방식의 배터리 덮개 5. USB Nano 수신기 보관 2 1 3 4 5 Help with setup English No pointer movement or erratic movement 1. Is the power on? 2. Check the USB Nano receiver; change ports. 3. Check the battery. 4. Try a different surface. 5. Remove metallic objects between the mouse and the USB Nano receiver. 6. If the USB Nano receiver is plugged into a USB hub, try plugging it directly into the computer.

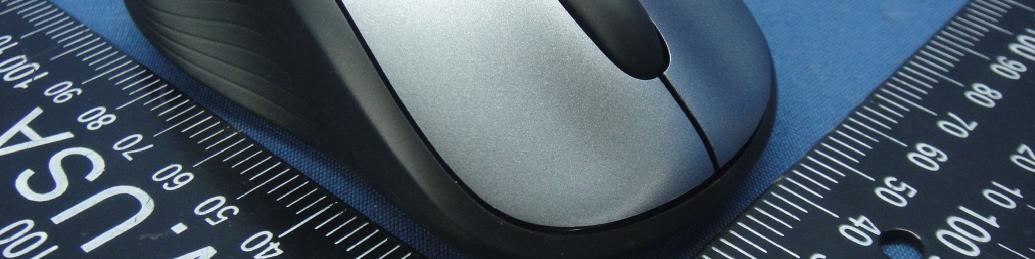

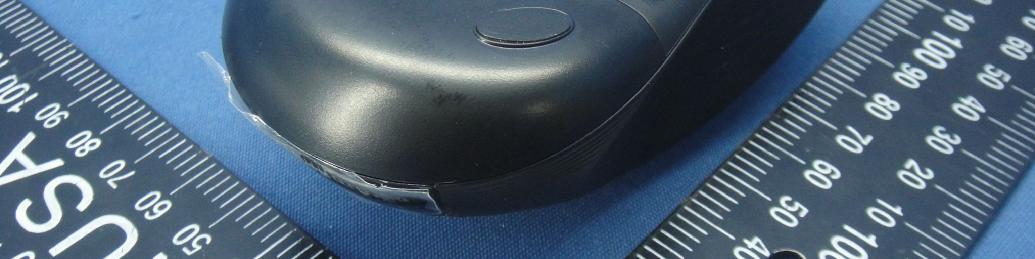

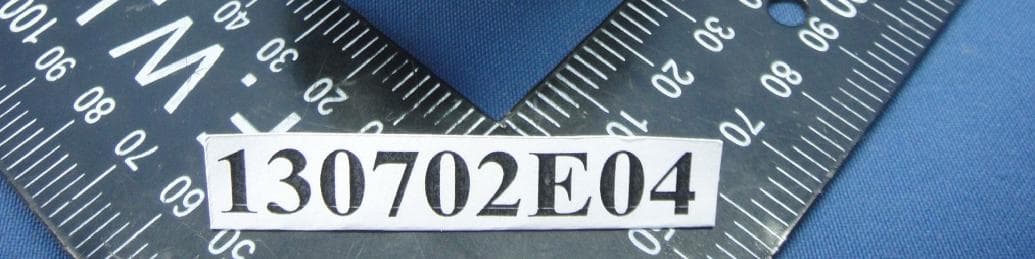

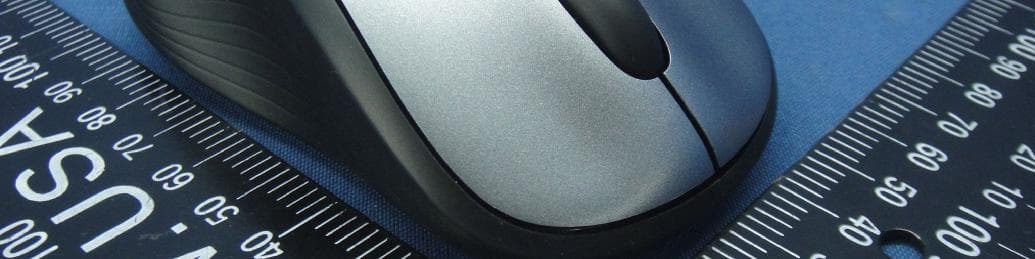

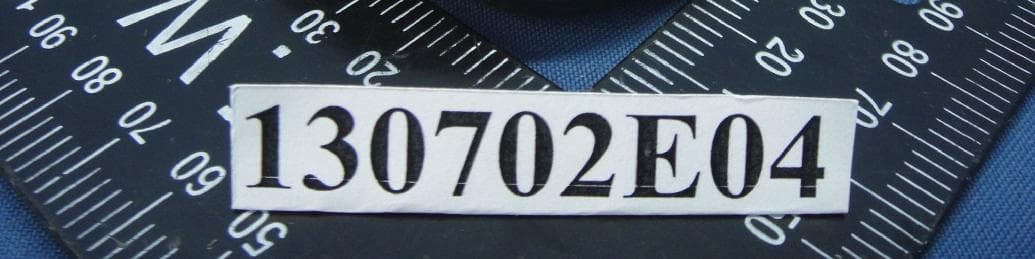

Report No.: 130702E04 1 of 3 CONSTRUCTION PHOTOS OF EUT

(Fig.1) FCC ID: JNZMR0050 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Report No.: 130702E04 2 of 3 Report No.: 130702E04 3 of 3

Report No.: RF130702E04 1 of 21 Report Format Version 5.0.1 FCC TEST REPORT REPORT NO.: RF130702E04 MODEL NO.: M-R0050 FCC ID: JNZMR0050 RECEIVED: July 02, 2013 TESTED: July 10, 2013 ISSUED: July 15, 2013 APPLICANT: LOGITECH FAR EAST LTD. ADDRESS: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF130702E04 2 of 21 Report Format Version 5.0.1 Table of Contents RELEASE CONTROL RECORD................................................................................. 3 1 CERTIFICATION .............................................................................................. 4 2 SUMMARY OF TEST RESULTS ...................................................................... 5 2.1 MEASUREMENT UNCERTAINTY ........................................................................ 5 3 GENERAL INFORMATION ............................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ................................................................. 6 3.2 DESCRIPTION OF TEST MODES ................................................................... 7 3.3 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ................... 7 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS .................................. 8 3.5 DESCRIPTION OF SUPPORT UNITS ............................................................. 9 3.6 CONFIGURATION OF SYSTEM UNDER TEST .............................................. 9 4 TEST PROCEDURES AND RESULTS........................................................... 10 4.1 RADIATED EMISSION AND BAND EDGE MEASUREMENT ........................ 10 4.1.1 LIMITS OF RADIATED EMISSION AND BAND EDGE MEASUREMENT...... 10 4.1.2 TEST INSTRUMENTS ....................................................................................11 4.1.3 TEST PROCEDURES .................................................................................... 12 4.1.4 DEVIATION FROM TEST STANDARD .......................................................... 12 4.1.5 TEST SETUP ................................................................................................. 13 4.1.6 EUT OPERATING CONDITIONS ................................................................... 13 4.1.7 TEST RESULTS ............................................................................................. 14 5 PHOTOGRAPHS OF THE TEST CONFIGURATION ..................................... 19 6 INFORMATION ON THE TESTING LABORATORIES ................................... 20 7 APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB .......................................................... 21 Report No.: RF130702E04 3 of 21 Report Format Version 5.0.1 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF130702E04 Original release July 15, 2013 Report No.: RF130702E04 4 of 21 Report Format Version 5.0.1 1 CERTIFICATION PRODUCT : 2.4GHz Cordless Mouse BRAND NAME : Logitech MODEL NO. : M-R0050 TEST SAMPLE : ENGINEERING SAMPLE APPLICANT : LOGITECH FAR EAST LTD. TESTED : July 10, 2013 STANDARDS : FCC Part 15, Subpart C (Section 15.249) ANSI C63.10-2009 The above equipment (Model: M-R0050) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: May 09, 2013 ( Lori Chung, Specialist ) APPROVED BY : , DATE: May 09, 2013 ( May Chen, Manager ) Report No.: RF130702E04 5 of 21 Report Format Version 5.0.1 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD PARAGRAPH TEST TYPE RESULT REMARK 15.207 Conducted Emission Test NA Power from battery. 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement Limit: 50dB less than the peak value of fundamental frequency or meet radiated emission limit in section 15…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
