JNZVU0036Wireless Speaker

English Read Manual Before Product Use. POWER SUPPLY WARNING! The power supply is for indoor use only. Only use the power supply included with your product. Do not attempt to repair or use a damaged power supply. Do not immerse the power supply in water or subject it to physical abuse. Inspect the power supply regularly for cable, plug, and casing damage. BATTERY WARNING!: Improperly replaced batteries may present a risk of leak or explosion and personal injury. Mistreated rechargeable batteries may present a risk of fire or chemical burn. Do not disassemble or expose to conducting materials, moisture, liquid, or heat above 54° C (130° F). Do not use or charge the battery if it appears to be leaking, discolored, deformed, or in any way abnormal. Do not leave your battery discharged or unused for extended periods. Do not short circuit. Your device may contain an internal, rechargeable battery that is not replaceable. Battery life varies with usage. Non-operational batteries should be discarded according to local laws. If no laws or regulations govern,dispose of your device in a waste bin for electronics. Keep batteries away from children. Safe Usage Guidelines for Products • Do not open or modify the product except for battery removal and replacement. • Do not disassemble or attempt to service this product. • This product is safe under normal and reasonably foreseeable misuse operating conditions. • If product is operating improperly, call Logitech support. • Product must be returned to the manufacturer for any service or repair. • This is not a Children’s Product and is not intended for use by children under 14 years old. Logitech Compliance. For Product Safety, EMC, and RF information, go to www.logitech.com/compliance. Maintenance is not required for product compliance. FCC statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates , uses and can radiate radio frequency energy. And, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Where shielded interface cables or accessories have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC. Changes or modifications to product not expressly approved by Logitech, Inc could void your right to use or operate your product by the FCC. Radiation Exposure Statement This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Caution: (i) the device for operation in the band 5150 5250 MHz is only for indoor use to reduce the potential for harmful interference to co channel mobile satellite systems; (ii) high power radars are allocated as primary users (i.e. priority users) of the bands 5250 -5350 MHz and 5650 -5850 MHz and that these radars could cause interference and/or damage to LE LAN devices. IC statement : CAN ICES 003 (B) / NMB 003 Class (B) This device complies with Industry Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cordless (Radio Transmitter) products: Section A. RSS 310 (27 MHz transmitters and receivers): This Category II radio communication device complies with Industry Canada Standard RSS 310. Section B. RSS 210 (2.4 GHz transmitters or transceivers): This Category I radio communication device complies with RSS 210 of Industry Canada. Brazil Statement: Este equipamento opera em caráter secundário, isto é, não tem direito á proteção contra interferencia prejudicial mesmo de estações do mesmo tipo e não pode causar interferência a sistemas operando em caráter primário. Mexico Statement: La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia incluyendo la que pueda causar su operación no deseada. Logitech Limited Hardware Product Warranty – A Summary Logitech warrants that its hardware product shall be free from defects in materials and workmanship for the length of time identified on your product package beginning from the date of the original retail purchase. See support.logitech.com for specific warranty information about your product and procedures to act on a warranty claim. Logitech’s entire liability and your exclusive remedy for any breach of warranty shall be, at Logitech’s option, to repair or replace a functional equivalent of the product, or to refund the price p…

Text truncated - open the document above for the full version.

CONTROLS Camera Presets Press and hold these buttons to define new camera preset positions. The camera will return to this position by pressing the button once. You can change the preset positions at any time by repeating this step. The remote has two extra presets. Far End Control Press this button to pan, tilt and zoom a far-end ConferenceCam Live, CC3000e, ConferenceCam Connect or BCC9502. Press button to toggle between far end and local cameras. 1 Bluetooth ® -to-speakerphone support is meant for mobile devices and not for PC or Mac computers. 2 Far end control is supported by plug-in for Microsoft ® Lync ™ 2010, 2013 and Skype for Business (please visit www.logitech.com/supportcc33000e to download plug-in). Other applications, such as Vidyo ® , support this function natively. Camera pan/ tilt Activity light Camera presets Far end camera control Microphone mute Bluetooth pairing Call answer/ end Camera zoom Volume controls Call answer/ end Camera zoom Camera presets Speaker volume Camera pan/tilt Far end camera control Microphone mute Optional expansion microphones ConferenceCamWonderCam REFERENCE GUIDE Microphone mute STARTING A VIDEO CALL 1 Connect Connect the USB cable to your computer. The camera and speakerphone will flash to show USB connection. Optional: connect an external monitor to your computer. 2 Start Start your video application, ensuring that ConferenceCam Live is selected as the camera, microphone and speaker in the application options. 3 Go The activity light is blue on the speakerphone when video and audio are streaming. ACTIVITY LIGHT Blue: In an active call Blinking Blue: Incoming call Blinking Blue in call: Call has been put on hold from within the application Red: Audio is muted CALL ACTIVITY ON THE SPEAKERPHONE DISPLAY The LCD will display call activity as well as volume and connectivity status. Caller ID and call duration depend on application support. Please see Application Notes or Support for further information. Bluetooth ® VOICE CALLS Hold down the Bluetooth button until the blue LED on the speakerphone starts blinking. Go to Settings on your mobile device and complete the pairing. When paired, the Bluetooth icon on the lCD will appear brighter 1 . © 2015 Logitech. Logitech, the Logitech logo and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the properties of their respective owners. Logitech assumes no responsibility for any errors that may appear in this publication. Product, pricing and feature information contained herein is subject to change without notice. You must connect to a computer to use this device! Optional: connect an external monitor or projector to your computer 1 2 3

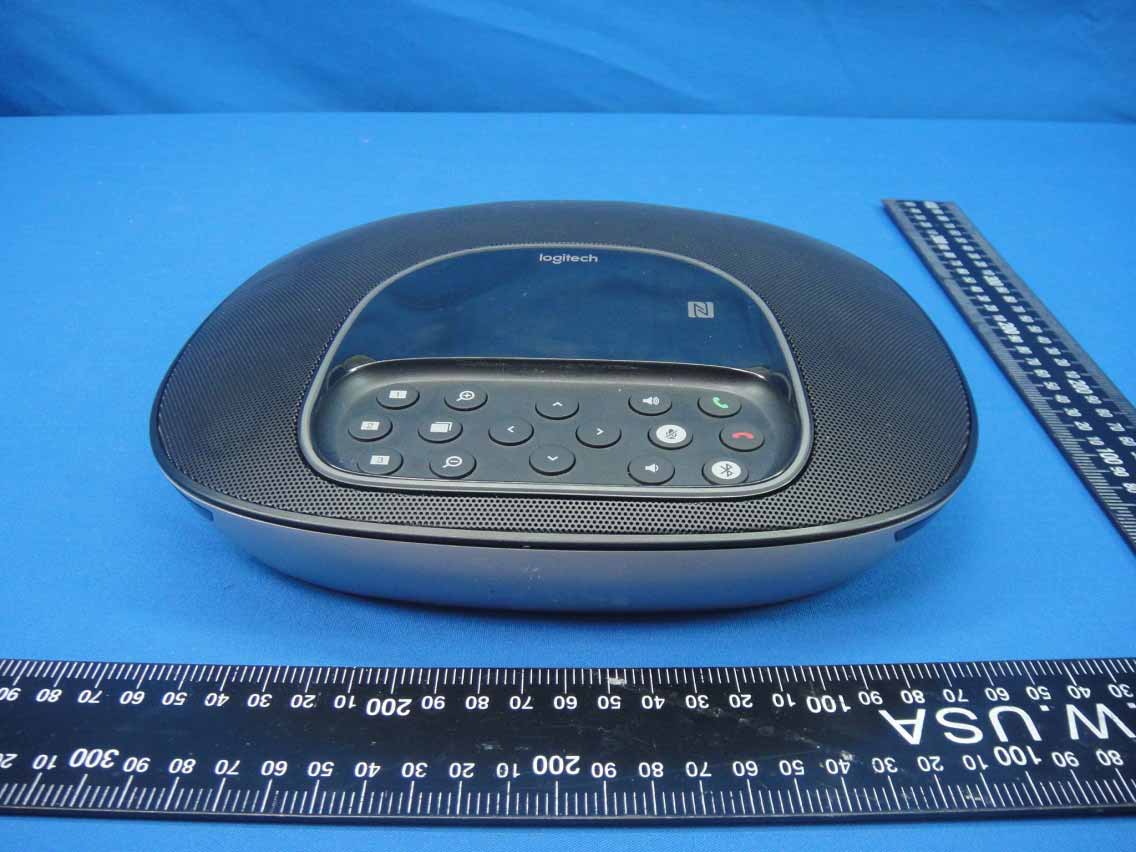

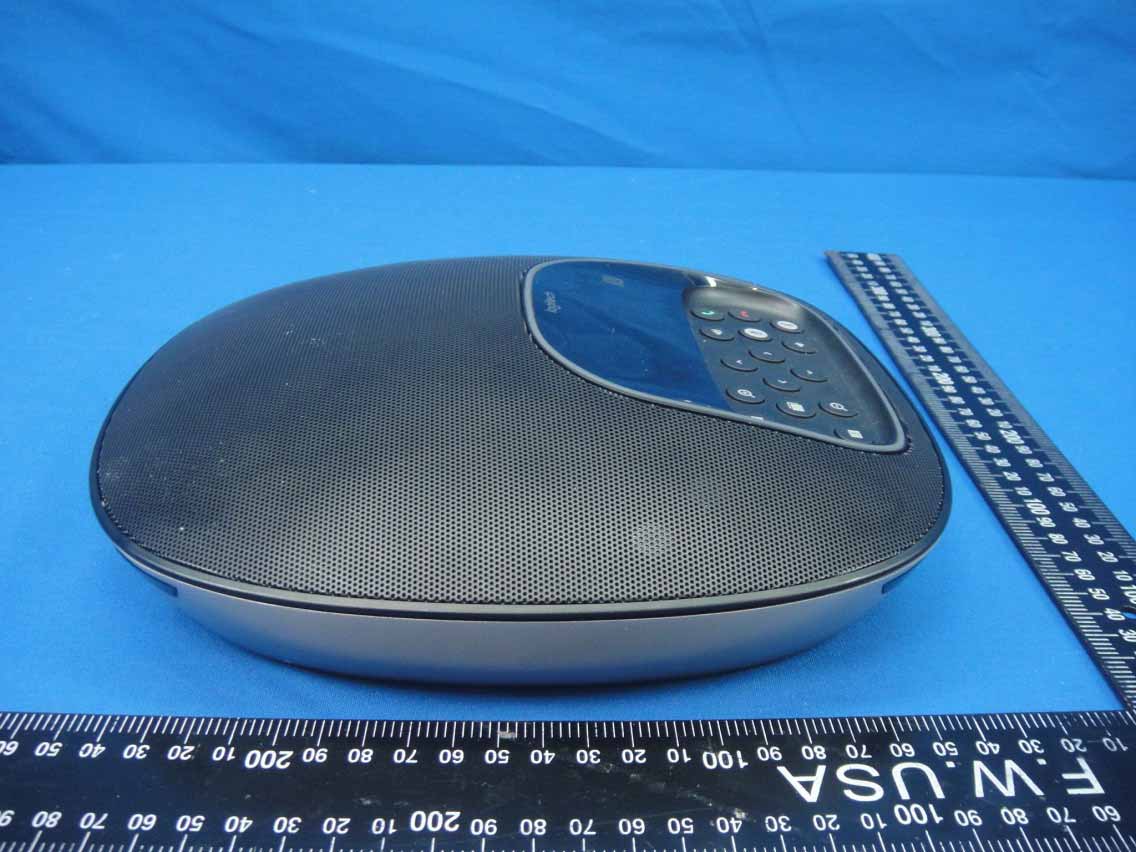

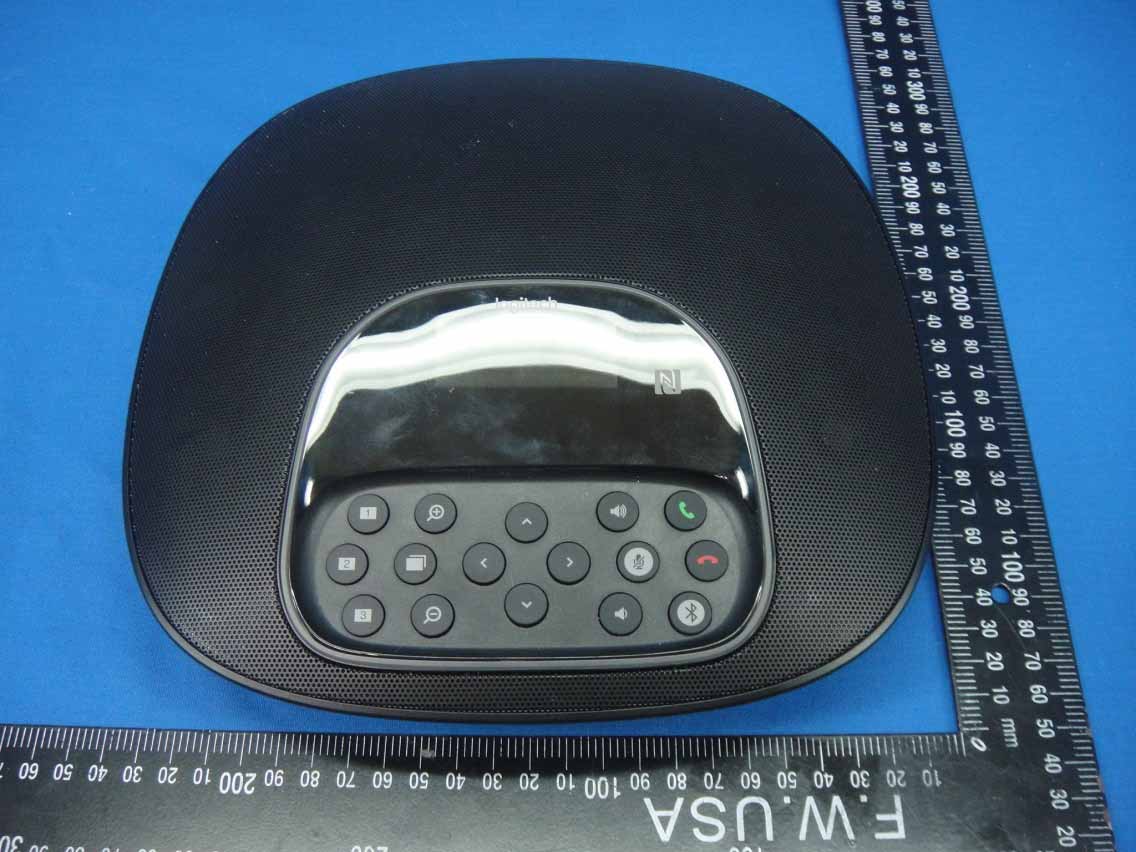

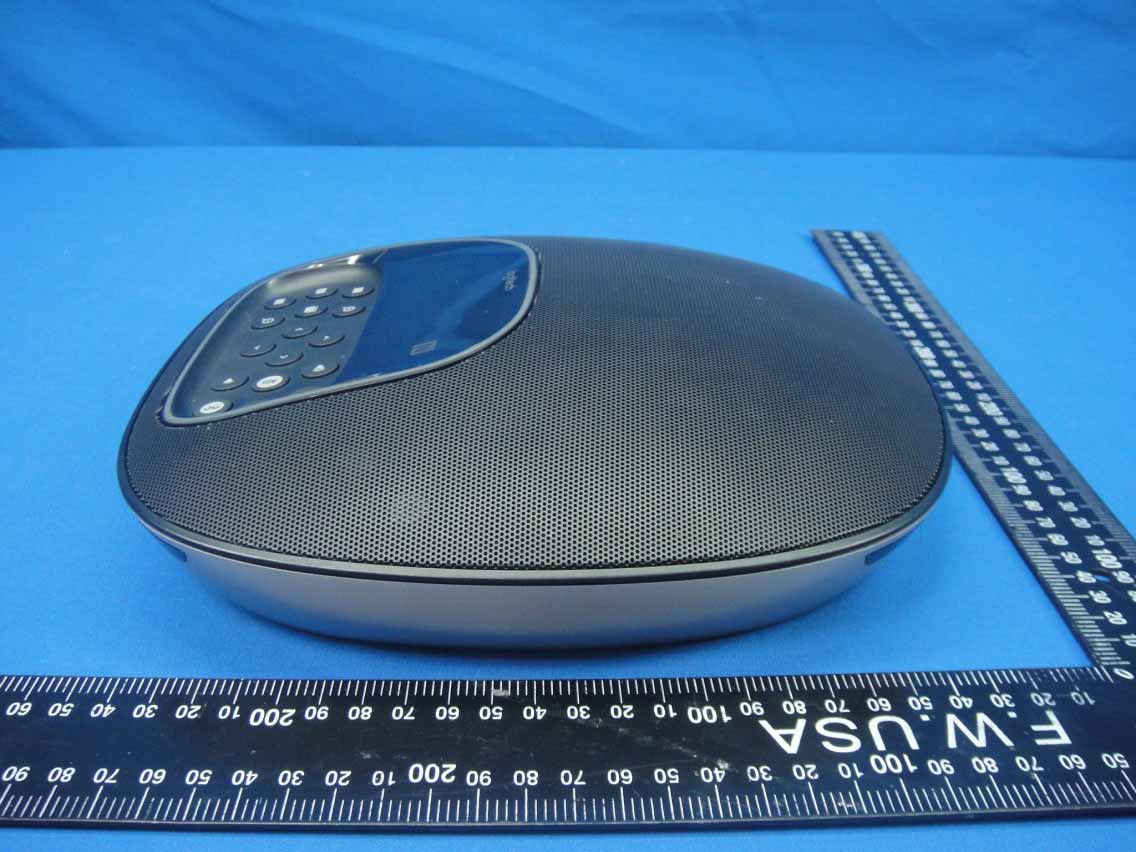

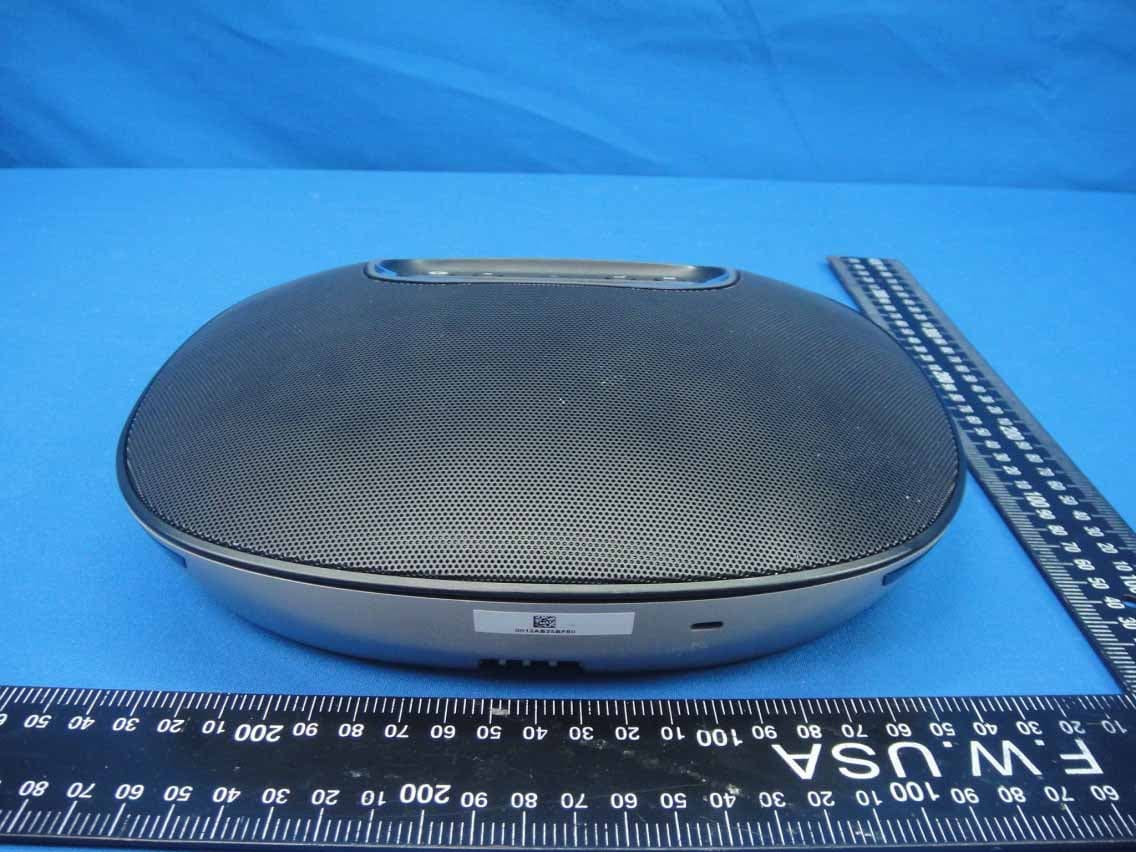

Report No.: 151027E14 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 151027E14 Page 2 Report No.: 151027E14 Page 3 Report No.: 151027E14 Page 4 Report No.: 151027E14 Page 15 HUB: Logitech / V-U0033 Report No.: 151027E14 Page 16 Adapter: Logitech / DSA-18CB-12 FCA 120150 Report No.: 151027E14 Page 17 Report No.: 151027E14 Page 18 mini DIN connect cable USB to Mini USB cable

(Fig.1) FCC ID: JNZVU0036 FCC LABEL AND LOCATION The label will be permanently affixed at a conspicuous location on the device.

Report No.: 151027E14 Page 5 Report No.: 151027E14 Page 6 Report No.: 151027E14 Page 7 Report No.: 151027E14 Page 8 Report No.: 151027E14 Page 9 Report No.: 151027E14 Page 10 Report No.: 151027E14 Page 11 Report No.: 151027E14 Page 12 Report No.: 151027E14 Page 13 Report No.: 151027E14 Page 14

Report No.: SA151027E14 Page No. 1 / 6 Report Format Version: 6.1.1 RF Exposure Report Report No.: SA151027E14 FCC ID: JNZVU0036 Test Model: V-U0036 Received Date: Oct. 27, 2015 Test Date: Nov. 05, 2015 Issued Date: Nov. 12, 2015 Applicant: LOGITECH FAR EAST LTD. Address: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (3): E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. Report No.: SA151027E14 Page No. 2 / 6 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits For Maximum Permissible Exposure (MPE) ............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 2.4 Antenna Gain ...................................................................................................................................... 5 2.5 Calculation Result of Maximum Conducted Power ............................................................................. 6 Report No.: SA151027E14 Page No. 3 / 6 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SA151027E14 Original release. Nov. 12, 2015 Report No.: SA151027E14 Page No. 5 / 6 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits For Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 2.4 Antenna Gain The antenna provided to the EUT, please refer to the following table: Antenna Type Antenna Connector Gain (dBi) PCB printing Antenna NA 0.64 Report No.: SA151027E14 Page No. 6 / 6 Report Format Version: 6.1.1 2.5 Calculation Result of Maximum Conducted Power Frequency Band (MHz) Max Power (mW) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2402-2480 3.467 0.64 20 0.0008 1 --- END ---
