JNZYR00092.4GHz Cordless keyboard

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limit s for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates , uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to ra dio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause har mful interference to radio or television reception, which can be determined by turning the equi pment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may n ot cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operat ion. Industry Canada Statement This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including in terference that may cause undesired operation of the device Product Specification Product Name：2.4GHz Cordless keyboard Model Name： Y-R0009 Brand Name： Logitech Antenna Internal Type of Antenna (Loop....) PCB printed antenna gain 0.45dBi Method of Frequency generation 16 MHz Crystal + PLL Number of channels 12 Carrier frequencies Index RF channel Index RF channel 1 2405(0x05) 7 2441 (0x29) 2 2408 (0x08) 8 2444 (0x2C) 3 2414 (0x0E) 9 2462 (0x3E) 4 2417 (0x11) 10 2465 (0x41) 5 2432 (0x20) 11 2471 (0x47) 6 2435 (0x23) 12 2474 (0x4A) 20dB channel bandwidth (Carson's rule) for modulated carrier 2 MHz @ -20 dBm Channel switching frequency range 2405 MHz - 2474 MHz Modulation characteristics Digital GFSK Transmitter aggregate data rate 2Mbits/s per second Effective radiated power 0 dBi If intermittent duty duty cycle: Tx on = 0.08 ms Tx off = 7.92 ms Duty cycle (Tx on / (Tx on + Tx off)) = 1% Transmission range 100m max in free space Method of Frequency generation 16 MHz Crystal + PLL Range 100m in free space Power source AA Alkaline battery Power consumption 10mW typical (typing) Nominal DC voltage 3V Operating voltage 2.1V 3.2V Extreme test voltage (low) 2.1V Applies cut off voltage (automatic switch off) 2.1V typ DC maximum current 30 mA worst case Extreme Temperature range 0 °C to 40°C

LOGITECH FAR EAST LTD. #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. TEL: 886-3-5778241 FAX: 886-3-5772393 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: JNZYR0009 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Pursuant to DA 04-1705 of the Commission’s Rules, we request short-term confidential treatment for the following information until May .31.2010 of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards T.C. Chang / Sr. Manager AP Region Compliance LOGITECH FAR EAST LTD. Tel: +886 3 5778241* 2146 Fax: +886 3 5772393 E-mail: [email protected] 2010/02/11

LOGITECH FAR EAST LTD. #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. TEL: 886-3-5778241 FAX: 886-3-5792393 POWER OF ATTORNEY We, the undersigned LOGITECH FAR EAST LTD. hereby authorize Bureau Veritas Consumer Product Service (Hong Kong) Limited, Taoyuan Branch Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by Bureau Veritas Consumer Product Service (Hong Kong) Limited, Taoyuan Branch on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! 1. Model name: Y-R0009 2. Product name: 2.4GHz Cordless keyboard 3. Brand name: Logitech Sincerely yours, T.C. Chang / Sr. Manager AP Region Compliance LOGITECH FAR EAST LTD. Tel: +886 3 5778241* 2146 Fax: +886 3 5772393 E-mail: [email protected] 2010/2/11

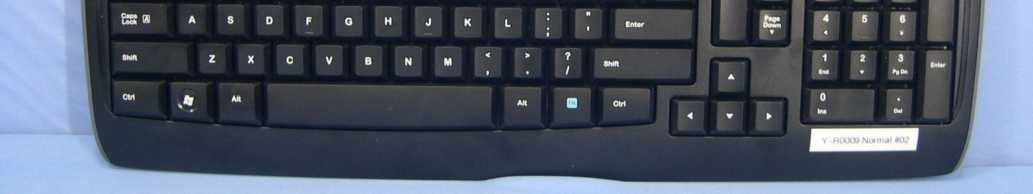

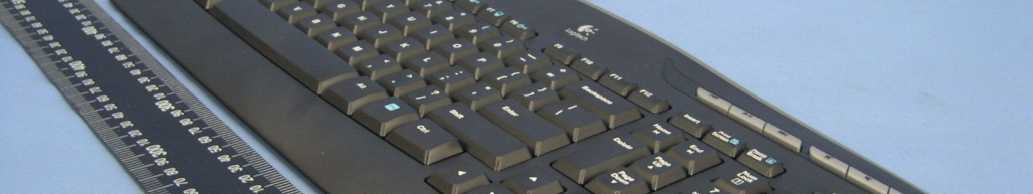

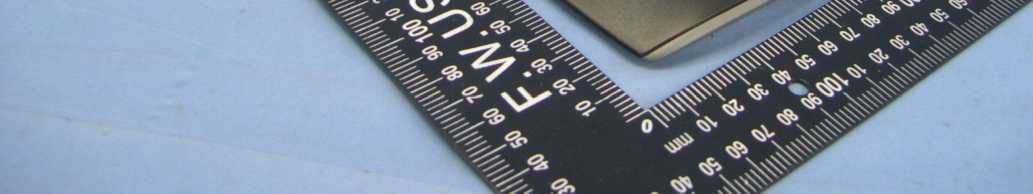

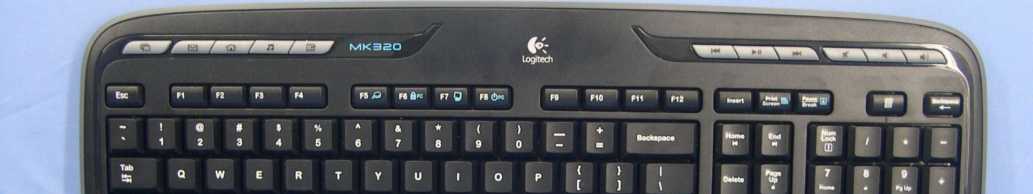

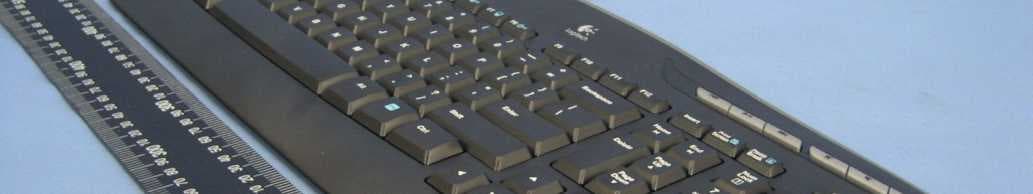

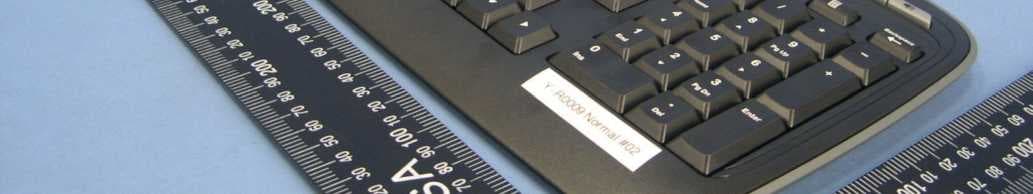

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

BA 3 C B 2 1 A 2 1 Remark: PART NO SCALE UNIT DRAWN DESIGNER APPROVED CHECKED TREATING DRAWING SHEET OF DRAWING NO UNSPECIFIED 1:1 DESCRIPTION .XXX± .X± .± .XX± ANGLE± TOLERANCE TITLEDO NOT SCALE Q'TYMAT'LREMARK mm PART NO SCALE UNIT DRAWN DESIGNER APPROVED CHECKED TREATING DRAWING SHEET OF DRAWING NO UNSPECIFIED 1:1 DESCRIPTION .XXX± .X± .± .XX± ANGLE± TOLERANCE TITLEDO NOT SCALE Q'TYMAT'LREMARK mm Logitech type of Document No. Language Type Rev DRAWING NO ALL 2010.02.11 M/N :Y-R0009 P/N PID DZL-Y-R0009 CMIIT ID:2009DJ3824 Rating :3V 15mA Made in China T41126 Approval No.:ETA - 207/2009/WRLO CCAI09LP0900T3 201 WW 09215218 836-00290-00A 700-003704 PDM 003 Pioneer.Lee 12595/POSTEL/2009 2100 engrave E 1 4 56 1 4 FCC ID:JNZYR0009 IC: 4418A-YR0009

(Fig.1) FCC ID: JNZYR0009 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. FCC ID 31.28mm 112.90mm

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Report No.: RF980720H02 1 Report Format Version 3.0.0 FCC TEST REPORT REPORT NO.: RF980720H02 MODEL NO.: Y-R0009 RECEIVED: July 20, 2009 TESTED: July 27, 2009 ISSUED: July 30, 2009 APPLICANT: LOGITECH FAR EAST LTD. ADDRESS: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch TEST LOCATION: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 23 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF980720H02 2 Report Format Version 3.0.0 Table of Contents 1 CERTIFICATION.............................................................................................3 2 SUMMARY OF TEST RESULTS.....................................................................4 2.1 MEASUREMENT UNCERTAINTY..................................................................4 3 GENERAL INFORMATION.............................................................................5 3.1 GENERAL DESCRIPTION OF EUT................................................................5 3.2 DESCRIPTION OF TEST MODES..................................................................6 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.................................6 3.4 DESCRIPTION OF SUPPORT UNITS............................................................7 3.5 CONFIGURATION OF SYSTEM UNDER TEST.............................................7 4 TEST PROCEDURES AND RESULTS...........................................................8 4.1 RADIATED EMISSION MEASUREMENT.......................................................8 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT.....................................8 4.1.2 TEST INSTRUMENTS....................................................................................9 4.1.3 TEST PROCEDURES...................................................................................10 4.1.4 DEVIATION FROM TEST STANDARD.........................................................10 4.1.5 TEST SETUP.................................................................................................11 4.1.6 EUT OPERATING CONDITIONS...................................................................11 4.1.7 TEST RESULTS............................................................................................12 4.2 CONDUCTED - OUT BAND MEASUREMENT.............................................19 4.2.1 LIMITS OF CONDUCTED - OUT BAND MEASUREMENT..........................19 4.2.2 TEST INSTRUMENTS..................................................................................19 4.2.3 TEST PROCEDURE.....................................................................................19 4.2.4 DEVIATION FROM TEST STANDARD.........................................................19 4.2.5 EUT OPERATING CONDITION....................................................................19 4.2.6 TEST RESULTS............................................................................................20 5 INFORMATION ON THE TESTING LABORATORIES..................................22 6 APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB..........................................................23 Report No.: RF980720H02 3 Report Format Version 3.0.0 1 CERTIFICATION PRODUCT : 2.4GHz Cordless keyboard BRAND NAME : Logitech MODEL NO. : Y-R0009 TESTED : July 27, 2009 TEST SAMPLE : ENGINEERING SAMPLE APPLICANT : LOGITECH FAR EAST LTD. STANDARDS : 47 CFR Part 15, Subpart C (Section 15.249), ANSI C63.4-2003 The above equipment (Model: Y-R0009) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: July 30, 2009 ( Carol Liao, Specialist ) TECHNICAL ACCEPTANCE : , DATE: July 30, 2009 Responsible for RF ( Hank Chung, Deputy Manager ) APPROVED BY : , DATE: July 30, 2009 (May Chen, Deputy Manager ) Report No.: RF980720H02 4 Report Format Version 3.0.0 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C Standard Paragraph Test Type Result Remark 15.207 Conducted Emission Test NA Power supply is DC 3V from batteries 15.249 Radiated Emission Test PASS Minimum passing margin is -6.98dB at 7422.0MHz 15.249 Conducted - Out Band Measurement PASS Meet the requirement of limit 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement Value Radiated emissions (30MHz-1GHz) 3.94 dB Radiated emissions (1GHz -18GHz) 2.49 dB Radiated emissions (18GHz -40GHz) 2.70 dB Report No.: RF980720H02 5 Report Format Version 3.0.0 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT 2.4GHz Cordless keyboard MODEL NO. Y-R0009 FCC ID JNZYR0009 POWER SUPPLY DC 3V from batteries MODULATION TYPE GFSK CARRIER FREQUENCY OF EACH CHANNEL 2405MHz ~ 2474MHz NUMBER OF CHANNEL 12 ANTENNA TYPE PCB printed antenna with 0.45dBi antenna gain DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The above EUT information was declared by the manufacturer and for more detailed features description, please refer to the m…
