JPZ0032Radio Frequency Controlled Dimmer

Important Notes 1.Caution: To avoid overheating and possible damage to other equipment, do not use to control receptacles, fluorescent lighting fixtures, motor- operated or transformer-supplied appliances. 2.Install in accordance with all national and local electrical codes. 3.Do not paint dimmers or wallplates. 4.Clean with a soft damp cloth only. Do not use any chemical cleaners. 5.Do not use where total wattage is under recommended minimum load. 6.Do not exceed maximum load rating of dimmers. 7.In any 3-way/4-way circuit use only one Dimmer with up to 9 Accessory Dimmers. 8.Dimmer may not work with dioded lamps (Sylvania Designer 16™ or Philips PAR-16™). 9.Operate in ambient temperatures between 0°C (32°F) and 40°C (104°F). 10.Dimmer may feel warm to the touch during normal operation. 11.Recommended wallbox depth: 3 1 /2" deep recommended, 2 1 /2" deep minimum. 12.The range and performance of the RadioRA® System is highly dependent on a variety of complex factors such as: • Distance between system components • Geometry of the home • Construction of walls separating system components • Electrical equipment located near system components 13.Do not mix RadioRA®“A”(RA-) and “B” (RB-) products within the same system. “A” products and “B” products are not compatible. Installation Instructions for Multi-Location Control Please Leave for Occupant Incandescent / 120V Halogen / Magnetic Low-Voltage RA-6D, RB-6D RA-10D, RB-10D Accessory Dimmer RA-AD, RB-AD 120 V 50/60 Hz Low-Voltage dimmers only: 14. Use models RA/RB-6D/10D with only core and coil (magnetic) low-voltage transformers. Do not use to control solid-state (electronic) low-voltage transformers. 15.CAUTION: Operating a dimmed low-voltage circuit with all lamps inoperative or removed may result in current flow in excess of normal levels. To avoid possible transformer overheating and premature failure, Lutron strongly recommends the following: • Do not operate dimmed low-voltage circuits without operative lamps in place. • Replace burned-out lamps immediately. • Use transformers with thermal protection or fused primary windings to prevent transformer failure due to excess current. Before installation read instructions completely. Minimum Load Chart Dimmer Wattage Type of Load600W1000W Incandescent50 W50 W Magnetic Low-Voltage50 VA100 VA English P/N 044-050 Lutron Electronics Co., Inc. 7200 Suter Road Coopersburg, PA 18036-1299, U.S.A. Made and printed in the U.S.A. 7/04 P/N 044-050 Rev. A Operation Three-Location Installation Continued FCC Information NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by Lutron Electronics Co. could void the user's authority to operate this equipment. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Technical Assistance If you have questions concerning the installation or operation of this product, call the Lutron Technical Support Center. Please provide exact model number when calling. (800) 523-9466 (U.S.A., Canada, and the Caribbean) Other countries call (610) 282-3800 Fax (610) 282-3090 Visit our web site at www.lutron.com Step 7Mount and align dimmers. Attach Claro® or Satin ColorsTM wallplates (purchased separately). Step 8Turn power ON. Align dimmers. Ensure FASS TM switches are fully pushed in. Tighten screws until snug. Attach wallplates. ON OFF ON OFF ON OFF Troubleshooting Possible Cause • Front Accessible Service Switch (FASS TM) on the dimmers are pulled out (OFF). • Light bulb(s) burned out. • Breaker is off or tripped. • Blue wire on Accessory Dimmer not connected to the same color wire as the blue wire on Dimmer. • Black and Red wires on Dimmer are reversed. • Dimmer wired in middle of Accessory Dimmer string - must be on the line or load end of string. • Total wattage is under recommended minimum load. (See Important Note No.5.) Symptom Light does not turn on. Light turns ON and Dimmer works, but Accessory Dimmer does not work. Switch Tap on, Tap off Tap Twice Quickly - lights adjust rapidly to full. Press & Hold for 2 Seconds - Activates 10 second fade to off. Dimming Rocker Brighten Dim LEDs Indicate light level; glow softly as night light when light is off. (Not available on Accessory Dimmer.) FASS Front Accessible Service Switch For detailed instructions on programming the system, refer to the RadioRA ® Setup Guide that is included with an RF Signal Repeater or the Setup and Installation Guide that is included with a Chronos System Bridge and Timeclock. IMPORTANT NOTICE: FASS ™ - Front Accessible Service Switch - to replace bulb, power may be conveniently removed by pulling FASS switch out on both the Dimmer and any Accessor y Dimmers. For any procedure other than routine lamp replacement, power must be disconnected at the main electrical panel. Limited Warranty Lutron will, at its option, repair or replace any unit that is defective in materials or manufacture within two years after purchase. For warranty service,…

Text truncated - open the document above for the full version.

7th July, 2004 Underwriters Laboratories, Inc. 1285 Walt Whitman Road Melville, NY 11747-3081 Attn: Mr. Joe Danisi Subject: Request for Confidentiality for RB-6D JPZ0032 Dear Joe, This letter is to formally request confidentiality per the FCC Rules 47 CFR Chapter 1, subpart C, section 0.459 - requests that materials or information submitted to the Commission be withheld from public inspection. For model RB-6D, the following items are Lutron Electronics Co., Inc. confidential information that must be withheld from public inspection by potential competitors to protect our business. 1. Schematics 2. Operational Description Thank you for your cooperation. Sincerely, R. S. Spehalski Engineering Leader

Ju ly 2004 JPZ0032 Zero Cross Detection Full Wave Bridge +- Power Supply 120Hz Vcc Circuit Common Microcontroller LEDs and Switches Vcc Receive Data Transmit Data Vcc antenna T/R switch Low Noise Amplifier filter X Local Oscillator 423.22MHz mixer IF 10.7MHz Data slicer Receive Data Transmit Enable Power Amplifier Transmit Oscillator 433.92MHz Transmit Enable Transmit Data Phase Control Dimming BLACKRED LUTRON ELECTRONICS CO., INC. Project 782 3-way detection BLUE

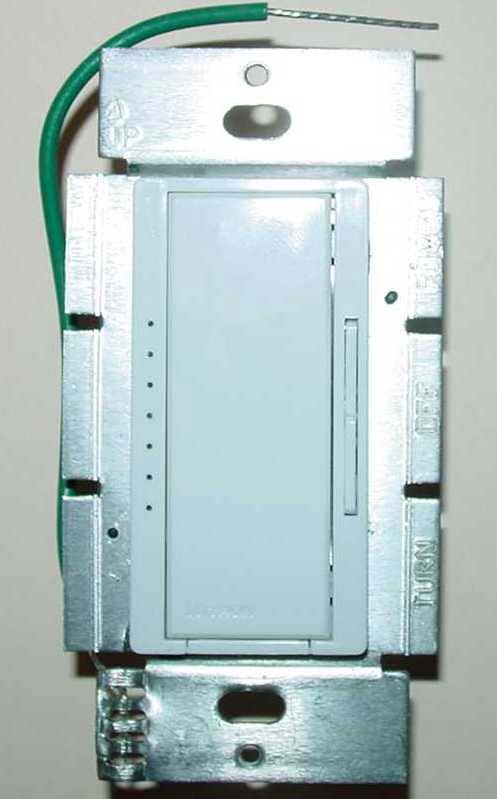

July 2004 JPZ0032 Lutron project 782RB-6D Page 1 of 2 External Photo July 2004 JPZ0032 Lutron project 782RB-6D Page 2 of 2 External Photo

LUTRON ELECTRONICS CO., INC. Project: 782 July 2004 1 of 1 JPZ0032 ID Label FCC ID: JPZ0032

July 2004 JPZ0032 Lutron project 782RB-6D Page 1 of 5 Internal Photo July 2004 JPZ0032 Lutron project 782RB-6D Page 2 of 5 Internal Photo July 2004 JPZ0032 Lutron project 782RB-6D Page 3 of 5 Internal Photo July 2004 JPZ0032 Lutron project 782RB-6D Page 4 of 5 Internal Photo July 2004 JPZ0032 Lutron project 782RB-6D Page 5 of 5 Internal Photo

Underwriters Laboratories Inc. A not-for-profit organization dedicated 1285 Walt Whitman Rd. To public safety and committed to Melville, NY 11747 Quality service for over 100 years Tel: (631) 271-6200 Fax: (631) 439-6095 Project: 04ME04421 File: NC2219 Date: 6/23/2004 Model: RB-6D FCC ID: JPZ0032 Test Report On Electromagnetic Compatibility Testing Copyright  2003 Underwriters Laboratories Inc. Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. File Number: NC2219 Issued: 7/12/2004 Project Number: 04ME04421 Model Number: RB-6D FCC ID: JPZ0032 ____________________________________________________________________________________________________ Page 2 of 51 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Test Report Details Tests Performed By: Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, NY 11747 Tests Performed For: Lutron Electronics Inc. 7200 Suter Road Coopersburg, PA 18036 Applicant Contact: Mark Clouser Title: Field Applications Specialist Phone: 610-282-3800 Fax: 610-282-0298 E-mail: [email protected] Test Report Date: 7/12/2004 Product Type: Radio Frequency Controlled Dimmer Model Number: RB-6D Sample Serial Number: Not Provided Sample Tag Number: 0584944001 Sample Receive Date: 5/6/ 2004 EUT Category: Transceiver Testing Start Date: 5/6/2004 Date Testing Complete: 5/14/2004 Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report shall not be used to claim, constitute or imply product certification, approval, or endorsement by NVLAP, A2LA, or any agency of the US government. This report may contain test results that are not covered by the NVLAP or A2LA accreditation. The scope of accreditation is limited to the specific tests that are listed on the NVLAP and/or A2LA certificates provided at the end of this report. File Number: NC2219 Issued: 7/12/2004 Project Number: 04ME04421 Model Number: RB-6D FCC ID: JPZ0032 ____________________________________________________________________________________________________ Page 3 of 51 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 Report Directory 1.0 G E N E R A L - Product Description...........................................................................................4 1.1 Device Configuration During Test......................................................................................................5 1.1.1 Equipment Used During Test:......................................................................................................5 1.1.2 Input/Output Ports:.....................................................................................................................5 1.1.3 EUT Internal Operating Frequencies:...........................................................................................6 1.1.4 Power Interface:.........................................................................................................................6 1.2 EUT Operation Modes:......................................................................................................................6 1.3 EUT Configuration Modes:................................................................................................................6 1.4 Block Diagram:.................................................................................................................................7 1.5 Deviations from standard test methods................................................................................................7 1.6 Device Modifications Necessary for Compliance.................................................................................7 1.7 Test Summary...................................................................................................................................7 2.0 Conclusion:...................................................................................................................................8 3.0 FCC Labeling Information...........................................................................................................9 3.1 Identification.....................................................................................................................................9 3.2 Compliance information....................................................................................................................9 3.3 Labeling.........................................................................................................................................10 3.4 User information.............................................................................................................................12 4.0 Calibration of Equipment Used for Measurement.....................................................................12 5.0 EMISSIONS TEST REGULATIONS.........................................................................................13 5.1.1 Conducted Emissions Tests.......................................................................................................14 5.1.2 Cease Operation Within 5 Seconds............................................................................................27 5.1.2 Radiated Emissions Test (10 Meter Semi-Anechoic Chamber).................................................…

Text truncated - open the document above for the full version.

Radiated Emission Test Set-Up Front – 30-1000MHz Radiated Emission Test Set-Up Rear – 30-1000MHz Radiated Emission Test Set-Up Front – 1-5GHz R R a a d d i i a a t t e e d d E E m m i i s s s s i i o o n n T T e e s s t t S S e e t t - - U U p p R R e e a a r r – – 1 1 - - 5 5 G G H H z z C C o o n n d d u u c c t t e e d d E E m m i i s s s s i i o o n n s s T T e e s s t t S S e e t t - - U U p p C C e e a a s s e e O O p p e e r r a a t t i i o o n n T T e e s s t t S S e e t t - - U U p p Pulse Train Test Set-Up Occupied Bandwidth Test Set-Up
