JPZ0036Lighting Control Transceiver

1 Please Read Before Installing Designer-Style RF Slim-Button Keypads HRD-5KP, -5RL, -10KP, -10RL 120 V , 0.5 A, 50/60 Hz Installation Instructions Overview The HRD-5KP, -5RL, -10KP, and -10RL keypads are for use with HomeWorkssystems. The keypad buttons are programmed with a personal computer using the HomeWorksUtility. Up to 32 keypads, each with a unique address, can be assigned to each HomeWorksRF Processor. HRD-5KP HRD-10KP HRD-10RL HRD-5RL Important Notes Codes:Install in accordance with all local and national electrical codes. Environment:Ambient operating temperature: 0-40°C, 32-104°F, 0-90% humidity, non-condensing. Indoor use only. Wallplates:Lutron Claro ®and Satin ColorsTMwallplates are recommended for best color match and clean aes- thetic appearance. Do not paint controls or wallplates. Cleaning:To clean, wipe with a clean damp cloth. DO NOTuse any chemical cleaning solutions. Wallboxes: Lutron recommends using 3-1/2 in. (89 mm) deep wallboxes for easier installation. RF Device Placement:RF Keypads must be located within 30 feet (9 m) of an RF Signal Repeater or an RF Processor. RF Keypads will not function until they are addressed and programmed. See the HomeWorksUtility online help. 2 Mounting Diagram Wallbox Keypad Mounting Screws Keypad Adapter Mounting Screws Wallplate and Adapter are purchased separately. 1.Turn power OFF at fusebox or circuit breaker. Danger - Locate and remove fuse or lock circuit breaker in the OFF position before proceeding. Wiring with power ON may result in personal injury. 2.Prepare wires. When making wire connections, fol- low the recommended strip lengths and combina- tions for the supplied wire connectors. Note: Wire connectors provided are suitable for copper wire only. Small: Strip insulation 3/8 in. (10 mm) for 14 AWG (2.5 mm 2 ). Strip insulation 1/2 in. (13 mm) for 16 AWG (1.5 mm 2 ). Use to join one 14 AWG supply wire with one 16 or 18 AWG (1.0 mm 2 ) control wire. 3.Wiring: See Wiring Diagram (page 3). 4.Push all wires back into the wallbox and loosely fasten the control to the wallbox using the keypad mounting screws provided. Do not pinch the wires. 5.Attach Lutron Claro®or Satin ColorsTM wallplate adapter and wallplate. a. Loosely install keypad mounting screws. b. Tighten wallplate adapter mounting screws snug. c. Tighten keypad mounting screws until wallplate adapter is flush to wall (do not over- tighten). d. Snap wallplate onto wallplate adapter, and verify that buttons are not submerged. e. If buttons are submerged, loosen keypad mounting screws appropriately. 6.Restore power. Included: Wire Connectors (3) Mounting Screws (2) Installation Small 3 Troubleshooting Guide RF Keypads will not function until they are addressed and programmed. See the HomeWorksUtility online help. SymptomCause and Action Wiring Diagram 120/127 VAC 50/60 Hz Hot/Live Black Green Earth/Ground Neutral White Power not present at keypad • Circuit breaker OFF. Turn ON breaker. • Wiring error. Check wiring to be sure it agrees with installation . Keypad has not been addressed. • See the HomeWorksUtility online help for setup details. Keypad has an address, but does not have a valid programming database. • See the HomeWorksUtility online help for programming details. Keypad is out of RF communications range. • Move RF Signal Repeater or RF Processor to within 30 feet of keypad. Improper programming • Check programming in HomeWorksUtility. LEDs don't light up when buttons are pressed. Button presses on keypad cause the keypad to quicklyflash all its LEDs simultaneously. Button presses on keypad cause the keypad to slowlyflash all its LEDs simultaneously. Keypad cannot be addressed. LEDs light when button is pressed, but the system response is not correct. Lutron Electronics Co., Inc. 7200 Suter Road Coopersburg, PA 18036-1299 Made and printed in the U.S.A. 7/03 P/N 043-099 Rev. A LIMITED WARRANTY Lutron will, at its option, repair or replace any unit that is defective in materials or manufac- ture within two years after purchase. For warranty service, return unit to place of purchase or mail to Lutron at 7200 Suter Rd., Coopersburg, PA 18036-1299, postage pre-paid. Telephone the Lutron Technical Support Center toll free at 800-523-9466. After the two year period, a pro-rated warranty applies to this product until eight years after the purchase. For more infor- mation regarding this warranty contact your Lutron representative. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES, AND THE IMPLIED WARRANTY OF MERCHANTABILITY IS LIMITED TO TWO YEARS FROM PUR- CHASE. THIS WARRANTY DOES NOT COVER THE COST OF INSTALLATION, REMOVAL OR REINSTALLATION, OR DAMAGE RESULTING FROM MISUSE, ABUSE, OR IMPROPER OR INCORRECT REPAIR, OR DAMAGE FROM IMPROPER WIRING OR INSTALLATION. THIS WARRANTY DOES NOT COVER INCIDENTAL OR CONSEQUEN- TIAL DAMAGES. LUTRON’S LIABILITY ON ANY CLAIM FOR DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE MANUFACTURE, SALE, INSTALLATION, DELIVERY, OR USE OF THE UNIT SHALL NEVER EXCEED THE PURCHASE PRICE OF THE UNIT. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not allow the exclusion or limi- tation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This product may be covered by one or more of the following U.S. patents: 4,835,343; 4,889,999; 5,170,068; 5,736,965; 5,838,226; 5,848,054; 5,905,442; 5,982,103; D344,068; D378,814 and corresponding foreign patents. U.S. and foreign patents pending. Lutron, Claro, and HomeWorks are registered trademarks and Satin Colors and the HomeWorks logo are trademarks of Lutron Electronics Co., Inc. © 2003 Lutron Electronics Co., Inc. Technical and Sales Assistance If you need assistance, call the toll-free Lutron Technical Support Center. Please provide exact model …

Text truncated - open the document above for the full version.

JPZ0036 HRD-5KP Page 1 of 1 Block Diagram April 2005 F 961I 831

25 th April, 2005 Subject: Request for Confidentiality – HRD-5KP JPZ0036 Dear Sir or Madam: This letter is to formally request confidentiality per the FCC Rules 47 CFR Chapter 1, subpart C, section 0.459 - requests that materials or information submitted to the Commission be withheld from public inspection. For model HRD-5KP, the following items are Lutron Electronics Co., Inc. confidential information that must be withheld from public inspection by potential competitors to protect our business. 1. Schematics 2. Operational Description Thank you for your cooperation. Sincerely, R. S. Spehalski Engineering Leader

22nd April, 2005 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AGENT AUTHORIZATION- HRD-5KP JPZ0036 Dear Sir or Madam: We, the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Mark Clouser Senior Engineering Technician

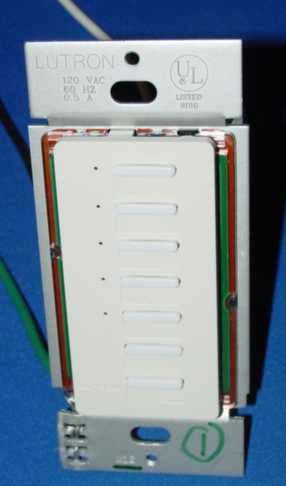

External photos April 2005 JPZ0036 HRD-5KP Page 1 of 2 F 961 I 831 External photos April 2005 JPZ0036 HRD-5KP Page 2 of 2 F 961 I 831

JPZ0036 HRD-5KP Page 1 of 2 ID label location April 2005 F 961I 831 JPZ0036 HRD-5KP Page 2 of 2

Internal photos April 2005 JPZ0036 HRD-5KP Page 1 of 2 F 961 I 831 Internal photos April 2005 JPZ0036 HRD-5KP Page 2 of 2 F 961 I 831

RADIATION SCIENCES INC. 1986.01 TEST REPORT NO. RSI-2709E ELECTROMAGNETIC EMISSION EVALUATION OF THE LUTRON ELECTRONICS MODEL #: HRD-5KP FCC PART 15, SUBPART B AND C 29 MARCH 2005 PREPARED FOR:Lutron Electronics 7200 Suter Road Coopersburg, PA 18036 SUBMITTED BY:Radiation Sciences Inc. 3131 Detwiler Road Harleysville, PA 19438 PREPARED BY:____________________ John Kavaluski EMC Test Engineer Radiation Sciences Inc. REVIEWED BY:____________________ Daniel J. Signore President Radiation Sciences Inc. RADIATION SCIENCES INC. RSI-2709E i ADMINISTRATIVE DATA TEST PERFORMED: Measurements of Radiated RF and Conducted Emissions. PURPOSE OF TEST: To evaluate the ElectroMagnetic Emission (EME) characteristics of the Equipment Under Test (EUT) with respect to Subpart B and C of Part 15 of the Federal Communications Commission (FCC) Rules for intentional and unintentional radiators. EQUIPMENT UNDER TEST (EUT): Model Number: HRD-5KP Serial Number: 070002062092 CONTRACT: Purchase Order Number: 56107 TEST PERIOD: 29 October 2004 and 23 March 2005 TEST FACILITY: Radiation Sciences Incorporated (RSI), EMC Test Laboratory, located at: 3131 Detwiler Road, Harleysville, Pennsylvania 19438. TEST PERSONNEL AND COORDINATORS: Radiation Sciences Inc.Lutron Electronics John KavaluskiMark Clouser RADIATION SCIENCES INC. RSI-2709E ii SUMMARY OF TEST RESULTS The Model #: HRD-5KP, configured as described herein, FULLY COMPLIES WITH THE REQUIREMENTS SET FORTH IN SUBPART B AND C OF PART 15 OF THE FED- ERAL COMMUNICATIONS COMMISSION (FCC) RULES FOR INTENTIONAL AND UNINTENTIONAL RADIATORS. RADIATION SCIENCES INC. RSI-2709E 1 1.0 INTRODUCTION This document is a report of tests to determine the EME characteristics of the Model #: HRD- 5KP, presented by Lutron Electronics of Coopersburg, Pennsylvania. The purpose of the testing was to evaluate the EMC characteristics of the test sample with re- spect to Subpart B and C of Part 15 of the FCC Rules for intentional and unintentional radiators. All test procedures used meet the requirements of the American National Standards Institute Procedure C63:4: "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz", dated 17 July 1992. RADIATION SCIENCES INC. RSI-2709E 2 2.0 DESCRIPTION OF THE TEST SAMPLE: The Lutron Electronics HRD-5KP is a wireless wall keypad operating between 431 and 437MHz. The keypad can be programmed to control any light or group of lights. The unit is powered by 115VAC and contains clock signals of 14.756 and 32.0MHz. The “5” notation in the 5KP Part Number denotes the number of buttons available in the device. The unit tested for FCC compliance was an HRD-5KP, which signifies that it was a 5- button/scene device. Depending on the configuration of the unit, this number can be substituted with other numeral designations. RADIATION SCIENCES INC. RSI-2709E 3 3.0 TEST INSTRUMENTATION RSICAL INVDUE NO. DESCRIPTION MANUFACTURER MODEL # SERIAL # DATE 32.1 SPEC. ANALY.H.P.8566B3638A087678/13/2005 33.1 SPEC. ANALY. DISPLY H.P.3701A222588/13/2005 75ANTENNATENSOR41082046/11/2005 80ANTENNAAMP.RES.Assoc.AT10004094-0256/14/2005 177COMPUTERH.P. (Disc Drive)9122C2804A8894 236LISNSOLAR8012-50-R-12-BNC 807-523/26/2005 390RECEIVERR & SESH 3861742/012 4/18/2005 391RECEIVERR & SESVP861744/0156/15/2005 474TRANSFORMERG.E.9T51B33G3NSN 501MINI MASTEMCO2075-20002-2278 502TURNTABLEEMCO2065-1.210001-2156 503CONTROLLEREMCO20900001-1489 70112 ft Cable RG-223PASTERNACKBNC TO BNCN/A9/16/2005 70840ft Cable RG-223PASTERNACKBNC TO BNCN/A9/23/2005 IF CAL DUE DATE = BLANK FIELD Calibration is not required for this item. Equipment not used to obtain a final reading (i.e. transmitting antenna). RADIATION SCIENCES INC. RSI-2709E 4 4.0 TEST RESULTS 4.1 Conducted Power Line Measurements, Paragraph 15.107 Conducted power line measurements were recorded for the Model HRD-5KP. The test setup diagram is shown in Figure 1 and a photograph is shown in Figure 2. The results of the line-to-ground radio noise voltage measurements are shown on graphs, Figures 3 and 4 for the phase and neutral lines, respectively. Figure 5 is a data sheet presenting average detector readings for those points on the graphs shown above the limit during the automated peak search. ALL LEVELS ARE BELOW THE APPLICABLE LIMITS AS SPECIFIED BY THE FCC IN PARAGRAPH 15.107. RADIATION SCIENCES INC. RSI-2709E 5 Conducted Emissions Test Setup Diagram (Top View) Figure 1 40 cm. Wo oden Test Platfo rm (80 cm. above horizontal ground plane) (No Platform for flo o r units) EUT Peripheral LISN LISN Line Filt er To Measuring Receiver Primary Power min of 80cm. from all metal objects Horizontal Ground Plane RADIATION SCIENCES INC. RSI-2709E 6 Conducted Emissions Test Setup Photograph Figure 2 RADIATION SCIENCES INC. RSI-2709E 7 Figure 3 RADIATION SCIENCES INC. RSI-2709E 8 Figure 4 RADIATION SCIENCES INC. RSI-2709E 9 Electromagnetic Emission Test Test Code CE Date: 3/24/05 Test Instruments: RSI # 32.1, 33.1, 177, 236, 390, 494, 701, Technician E U T Manufacturer: Lutron Model #: HRD-5KP Serial #: 03000493892 46 Mode: ON Frequency Range: .150-30MHz Test Engineer Temperature: 70
F Humidity: 25 % Additional I nfo: Test Spec: FCC Cl ass B Radiated Distance: Antenna: HORIZ. BB NB VERT. H E Conducted Line: Phase/Neutral Function: BB NB Correction Factors FREQ. QP IND. Level AVG IND. Level ANT. QP Final Level AVG Final Level Remarks MHz dBV dBV dBV dBV .27 29.2 29.2 Phase .38 31.3 31.3 .50 27.1 27.1 .64 28.6 28.6 .25 32.5 32.5 Neutral .3819 31.6 31.6 .511 31.8 31.8 .65 29.6 29.6 .89 39.7 39.7 1.009 26.9 26.9 1.28 25.1 25.1 Figure 5 RADIATION SCIENCES INC. RSI-2709E 10 4.2 Radiated Emissions Measurements, §15.33, §15.35, §15.109, §15.205, §15.209, §15.231 Radiated Emissions measurements were recorded for the test sample at a distance of 3 meters. Radiated Emissions were measured with the antenna in both the horizontal and vertical polariza- tions. The antenna was raised 1 to 4 meters…

Text truncated - open the document above for the full version.

RADIATION SCIENCES INC. 1986.01 APPENDIX I TO RADIATION SCIENCES INC. FCC TEST REPORT NO. RSI-2709E PREPARED FOR : Lutron Electronics 7200 Suter Road Coopersburg, PA 18036 SUBMITTED BY : Radiation Sciences Inc. 3131 Detwiler Road Harleysville, PA 19438 PREPARED BY : ____________________ Daniel J. Signore President Radiation Sciences Inc. RADIATION SCIENCES INC. RSI-2709E Appendix I 1 1.0 INTRODUCTION This Appendix I to Radiation Sciences Inc. (RSI) FCC Test Report # RSI-2709E has been pre- pared in response to test report review comments submitted to Lutron Electronics by Mr. Chris Harvey, EMC Consultants, LLC. The RSI responses to three review comments are included herein. RADIATION SCIENCES INC. RSI-2709E Appendix I 2 2.0 RESPONSE TO TEST REPORT REVIEW COMMENTS 2.1 ANSI C63.4 (1992 Issue Versus 2003 Issue) COMMENT : The test report indicates that testing was performed in accordance with ANSI C63.4:1992. Please verify that testing was actually performed in accordance with the required ANSI C63.4:2003 (in- cluding OATS NSA Compliance). RESPONSE: a) The use of the 1992 date by RSI was in error. A previous report prepared by Radiation Sci- ences Inc. for Lutron was used as a mark-up (boilerplate) and RSI overlooked the specification date. The testing was performed in accordance with ANSI C63.4:2003. b) Regarding OATS NSA Compliance; 1) A complete OATS NSA report was submitted and FCC-approved on 23 July 2003. A copy of the subsequent approval letter is included herein as Figure 1. 2) In addition, RSI successfully met the A2LA audit requirements for FCC testing on 2 No- vember 2004. During this audit, a partial NSA test of the OATS was witnessed by the A2LA-appointed auditor. Copies of the A2LA certificate and scope are shown in Figures 2 and 3, respectively. RADIATION SCIENCES INC. RSI-2709E Appendix I 3 Figure 1 RADIATION SCIENCES INC. RSI-2709E Appendix I 4 Figure 2 RADIATION SCIENCES INC. RSI-2709E Appendix I 5 Figure 3 RADIATION SCIENCES INC. RSI-2709E Appendix I 6 2.2 AVERAGING FACTORS COMMENT : Please provide a calculation and description of the limit used for the averaging factor used. Is this device compliant with the 15.231(a) or 15.231(e) limit? RESPONSE : a) Figure 4 herein presents the calculation of the -20dB averaging factor used. b) The Lutron Electronics model HRD-5KP was tested to and found compliant with 15.231(a). RADIATION SCIENCES INC. RSI-2709E Appendix I 7 Figure 4 RADIATION SCIENCES INC. RSI-2709E Appendix I 8 2.3 Bandwidth Data Instrumentation COMMENT : The bandwidth data has been presented without an explanation of the test equipment used or the settings for that equipment. Please either provide bandwidth plots (that contain this information) or provide more description of this test to include these items. RESPONSE : RSI used an HP 8566B Spectrum Analyzer to perform bandwidth measurements (see Figure 5). The resolution bandwidth of the spectrum analyzer was 10kHz (see Figure 6). RADIATION SCIENCES INC. RSI-2709E Appendix I 9 Figure 5 RADIATION SCIENCES INC. RSI-2709E Appendix I 10 Figure 6
