JPZ0043Dimmer with RF Receiver

Lutron Electronics Company Inc

Click to zoom

Application Details

Equipment Class: CYY - Communications Receiver used w/Pt 15 Transmitter
Date of Grant: Feb 27, 2007
Application Purpose: Original Equipment
Date of Application: Feb 27, 2007
Equipment Note: Dimmer with RF Receiver
Frequency Range: 390.00000000 - 390.00000000
Company: Lutron Electronics Company Inc
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Block Diagram

Feb. 20071 of 1JPZ0043 Zero Cross Detection Full Wave Bridge + - Power Supply 120Hz Vcc Circuit Common Microcontroller LEDs and Switches Vcc Decoded Data Vcc Antenna Local Oscillator 379.3MHz Mixer Data Slicer Decoded Data Phase Control Dimming BLACK RED 3-way Detection BLUE Low Noise Amplifier Filter X IF 10.7MHz Decoder Micro Vcc Receive Data LUTRON ELECTRONICS CO., INC.

Cover Letter(s)

21 February 2007 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AGENT AUTHORIZATION – MRF-6 JPZ0043 Dear Sir or Madam: We, the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Matthew Cardoni Senior Engineering Technician

Cover Letter(s)

13th February, 2007 Subject: Request for Confidentiality for MRF-6 JPZ0043 Dear Sir of Madam: This letter is to formally request confidentiality per the FCC Rules 47 CFR Chapter 1, subpart C, section 0.459 - requests that materials or information submitted to the Commission be withheld from public inspection. For model MRF-6, the following items are Lutron Electronics Co., Inc. confidential information that must be withheld from public inspection by potential competitors to protect our business. 1. Schematics 2. Operational Description Thank you for your cooperation. Sincerely, R. S. Spehalski Engineering Leader

External Photos

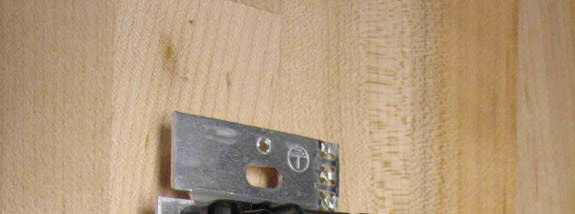

External PhotoPage 7 of 7Feb 2007 JPZ0043MRF-6

ID Label/Location Info

FCC Label Close-upPage 1 of 1Feb 2007 JPZ0043MRF-6

Internal Photos

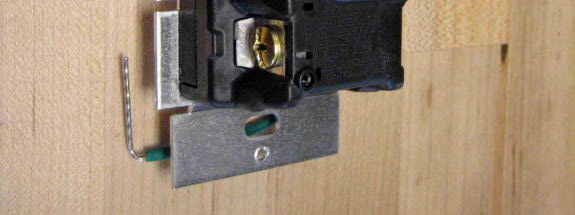

Internal PhotoPage 1 of 7Feb 2007 JPZ0043MRF-6 Internal PhotoPage 2 of 7Feb 2007 JPZ0043MRF-6 Internal PhotoPage 3 of 7Feb 2007 JPZ0043MRF-6 Internal PhotoPage 4 of 7Feb 2007 JPZ0043MRF-6 Internal PhotoPage 5 of 7Feb 2007 JPZ0043MRF-6 External PhotoPage 6 of 7Feb 2007 JPZ0043MRF-6
