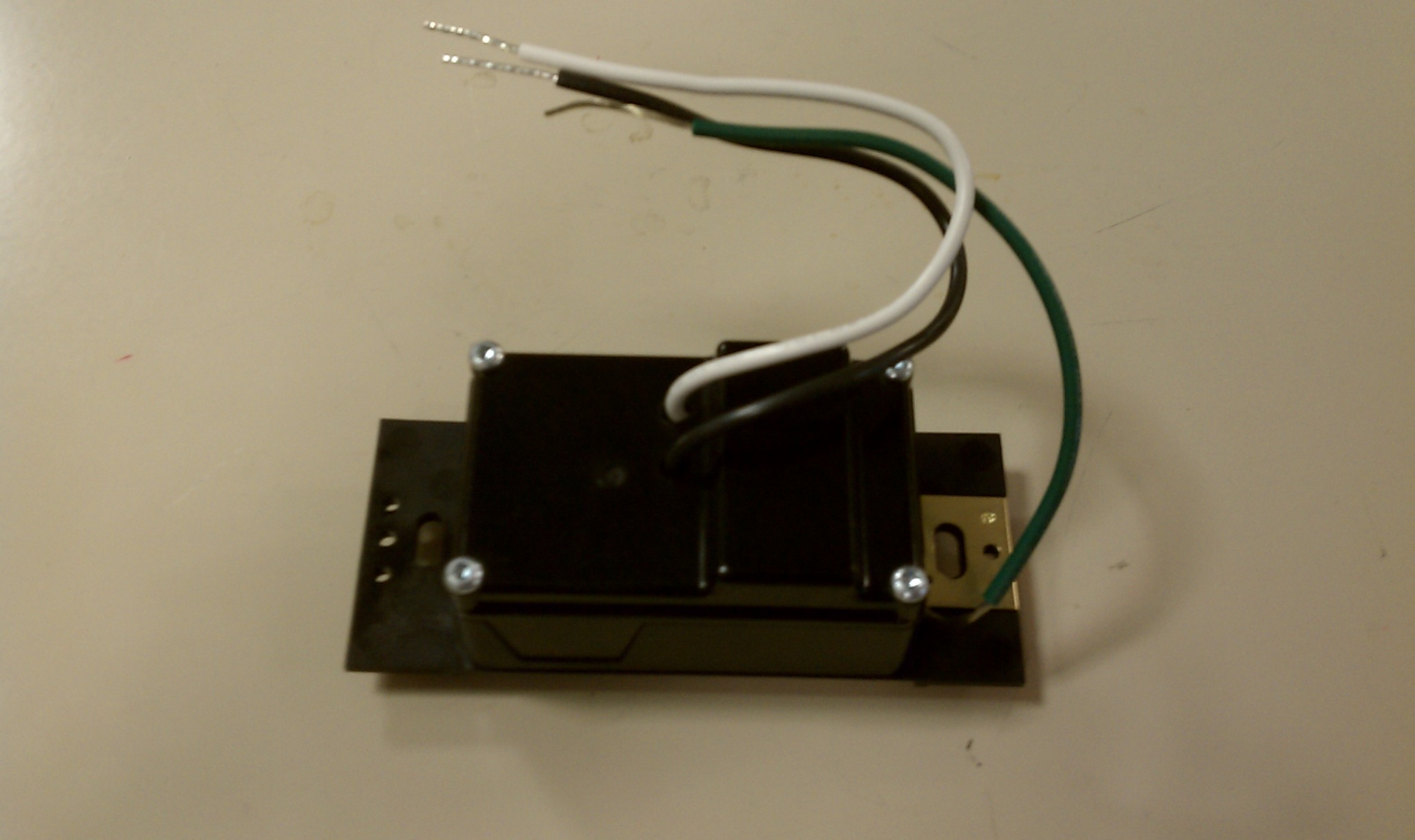

JPZ0074RF Theromstat

English Important Notes Codes: Install in accordance with all local and national electrical codes. Environment: Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0 to 90% humidity, non-condensing. Indoor use only. Wallplates: Use only Lutron® wallplates with these devices. The mechanical design of the seeTemp Wall Display is NOT compatible with non-Lutron wallplates. Non-Lutron wallplates will NOT sit flush against the wall. Claro® and Satin Colors® wallplates are strongly recommended for best color match and clean aesthetic appearance. Do not paint controls, buttons, or wallplates. Cleaning: To clean, wipe with a clean damp cloth. DO NOT use any chemical cleaning solutions. Wallboxes: All seeTemp Wall Display units require a U.S. wallbox. 3 1 ⁄2 in (89 mm) deep recommended, 2 1 ⁄4 in (57 mm) deep minimum. RF Device Placement: RF must be located within 30 ft (9 m) of an RF signal repeater. Troubleshooting Guide for seeTemp Wall Display SymptomProbable Cause and Action LEDs on a seeTemp Wall Display don’t light up when the buttons on it are pressed. Power not present at seeTemp Wall Display • Circuit breaker OFF. Turn ON breaker. Incorrect wiring. • Wire the seeTemp Wall Display according to the Installation section. HVAC controller not controlled by a seeTemp Wall Display and/or temperature is not changing. The HVAC controller is not assigned to a seeTemp Wall Display. • Follow the steps in Programming. There is no power to the device. • Ensure that the device is powered Temperature may take up to 20 minutes to change in the space HVAC equipment does not have enough power and can’t reach setpoint 6 LEDs on the seeTemp Wall Display flash when any button is pressed. The seeTemp Wall Display is in the Factory Settings mode and has not been configured to work in a system. • Follow the steps in Programming. Room Temperature LED flashes rapidly.Low battery on Wireless Temperature Sensor. • Replace battery in Wireless Temperature Sensor. Set temperature LED flashes rapidly.The seeTemp Wall Display is hearing the wired backup sensor and cannot hear Wireless Temperature Sensor. • Move Wireless Temperature Sensor closer to a repeater. Room LED scrolls up and down.No Wireless Temperature Sensor or wired backup is present. • Replace battery in Wireless Temperature Sensor. • Add a Wireless Temperature Sensor. • Add a wired backup sensor. Room and set LED scrolls up and down when button is pressed. Communication Error. • Move a repeater closer to a seeTemp Wall Display. Returning a seeTemp Wall Display to Factory Settings Returning a seeTemp Wall Display to its Factory Settings will remove the seeTemp Wall Display from the system and erase all programming. Step 1: Triple tap the ECO button on the seeTemp Wall Display. DO NOT release after third tap. Step 2: Keep the button pressed on the third tap until all the status LEDs start to flash slowly (approximately 3 seconds). Step 3: Immediately release the button and triple tap the button again. The status LEDs on the seeTemp Wall Display will flash quickly. The seeTemp Wall Display has now been returned to Factory Settings. Warranty: For warranty information, please see the Warranty enclosed with the product, or visit www.lutron.com/resiinfo Installation Instructions Please Read Before Installing Lutron Elec tron ics Co., Inc. 7200 Suter Road | Coopersburg, PA 18036-1299 Print ed in the U.S.A. 11/2010 P/N 041-298 Rev. A Technical Assistance | 24 hours a day, 7 days a week | www.lutron.com U.S.A. / Canada: 1.800.523.9466 | Mexico: +1.888.235.2910 | Other Countries: +1.610.282.3800 seeTemp ™ Wall Display LRD-WST-F, LRD-WST-C 24 V or 120 V50 / 60 Hz 0.1 A Typical Power Consumption*: 1 W eco Installation WARNING: Shock Hazard. To avoid the risk of electric shock, locate and remove fuse or lock circuit breaker in the OFF position before proceeding. Wiring with power ON could result in serious injury or death. 1. Turn power OFF at fusebox or circuit breaker. 2. Prepare wires. When making wire connections, follow the recommended strip lengths and combinations for the supplied wire connectors. Note: Wire connectors provided are suitable for copper wire only. • Strip insulation 3/8 in (10 mm) for 14 AWG (1.5 mm 2 ). • Strip insulation 1/2 in (13 mm) for 18 AWG (0.75 mm 2 ). • Use to join one 14 AWG (1.5 mm 2 ) with one 18 AWG (0.75 mm 2 ) wires. 3. Wire control. O FF O FF O FF O N O N O N 4. Push all wires back into the wallbox and loosely fasten the control to the wallbox using the seeTemp Wall Display mounting screws provided. Do not pinch the wires. See Mounting Diagram below. 5. Attach Lutron Claro or Satin Colors wallplate adapter and wallplate (see Mounting Diagram). a. Install the wallplate adapter onto the front of the seeTemp Wall Display. b. Tighten mounting screws until wallplate adapter is flush to wall (do not over-tighten). c. Snap wallplate onto wallplate adapter and verify that the color replacement kit is aligned properly. d. If control(s) are misaligned, loosen mounting screws appropriately. 6. Restore power. O N O FF O N O FF O N O FF seeTemp Wall Display Wallbox Mounting Screws Adapter Mounting Screws Wallplate adapter and wallplate purchased separately. Mounting Diagram Wallplate Adapter Wallplate Heat Auto On Auto Fan Cool Off Room Set 80° 75° 70° 65° 60° eco Set Temperature LEDs Column of LEDs that display the current set temperature point. Set LED turns off when system is turned off. Raise/Lower Rocker Flip-Down Door Covers the System and Fan buttons. Opens 180°. seeTemp® Wall Display Eco Button Press to toggle Eco mode on/off. Fan Buttons Indicates the current fan setting. Button will light up when selected. On – Fan is constantly on. Auto – Fan is on only when Heat/Cool is active. System Buttons Indicates the current system setting. When selected, buttons will light up according to the following: Heat - Red Cool - Blue Auto - Orange Off - Orange Room Temperature LEDs Column of LEDs that display the current room temperature.…

Text truncated - open the document above for the full version.

© 2009 Lutron Electronics Co., Inc. Lutron Electronics Co., Inc. 7200 Suter Road Coopersburg, PA 18036 Made and printed in the U.S.A. Hecho e impreso en los E.U.A. Réalisé et imprimé aux Etats-Unis Editado e impresso nos E.U.A. 9 / 09 P/N 043-276 Rev. A English For installation instructions and warranties in different lan- guages, please go to the link below: Español Si desea instrucciones y garantías de instalación en otros idiomas, visite el siguiente enlace: Français Pour obtenir des instructions d’installation et garanties dans d’autres langues, veuillez utiliser le lien suivant : Português Para obter instruções de instalação e garantias noutros idiomas, visite: Deutsch Installationsanweisungen und Garantien in verschiedenen Sprachen finden Sie unter: Nederlands Ga voor installatie-instructies en garanties in andere talen naar de koppeling hier onder: Italiano Per le istruzioni d’installazione e le garanzie in una lingua diversa, selezionare il link sottostante: www.lutron.com/resiinfo Limited Warranty Garantie Limitée GarantÍa Limitada Garantia Limitada GarantÍa Limitada Exclusivamente en el caso de México ESPAÑOL PÓLiZa de GarantÍa LUTRON CN, S. de R.L. de C.V., RFC: LCN020626TD1, GABRIEL MANCERA 1041, COL. DEL VALLE 03100, MÉXICO D.F., MÉXICO, Tel. +1.888.235.2910 o +1.610.282.6701, garantiza todas las piezas y servicio de este producto por cualquier defecto de fabricación que exista y la eficiencia del mismo durante un (1) año, considerado a partir de la fecha de entrega o de instalación del producto, bajo las siguientes: CondiCiones: 1. Para hacer efectiva esta garantía, las reclamaciones no se podrán hacer si no es presentando esta póliza y el producto defectuoso en el lugar donde se compró el producto, en cualquira de los centros de servicio que se indican más adelante. El consumidor tambien podra comprar partes, componentes, consumibles y accesorios en dicho lugar. 2. LUTRON reemplazará o intercambiará el producto defectuoso sin hacer más cargos al cliente. Los gastos de transporte (si los hubiera) los cubrirá LUTRON CN, S. de R.L. de C.V. 3. El tiempo para reemplazar el producto no excederá de treinta (30) días, contados a partir del momento en que se reciba el producto en cualquiera de los lugares en donde esta garantía se pueda hacer efectiva. 4. Cuando se necesite hacer efectiva esta garantía reemplazando el producto, el trámite se hará en LUTRON CN, S. de R.L. de C.V. 5. Esta garantía perderá su validez en los casos siguientes: (A) Cuando el producto se haya usado en condiciones que no sean las normales. (B) Cuando el producto se haya hecho funcionar sin seguir las instrucciones del producto que vienen en español. (C) Cuando alguna(s) persona(s), no autorizada(s) por LUTRON CN, S. de R.L. de C.V., haya(n) alterado o reparado el producto. 6. El cliente podrá solicitar que esta póliza se haga efectiva en el establecimiento comercial donde se compró el producto. 7. En caso de que esta garantía se extravíe, el cliente podrá solicitar otra póliza de garantía al proveedor una vez que presente el recibo o factura de compra. NOMBRE: COL.: CIUDAD: ESTADO: TELÉFONO: DIRECCIÓN: C.P.: NOMBRE COMERCIAL: MARCA: NO. DE SERIE: NO. DE DISTRIBUIDOR: DIRECCIÓN: COL.: CIUDAD: ESTADO: TELÉFONO: FECHA DE VENTA: FECHA DE ENTREGA O DE INSTALACIÓN: PRODUCTO: MODELO: C.P.: inFormaCiÓn deL ConsUmidor inFormaCiÓn deL estaBLeCimiento o Vendedor PORTUGUÊS Sujeita às exclusões descritas abaixo, durante um período (definido abaixo) após a data de remessa por parte da Lutron, a Lutron garante que cada novo produto (“Produto”) estará isento de defeitos de fabricação. A Lutron, a seu critério, reparará a peça defeituosa ou fornecerá as peças de substituição comparáveis, desde que a Lutron seja prontamente notificada do defeito dentro do período de garantia (definido abaixo). As peças de substituição fornecidas pela Lutron podem ser novas, usadas, reparadas, recondicionadas e/ou feitas por um fabricante diferente. eXCLUsÕes da Garantia Limitada Esta Garantia não cobre e nem a Lutron e seus fornecedores serão responsáveis por: 1. Dano, mau funcionamento ou inoperabilidade diagnosticados pela Lutron ou terceiros aprovados pela Lutron causados pelo desgaste normal, mau uso, uso exces- sivo, instalação correta, negligência, acidente ou interferência das fontes de infravermelho ou freqüência de rádio ou obstáculos, tais como, entre outros, (a) uso de voltagens de linha, fusíveis e disjuntores incorretos; (b) falha na instalação, manutenção e operação do Produto em conformidade com as instruções operacionais fornecidas pela Lutron e as disposições aplicáveis do Código Elétrico Nacional dos EUA e das Normas de Segurança dos Underwriter’s Laboratories; (c) uso de aparelhos ou acessórios incompatíveis; (d) falha na manutenção do equipamento sob a temperatura ambiente especificada; (e) reparos ou ajustes não autoriza- dos; (f) vandalismo; e (g) um caso fortuito, como incêndio, relâmpago, inundação, tornado, terremoto, furacão ou outros problemas fora do controle da Lutron. 2. Custo de mão-de-obra no local para diagnosticar questões e remover, reparar, substituir, ajustar, reinstalar e/ou reprogramar o Produto, a critério da Lutron, sendo todos os custos pagos pelo Cliente ao preço atual do serviço. 3. Quando aplicável, os componentes e os equipamentos externos do Produto, como, lâmpadas, lastros que não sejam da Lutron, soquetes e acessórios; cabeamento do acessório entre os lastros e as lâmpadas; cabeamento das instalações entre os redutores de luz ou painéis do redutor de luz e lâmpadas e entre os controles, redutores de luz ou painéis do redutor de luz; e outros equipamentos dos fabricantes não fornecidos pela Lutron, como relógios, equipamentos audiovisuais, detectores de movimento, fotossensores, sensores de entrada para carros, almofadas de pressão, persianas e banheiras. 4. O custo de reparar ou substituir outras propriedades que tenham sido danificadas quando o produto não funciona corretamente, mesmo que o …

Text truncated - open the document above for the full version.

Frequency TableRF Section-Carrier Frequency (fc) between 431 and 437 MHz (transmit)-Intermediate Frequency (IF) of 203 kHz-LO Frequency equal to fc-IF (receive)-3MHz SPI interface (configu ration control from micro controller)-62.5kHz bi-directional dataMicro-Controller-26MHz Clock-13MHz Bus-3MHz SPI interface (CC1101)-1MHz SPI interface (EEPROM)-62,5kHz bi-directional data-83.3Hz PWM (LEDs 0-16.7% duty cycle)

Underwriters Laboratories Inc. A not-for-profit organization dedicated 1285 Walt Whitman Rd. to public safety and committed to Melville, NY 11747 quality service for over 100 years Tel: (631) 271-6200 Fax: (631)439-6095 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, NY 11747 www.ul.com/emc (631) 271-6200 Job Number: 1001310282 Project Number: 10CA58536 File Number: MC16478 Date: 30 Nov 2010 Model: Seetemp FCC ID: JPZ0074 IC ID: 2851A-JPZ0074 Electromagnetic Compatibility Test Report For LUTRON ELECTRONICS INC Copyright  2010 Underwriters Laboratories Inc. Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Job Number: 1001310282 File Number: MC16478 Page 2 of 94 Model Number: SeeTemp Client Name: LUTRON ELECTRONICS INC FCC ID: JPZ0074 IC Number: 2851A-JPZ0074 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Test Report Details Tests Performed By: Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, NY 11747 Tests Performed For: LUTRON ELECTRONICS INC 7200 SUTTER ROAD COOPERBURG, PA 18036 Applicant Contact: BOB SPEHALSKI Phone: (610) 282-7424 E-mail: [email protected] Test Report Date: 30 Nov 2010 Product Type: RF Adapter Product standards FCC Part 15, Subpart C, 15.231, RSS-GEN, RSS-210 Model Number: Seetemp Sample Serial Number: Not Available EUT Category: Periodic Low Power Transmitter Testing Start Date: 18 Nov 2010 Date Testing Complete: 22 Nov 2010 Overall Results: Compliant Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report shall not be used to claim, constitute or imply product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the US government. This report may contain test results that are not covered by the NVLAP or A2LA accreditation. The scope of accreditation is limited to the specific tests that are listed on the NVLAP and/or A2LA websites referenced at the end of this report. Job Number: 1001310282 File Number: MC16478 Page 3 of 94 Model Number: SeeTemp Client Name: LUTRON ELECTRONICS INC FCC ID: JPZ0074 IC Number: 2851A-JPZ0074 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Report Directory 1.0 G E N E R A L - Product Description ..................................................................................................................4 1.1 Equipment Description ...................................................................................................................................4 1.2 Equipment Marking Plate ...............................................................................................................................4 1.3 Device Configuration During Test ..................................................................................................................5 1.3.1 Equipment Used During Test: ....................................................................................................................5 1.3.2 Input/Output Ports: .....................................................................................................................................5 1.3.3 EUT Internal Operating Frequencies: ........................................................................................................6 1.3.4 Power Interface: .........................................................................................................................................6 1.4 Block Diagram: ...............................................................................................................................................7 1.5 EUT Configurations ........................................................................................................................................8 1.6 EUT Operation Modes ....................................................................................................................................8 2.0 Summary ............................................................................................................................................................9 2.1 Deviations from standard test methods ..........................................................................................................9 2.2 Device Modifications Necessary for Compliance ...........................................................................................9 2.3 Reference Standards ...................................................................................................................................10 2.4 Results Summary .........................................................................................................................................10 3.0 Calibration of Equipment Used for Measurement ............................................................................................11 4.0 EMISSIONS TEST RESULTS ..........................................................................................................................11 4.1 Test Conditions and Results – MAINS TERMINAL – CONDUCTED EMISSIONS .....................................12 4.2 Test Conditions and Results – Occupied Bandwidth ...................................................................................49 4.3 Test Conditions an…

Text truncated - open the document above for the full version.

Job Number: 1001310282 File Number: MC16478 Page 14 of 94 Model Number: SeeTemp Client Name: LUTRON ELECTRONICS INC FCC ID: JPZ0074 IC Number: 2851A-JPZ0074 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Figure 1 Test Setup for Conducted Emissions Job Number: 1001310282 File Number: MC16478 Page 54 of 94 Model Number: SeeTemp Client Name: LUTRON ELECTRONICS INC FCC ID: JPZ0074 IC Number: 2851A-JPZ0074 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Figure 8 Test Setup for Cease Operation Job Number: 1001310282 File Number: MC16478 Page 61 of 94 Model Number: SeeTemp Client Name: LUTRON ELECTRONICS INC FCC ID: JPZ0074 IC Number: 2851A-JPZ0074 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Figure 12 Test setup for Radiated Emissions Front View Rear View Job Number: 1001310282 File Number: MC16478 Page 62 of 94 Model Number: SeeTemp Client Name: LUTRON ELECTRONICS INC FCC ID: JPZ0074 IC Number: 2851A-JPZ0074 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042
