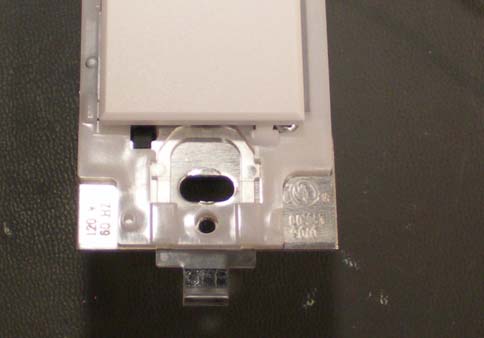

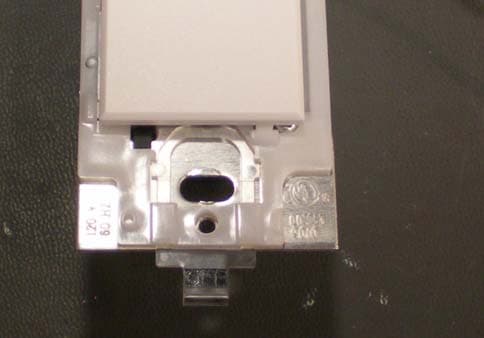

JPZ0083Wireless Dimmer Switch

Load Specifications ControlLoad TypeMin. Load Max. Load SZ-6D 1 Incandescent40 W600 W MLV 2 40 W / VA 600 VA / 450 W SZ-6ND 1 Incandescent10 W600 W MLV 2 10 W / VA 600 VA / 450 W SZ-5NE 1 SZ-6NE SZ-6NA Incandescent5 W500 W ELV 2 5 W500 W SZ-6ANS 3 Lighting10 W / VA6 A Motor0.083 A3 A Notes 1 Dimmer Load Type: SZ-6D and SZ-6ND are designed for use with permanently installed incandescent, magnetic low-voltage (MLV), or tungsten halogen only. SZ-5NE is designed for permanently installed incandescent, electronic low-voltage (ELV), or tungsten halogen only. Dimmers cannot control motor- operated equipment. Dimmers and switches cannot control standard receptacles. Contact Lutron for dimmable receptacle solution. 2 Low-Voltage Applications: Use SZ-6D and SZ-6ND with magnetic (core and coil) low-voltage transformers only. Not for use with electronic (solid-state) low-voltage transformers. Use SZ-5NE with electronic (solid- state) low-voltage transformers only. Not for use with magnetic (core and coil) low-voltage transformers). Operation of a low-voltage circuit with lamps inoperative or removed may result in transformer overheating and premature failure. Lutron strongly recommends the following: • Do not operate low-voltage circuits without operative lamps in place. • Replace burned-out lamps as quickly as possible. • Use transformers that incorporate thermal protection or fused transformer primary windings to prevent transformer failure due to overcurrent. 3 Switch Load Type: SZ-6ANS is designed for use with all permanently installed lighting loads and with motor loads up to 1/4 HP (3 A). Install in accordance with all local and national electrical codes. Environment: Ambient operating temperature: 32 to 104 °F (0 to 40 °C), 0 to 90% humidity, non-condensing. Indoor use only. Spacing: If mounting one control above another, leave at least 4.5 in (114 mm) vertical space between them. Faceplates: Use Lutron Stanza faceplates for best color match and aesthetic appearance. Do not paint controls or faceplates. Cleaning: To clean, wipe with a clean damp cloth. Do NoT use any chemical cleaning solutions. Wallboxes: Lutron recommends using 3.5 in (89 mm) deep wallboxes for easier installation. Several controls may be installed in one multigang wallbox — see Derating Chart. RF Device Placement: RF dimmers and switches must be located within 30 feet (9 m) of an RF signal repeater or a device configured as a repeater. Stanza RF dimmers or switches cannot be controlled by the system until they are addressed and programmed. They will work as stand-alone controls only. Derating Chart ControlLoad TypeEnd of Gang Middle of Gang SZ-6D, SZ-6ND Incandescent500 W400 W MLV 500 VA / 400 W 400 VA / 300 W SZ-5NE SZ-6NE SZ-6NA Incandescent450 W400 W ELV450 W400 W SZ- 6ANS Lighting5 A3.5 A Motor3 A3 A Installation WARNING - Shock hazard - Wiring with power ON may result in serious injury or death. Locate and remove fuse or lock circuit breaker in the OFF position before proceeding. Short Circuit Check: Check the installation for short circuits before installing control(s). With power OFF, install standard mechanical switch(es) or wire connector(s) between hot and load. Restore power. If lights do not work or a breaker trips, correct wiring and check again. Install control(s) only when short is no longer present. Warranty is void if control is turned ON with a shorted circuit. 1. Turn power OFF at fusebox or circuit breaker. 2. Prepare wires. When making wire connections, trim or strip wallbox wires to the length indicated by the strip gauge on the back of the control. Note: Wire connectors provided are suitable for copper wire only. Wire Connector: • Use to join one 14 AWG (1.5 mm 2 ) or 12 AWG (2.5 mm 2 ) ground wire with one 18 AWG (0.75 mm 2 ) control ground wire. Twist wire connector tight. Push-In Terminals: Insert wires fully. Push-in terminals are for use with 14 AWG (1.5 mm 2 ) solid copper wire only. DO NOT use stranded or twisted wire. OR Screw Terminals: Tighten securely to 5 in•lbs (0.55 N•m). Screw terminals are for use with solid copper wire only. DO NOT use stranded or twisted wire. 3. Wire controls as follows: Single location installation: See Wiring Diagrams 1 and 2. Power Booster and Interfaces: When using power boosters or interfaces, see wiring diagrams provided with the interface. Ensure your customer will be happy by installing this product correctly so the tapswitch protrudes from the faceplate. 4. Push all wires back into the wallbox and loosely fasten the control to the wallbox using the control mounting screws provided. Do not pinch the wires. • For installation with a recessed wallbox, use spacer shims (Lutron PN 257117) for proper support of control(s). • For multigang installation, verify that the order of controls in the wallbox corresponds to the faceplate openings. 5. Attach Lutron Stanza faceplate adapter and faceplate. a. Align the locating posts on the control(s) to the holes in the adapter. b. Install the adapter onto front of control(s) using the short screws provided. The faceplate adapter should be firmly against the control. c. Tighten control mounting screws until faceplate adapter is flush to wall (do not over-tighten). d. Snap faceplate onto faceplate adapter, and verify that control is aligned properly and switch(es) protrude(s) in front of the faceplate. e. If control(s) is (are) misaligned or switch(es) is (are) flush with the faceplate, loosen control mounting screws appropriately. 6. Restore power. Check for correct local operation (see Dimmer Operation and Switch Operation). Installation Instructions Please Read Before Installing StanzaTM StanzaTM Dimmers SZ-6D, SZ-6ND StanzaTM Switch SZ-6ANS 120 V ~ 50 / 60 Hz Important Notes Multigang Installations Dimmer and Dimmer with Neutral Switch Middle of gang End of gang Control Location for Ganging FCC Information Changes or modifications not expressly approved by Lutron Electronics Co. could void the user’s authority to operat…
