JPZ0094Low Power Transceiver

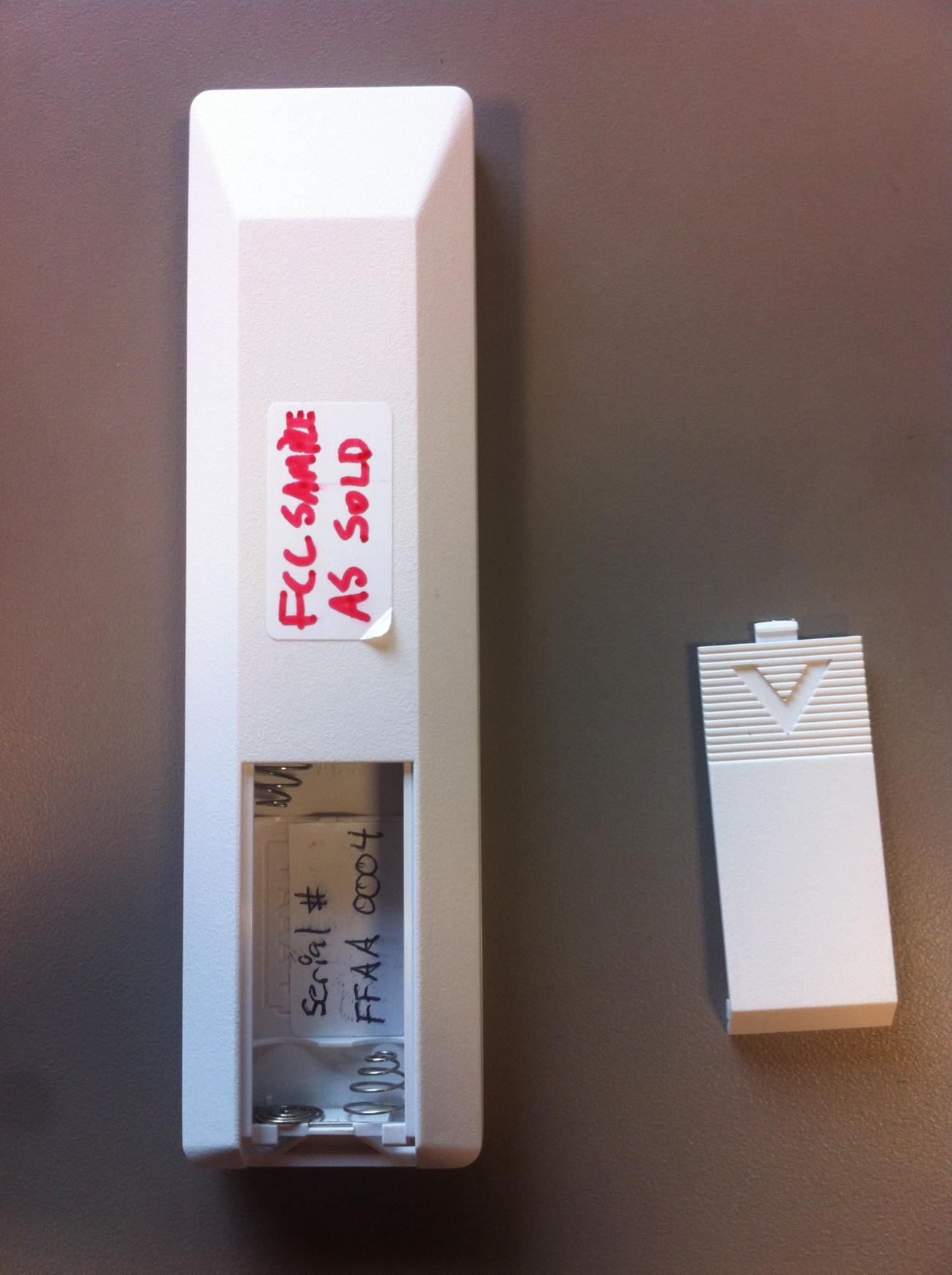

4-Group RF Remote Control Model CS-YJ-4GC-WH • For Serena® Powered Window Shades • Setup Guide—Please Read Before Operating Lutron Electronics Co., Inc. 7200 Suter Road Coopersburg, PA 18036-1299, U.S.A. 08/2013 P/N 045411 Rev. A Lutron, O, and Serena are registered trademarks of Lutron Electronics Co., Inc. Device DescriptionBattery ReplacementTroubleshootingLimited Warranty For Assistance: The Serena® 4-Group RF handheld remote control provides remote shade operation from the palm of your hand. The radio frequency enabled control transmits signals to compatible Lutron® shades and shading systems. To access advanced features, please refer to the installation and operation instructions for the Lutron device(s) under control. The Serena® 4-Group RF handheld remote control uses 2 AAA alkaline batteries which are pre-installed (see diagram). DO NOT use NiCad or rechargeable batteries. To replace batteries: A. Remove the battery cover. B. Replace with 2 size AAA alkaline batteries as shown. C. Replace the battery cover. Open Close Shade 1 2 3 4 All Open Button Tap once: shade opens to its upper limit Close Button Tap once: shade closes to its lower limit Shade Group Buttons Tap once to select shades assigned to the corresponding group (number) All Shade Groups Button Tap once to select all shades Raise & Lower Buttons Tap to move the shade; tap again to stop it Preset Button Tap once to move the shade to a preset position Press on arrow, slide and lift off battery cover. Install 2 AAA Alkaline batteries with terminals as shown. The Serena® 4-Group RF remote control is safe for use around baths and spas. NOTCE: DO NOT submerge in water. WORLD HEADQUARTERS Lutron Electronics Co., Inc. 7200 Suter Road Coopersburg, PA 18036 United States Tel: +1.610.282.3800 Fax:+1.610.282.1243 EUROPEAN HEADQUARTERS Lutron EA Ltd. 6 Sovereign Close London, E1W 3JF United Kingdom Tel: +44.(0)20.7702.0657 Fax: +44.(0)20.7480.6899 CUSTOMER SERVICE/ORDERING USA: +1.610.282.3800 08.00 - 20.00 EST UK: +44-(0)20.7702.0657 09.00 - 18.00 GMT TECHNICAL SUPPORT USA: +1.610.282.3800 24 hours/7 days UK:+44.(0)20.7702.0657 09.00 - 18.00 GMT INTERNET: www.lutron.com [email protected] ASIAN HEADQUARTERS Lutron GL Ltd. 15 Hoe Chiang Road #07-03 Tower Fifteen Singapore 089316 Tel: +65.6220.4666 Fax: +65.6220.4333 [email protected] ADDITIONAL LUTRON SALES OFFICES: Germany Tel: +49.309.710.4590 Fax: +49.309.710.4591 FREEPHONE 00800.5887.6635 France Lutron LTC, S.A.R.L. 90 rue de Villiers 92300 Levallois-Perret, France Tel: +33-(0)1.41.05.42.80 Fax: +33-(0)1.41.05.01.80 FREEPHONE: 0800.90.12.18 [email protected] Spain-Madrid Tel: +34.91.567.84.79 Fax: +34.91.567.84.78 FREEPHONE 900.948.944 Spain-Barcelona Tel: +34.93.496.57.42 Fax: +34.93.496.57.50 FREEPHONE 0900.948.944 Hong Kong Tel: +852.2104.7733 Fax: +852.2104.7633 Beijing Tel: +86.10.5877.1817 Fax: +86.10.5877.1816 Shanghai Tel: +86.21.6288.1473 Fax: +86.21.6288.1751 Singapore Tel: +65.6220.4666 Fax: +65.6220.4333 Japan Tel: +81.3.5575.8411 Fax: +81.3.5575.8420 Lutron will, at its option, repair or replace any unit that is defective in materials or manufacture within one year after purchase. For warranty service, return unit to place of purchase or mail to Lutron at 7200 Suter Rd, Coopersburg, PA 18036-1299, postage pre-paid. This warranty is in lieu of all other express warranties, and the implied warranty of merchant- ability is limited to one year from purchase. This warranty does not cover the cost of installation, removal, or reinstallation, or damage resulting from misuse, abuse, or damage from inproper wiring or installation. This war- ranty does not cover incidental or consequential damages. LUTRON’S LIABILITY ON ANY CLAIM FOR DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE MANUFACTURE, SALE, INSTALLATION, DELIVERY, OR USE OF THE UNIT SHALL NEVER EXCEED THE PURCHASE PRICE OF THE UNIT. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitation on how long an implied warranty may last, so the above limitations may not apply to you. These products may be covered under the following U.S. patents/ DES 391,924; and cor- responding foreign patents. Lutron, the Sunburst logo, Maestro IR, GRAFIK Eye, Sivoia, Sivoia QED, and Spacer System are registered trademarks of Lutron Electronics Co., Inc. ©2011 Lutron Electronics Co., Inc. SymptomProbable Cause and Action Buttons don’t light up when they are pressed. Dead, low, or no battery in wireless control. • Install new battery. Battery is installed incorrectly (reversed polarity). • Install battery as indicated in the Battery Replacement section. A specific window treatment does not respond when a button is pressed. The window treatment is not assigned to the control. Devices are out of range. • Check to make sure all remote controls, keypads, dimmers, switches and shades/ draperies are within 30 ft (9 m) of each other.

FCC/ IC Information: This device complies with part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation. Modifications not expressly approved by Lutron Electronics Co., Inc. could void the user's authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help Información FCC/ IC: Este dispositivo cumple con las Reglas de la FCC, Parte 15 y con las normas RSS de Industry Canada para dispositivos exentos de licencia. La operación está sujeta a las dos condiciones siguientes: (1) Este dispositivo no debe causar interferencia perjudicial y (2) Este dispositivo debe aceptar cualquier interferencia recibida, incluyendo las que pueden causar una operación indeseada. Cualquier cambio o modificación sin la aprobación explícita de Lutron Electronics Co., Inc. pueden anular la autorización del usuario para operar el equipo. NOTA: Este equipo ha sido probado y se comprobó que cumple con los límites para un dispositivo digital de Clase B, de acuerdo con la Parte 15 de las Reglas de la FCC. Estos límites se han diseñado para proveer protección razonable contra interferencia dañina en una instalación residencial. Este equipo genera, usa y puede emitir energía de radio frecuencia y si no se instala y utiliza de acuerdo con las instrucciones, puede causar interferencia dañina a las comunicaciones de radio. Sin embargo, no hay garantía de que no ocurrirá interferencia en una instalación determinada. Si este equipo causa interferencia dañina a la recepción de la radio o la televisión, la cual se puede determinar encendiendo y apagando el equipo, el usuario puede tratar de corregir la interferencia mediante uno o más de los siguientes procedimientos: Volver a orientar o reubicar la antena receptora Aumentar la separación entre el equipo y el receptor Conectar el equipo a un tomacorriente que esté en un circuito diferente al del receptor Consultar al distribuidor o a un técnico experimentado en radio/TV Information de la FCC/ IC : Ce dispositif est conforme à la section 15 des règlements du FCC et des standards CNR exempt de licence d’Industrie Canada. L’opération est sous réserve des deux conditions suivantes : (1) Cet appareil ne peut causer d’interférence nuisible, et (2) Cet appareil doit tolérer toute interférence, même celle pouvant affecter son fonctionnement. Tout changement ou modification sans l’autorisation expresse de Lutron Electronics Co., Inc. pourrait annuler le droit d’utiliser cet équipement. REMARQUE : Cet équipement a été testé et jugé conforme aux limites applicables aux dispositifs numériques Classe B, conformément à la section 15 des règles de la FCC. Ces limites sont conçues pour procurer une protection raisonnable contre les perturbations nuisibles en application résidentielle. Cet équipement génère, utilise et peut radier l’énergie de fréquences radiophoniques. S’il n’est pas installé et utilisé selon les directives, peut causer des interférences radiophoniques nuisibles. Cependant, il n’y a aucune garantie à l’effet qu’aucune interférence ne se produira dans une installation précise. Si votre équipement produit de l’interférence à la réception radiophonique ou télévisuelle, ce qui peut être détecté en coupant et refermant l’alimentation au système d’éclairage. Dans le cas d’interférence, l’utilisateur sera contraint d’essayer de corriger la situation par un ou plusieurs des moyens suivants : Réorienter ou re-localiser l’antenne de réception Augmenter la distance séparant l’équipement et le récepteur Brancher l’équipement sur un circuit différent que celui sur lequel le récepteur est branché Demander l’aide du distributeur ou d’un technicien expérimenté en radio et télévision Informações da FCC/ IC: Este dispositivo está em conformidade com a Parte 15 das normas FCC e com as normas RSS de isenção de licença da indústria do Canadá. A operação está sujeita às duas condições abaixo: (1) Este dispositivo não deve causar interferência prejudicial e (2) este dispositivo aceita qualquer interferência recebida, incluindo interferência que possa causar funcionamento indesejado. Nota: Este equipamento foi testado e considerado adequado aos limites para a Classe B de dispositivos digitais, de acordo com a Parte 15 das normas da FCC. Esses limites foram criados para oferecer uma proteção razoável contra interferência nociva em uma instalação residencial. Este equipamento gera, usa e pode irradiar energia de radiofreqüência e, caso não seja instalado de acordo com as instruções, pode causar interferência nociva às comunicações de rádio. No entanto, não há garantia de que tal interferência não vá ocorrer em uma determinada instalação. Se esse equipamento causar interferência nociva à recepção de rádio ou televisão, que pode ser percebida ao ligar e desliga…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR WIRELESS REMOTE CONTROL MODEL NUMBER: CS-YJ-4GC-WH FCC ID: JPZ0094 IC: 2851A-JPZ0094 REPORT NUMBER: 10005754-A ISSUE DATE: 2013-08-27 Prepared for LUTRON ELECTRONICS INC. 7200 SUTER ROAD COOPERSBURG PA, 18036, USA Prepared by UL LLC 1285 WALT WHITMAN RD. MELVILLE, NY 11747, U.S.A. TEL: (631) 271-6200 FAX: (877) 854-3577 REPORT NO: 10005754-A DATE: 2013-08-27 FCC ID: JPZ0094 IC: 2851A-JPZ0094 Page 2 of 36 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. Revision History Rev. Issue Date Revisions Revised By -- 8/16/13 Initial Issue M. Antola A 8/27/13 Added data for testing below 30MHz M. Antola REPORT NO: 10005754-A DATE: 2013-08-27 FCC ID: JPZ0094 IC: 2851A-JPZ0094 Page 3 of 36 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 5 4.2. SAMPLE CALCULATION ............................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 5 5. EQUIPMENT UNDER TEST ............................................................................................... 6 5.1. DESCRIPTION OF EUT .............................................................................................. 6 5.2. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 6 5.3. SOFTWARE AND FIRMWARE .................................................................................... 6 5.4. WORST-CASE CONFIGURATION AND MODE .......................................................... 6 5.5. MODIFICATIONS ........................................................................................................ 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 8 7. MAXIMUM PERMISSIBLE EXPOSURE ............................................................................10 8. ANTENNA PORT TEST RESULTS ...................................................................................11 8.1. 20 dB AND 99% BW ...................................................................................................11 8.2. DUTY CYCLE .............................................................................................................15 8.3. TRANSMISSION TIME ...............................................................................................19 9. RADIATED EMISSION TEST RESULTS...........................................................................21 9.1. TX RADIATED SPURIOUS EMISSION ......................................................................21 10. SETUP PHOTOS ...........................................................................................................29 REPORT NO: 10005754-A DATE: 2013-08-27 FCC ID: JPZ0094 IC: 2851A-JPZ0094 Page 4 of 36 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: LUTRON ELECTRONICS INC. 7200 SUTER ROAD COOPERSBURG, PA, 18036, USA EUT DESCRIPTION: WIRELESS REMOTE CONTROL MODEL: CS-YJ-4GC-WH SERIAL NUMBER: NON-SERIALIZED PRODUCTION UNIT DATE TESTED: 8/7/13 TO 8/14/13 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C Pass INDUSTRY CANADA RSS-210 Issue 8, Annex 1 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass UL LLC tested the above equipment in accordance with the requirements set forth in the above standards, using test results reported in the test report documents referenced below and/or documentation furnished by the applicant. All indications of Pass/Fail in this report are opinions expressed by UL LLC based on interpretations of these calculations. The results show that the equipment is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation, as described by the referenced documents. This document may not be altered or revised in any way unless done so by UL LLC and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL LLC will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL By: Tested By: Bob DeLisi Mike Antola WiSE Principal Engineer WiSE Project Lead UL LLC UL LLC REPORT NO: 10005754-A DATE: 2013-08-27 FCC ID: JPZ0094 IC: 2851A-JPZ0094 Page 5 of 36 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL L…

Text truncated - open the document above for the full version.

REPORT NO: 10005754 DATE: 2013-08-16 FCC ID: JPZ0094 IC: 2851A-JPZ0094 Page 28 of 35 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. 10. SETUP PHOTOS ANTENNA PORT ANTENNA PORT REPORT NO: 10005754 DATE: 2013-08-16 FCC ID: JPZ0094 IC: 2851A-JPZ0094 Page 29 of 35 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. RADIATED EMISSION FOR PORTABLE CONFIGURATION – X ORIENTATION RADIATED EMISSION FOR PORTABLE CONFIGURATION – X ORIENTATION REPORT NO: 10005754 DATE: 2013-08-16 FCC ID: JPZ0094 IC: 2851A-JPZ0094 Page 30 of 35 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. RADIATED EMISSION FOR PORTABLE CONFIGURATION – Y ORIENTATION RADIATED EMISSION FOR PORTABLE CONFIGURATION – Y ORIENTATION REPORT NO: 10005754 DATE: 2013-08-16 FCC ID: JPZ0094 IC: 2851A-JPZ0094 Page 31 of 35 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. RADIATED EMISSION FOR PORTABLE CONFIGURATION – Z ORIENTATION RADIATED EMISSION FOR PORTABLE CONFIGURATION – Z ORIENTATION REPORT NO: 10005754 DATE: 2013-08-16 FCC ID: JPZ0094 IC: 2851A-JPZ0094 Page 32 of 35 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. RADIATED EMISSION ABOVE 30 MHz RADIATED EMISSIONS ABOVE 30 MHz (FRONT) REPORT NO: 10005754 DATE: 2013-08-16 FCC ID: JPZ0094 IC: 2851A-JPZ0094 Page 33 of 35 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. RADIATED EMISSIONS ABOVE 30 MHz (BACK) REPORT NO: 10005754 DATE: 2013-08-16 FCC ID: JPZ0094 IC: 2851A-JPZ0094 Page 34 of 35 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. RADIATED EMISSION ABOVE 1GHz RADIATED EMISSIONS ABOVE 1GHz (FRONT) REPORT NO: 10005754 DATE: 2013-08-16 FCC ID: JPZ0094 IC: 2851A-JPZ0094 Page 35 of 35 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. END OF REPORT RADIATED EMISSIONS ABOVE 1GHz (BACK)
