JPZ0104Bridge

OFF ON quick-start guide Lutron® Smart Bridge, Pico® remote control & In-wall dimmer Welcome—and thank you for purchasing a CasétaT Wireless kit. In order to control your lights from an app or remote, you’ll need to replace an existing switch with a CasétaT Wireless in-wall dimmer. Before you install the dimmer, please watch the installation video at www.casetawireless.com. We hope you enjoy the convenience of CasétaT Wireless! NOTE: You can mix and match dimmable LED and CFLs, as well as halogen and incandescent light bulbs, with CasétaT Wireless dimmers. Dimmable LED and CFL light bulbs vary in their dimming performance. If you’re using these bulbs and they flicker or turn off, please visit www.casetawireless.com/support/lowend for information on adjusting the dimmer for best bulb performance. For a complete list of compatible dimmable LEDs and CFLs, please visit www.casetawireless.com/support/bulblist. Compatible light bulbs include: Cree BA19-08027OMF-12DE26-1U100 CR6 Ecosmart ECS 30 WW FL 75WE 120 ECS 38 WW FL 90WE 120 Feit A19/DM/LED PAR38/LEDG5 Philips 9290002295 Sylvania LED12A19/DIM/O/827 LED21PAR38/DIM/P/930/FL30 LED up to 150 W CFL up to 150 W Halogen up to 600 W Incandescent up to 600 W Contents supplied Double your warranty In-wall dimmer (PD-6WCL) Claro® wallplate (CW-1) Tools you’ll need Works with energy efficient dimmable light bulbs: Flat-head screwdriver Pico ® remote control (PJ2-3BRL) Wire connectors (3) Phillips-head screwdriver Pliers Screws (2) Installation for lights with one wall switch (single-pole) Installing your dimmer Using your CasétaT Wireless kit Some lights have one wall switch, while others have two or more wall switches (such as stair lights, which have a switch at both the top and bottom of the stairs). We’ve included instructions for lights with one wall switch (called a single-pole). If your light has more than one switch (called a 3-way), please visit www.casetawireless.com/support/3way for complete installation instructions and how-to videos. WARNING: SHOCK HAZARD. May result in serious injury or death. Turn off power at circuit breaker or fuse before installing. 1 Turn power off at circuit breaker! 4 Connect the dimmer 5 Mount the dimmer 6 Attach the wallplate 7 Turn power on at circuit breaker 2 Remove existing switch from wall Remove the wallplate from switch. 3 Remove side sections (if necessary) Remove the switch and pull it away from the wall. * If your switch has more than 3 wires attached, see “Installing CasétaT Wireless in a 3-way switch application” video on www.casetawireless.com/support/3-way. Bend back and forth. 3 5 1 4 6 Ground Ground 1 2 3 Ground 7 2 Disconnect all three wires* from the switch. 1 Connect the bare copper (or green) “ground” wire from the wallbox to the green wire on the dimmer using a wire connector. 2 Connect either of the remaining wires from the wallbox to either of the remaining wires on the dimmer using a second wire connector. 3 Connect the remaining wire from the wall to the remaining wire on the dimmer using a third wire connector. Do not remove outside side sections on dimmers at the end of gang. Each dimmer has inside side sections removed. Dimmer at middle has all side sections removed. Attach the adapter to the dimmer using the screws provided snap on the wallplate. ‘snap’ (If you installed the dimmer next to other dimmers or switches, you’ll need to install a wallplate with the correct size/number of openings to accommodate all the devices.) Use the screws provided. Go to www.casetawireless.com/support for additional troubleshooting suggestions. SymptomsProbable cause and action Light does not turn on or in-wall dimmer LEDs do not light up. • Light bulb(s) burned out. • Breaker is OFF or tripped. • Light not properly installed. • Wiring error. • FASST switch on the dimmer is in the Off position. Light does not respond to Pico remote control. • The dimmer failed to pair with Pico remote control; see Pairing the dimmer and Pico remote control. • The dimmer is already at the light level the Pico remote control is sending. • The Pico remote control is outside the 30 ft (9 m) operating range. • The Pico remote control batteries are low. • The Pico remote control batteries are installed incorrectly. • Bulbs turn off while being dimmed. • Bulbs turn on at high light level but do not turn on at a low light level. • Bulbs flicker or flash when dimmed to a low light level. Verify bulbs are marked dimmable and visit www.casetawireless.com/ support/lowend for information on adjusting the dimmer for best bulb performance. Love CasétaT Wireless dimmers? Have ideas for making them better? Tell us what you think and we’ll extend your warranty by 1 year. www.casetawireless.com/register. CAUTION Use only with permanently installed fixtures with dimmable LED, dimmable CFL, halogen, or incandescent lamps. To avoid overheating and possible damage to other equipment, do not use to control receptacles, motor-driven appliances, or transformer-supplied appliances. Codes Install in accordance with all national and local electrical codes. Grounding When no “grounding means” exist in wallbox, the National Electrical Code (NEC®) allows a control to be installed as a replacement if 1) a nonmetallic, noncombustible faceplate is used with nonmetallic attachment screws or 2) the circuit is protected by a ground fault circuit interrupter (GFCI). When installing a control according to these methods, cap or remove green wire before screwing control into wallbox. FCC/IC Information This device complies with part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation. Modifications not expressly approved by Lutron Electronics Co., Inc. could void the user’s authority to operate this equipment. Note: This equipment has b…

Text truncated - open the document above for the full version.

Lutron Case ̒ ta Mobile App overview LUTRON CONFIDENTIAL 1/24/2014 1 Overview of Setup (Select “Setup My System”) (Note: product name is now Case ̒ ta, not Sunata) Lutron Case ̒ ta Mobile App overview LUTRON CONFIDENTIAL 1/24/2014 2 (Creates account on cloud server) (The Bridge is the link between the cloud server and the Case̒ta devices) ( Note: product name is now Case ̒ ta, not Sunata) Lutron Case ̒ ta Mobile App overview LUTRON CONFIDENTIAL 1/24/2014 3 (Discovers Lutron Ethernet Bridge on Wi-Fi network and then associates with user’s cloud account) (User selects Lutron device type they want to add) Lutron Case ̒ ta Mobile App overview LUTRON CONFIDENTIAL 1/24/2014 4 (User presses and holds the button on the physical device they are adding) (User gives device a name and selects icon to represent it) Lutron Case ̒ ta Mobile App overview LUTRON CONFIDENTIAL 1/24/2014 5 (Device has been successfully added, user can either add more devices or go into the app) Overview of Control (Home screen to quickly toggle on/off lights and open/close shades and activate scenes like “Home”, “Movie”, etc.) Lutron Case ̒ ta Mobile App overview LUTRON CONFIDENTIAL 1/24/2014 6 (Home screen that user has added more devices including thermostat, added scenes, and changed background photo) (Devices screen to get more fine grained control over each Lutron device) Lutron Case ̒ ta Mobile App overview LUTRON CONFIDENTIAL 1/24/2014 7 (Manual scenes – activated by the user in the app – includes “preset” with 1 or more Lutron device e.g. Living Room shades open, Living Room lamps 75%, Kitchen Pendants 0%) (Scheduled scenes – same as manual scenes, but run automatically by the bridge on specified days at specified time of day or sunrise/sunset)

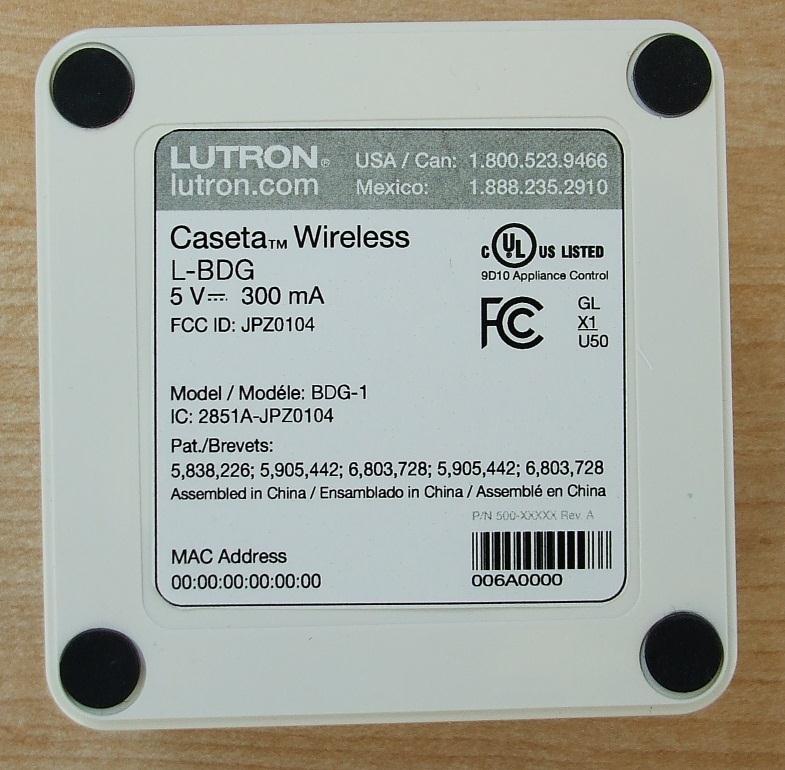

BDG-1 Photos DUT Top DUT Bottom w/ Label DUT Side DUT inside top w/ antenna BDG-1 Photos DUT Top DUT Bottom w/ Label DUT Side DUT inside top w/ antenna

BDG-1 Photos DUT Top DUT Bottom w/ Label DUT Side DUT inside top w/ antenna

BDG-1 Photos DUT Top DUT Bottom w/ Label DUT Side DUT inside top w/ antenna BDG-1 Photos DUT with back cover removed PWB top w/ shield PWB top w/ shield removed BDG-1 Photos PWB bottom

FCC CFR47 PART 15 SUBPART B & C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR BRIDGE MODEL NUMBER: BDG-1 FCC ID: JPZ0104 IC: 2851A-JPZ0104 REPORT NUMBER: 10199581 ISSUE DATE: 2014-02-25 Prepared for LUTRON ELECTRONICS INC. 7200 SUTER RD. COOPERBURG PA, 18036, USA Prepared by UL LLC 1285 WALT WHITMAN RD. MELVILLE, NY 11747, U.S.A. TEL: (631) 271-6200 FAX: (877) 854-3577 REPORT NO: 10199581 DATE: 2014-02-25 FCC ID: JPZ0104 IC: 2851A-JPZ0104 Page 2 of 48 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. Revision History Rev. Issue Date Revisions Revised By -- 2014- 02-25 Initial Issue B. DeLisi REPORT NO: 10199581 DATE: 2014-02-25 FCC ID: JPZ0104 IC: 2851A-JPZ0104 Page 3 of 48 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 6 3. FACILITIES AND ACCREDITATION .................................................................................... 6 4. CALIBRATION AND UNCERTAINTY .................................................................................. 6 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 6 4.2. SAMPLE CALCULATION ............................................................................................... 6 4.3. MEASUREMENT UNCERTAINTY ................................................................................. 6 5. EQUIPMENT UNDER TEST ................................................................................................. 7 5.1. DESCRIPTION OF EUT ................................................................................................. 7 5.2. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 7 5.3. SOFTWARE AND FIRMWARE ...................................................................................... 7 5.4. WORST-CASE CONFIGURATION AND MODE ............................................................ 7 5.5. MODIFICATIONS ........................................................................................................... 7 5.6. DESCRIPTION OF TEST SETUP .................................................................................. 8 6. ANTENNA PORT TEST RESULTS .................................................................................... 10 6.1. 20 dB AND 99% BW ..................................................................................................... 10 6.2. DUTY CYCLE ............................................................................................................... 16 6.3. TRANSMISSION TIME ................................................................................................. 19 7. RADIATED EMISSION TEST RESULTS ............................................................................ 20 7.1. TX RADIATED SPURIOUS EMISSION........................................................................ 20 7.2. RX RADIATED SPURIOUS EMISSION ......................................................................... 3 8. AC MAINS LINE CONDUCTED EMISSIONS ..................................................................... 12 9. SETUP PHOTOS ....................................................................... Error! Bookmark not defined. REPORT NO: 10199581 DATE: 2014-02-25 FCC ID: JPZ0104 IC: 2851A-JPZ0104 Page 4 of 48 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: LUTRON ELECTRONICS INC. 7200 SUTER RD. COOPERBURG PA, 18036, USA EUT DESCRIPTION: Bridge MODEL: BDG-1 SERIAL NUMBER: Non-serialized production unit. DATE TESTED: 2014-02-18 through 2014-02-25 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C Pass FCC PART 15 SUBPART B Pass INDUSTRY CANADA RSS-210 Issue 8, Annex 1 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass UL LLC tested the above equipment in accordance with the requirements set forth in the above standards, using test results reported in the test report documents referenced below and/or documentation furnished by the applicant. All indications of Pass/Fail in this report are opinions expressed by UL LLC based on interpretations of these calculations. The results show that the equipment is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation, as described by the referenced documents. This document may not be altered or revised in any way unless done so by UL LLC and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL LLC will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. REPORT NO: 10199581 DATE: 2014-02-25 FCC ID: JPZ0104 IC: 2851A-JPZ0104 Page 5 of 48 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. Approved & Released For UL By: Tested By: Michael Antola Bob DeLisi WiSE Lead Engineer WiSE Principal Engineer UL LLC UL LLC REPORT NO: 10199581 …
