JPZ0127Lighting Control

041588 Rev. A 04/2020 Vive Installation 347 V~ Dimming Module with 0 –10 V- Control 347 V~ Emergency Dimming Module with 0 –10 V- Control Test Link Cal. + For each system, ensure that you have: One Dimming ModuleAt least one Wireless TransmitterAt least one 0 –10 V- Fluorescent Ballast or LED Driver Required Components Radio Powr Savr Occupancy / Vacancy Sensor (10 maximum) Radio Powr Savr Daylight Sensor (1 maximum) Pico Remote Control (10 maximum) 60 mA maximum for the control lines. Switches up to 5 A total. Note: All drivers and ballasts used with Vive wireless controls must comply with the limits for a Class A device, pursuant to Part 15 of the FCC rules. Dimming Module (1 maximum) 50019280a lutron.com RMJS-5T-347 347 V~ 60 Hz 5 A 0-10 V Raise Toggle Lower Load Status LED Consult third-party 0 –10 V- fixtures installation guide for fixture-specific wiring. + Occupancy Sensors Daylight Sensor Wireless Controls Occupied: All lights 100%. Unoccupied: All lights off. Test Link Cal. All lights dim in response to daylight. OnAll lights 100% FavoriteAll lights 50% OffAll lights off Default Functionality 2 A Dimming Module must be installed in a metal 4 in x 4 in junction box (minimum depth 2 1/8 in) with mounting screws (provided). Please consult local and national electric codes for proper installation. Lutron can provide a barrier, if required, to provide separation in the junction box between Class 1 and Class 2 wires. Note: if module cannot be fully seated into the junction box, try rotating the module 90, 180, or 270 degrees. Or move conduit hardware to a different knockout hole. If neither option works, an extension ring may be required. B Connect bare copper wire from junction box to green ground screw. C Once installed, energize the Dimming Module. D Use the Toggle button “ u” to toggle between high-end and OFF to verify ballasts or LED drivers wiring. E Use the Raise “ ▲ ” and Lower “ Δ ” buttons to verify control wiring. English All Wireless Transmitters must be installed within 30 ft (9 m) of the Dimming Module. 0 –10 V- Control: 10 V- 60 mA (current sink only) Compatible with ANSI E1.3 2001 (R2006), IEC 60929 Annex E 347 V~ 60 Hz 5 A RMJS-5T-347 RMJS-5T-347-EM 50019280a lutron.com RMJS-5T-347 347V~ 60 Hz 5 A 0-10 V Radio Powr Savr Occupancy Sensor Pico Remote Control Dimming Module 30 ft (9 m) max 40 ft (12 m) 33 ft (10 m) Dimming Module Install in center of room to maximize RF coverage. A Connect mains wiring (switched hot, neutral) to each fixture. B Connect 0 –10 V control (+ and – ) to each fixture. 1 + – NEU HOT Class 2 MAINS Fixture Earth Green/Yellow To additional 0 –10 V- fixtures Neutral Switched Line/Hot Violet Pink + – WARNING! Shock Hazard. May result in serious injury or death. Turn off power at circuit breaker before installing the unit. Sample ballast shown 50019280a lutron.com RMJS-5T-347 347 V~ 60 Hz 5 A 0-10 V Switched Line/Hot (Red) – (Pink) Line/Hot (Black) To Fixtures 0 –10 V- to Fixtures Neutral (White) + (Violet) Neutral Junction Box Important Notes: Please read before installing. For installation by a qualified electrician in accordance with all local and national electrical codes. • Note: Use copper conductors only. • Check to see that the device type and rating is suitable for the application. • DO NOT install if product has any visible damage. • If moisture or condensation is evident, allow the product to dry completely before installation. • Operate between 0 °C and 40 °C (32 °F and 104 °F) ambient. • 0% to 90% humidity, non-condensing. • For indoor use only. • For more information and installation tips, see http://www.lutron.com/TechnicalDocumentLibrary/048753.pdf Lutron Electronics Co., Inc. 7200 Suter Road Coopersburg, PA 18036-1299 USA Start Here Programming with a Vive Hub 3 Mount, Wire, and Install 0 –10 V- Devices and Lighting Fixtures Consult third-party device installation guide Install Dimming Module Suggested Installation Location: Center of room to ensure proper RF coverage of area. Note: For further information on set up, programming, and troubleshooting with a Vive system, please refer to the installation instructions included with the Vive hub or visit www.lutron.com/vive Note: For programming the Dimming Module without a Vive hub see reverse side. Customer Assistance www.lutron.com/support Troubleshooting www.lutron.com/support Ballasts or LED drivers cannot be controlled locally from Dimming Module with 0 –10 V-. • Ensure that the breaker(s) to the Dimming Module are energized. • Ensure that the Dimming Module switched hot lead is wired to the lighting fixture(s). • Ensure that the Dimming Module control lines are wired to the lighting fixture(s). • Ensure the driver is a current source for the 0-10 V- link. • Dimming Module may be in emergency mode. Reset to factory defaults. Lights do not dim as expected. • Ensure that 0 –10 V- control lines are wired properly. • Ensure that fixture does not require an inverted signal (10 – 0 V- control). • Ensure the driver is a current source for the 0-10 V- link. • Dimming Module may be in emergency mode. Lights do not respond to Wireless Transmitter(s) (Pico remotes and RPS sensors). • Ensure that the breaker(s) to the Dimming Module and any connected ballasts or LED drivers are energized. • Ensure that Wireless Transmitters are associated to the Dimming Module. Reset to factory defaults. Lights are unstable at low-end or flash/flicker at turn-on or turn-off.• Adjust low-end trim. Wireless Transmitter(s) cannot be associated to Dimming Module with 0 –10 V-. • The maximum number of Wireless Transmitters have been associated to the Dimming Module. To remove a previously set up Wireless Transmitter, tap a Wireless Transmitter button three times; on the third tap hold for three seconds and then tap three more times. 041737 Rev. A 04/2020 Part of the Vive Family NOTE: Output must NOT be used to control receptacles. Output must be directly connected to the load. Output breakers or switches must not b…

Text truncated - open the document above for the full version.

Date: 09 Jun 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL Verification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL LLC to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL LLC on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL LLC as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Robert Spehalski Engineering Leader Lutron Electronics Co., Inc.

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 09 Jun 2020 Subject: Long Term Request for Confidentiality – JPZ0127 Dear Sir or Madam: This letter is to formally request long term confidentiality, per the FCC Rules 47 CFR 0.457 and 0.459, for materials or information submitted to the Commission to be withheld from public inspection. For all models in this submission, the following items are Lutron Electronics Co., Inc. confidential information that must be from public inspection by potential competitors to protect our business. 1. Schematic 2. Operation Description 3. Bill of Materials 4. Block Diagram Thank you for your cooperation. Sincerely, Robert Spehalski Engineering Leader

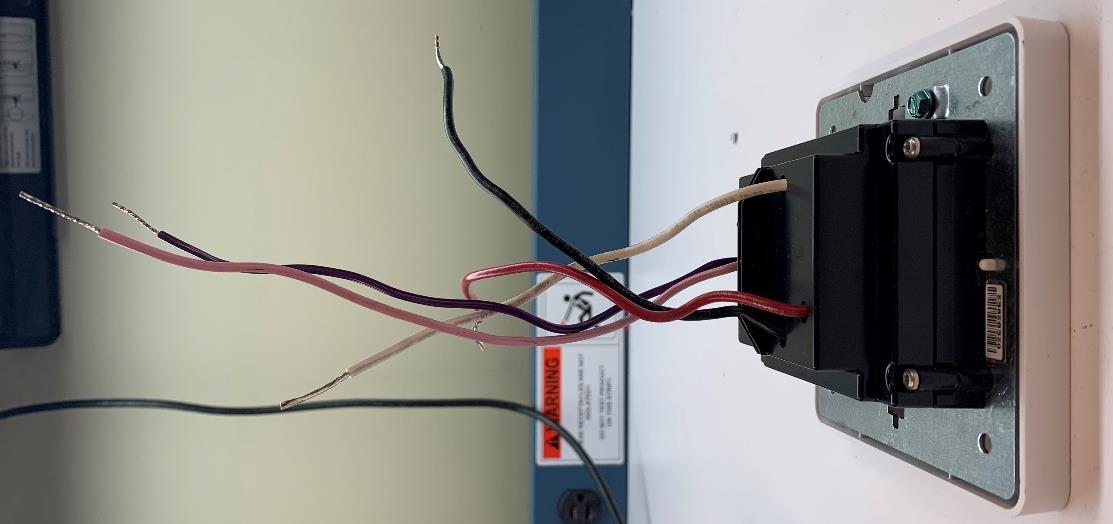

RMJS-5T-347 Photos Front of Assembly Back/Side of Assembly

Right Side with Label Location Sample RMJS-5T-347 Label Left Side Sample RMJS-5T-347-EM Label

Top of Power Board with Antenna Board Top of Power Board without Antenna Board Bottom of Power Board Alternate View of Bottom of Board Alternate Side View of Antenna Board Side View of Antenna Board Front of Antenna Board Back of Antenna Board

NVLAP LAB CODE 200246-0 FCC CFR47 PART 15 SUBPART C ISED CANADA RSS-210 ISSUE 10 CERTIFICATION TEST REPORT FOR WIRELESS LED/FLUORESCENT LIGHT CONTROLLER MODEL NUMBER: RMJS-5T-347 FCC ID: JPZ0127 IC: 2851A-JPZ0127 REPORT NUMBER: R13260790-E1 ISSUE DATE: 2020-07-15 Prepared for LUTRON ELECTRONICS CO. INC. 7200 SUTER ROAD COOPERSBURG, PA 18036-1249, USA Prepared by UL LLC 12 LABORATORY DR. RESEARCH TRIANGLE PARK, NC 27709 USA TEL: (919) 549-1400 REPORT NO: R13260790-E1 DATE: 2020-07-15 FCC ID: JPZ0127 IC: 2851- JPZ0127 Page 2 of 43 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., RTP, NC 27709 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. REVISION HISTORY Ver. Issue Date Revisions Revised By 1 2020-06-30 Initial Issue Brian T. Kiewra 2 2020-07-01 Revised Description of EUT Lariah Ijames 3 2020-07-10 Changed “maximum” to “nominal” section 5.2 Niklas Haydon 4 2020-07-15 Corrected model number Lariah Ijames REPORT NO: R13260790-E1 DATE: 2020-07-15 FCC ID: JPZ0127 IC: 2851- JPZ0127 Page 3 of 43 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., RTP, NC 27709 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. TABLE OF CONTENTS REVISION HISTORY ..................................................................................................................2 TABLE OF CONTENTS .............................................................................................................3 1. ATTESTATION OF TEST RESULTS ..................................................................................4 2. TEST METHODOLOGY ......................................................................................................5 3. FACILITIES AND ACCREDITATION ..................................................................................5 4. CALIBRATION AND UNCERTAINTY .................................................................................6 4.1. MEASURING INSTRUMENT CALIBRATION ...............................................................6 4.2. SAMPLE CALCULATION .............................................................................................6 4.3. MEASUREMENT UNCERTAINTY ................................................................................6 5. EQUIPMENT UNDER TEST ................................................................................................7 5.1. DESCRIPTION OF EUT ...............................................................................................7 5.2. DESCRIPTION OF AVAILABLE ANTENNAS ...............................................................7 5.3. SOFTWARE AND FIRMWARE .....................................................................................7 5.4. WORST-CASE CONFIGURATION AND MODE ...........................................................7 5.5. MODIFICATIONS .........................................................................................................7 5.6. DESCRIPTION OF TEST SETUP .................................................................................7 6. TEST AND MEASUREMENT EQUIPMENT ........................................................................9 7. ANTENNA PORT TEST RESULTS ...................................................................................11 7.1. 20 dB AND 99% BW ...................................................................................................11 7.2. DUTY CYCLE .............................................................................................................16 7.3. TRANSMISSION TIME ...............................................................................................18 8. RADIATED EMISSION TEST RESULTS...........................................................................19 8.1. TX RADIATED SPURIOUS EMISSION ......................................................................19 8.1.1. TX SPURIOUS EMISSIONS (0.009-30MHz – WORST CASE) ............................22 8.1.2. FUNDAMENTAL, HARMONICS AND TX SPURIOUS EMISSIONS (30 - 5000MHz) ..........................................................................................................................24 9. AC MAINS LINE CONDUCTED EMISSIONS ....................................................................36 10. SETUP PHOTOS ...........................................................................................................39 END OF TEST REPORT ..........................................................................................................43 REPORT NO: R13260790-E1 DATE: 2020-07-15 FCC ID: JPZ0127 IC: 2851- JPZ0127 Page 4 of 43 UL LLC FORM NO: 03-EM-F00858 12 Laboratory Dr., RTP, NC 27709 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Lutron Electronics Co. Inc. 7200 Suter Road Coopersburg, PA 18036-1249, USA EUT DESCRIPTION: Wireless LED/Fluorescent Light Controller MODEL: RMJS-5T-347 SERIAL NUMBER: 02EB289D, 02EB28A0 DATE TESTED: 2020-06-16 to 2020-06-23 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C Complies ISED CANADA RSS-210 Issue 10, Annex A Complies ISED CANADA RSS-GEN Issue 5 Complies UL LLC tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. All samples tested were in good operating condition throughout the entire test program. Measurement Uncertainties are published for informational purposes only and were not take…
