Dialogue Flybook V5 User’s Manual Model No. V5W1BB (without 3G) V5W1BBHA (with 3G) Dialogue Technology Corporation Copyright 2006-2007. All Rights Reserved Version 1.0, Dec. 2006 — i Copyright and safety notices Please read this section before using your computer. Retain this manual for future reference. Copyright This publication, including all photographs, illustrations and software, is pro- tected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the manufacturer. Copyright 2006 Dialogue Technology Corporation Version 1.0, December 2006 Disclaimer The information in this document is subject to change without notice. The man- ufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. Trademark recognition Bluetooth is a trademark of the Bluetooth SIG, Inc. (Special Interest Group). The Bluetooth trademark is owned by Bluetooth SIG, Inc. USA. BlueSoleil is a trademark of IVT Corporation. Dialogue Technology Corporation is a registered trademark. FlyBook is a trademark of the Dialogue Technology Corporation. Windows is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. All other product names used in this man- ual are the properties of their respective owners and are acknowledged. Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, ii — there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recep- tion, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and the receiver. •Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system's manufacturer could void the user's authority to oper- ate the equipment. — iii Battery caution Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. About this manual This User’s Manual provides information to help you operate and get the most from your V5 Flybook. Read the Quick Start Guide to quickly set up and begin using your computer. Please read “Copyright and safety notices” on page i before using your computer. Taking Care of the V5 Flybook After you unpack your computer, store the packing materials in case you want to ship the computer or if you have to return it for servicing. Your notebook computer is a precision instrument that should be handled with care. Use common sense and follow the guidelines below, and your computer will last you for many years. Do’s and don’ts with the V5 Flybook y Do not twist the display counterclockwise. y Do not place heavy objects such as books on the computer. y Do not storage the computer to temperatures above 50° C or below 0° C. y Keep the computer away from direct sunlight or heat sources. y Do not expose the computer to rain or moisture. y Do not spill water or any other liquid on the computer. y Do not place the computer near magnetic fields. y Avoid subjecting your computer to heavy shocks or vibrations. y Do not expose the computer to dusty or dirty environments. y Do not place the computer on uneven surfaces. y Do not cover the air vents around the computer. y Only use the ac adapter that is provided with your computer. iv — Safety Information The V5 Flybook has been designed and tested to meet the most recent stan- dards of safety in notebook technology equipment. To ensure safe use of the V5 Flybook, refer to the following safety instructions and any caution or warn- ing messages on the equipment or in the user manual. •Read and follow all instructions marked on the V5 Flybook and in the user manual before operating the V5. Store all safety information in a secure place for future reference. •Do not use the V5 Flybook near water or a heat source such as a radiator. •Always set the V5 Flybook on a stable surface. •Only operate the V5 Flybook from the type of power source indicated on the rating label on the AC adapter. •Ensure all ventilation openings are not blocked or covered. Keep an ade- quate space (around 6 inches or 15 cm) around the V5 Flybook. Never insert objects of any kind into the ventilation openings. •When using an extension cord with the V5 Flybook, ensure that the total ampere rating on the equipment connected to the cord does not exceed the extension cord ampere rating maximum value. •Only use the supplied power cord. Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic. •Avoid spilling any liquids on the V5 Flybook. •Always unplug any modem, LAN, or power cables from the …

Text truncated - open the document above for the full version.

Dialogue Flybook V5 User’s Manual Model No. V5W1BB (without 3G) V5W1BBHA (with 3G) Dialogue Technology Corporation Copyright 2006-2007. All Rights Reserved Version 1.0, Dec. 2006 — i Copyright and safety notices Please read this section before using your computer. Retain this manual for future reference. Copyright This publication, including all photographs, illustrations and software, is pro- tected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the manufacturer. Copyright 2006 Dialogue Technology Corporation Version 1.0, December 2006 Disclaimer The information in this document is subject to change without notice. The man- ufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. Trademark recognition Bluetooth is a trademark of the Bluetooth SIG, Inc. (Special Interest Group). The Bluetooth trademark is owned by Bluetooth SIG, Inc. USA. BlueSoleil is a trademark of IVT Corporation. Dialogue Technology Corporation is a registered trademark. FlyBook is a trademark of the Dialogue Technology Corporation. Windows is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. All other product names used in this man- ual are the properties of their respective owners and are acknowledged. Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, ii — there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recep- tion, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and the receiver. •Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system's manufacturer could void the user's authority to oper- ate the equipment. — iii Battery caution Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. About this manual This User’s Manual provides information to help you operate and get the most from your V5 Flybook. Read the Quick Start Guide to quickly set up and begin using your computer. Please read “Copyright and safety notices” on page i before using your computer. Taking Care of the V5 Flybook After you unpack your computer, store the packing materials in case you want to ship the computer or if you have to return it for servicing. Your notebook computer is a precision instrument that should be handled with care. Use common sense and follow the guidelines below, and your computer will last you for many years. Do’s and don’ts with the V5 Flybook y Do not twist the display counterclockwise. y Do not place heavy objects such as books on the computer. y Do not storage the computer to temperatures above 50° C or below 0° C. y Keep the computer away from direct sunlight or heat sources. y Do not expose the computer to rain or moisture. y Do not spill water or any other liquid on the computer. y Do not place the computer near magnetic fields. y Avoid subjecting your computer to heavy shocks or vibrations. y Do not expose the computer to dusty or dirty environments. y Do not place the computer on uneven surfaces. y Do not cover the air vents around the computer. y Only use the ac adapter that is provided with your computer. iv — Safety Information The V5 Flybook has been designed and tested to meet the most recent stan- dards of safety in notebook technology equipment. To ensure safe use of the V5 Flybook, refer to the following safety instructions and any caution or warn- ing messages on the equipment or in the user manual. •Read and follow all instructions marked on the V5 Flybook and in the user manual before operating the V5. Store all safety information in a secure place for future reference. •Do not use the V5 Flybook near water or a heat source such as a radiator. •Always set the V5 Flybook on a stable surface. •Only operate the V5 Flybook from the type of power source indicated on the rating label on the AC adapter. •Ensure all ventilation openings are not blocked or covered. Keep an ade- quate space (around 6 inches or 15 cm) around the V5 Flybook. Never insert objects of any kind into the ventilation openings. •When using an extension cord with the V5 Flybook, ensure that the total ampere rating on the equipment connected to the cord does not exceed the extension cord ampere rating maximum value. •Only use the supplied power cord. Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic. •Avoid spilling any liquids on the V5 Flybook. •Always unplug any modem, LAN, or power cables from the …

Text truncated - open the document above for the full version.

Dialogue Technology Corp. 10F, No. 196, Sec. 2, Jungshing Rd., Shindian City, Taipei 231, Taiwan, R.O.C. Date: July 20, 2007 Attestation We, Dialogue Technology Corp., hereby declare that the WLAN and 3G (WWAN) modules of V5W1BBHA (model name) will be disabled when it is used in tablet mode. V5W1BBHA originally has an embedded detector to detect whether the device is in tablet mode. Therefore, we can release a new Firmware to disable the WLAN and WWAN transmission and disable the manual turn-on function by users when it detects the device is used in tablet mode. The new Firmware will make sure that WLAN and WWAN can not be transmitted automatically or manually, so it avoids transmission of WLAN and WWAN when the antennas touch the user body. Should you have any questions, please have my best attention. Sincerely yours, Contact Person: Jack Lee Dialogue Technology Corp. Tel: 886-2-8911-5121 E-mail: [email protected]

Rev. 1/1/03 Dialogue Technology Corp. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: JYV-V5W1BBHA. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block diagram Should be V5W1BBHA BlkDia.pdf Schematics Should be V5W1BBHA Schem.pdf Operation Description Should be V5W1BBHA OpDes_BT.pdf Operation Description Should be V5W1BBHA OpDes_WLAN.pdf Operation Description Should be V5W1BBHA OpDes_GSM.pdf Parts List Should be V5W1BBHA PartsLst.pdf Tune-up Procedure Should be V5W1BBHA TunPro.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jack Lee Attached: Copy of FCC Confidentiality Policy

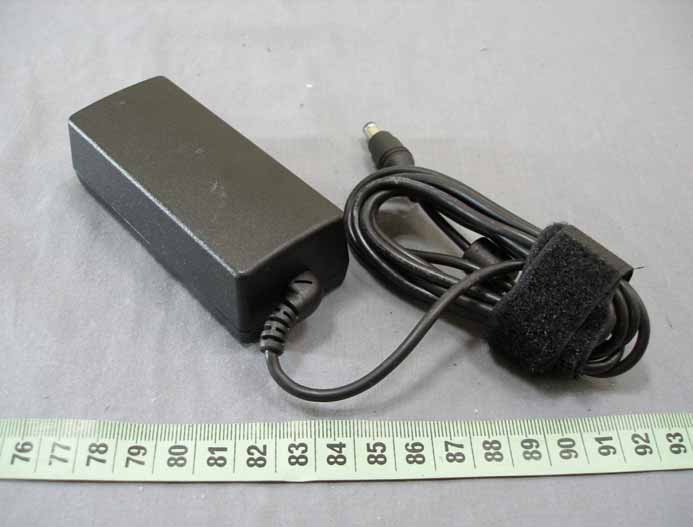

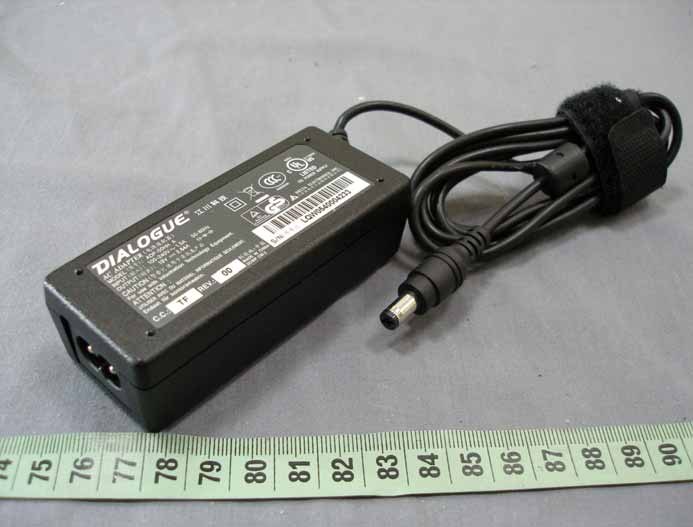

FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : A1 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 APPENDIX A. External Photographs of EUT 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : A2 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : A3 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : A4 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : A5 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : A6 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : A7 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : A8 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : A9 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516

FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : A3 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516

FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B1 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 APPENDIX B. Internal Photographs of EUT 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B2 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B3 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B4 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B5 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B6 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B7 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B8 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B9 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B10 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B11 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B12 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B13 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B14 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B15 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B16 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B17 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B18 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B19 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B20 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B21 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B22 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B23 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B24 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B25 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B26 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B27 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B28 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B29 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 6O2516 FCC TEST REPORT REPORT NO. : FG6O2516 SPORTON International Inc. Page Number : B30 OF B48 TEL : 886-2-2696-2468 Report Issued Date : Mar. 30, 2007 FAX : 886-2-2696-2255 …

Text truncated - open the document above for the full version.

Fig. 1: in the laptop mode, WWAN and WiFi can be enabled either by Flybook Control Center or hot key (Fn+F9 for WWAN or Fn+F8 for WiFi) Fig. 2: the photo of the tablet PC mode Fig. 3: in the tablet PC mode, hot-key and Flybook Control Center for WWAN and WiFi are disabled. Fig. 4: in the process of changing to tablet PC mode, when the angle is smaller than 25 degree, Type Switch on the main board will sense the magnet inside of the panel and then turn off WWAN and WiFi. The relative location of Type SW and magnet are shown in the figure. The hinge can lock the panel in fixed location. Fig. 5: the location of Type Switch on the main board Fig. 6: the location of magnet inside of the panel

V5W1BBHA Technical Operations on Tablet-Mode Sensor H/W: V5W1BBHA (FCC ID: JYV-V5W1BBHA) embeds a Reed Switch, which is a magnetic sensor. When V5W1BBHA is in the tablet PC mode, the Reed Switch will be in active mode. Because the Reed Switch active signal is connected to GPIO pin of Embedded Controller, Embedded Controller will have V5W1BBHA status information. F/W: When Reed Switch is in active mode, Embedded Controller will disable 1. WLAN and WWAN transmission 2. WWAN and WLAN function in Flybook Control Center 3. hot key, Fn+F8 and Fn+F9 on keyboard The new F/W version is ready. Based on the H/W and F/W algorithm, when V5W1BBHA is in tablet PC mode, Embedded Controller of V5W1BBHA will turn off the possible WLAN and WWAN transmission and disable the WLAN and WWAN function both by Flybook Control Center, and by hot key on keyboard. Therefore, it is impossible that the users will be exposed in WLAN and WWAN RF transmission in table PC mode. CTO Daniel Lee, Ph.D www.dialogue.com.tw

Dialogue Technology Corp. 10F, No. 196, Sec. 2, Jungshing Rd., Shindian City, Taipei 231, Taiwan, R.O.C. TEL : 886-2-8911-5121 FAX : 886-2-8911-6151 www.dialogue.com.tw Standard Operations Procedure of Embedded Controller (EC) & BIOS Updates for FlyBook V5W1BBHA 2007/09/05 Dialogue Technology Corp. 10F, No. 196, Sec. 2, Jungshing Rd., Shindian City, Taipei 231, Taiwan, R.O.C. TEL : 886-2-8911-5121 FAX : 886-2-8911-6151 www.dialogue.com.tw ☆ It is necessary to run your FlyBook on an external power. Connect your FlyBook with the DC-in adapter first, so that the EC & BIOS updates won’t fail due to FlyBook’s power outage. 1. Update the new EC/BIOS by CD 1.1 Reboot your FlyBook V5W1BBHA with the support of the “V5 EC/BIOS update CD” 1.2 Then the system will automatically update the BIOS first. 1.3 When BIOS update finishes, reboot your FlyBook with the “V5 EC/BIOS update CD” again. Then the system will automatically update the EC. Dialogue Technology Corp. 10F, No. 196, Sec. 2, Jungshing Rd., Shindian City, Taipei 231, Taiwan, R.O.C. TEL : 886-2-8911-5121 FAX : 886-2-8911-6151 www.dialogue.com.tw 1.4 When EC update finishes, reboot your FlyBook with the “V5 EC/BIOS update CD” again. System will show the version information if EC and BIOS are both updated. 1.5 Reboot your FlyBook with HDD support to use it 2. Update the new EC/BIOS by downloading from Dialogue web site Dialogue Technology Corp. 10F, No. 196, Sec. 2, Jungshing Rd., Shindian City, Taipei 231, Taiwan, R.O.C. TEL : 886-2-8911-5121 FAX : 886-2-8911-6151 www.dialogue.com.tw 2.1 Link to Dialogue web site: www.dialogue.com.tw to the member section 2.2 Download the file “FlyBook_V5_EC_BIOS.zip” 2.3 Unzip the file like “FlyBook_V5_EC_BIOS.zip” to receive a “.iso” file. 2.4 Insert a blank CD into the CD/DVD ROM device. 2.5 Invoke a CD burning application such as “Nero”. Use its "Burn Image to Disc" function. Select the ".iso" file that you just unzipped. 2.6 Burn a V5 EC/BIOS update CD. 2.7 Reboot your FlyBook V5W1BBHA with the support of the “V5 EC/BIOS update CD” that you just burned. Then the system will automatically update the BIOS first. Dialogue Technology Corp. 10F, No. 196, Sec. 2, Jungshing Rd., Shindian City, Taipei 231, Taiwan, R.O.C. TEL : 886-2-8911-5121 FAX : 886-2-8911-6151 www.dialogue.com.tw 2.8 When BIOS update finishes, reboot your FlyBook with the “V5 EC/BIOS update CD” again. Then the system will automatically update the EC. 2.9 When EC update finishes, reboot your FlyBook with the “V5 EC/BIOS update CD” again. System will show the version information if EC and BIOS are both updated. Dialogue Technology Corp. 10F, No. 196, Sec. 2, Jungshing Rd., Shindian City, Taipei 231, Taiwan, R.O.C. TEL : 886-2-8911-5121 FAX : 886-2-8911-6151 www.dialogue.com.tw 2.10 Reboot your FlyBook with HDD support to use it.

©2007 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 03 FCC SAR Test Report Test Report No FA6O2516-1-2-02 Specific Absorption Rate (SAR) Test Report for Dialogue Technology Corp. on the FLYBOOK Report No. : FA6O2516-1-2-02 Trade Name : DIALOGUE Model Name : V5W1BBHA FCC ID : JYV-V5W1BBHA Date of Testing : Feb. 13 and Mar. 27, 2007 Date of Report : Mar. 29, 2007 Date of Review : Mar. 29, 2007 ‚ The test results refer exclusively to the presented test model/sample only. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Report Version: Rev. 03. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. ©2007 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 03 Tel:886-22696-2468 Fax:886-2-2696-2255 FCC SAR Test Report Test Report No FA6O2516-1-2-02 Table of Contents 1. Statement of Compliance ---------------------------------------------------------------------------------------------------------------------------------- 1 2. Administration Data ------------------------------------------------------------------------------------------------------------------------------------------ 2 2.1 Testing Laboratory -------------------------------------------------------------------------------------------------------------------------------------- 2 2.2 Detail of Applicant--------------------------------------------------------------------------------------------------------------------------------------- 2 2.3 Detail of Manufacturer --------------------------------------------------------------------------------------------------------------------------------- 2 2.4 Application Detail---------------------------------------------------------------------------------------------------------------------------------------- 2 3. General Information------------------------------------------------------------------------------------------------------------------------------------------ 3 3.1 Description of Device Under Test (DUT) ---------------------------------------------------------------------------------------------------------- 3 3.2 Product Photo-------------------------------------------------------------------------------------------------------------------------------------------- 4 3.3 Applied Standards:-------------------------------------------------------------------------------------------------------------------------------------- 5 3.4 Device Category and SAR Limits ------------------------------------------------------------------------------------------------------------------- 6 3.5 Test Conditions: ----------------------------------------------------------------------------------------------------------------------------------------- 6 3.5.1 Ambient Condition --------------------------------------------------------------------------------------------------------------------------------------- 6 3.5.2 Test Configuration --------------------------------------------------------------------------------------------------------------------------------------- 6 4. Specific A…

Text truncated - open the document above for the full version.
