K4LNETCOM123Wireless Net Com

Titan Electronics Inc
Wireless Net Com - FCC ID K4LNETCOM123 - Titan Electronics Inc
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 05, 2005
Application Purpose
Original Equipment
Date of Application
Sep 05, 2005
Equipment Note
Wireless Net Com
Frequency Range
2412.00000000 - 2462.00000000
Company
Titan Electronics Inc
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Note: FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment . This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, (2)this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimums distance 20cm between the radiator and your body.

Cover Letter(s)

TITAN ELECTRONICS INC. June 23, 2005 Federal Communications Commission Authorization and Evaluation Division FCC ID: K4LNETCOM123 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information applied this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/Title: John Liu/ Engineering Manager Applicant: TITAN ELECTRONICS INC. ADDRESS: RM.7, 11F No. 398, Huan-Pei Rd., Chung Li, Taoyuan Hsien, Taiwan, R.O.C. TEL: (03) 425-8266 FAX: (03) 427-2431 Email: [email protected]

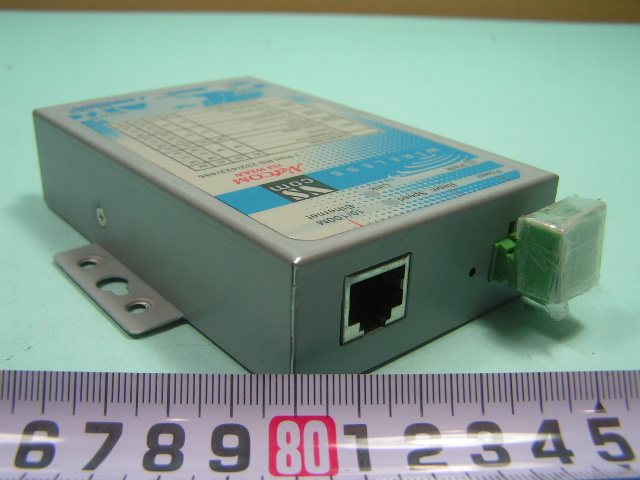

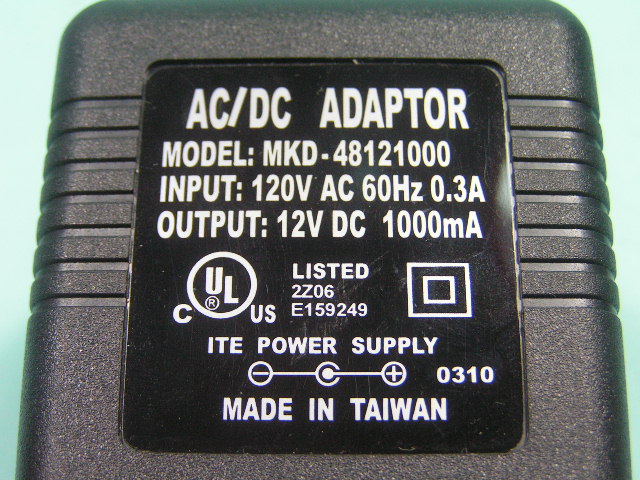

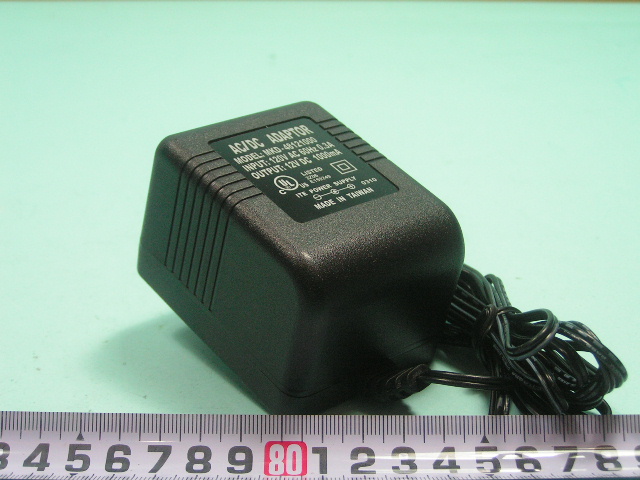

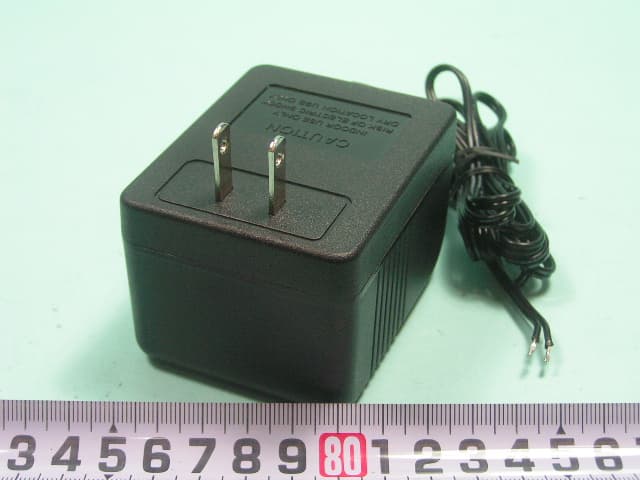

External Photos

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : July 11, 2005 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : July 11, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : July 11, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : July 11, 2005 FAX : 886-2-2696-2255

ID Label/Location Info

Label Location FCC ID: K4LNETCOM123

Internal Photos

SPORTON International Inc. PAGE NUMBER : A1 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : July 11, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A2 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : July 11, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : July 11, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : July 11, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : July 11, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : July 11, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : July 11, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : July 11, 2005 FAX : 886-2-2696-2255

RF Exposure Info

Report No.: FR560913 FCC ID: K4LNETCOM123 Page No. : 58 of 63 Issued Date : July 12, 2005 5.8. Maximum Permissible Exposure 5.8.1. Applicable Standard 47 CFR FCC Part 15 Subpart C, section 15.247(i): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20 cm normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 5.8.2. MPE Calculation Method E (V/m) = d GP××30 Power Density: Pd (mW/cm²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (mW) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=20cm, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR560913 FCC ID: K4LNETCOM123 Page No. : 59 of 63 Issued Date : July 12, 2005 5.8.3. Calculated Result and Limit Max Conducted Power for IEEE 802.11b/g : 20dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 15.3800 34.5144 0.010888 1 Complies

Test Report

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw FCC RADIO TEST REPORT Applicant’s company TITAN ELECTRONICS INC. Applicant Address RM.7, 11F No. 398, Huan-Pei Rd., Chung Li, Taoyuan Hsien, Taiwan, R.O.C. FCC ID K4LNETCOM123 Manufacturer’s company TITAN ELECTRONICS INC. Manufacturer Address RM.7, 11F No. 398, Huan-Pei Rd., Chung Li, Taoyuan Hsien, Taiwan, R.O.C. Product Name Wireless Net Com Brand Name TITAN Model Name NetCom 123 WLAN / NetCom 121 WLAN Test Freq. Range 2400 ~ 2483.5MHz Test Rule Part(s) 47 CFR FCC Part 15 Subpart C Receive Date June 17, 2005 Test Date July 04, 2005 Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC or NIST/USA. _________________________________ Wayne Hsu / Spuervisor 1190 ILAC MRA Report No.: FR560913 FCC ID: K4LNETCOM123 Page No. : i of ii Issued Date : July 12, 2005 Table of Contents 1. INTRODUCTION ............................................................................................................................... 1 2. GENERAL INFORMATION................................................................................................................... 2 2.1. Product Details.................................................................................................................................................................2 2.2. Accessories ......................................................................................................................................................................2 2.3. Antenna Information ........................................................................................................................................................3 2.4. Technical Specifications ...................................................................................................................................................3 2.5. Test Configuration ...........................................................................................................................................................4 2.6. Support Equipment ..........................................................................................................................................................5 2.7. Test Software (Setting) .....................................................................................................................................................6 2.8. Test Procedure .................................................................................................................................................................6 3. GENERAL INFORMATION OF FACILITY................................................................................................7 3.1. Test Location ...................................................................................................................................................................7 3.2. CNLA Accreditation ..........................................................................................................................................................7 3.3. Test Equipment Calibration ..............................................................................................................................................7 4. SUMMARY OF THE TEST RESULTS ...................................................................................................... 8 5. TEST RESULT.................................................................................................................................... 9 5.1. AC Power Line Conducted Emissions Measurement ..........................................................................................................9 5.2. Maximum Peak Output Power Measurement...................................................................................................................15 5.3. Power Spectral Density Measurement .............................................................................................................................17 5.4. 6dB Spectrum Bandwidth Measurement..........................................................................................................................22 5.5. Radiated Emissions Measurement ..................................................................................................................................27 5.6. Band Edge Emissions Measurement................................................................................................................................53 5.7. Antenna Requirements ...................................................................................................................................................57 5.8. Maximum Permissible Exposure.....................................................................................................................................58 6. List of Measuring Equipments ........................................................................................................ 60 7. SPORTON COMPANY PROFILE .........................................................................................................62 7.1. Test Location .................................................................................................................................................................62 8. CNLA Certificate of Accreditation...........................…

Text truncated - open the document above for the full version.

Test Setup Photos

FRONT VIEW REAR VIEW FRONT VIEW REAR VIEW

Contact Information

Applicant

John Liu(Engineer Manager)

Technical Contact

Sporton International Inc.Wayne Hsu
[email protected]886-3-327-3456

No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, · TaoYuan Hsien · Taiwan

Test Firm

Sporton International Inc.Kathy Lin
[email protected]886-2-2696-2468Fax: 886-2-2696-2255

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz34.51 mW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
