G Wireless Router User Manual PM 01110 - A F5 D723 4 - 4 F5D7234-4 v3 i G Wireless Router SECTIONS12345678910Table of Contents TABLE OF CONTENTS Securing your Wi-Fi Network ................................49 WEP Setup ............................................52 Using Wi-Fi Protected Setup ..............................54 WPA Setup.............................................55 Setting WPA/WPA2......................................56 Guest Access ..........................................56 Using the Access Point Mode ...............................59 Configuring the Firewall ....................................60 Setting MAC Address Filtering...............................63 Enabling the DMZ .........................................64 Utilities Tab ..............................................65 Restarting the Router ......................................66 Updating the Firmware .....................................69 7 Manually Configuring Network Settings ...................75 8 Recommended Web Browser Settings ....................80 9 Troubleshooting........................................82 10 Information ...........................................99 1 Introduction ............................................1 Benefits of a Home Network..................................1 Advantages of a Wireless Network ............................1 Placement of your Router for Optimal Performance...............2 2 Product Overview .......................................5 Product Features...........................................5 3 Knowing your Router ....................................7 Package Contents..........................................7 System Requirements.......................................7 Setup Assistant Software System Requirements .................7 4 Connecting and Configuring your Router ..................11 5Alternate Setup Method .................................25 6 Using the Web-Based Advanced User Interface ............40 Changing LAN Settings.....................................41 Viewing the DHCP Client List Page ...........................43 Configuring the Wireless Network Settings.....................43 1 G Wireless Router SECTIONSTable of Contents23456789101 INTRODUCTION Thank you for purchasing the Belkin G Wireless Router (the Router). The following two short sections discuss the benefits of home networking and outline best practices for maximizing your wireless home network range and performance. Please be sure to read through this User Manual completely, and pay special attention to the section entitled “Placement of your Router for Optimal Performance” on page 2. Advantages of a Wireless Network ŘMobility – you’ll no longer need a dedicated “computer room”—now you can work on a networked laptop or desktop computer anywhere within your wireless range ŘEasy installation – The Belkin Setup Assistant software makes setup simple ŘFlexibility – set up and access printers, computers, and other networking devices from anywhere in your home ŘEasy expansion – the wide range of Belkin networking products lets you expand your network to include devices such as printers and gaming consoles ŘNo cabling required – you can spare the expense and hassle of retrofitting Ethernet cabling throughout the home or office ŘWidespread industry acceptance – choose from a wide range of interoperable networking products ŘShare one high-speed Internet connection with all the computers in your home ŘShare resources, such as files and hard drives among all the connected computers in your home ŘShare a single printer with the entire family ŘShare documents, music, video, and digital pictures ŘStore, retrieve, and copy files from one computer to another ŘSimultaneously play games online, check Internet email, and chat Benefits of a Home Network 2 G Wireless Router SECTIONSTable of Contents23456789101 INTRODUCTION ŘEnsure that your Router’s networking antennas are parallel to each other, and are positioned vertically (toward the ceiling). If your Router itself is positioned vertically, point the antennas as much as possible in an upward direction. ŘIn multistory homes, place the Router on a floor that is as close to the center of the home as possible. This may mean placing the Router on an upper floor. ŘTry not to place the Router near a cordless phone. 2. Avoid Obstacles and Interference Avoid placing your Router near devices that may emit radio “noise,” such as microwave ovens. Dense objects that can inhibit wireless communication include: ŘRefrigerators ŘWashers and/or dryers ŘMetal cabinets ŘLarge aquariums ŘMetallic-based, UV-tinted windows If your wireless signal seems weak in some spots, make sure that objects such as these are not blocking the signal’s path (between your computers and Router). Placement of your Router for Optimal Performance Important Factors for Placement and Setup Your wireless connection will be stronger the closer your computer is to your Router. Typical indoor operating range for wireless devices is between 100 and 200 feet. In the same way, your wireless connection and performance will degrade somewhat as the distance between your Router and connected devices increases. This may or may not be noticeable to you. As you move farther from your Router, connection speed may decrease. Factors that can weaken signals simply by getting in the way of your network’s radio waves are metal appliances or obstructions, and walls. If you have concerns about your network’s performance that might be related to range or obstruction factors, try moving the computer to a position between five and 10 feet away from the Router in order to see if distance is the problem. If difficulties persist even at close range, please contact Belkin Technical Support. Note: While some of the items listed below can affect network performance, they will not prohibit your wireless network from functioning; if you are concerned that your network is not operating at its maximum eff…

Text truncated - open the document above for the full version.

Page No. : 1 Belkin International, Inc. 501 West Walnut Street, Compton, CA 90220-5221, U.S.A.. TEL: 1 (310) 604-2484 FAX: 1 (310) 631-3629 Confidential Letter Date: 2008/9/12 Federal Communications Commission Authorization and Evaluation Division FCC ID ：K7S-F5D7234V3 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Belkin International, Inc. Applicant’s company address : 501 West Walnut Street, Compton, CA 90220-5221, USA Signature : _____________________________ Signed for Daniel Wesey Job Title and Dept. : Regulatory Compliance Engineer E-Mail : [email protected] Tel. : 1 (310) 604-2315

Belkin International, Inc. 501 West Walnut Street, Compton, CA 90220-5221, USA TEL: 1 (310) 604-2484 FAX: 1 (310) 631-3629 DoC Attestation Letter Date: 2008/9/12 We Belkin International, Inc., as the grantee of this project FCC ID: K7S-F5D7234V3, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. FCC Grantee contact person information. Applicant : Belkin International, Inc. Address : 501 West Walnut Street, Compton, CA 90220-5221, USA Signature : __________________________ Name and Job Title. : Regulatory Compliance Engineer E-mail : [email protected] Tel. : 1 (310) 604-2315

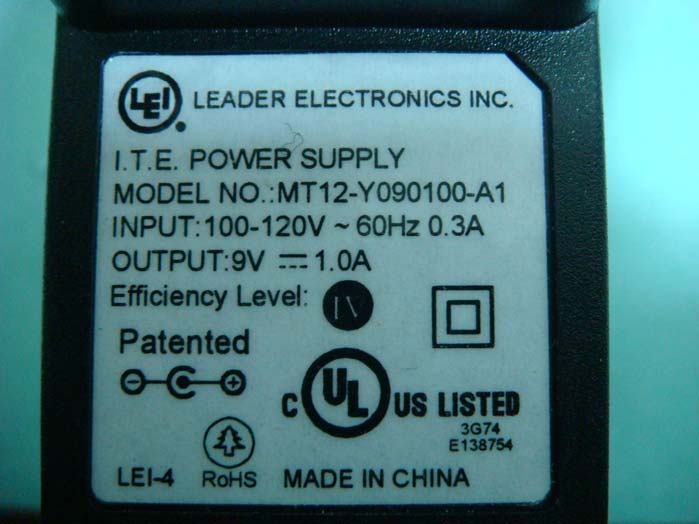

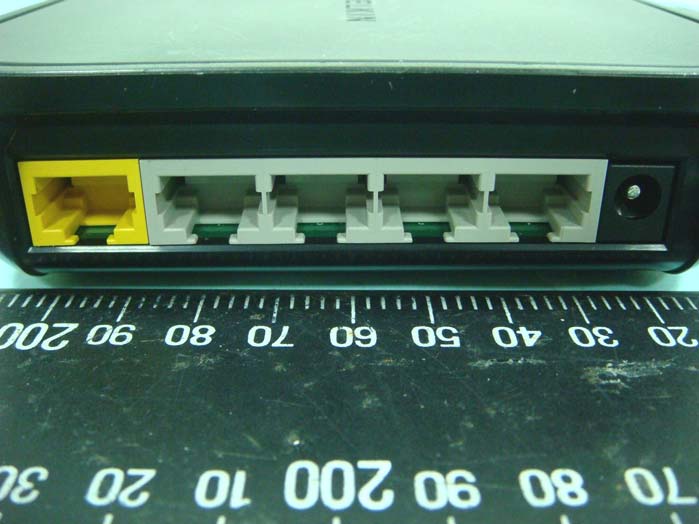

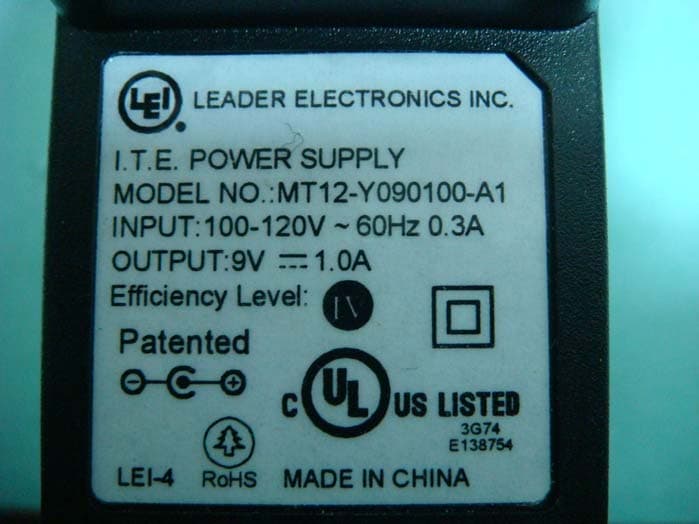

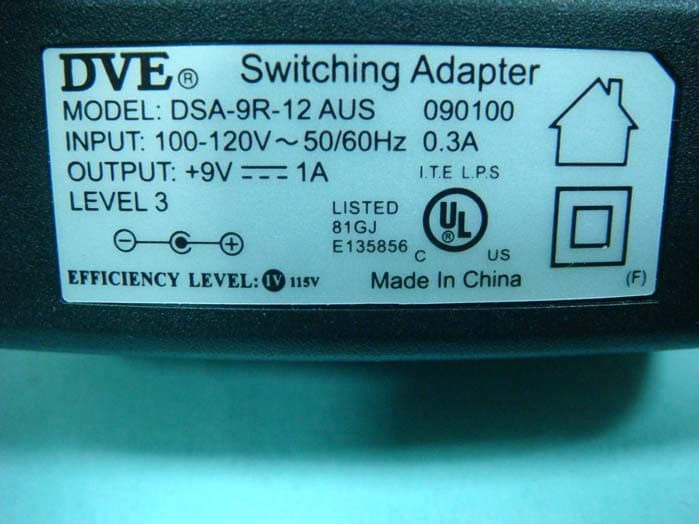

SPORTON International Inc. PAGE NUMBER : A1 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 11, 2008 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 11, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 11, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 11, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 11, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 11, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 11, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 11, 2008 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 11, 2008 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 11, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 11, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 11, 2008 FAX : 886-2-2696-2255

Report No.: FR811807-02 FCC ID: K7S-F5D7234V3 Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR811807-02 FCC ID: K7S-F5D7234V3 Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR811807-02 FCC ID: K7S-F5D7234V3 Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11b/g : 19.08dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 19.0800 80.9096 0.025524 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 02 FCC RADIO TEST REPORT Applicant’s company Belkin International, Inc. Applicant Address 501 West Walnut Street, Compton, CA 90220-5221, U.S.A. FCC ID K7S-F5D7234V3 Product Name Belkin G Wireless Router Brand Name Belkin Model Name F5D7234-4 v3 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Jan. 11, 2008 Final Test Date Aug. 06, 2008 Submission Type Original Equipment Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR811807-02 Report Format Version: 02 Page No. : i of ii FCC ID: K7S-F5D7234V3 Issued Date : Sep. 25, 2008 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................4 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................5 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................6 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................7 3.9. Test Configurations .............................................................................................................................................................................7 4. TEST RESULT ..................................................................................................................................................... 9 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................9 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................20 4.3. Power Spectral Density Measurement ..............................................................................................................................................25 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................30 4.5. Radiated Emissions Measurement ....................................................................................................................................................35 4.6. Band Edge Emissions Measurement .................................................................................................................................................55 4.7. Antenna Requirements .....................................................................................................................................................................60 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 61 6. TEST LOCATION.............................................................................................................................................. 62 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 63 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A12 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B5 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE......................................................................................... C1 ~C3 Report No.: FR811807-02 Report Format Version: 02 Page No. : ii of 44 FCC ID: K7S-F5D7234V3 Issued Date : Sep. 2…
