K7S-F6D3050Wireless A/G USB Adapter

BELKIN Wireless A+G USB Network Adapter Connect your desktop or notebook computer to a FAST wireless network User Manual Table of Contents 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....................................... ............................... . . . . . .1 Benefits of a Home Network. . . . . . . . . . . . . . . . . . . ................................................ . . . . . . . . . . 1 Advantages of setting up a Belkin Wireless Network . . . . . ................................................. . . . . 1 Placement of your Wireless Networking Hardware for Optimal Performance . . . . . . . . . . . . . . . . . ................................................ . . . . . . 2 Important Factors for Placement and Setup . . . . . . . . . . . . ................................................. . . . . 2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ............ .................................. . . . . . . . . . 6 Applications and Advantages . . . . . . . . . . . . . . . . . . . ................................................. . . . . . . . . 6 Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . ................................................ . . . . . . . 7 System Requirements . . . . . . . . . . . . . . . . . . . . ................................................ . . . . . . . . . . . . . 7 2 Knowing your Wireless USB Network Adapter . . . . . ............................................................. . . . . .8 3 Installing and Setting Up the USB Network Adapter . . . ............................................................. . . .9 Step 1: Install the Software . . . . . . . . . . . . .................................................................. . . . . . . .9 Step 2: Connect your USB Adapter to your PC . ................................................................. . . 10 Step 3: Let Windows Finish the Installation . . . ................................................................. . . . 11 4 Uninstalling the Software and Drivers. . . . . . . . . . ............................................................... . . . . . 13 5 Using the Belkin Wireless LAN Monitor Utility . . . ............................................................... . . . . . 14 6 Securing your Wireless Network . . . . . . . . . . . . ................................................................ . . . . . . 26 7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . ...................................................... ........... . . . . . . . . . 30 8 Information. . . . . . . . . . . . . . . . . .................................................................. . . . . . . . . . . . . . . . . . 37 .. Introduction Thank you for purchasing the Belkin Wireless A+G USB Network Adapter (the Adapter). Now you can take advantage of this great new technology and gain the freedom you need around the home or office without using cables. The Wireless USB Network Adapter works like a conventional network adapter, but without the wires. The easy installation and setup will have you networking wirelessly in minutes. Please be sure to read through this User Manual completely, and pay special attention to the section entitled “Placement of your Wireless Networking Hardware for Optimal Performance” on page 2. By following our simple setup instructions your Belkin Home Network will allow you to: • Share one high-speed Internet connection with all the computers in your home • Share resources, such as files, and hard drives among all the connected computers in your home • Share a single printer with the entire family • Share documents, music, video, and digital pictures • Store, retrieve, and copy files from one computer to another • Simultaneously play games online, check Internet e-mail, and chat Here are some of the advantages of setting up a Belkin Wireless Network: • Mobility – you’ll no longer need a dedicated “computer room”—now you can work on a networked laptop or desktop computer anywhere within your wireless range • Easy installation – Belkin Easy Installation Wizard makes setup simple • Flexibility – set up and access printers, computers, and other networking devices from anywhere in your home • Easy Expansion – the wide range of Belkin networking products let you expand your network to include devices such as printers and gaming consoles • No cabling required – you can spare the expense and hassle of retrofitting Ethernet cabling throughout the home or office • Widespread industry acceptance – choose from a wide range of interoperable networking products Introduction Placement of your Wireless Networking Hardware for Optimal Performance Your wireless connection will be stronger the closer your computer is to your Wireless Router (or Access Point). Typical indoor operating range for your wireless devices is between 100 and 200 feet. In the same way, your wireless connection and performance will degrade somewhat as the distance between your Wireless Router (or Access Point) and connected devices increases. This may or may not be noticeable to you. As you move further from your Wireless Router or Access Point, connection speed may decrease. Factors that can weaken signals simply by getting in the way of your network’s radio waves are metal appliances or obstructions, and walls. If you have concerns about your network’s performance that might be related to range or obstruction factors, try moving the computer to a position between five and ten feet from the Wireless Router, in order to see if distance is the problem. If difficulties persist even at close range, please contact Belkin Technical Support. IMPORTANT FACTORS FOR PLACEMENT AND SETUP Note: While some of the items listed below can affect network performance, they will not prohibit your wireless network from functioning; if you are concerned that your network is not operating at its maximum effectiveness, this checklist may help. 1. Placement of y…

Text truncated - open the document above for the full version.

TO CORRECT FCC ID Dear Administrative examiner, The FCC ID specified in this submission had been incorrectly inputted (a hyphen is missing between Grantee Code and EPC). The present wrong ID in 731 form is: K7SF6D3050 The correct FCC ID should be: K7S-F6D3050 Form 731 Confirmation Number: EA623635 (DTS) / EA464673 (NII) Company name: Belkin Corporation. Product name: Wireless A/G USB Adapter Please help us to correct this mistake and thanks very much for your assistance. Best regards, Steve Cheng North American EMC Certification Services Inc. 359 Hawkland Cir., NW. Calgary, Alberta Canada T3G 3R3 Tel: (403) 241-8826 Email: [email protected]

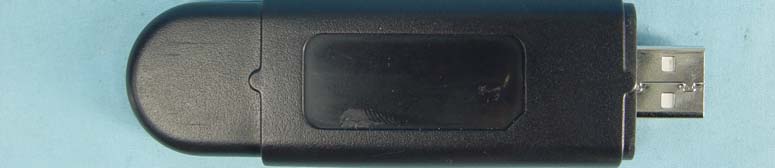

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID Label Location

Page 3 Page 4 Page 5

FCC ID: K7S-F6D3050 Report No.RF931207L04 Technical Description The transmitter of the EUT (Wireless A/G USB Adapter) is powered by host equipment. The antenna type used in this product is Printed antenna with UFL antenna connector. Under normal use condition, the user has to keep at least 2.5cm separation distance between radiator and the body of the user. This device is a Wireless A/G USB Adapter, which operates in both of the 5GHz and 2.4GHz bands and can transmitting simultaneously, the maximum data rate could be 108Mbps. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

D3: 3G DOSIMETRIC E-FIELD PROBE

D4: 2450MHz SYSTEM VALIDATION DIPOLE SN: 716

D2: DOSIMETRIC E-FIELD PROBE

D5: 5GHz SYSTEM VALIDATION DIPOLE SN: 1019

D4: DAE SN: 510

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

FCC ID: K7S-F6D3050 Report No.: SA931207L041Report Format Version 2.0.1 SAR TEST REPORT REPORT NO.: SA931207L04 MODEL NO.: F6D3050 RECEIVED: Dec 07, 2004 TESTED: Dec. 23 ~ Dec. 24, 2004 ISSUED: Dec. 29, 2004 APPLICANT: Belkin Corporation ADDRESS: 501 West Walnut Avenue Compton, CA 90220, U.S.A ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 42 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: K7S-F6D3050 Report No.: SA931207L042Report Format Version 2.0.1 Table of Contents 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ...................................................6 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ................12 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................16 4.DESCRIPTION OF SUPPORT UNITS ......................................................................18 5.TEST RESULTS ........................................................................................................19 5.1 TEST PROCEDURES ...............................................................................................19 5.2 MEASURED SAR RESULT .......................................................................................20 5.3 SAR LIMITS...............................................................................................................24 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................24 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................28 6.SYSTEM VALIDATION ..............................................................................................29 6.1 TEST EQUIPMENT ...................................................................................................29 6.2 TEST PROCEDURE .................................................................................................29 6.3 VALIDATION RESULT...............................................................................................31 6.4 SYSTEM VALIDATION UNCERTAINTIES (FOR 2.4GHZ)........................................33 6.5 SYSTEM VALIDATION UNCERTAINTIES (FOR 5GHZ)...........................................34 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................35 7.1 PROBE CALIBRATION UNCERTAINTY ...................................................................35 7.2 ISOTROPY UNCERTAINTY......................................................................................35 7.3 BOUNDARY EFFECT UNCERTAINTY .....................................................................36 7.4 PROBE LINEARITY UNCERTAINTY ........................................................................36 7.5 READOUT ELECTRONICS UNCERTAINTY ............................................................36 7.6 RESPONSE TIME UNCERTAINTY...........................................................................37 7.7 INTEGRATION TIME UNCERTAINTY ......................................................................38 7.8 PROBE POSITIONER MECHANICAL TOLERANCE................................................38 7.9 PROBE POSITIONING .............................................................................................39 7.10 PHANTOM UNCERTAINTY ......................................................................................39 7.11 DASY4 UNCERTAINTY BUDGET (FOR 2.4GHZ) ....................................................40 7.12 DASY4 UNCERTAINTY BUDGET (FOR 5 ~ 6GHZ) .................................................41 8.INFORMATION ON THE TESTING LABORATORIES ..............................................42 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: K7S-F6D3050 Report No.: SA931207L043Report Format Version 2.0.1 1. CERTIFICATION PRODUCT : Wireless A/G USB Adapter MODEL NO. : F6D3050 BRAND NAME : Belkin APPLICANT : Belkin Corporation TESTED : Dec. 23 ~ Dec. 24, 2004 TEST SAMPLE : ENGINEERING SAMPLE STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Dec. 29, 2004 Candice Chen TECHNICAL ACCEPTANCE:, DATE:Dec. 29, 2004 Responsible for RF Ansen Lei APPROVED BY:, DATE:Dec. 29, 2004 Cody Chang Deputy Manager FCC ID: K7S-F6D3050 Report No.: SA931207L044Report Format Version 2.0.1 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless A/G USB Adapter MODEL NO. F6D3050 POWER SUPPLY 5 Vdc from host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE CCK, DQPSK…

Text truncated - open the document above for the full version.

FCC ID: K7S-F6D3050 Report No.: RF931207L041Report Format Version 2.0.2 FCC TEST REPORT (15.407) REPORT NO.: RF931207L04 MODEL NO.: F6D3050 RECEIVED: Dec. 07, 2004 TESTED: Dec. 08 ~ Dec. 23, 2004 ISSUED: Dec. 27, 2004 APPLICANT: Belkin Corporation ADDRESS: 501 West Walnut Avenue Compton, CA 90220, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 81 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: K7S-F6D3050 Report No.: RF931207L042Report Format Version 2.0.2 Table of Contents 1.CERTIFICATION........................................................................................................4 2.SUMMARY OF TEST RESULTS...............................................................................5 2.1 MEASUREMENT UNCERTAINTY.............................................................................6 3.GENERAL INFORMATION........................................................................................7 3.1GENERAL DESCRIPTION OF EUT..........................................................................7 3.2DESCRIPTION OF TEST MODES............................................................................8 3.2.1CONFIGURATION OF SYSTEM UNDER TEST.......................................................9 3.2.2TEST MODE APPLICABILITY:..................................................................................9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.........................................12 3.4DESCRIPTION OF SUPPORT UNITS....................................................................13 4.TEST TYPES AND RESULTS (5150 ~ 5350MHz BAND).......................................14 4.1CONDUCTED EMISSION MEASUREMENT..........................................................14 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................14 4.1.2TEST INSTRUMENTS.............................................................................................14 4.1.3TEST PROCEDURES.............................................................................................15 4.1.4DEVIATION FROM TEST STANDARD...................................................................15 4.1.5TEST SETUP...........................................................................................................16 4.1.6EUT OPERATING CONDITIONS............................................................................16 4.1.7TEST RESULTS.......................................................................................................17 4.2RADIATED EMISSION MEASUREMENT...............................................................21 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT............................................21 4.2.2LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS..........22 4.2.3TEST INSTRUMENTS.............................................................................................23 4.2.4TEST PROCEDURES.............................................................................................24 4.2.5DEVIATION FROM TEST STANDARD...................................................................24 4.2.6TEST SETUP...........................................................................................................25 4.2.7EUT OPERATING CONDITION...............................................................................25 4.2.8TEST RESULTS.......................................................................................................26 4.3PEAK TRANSMIT POWER MEASUREMENT........................................................37 4.3.1LIMITS OF PEAK TRANSMIT POWER MEASUREMENT.....................................37 4.3.2TEST INSTRUMENTS.............................................................................................37 4.3.3TEST PROCEDURE................................................................................................38 4.3.4DEVIATION FROM TEST STANDARD...................................................................38 4.3.5TEST SETUP...........................................................................................................38 4.3.6EUT OPERATING CONDITIONS............................................................................38 4.3.7TEST RESULTS.......................................................................................................39 4.4PEAK POWER EXCURSION MEASUREMENT.....................................................48 4.4.1LIMITS OF PEAK POWER EXCURSION MEASUREMENT..................................48 FCC ID: K7S-F6D3050 Report No.: RF931207L043Report Format Version 2.0.2 4.4.2TEST INSTRUMENTS.............................................................................................48 4.4.3TEST PROCEDURE................................................................................................49 4.4.4DEVIATION FROM TEST STANDARD...................................................................49 4.4.5TEST SETUP...........................................................................................................49 4.4.6EUT OPERATING CONDITIONS............................................................................49 4.4.7TEST RESULTS.......................................................................................................50 4.5PEAK POWER SPECTRAL DENSITY MEASUREMENT.......................................56 4.5.1LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT....................56 4.5.2TEST…

Text truncated - open the document above for the full version.

FCC ID: K7S-F6D3050 Report No.: RF931207L0456Report Format Version 2.0.2 4.5 PEAK POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT Frequency BandLimit 5.15 ~ 5.25GHz4dBm 5.25 ~ 5.35GHz11dBm 5.725 ~ 5.825GHz17dBm 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2005 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: K7S-F6D3050 Report No.: RF931207L0457Report Format Version 2.0.2 4.5.3 TEST PROCEDURES 1. The transmitter output was connected to the spectrum analyzer. 2. Set RBW=1MHz, VBW=3MHz. The PPSD is the highest level found across the emission in any 1MHz band. 4.5.4 DEVIATION FROM TEST STANDARD No deviation 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITIONS Same as 5.3.6 EUTSPECTRUM ANALYZER FCC ID: K7S-F6D3050 Report No.: RF931207L0458Report Format Version 2.0.2 4.5.7 TEST RESULTS 802.11a OFDM modulation EUTWireless A/G USB AdapterMODEL F6D3050 MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 24deg.C, 64%RH, 991hPa TESTED BY Leo Hung CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 1MHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 15180-0.644PASS 45240-0.194PASS 55260-0.3911PASS 85320-0.1511PASS FCC ID: K7S-F6D3050 Report No.: RF931207L0459Report Format Version 2.0.2 CH1 CH4 FCC ID: K7S-F6D3050 Report No.: RF931207L0460Report Format Version 2.0.2 CH5 CH8 FCC ID: K7S-F6D3050 Report No.: RF931207L0461Report Format Version 2.0.2 802.11a Turbo OFDM modulation EUTWireless A/G USB AdapterMODEL F6D3050 MODULATION TYPE BPSK TRANSFER RATE 12Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 24deg.C, 64%RH, 991hPa TESTED BY Leo Hung CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 1 MHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 15210-5.684PASS 25250-3.574PASS 35290-3.3411PASS FCC ID: K7S-F6D3050 Report No.: RF931207L0462Report Format Version 2.0.2 CH1 CH2 FCC ID: K7S-F6D3050 Report No.: RF931207L0463Report Format Version 2.0.2 CH3 FCC ID: K7S-F6D3050 Report No.: RF931207L0464Report Format Version 2.0.2 4.6 FREQUENCY STABILITY 4.6.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT The frequency tolerance of the carrier signal shall be maintained within +/- 0.02% of the operating frequency over a temperature variation of –30 degrees to 50 degrees C at normal supply voltage, and for a variation in the primary supply voltage from 85% to 115% of the rated supply voltage at a temperature of 20 degrees C. 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until ANRITSU SPECTRUM ANALYZERMS2667CM10281Aug. 12, 2005 WIT STANDARD TEMPERATURE AND HUMIDITY CHAMBER TH-4S-CW901030Aug. 12, 2005 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE 1. The EUT was placed inside the environmental test chamber and powered by nominal DC voltage. 2. Turn the EUT on and couple its output to a spectrum analyzer. 3. Turn the EUT off and set the chamber to the highest temperature specified. 4. Allow sufficient time (approximately 30 min) for the temperature of the chamber to stabilize, turn the EUT on and measure the operating frequency after 2, 5, and 10 minutes. 5. Repeat step 2 and 3 with the temperature chamber set to the lowest temperature. 6. The test chamber was allowed to stabilize at +20 degree C for a minimum of 30 minutes. The supply voltage was then adjusted on the EUT from 85% to 115% and the frequency record. 4.6.4 DEVIATION FROM TEST STANDARD No deviation FCC ID: K7S-F6D3050 Report No.: RF931207L0465Report Format Version 2.0.2 4.6.5 TEST SETUP 4.6.6 EUT OPERATING CONDITION The software provided by client to enable the EUT under transmission condition continuously at specific channel frequencies individually. Spectrum Analyzer DC Power Supply Temperature FCC ID: K7S-F6D3050 Report No.: RF931207L0466Report Format Version 2.0.2 4.6.7 TEST RESULTS Operating frequency: 5320MHzLimit : ± 0.015% 2 minute5 minute10 minute Temp. () Power supply (Vac) (MHz)(%)(MHz)(%)(MHz)(%) 1025319.9690-0.00058275320.01100.00020685320.00980.0001842 1205320.01140.00021435320.01060.00019925320.00980.0001842 50 1385320.01140.00021435320.01020.00019175320.00940.0001767 1025319.9578-0.00079325319.9576-0.00079705319.9578-0.0007932 1205319.9574-0.00080085319.9576-0.00079705319.9578-0.0007932 40 1385319.9578-0.00079325319.9578-0.00079325319.9580-0.0007895 1025319.9586-0.00077825319.9584-0.00078205319.9580-0.0007895 1205319.9586-0.00077825319.9582-0.00078575319.9580-0.0007895 30 1385319.9584-0.00078205319.9584-0.00078205319.9580-0.0007895 1025319.9606-0.00074065319.9602-0.00074815319.9600-0.0007519 1205319.9602-0.00074815319.9602-0.00074815319.9602-0.0007481 20 1385319.9602-0.00074815319.9600-0.00075195319.9602-0.0007481 1025319.9650-0.00065795319.9652-0.00065415319.9656-0.0006466 1205319.9652-0.00065415319.9656-0.00064665319.9654-0.0006504 10 1385319.9652-0.00065415319.9652-0.00065415319.9656-0.0006466 1025319.9800-0.00037595319.9800-0.00037595319.9798-0.0003797 1205319.9798-0.00037975319.9800-0.00037595319.9796-0.0003835 0 1385319.9800-0.00037595319.9800-0.00037595319.9796-0.0003835 1025319.9882-0.00022185319.9880-0.00022565319.9876-0.0002331 1205319.9886-0.00021435319.9878-0.00022935319.9874-0.0002368 -10 1385319.9880-0.00022565319.9876-0.00023315319.9876-0.0002331 1025319.9916-0.00015795319.9916-0.00015795319.9916-0.0001579 1205319.9914-0.00016175319.9916-0.00015795319.9916-0.0001579 -20 1385319.9916-0.00015795319.9916-0.00015795319.9916-0.0001579 1025319.9986-0.00002635319.9982-0.00003385319.9992-0.0000150 1205319.9992-0.00001505319.9988-0.00002265319.9990-0.0000188 -30 1385319.9982-0.00003385319.9992-0.00001505319.9988-0.0000226 FCC ID: K7S-F6D3050 Report No.: RF931207L0467Report Format Version 2.0.2 4.7 BAND EDGES MEASUREMENT 4.7.1 TEST INSTRUMENTS Des…

Text truncated - open the document above for the full version.

FCC ID: K7S-F6D3050 Report No.: RF931207L041Report Format Version 2.0.2 FCC TEST REPORT (15.247) REPORT NO.: RF931207L04 MODEL NO.: F6D3050 RECEIVED: Dec. 07, 2004 TESTED: Dec. 08 ~ Dec. 23, 2004 ISSUED: Dec. 27, 2004 APPLICANT: Belkin Corporation ADDRESS: 501 West Walnut Avenue Compton, CA 90220, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 134 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: K7S-F6D3050 Report No.: RF931207L042Report Format Version 2.0.2 Table of Contents 1.CERTIFICATION........................................................................................................5 2.SUMMARY OF TEST RESULTS...............................................................................6 2.1 MEASUREMENT UNCERTAINTY............................................................................7 3.GENERAL INFORMATION........................................................................................8 3.1GENERAL DESCRIPTION OF EUT..........................................................................8 3.2DESCRIPTION OF TEST MODES............................................................................9 3.2.1CONFIGURATION OF SYSTEM UNDER TEST.....................................................10 3.2.2TEST MODE APPLICABILITY:.................................................................................11 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.........................................13 3.4DESCRIPTION OF SUPPORT UNITS....................................................................14 4.TEST TYPES AND RESULTS (802.11b & g 2412~2462MHz Band)......................15 4.1CONDUCTED EMISSION MEASUREMENT..........................................................15 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................15 4.1.2TEST INSTRUMENTS.............................................................................................15 4.1.3TEST PROCEDURES.............................................................................................16 4.1.4DEVIATION FROM TEST STANDARD...................................................................16 4.1.5TEST SETUP...........................................................................................................17 4.1.6EUT OPERATING CONDITIONS............................................................................17 4.1.7TEST RESULTS.......................................................................................................18 4.2RADIATED EMISSION MEASUREMENT...............................................................30 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT............................................30 4.2.2TEST INSTRUMENTS.............................................................................................31 4.2.3TEST PROCEDURES.............................................................................................32 4.2.4DE…

Text truncated - open the document above for the full version.
