K7SF1UP0001802.11 b/g Wireless USB Printer Server

www.askey.com.tw June. 30, 2003 - 1 - Rev: 0.0 ASKEY ’s RT360W-D56 is 802.11g Wireless Access Point & USB Print Server features and 1-port LAN . The 802.11g Access Point features allow PCs/Notebooks with wireless card that adapts 802.11g technology to connect to the Ethernet. Through the LAN connection to connect Local Area Network. [Hardware Specifications] Main Chip Sets • Processor: Broadcom BCM4702 125MHz R3000 MIPS32 CPU • 54g (draft IEEE802.11g) Broadcom Radio − BCM4306 MAC and Baseband Processor − BCM2050 Radio • Memory − 4MB Flash − 16MB SDRAM Interface • One 2.4GHz 54g RF interface for Wireless LAN connection • One 10/100 Mbps RJ-45 Ethernet LAN connection • Two USB 1.1 Ports for printer connection Radio Characteristics • Standard: IEEE 802.11b (Wi-Fi) and 54g (draft IEEE802.11g) • Frequency Band (ISM Band): − 2.412 ~ 2.4835 GHz • Spreading: − Direct Sequence Spread Spectrum (11-chip Barker sequence) • Modulation − OFDM: 54, 48, 36, 24, 18, 12, 9, and 6 Mbps − CCK: 11 , and 5.5 Mbps − DQPSK: 2 Mbps − DBPSK: 1 Mbps • Number of Channels: − 802.11b : 1 - 11 (FCC), RT360W-D56 Wireless Broadband USB AP www.askey.com.tw June. 30, 2003 - 2 - Rev: 0.0 − 54g : 1 - 11 (FCC) • Data Rate: − 54g „ 54 Mbps „ 48 Mbps „ 36 Mbps „ 24 Mbps „ 18 Mbps „ 12 Mbps „ 9 Mbps „ 6 Mbps − 802.11b „ 11 Mbps „ 5.5 Mbps „ 2 Mbps „ 1 Mbps • Antenna: − One external antenna • RF Output Power: − 15 dBm (typical) • Range: − 54 Mbps range in a typical office environment of up to 30 m and line-of-sight (LOS) up to 150 m − 11 Mbps range in a typical office environment of up to 60 m and line-of-sight (LOS) up to 300 m − 1 Mbps range in a typical office environment of up to 120 m and LOS up to 650 m − Range differs by environment • Power Consumption: − TX: TDB mA − RX: TDB mA • Receiver Sensitivity: Per <8% @ length 1024 octets − 54 Mbps: TDB dBm − 11 Mbps: -80 dBm − 5.5 Mbps: -88 dBm − 2 Mbps: -91 dBm − 1 Mbps: -93 dBm • WEP Hardware Engine − 64 Bits www.askey.com.tw June. 30, 2003 - 3 - Rev: 0.0 − 128 Bits Power and Operation Environment • Power Input: − 5 Volts DC, 2 A • Temperature − Operating: 0°C to 40°C − Storage: -10°C to 65°C • Humidity: − 5% to 80% (non-condensing) LED Indicators • POWER • WLAN (two color) • WAN (two color) • HOST • ERROR Physical • PCB Dimensions:100 mm (L) × 90 mm (W) [Software Specifications] - Web Management Interface - 11G wireless capability - LPR/LPD protocol • This standard LPR/LPD support makes the print server easily work with all different Windows OSs and almost all different variations of Unix. - Internet Printing Protocol (IPP/1.1) • IPP is a relatively newer printing protocol; it gets widely supported recently. Microsoft has built-in IPP support on Windows 2000/XP. - Support Netbeui (Samba/Windows) • This will enable a printer device showing up on Windows machine networking neighborhood. By double-clicking the printer icon, windows guides user through the process of installing the driver for the printer. - AppleTalk (Mac) • To work with MAC running AppleTalk protocol. Only support postscript printers. - Unix Text File Support • Can configure automatically to convert LF to CR+LF www.askey.com.tw June. 30, 2003 - 4 - Rev: 0.0 - IP Finder utility • Find the IP address of print server and then link to print server's web management page. - Test button • A SW printing test button in print server's web management page. WARNING TEXT General purpose This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 802.11b Restrictions - European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz; - In France, the equipment must be restricted to the 2.4465-2.4835GHz frequency range and must be restricted to indoor use." 15.105 Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Safety Information In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use only with supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. Regulatory information / Disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modification (including the antennas) made to this device that is not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment ot…

Text truncated - open the document above for the full version.

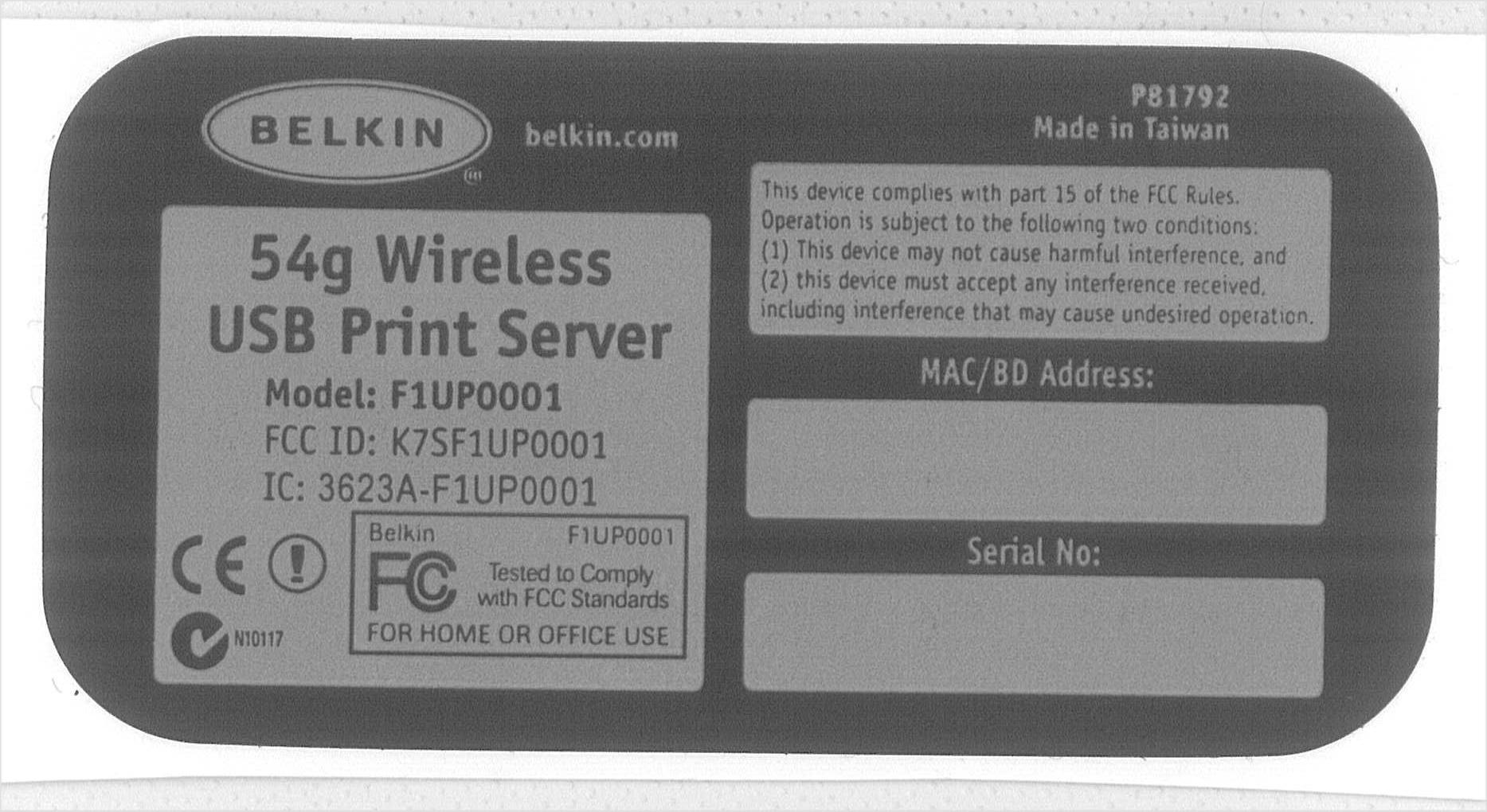

From: [email protected] Sent: October232003Thursday 4:59 AM To: Mike Kuo Cc: 'Jonson Lee (E-mail)'; 'Lucy (E-mail)'; Mike Kuo Subject: RE: Belkin Corporation, FCC ID:K7SF1UP0001, AN03T3351 Hi Mike, This is to reply the part I of Belkin Corporation, FCC ID:K7SF1UP0001, AN03T3351. For Q1-2, the user manual has been revised as attached file. For Q3-5, we have revised it and please refer to the attached revised test report for details. For Q6-7, please refer to the attached for the setup and internal photos. For Q8, there are two sources of power adaper used and please refer to the revised test report for details. Besides, we have also add the 15.19(a)(3) statement to the label as attached file. Best Regards, Lucy Question #8: There are more one power adaptor included in the test report but only one set of AC line conducted test data are included in the test report. Please indicate which power adaptor was tested and provide additional AC line conducted emission test data for al other adaptors. Best Regards Mike Kuo > -----Original Message----- > From: Mike Kuo > Sent: Friday, October 17, 2003 2:13 PM > To: Mike Kuo; 'Jonson Lee (E-mail)'; 'Lucy (E-mail)' > Subject: RE: Belkin Corporation, FCC ID:K7SF1UP0001, AN03T3351 ( > second ) > > > Question #6: Please provide setup photos > > Question #7 : Please provide internal photos. Mike Kuo <[email protected]> 2003/10/18 05:18 AM Mike Kuo <[email protected]>, "'Jonson Lee (E-mail)'" <[email protected]>, "'Lucy (E-mail)'" <[email protected]> RE: Belkin Corporation, FCC ID:K7SF1UP0001, AN03T3351 ( Third ) > > Best Regards > > Mike Kuo > -----Original Message----- > From: Mike Kuo > Sent: Friday, October 17, 2003 2:09 PM > To: Jonson Lee (E-mail); Lucy (E-mail) > Subject: Belkin Corporation, FCC ID:K7SF1UP0001, AN03T3351 > > Question #1: Based upon the description in the user manual, this AP > / Print Server is capable of operating beyond 11 channel ( 2412- 2462MHz). > There is no information given in the submission package to address how the > applicant is going to ensure the end user will not use the channels other > than what is authorized. Please provide technical description to address > the limitation that the applicant will be used to limit the end user to > operate within the authorized frequency band. > > Question #2: Page 5 of user manual listed the restriction for indoor > use for 5GHz which is not applicable to this device. Please remove the > information relate to 5GHz operation. > > Question #3: Section 3 of test report mentioned 15.407 which is not > applicable to this device. Please make necessary correction. > > Question #4: Section 7.5 of test report, please delete Note #1. > This device is mobile device which SAR evaluation is not required. Please > do not use low threshold formula to address Mobile device . > > Question #5: Please provide RF conducted test plots with RBW=100kHz > to address -20dB requirement . > > For your information: In section 15.247 ( c ) of rules provide the > technical requirement for unwanted emission ( harmonic and spurious > emission ). The first requirement : In any 100kHz bandwidth outside the > frequency band in which the spread spectrum intentional radiator is > operating, the radio frequency power that is produced by the intentional > radiator shall be at least 20dB below that in the 100kHz BW within the > band that contains the highest level of the desired power, based upon > either an RF conducted or radiated measurement. Attenuation below the > general limits specified in 15.209(a) is not required. > > Based upon the requirement in the rules, there are two possible way > to address -20dB requirement : RF conducted or Radiated measurement. If > you are using radiated measurement, the requirement is to set the > BW=100kHz. The field strength of fundamental frequency has to be included > in the test report. By having the fundamental field strength measurement, > all unwanted emissions which are not in the 15.205 restricted band table, > the field strength for unwanted emission is -20dB down of fundamental > field strength. Normally, radiated measurement is used for those device > with integral antenna which the antenna connector is not accessible. The > frequency range to be investigated is up to 10th harmonics. > > The other way to address BW=100kHz , -20dB down is through RF > conducted measurement. RF conducted measurement is normally used for > those device with antenna connector. By connecting one end of RF cable to > the EUT's antenna connector and the other end to spectrum analyzer, > position the marker on the highest fundamental emission and position your > display line to -20dB of highest fundamental, all emission shall be -20dB > down of fundamental frequency. The frequency range to be investigated is > up to 10th harmonics > > The second requirement in section 15.247 ( c ) of rules is to > address restricted band operation. For those harmonic and spurious > emissions that are within 15.205 restricted table, the field strength > shall comply with 15.209 general limits. The frequency range to be > investigated is up to 10th harmonics. For those emissions that are not > within 15.205 table, you are not required to perform the investigation. > > > > Best Regards > > Mike Kuo > Compliance Certification Services > 561F Monterey Road > Morgan Hill CA 95037 > Tel: (408)463-0885 x: 105 > Fax: (408)463-0888 > http://www.ccsemc.com >

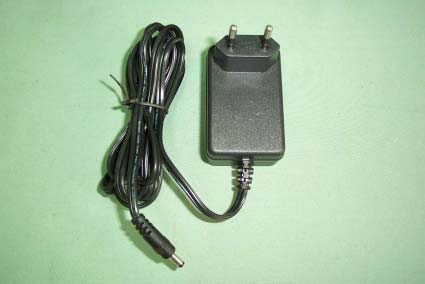

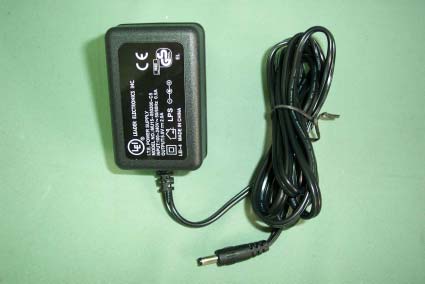

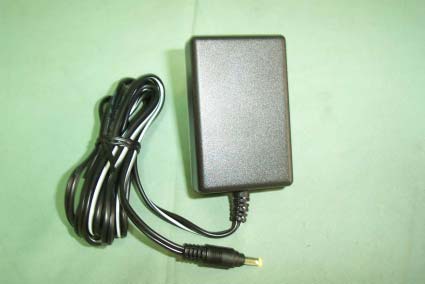

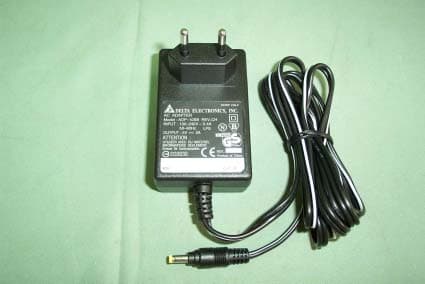

Compliance Certification Services Inc. Report No: B30708003 Page 1 of 4 EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B30708003 Page 2 Compliance Certification Services Inc. Report No: B30708003 Page 3 Delta / ADP-10SB Compliance Certification Services Inc. Report No: B30708003 Page 4 Leader / MU15050200-C5

Compliance Certification Services Inc. Report No: B30708003 Page 1 INTERNAL PHOTOGRPHS OF EUT Antenna Position Compliance Certification Services Inc. Report No: B30708003 Page 2 Compliance Certification Services Inc. Report No: B30708003 Page 5

Compliance Certification Services Inc. Report No: B30708003-RP FCC ID: K7SF1UP0001 Date of Issue: September 18, 2003 Page 1 of 75 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Belkin Components B.V. Wireless USB printer server Brand Name: BELKIN Model Number: F1UP0001 Prepared for Belkin Components B.V. Boeing Avenue 333 1119 PH Schiphol-Rijk, the Netherlands Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No: B30708003-RP FCC ID: K7SF1UP0001 Date of Issue: September 18, 2003 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................ 3 2. EUT DESCRIPTION........................................................................................................ 4 3. TEST METHODOLOGY ................................................................................................ 5 3.1 EUT CONFIGURATION................................................................................................... 5 3.2 EUT EXERCISE.............................................................................................................. 5 3.3 GENERAL TEST PROCEDURES....................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.................................. 6 3.5 DESCRIPTION OF TEST MODES...................................................................................... 6 4. INSTRUMENT CALIBRATION .................................................................................... 7 5. FACILITIES AND ACCREDITATIONS ...................................................................... 8 5.1 FACILITIES................................................................................................................... 8 5.2 EQUIPMENT.................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING............................................................. 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.................................................................. 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................... 10 6.1 SUPPORT EQUIPMENT................................................................................................. 10 7. FCC PART 15.247 REQUIREMENTS......................................................................... 11 7.1 6 DB BANDWIDTH....................................................................................................... 11 7.2 PEAK POWER.............................................................................................................. 17 7.3 BAND EDGES MEASUREMENT ......................................................................... 23 7.4 PEAK POWER SPECTRAL DENSITY............................................................................... 32 7.5 RADIO FREQUENCY EXPOSURE................................................................................... 38 7.6 SPURIOUS EMISSIONS.............................................................................................. 40 7.7 POWERLINE CONDUCTED EMISSIONS.......................................................................... 68 Compliance Certification Services Inc. Report No: B30708003-RP FCC ID: K7SF1UP0001 Date of Issue: September 18, 2003 Page 3 1. TEST RESULT CERTIFICATION Applicant: Belkin Components B.V. Boeing Avenue 333 1119 PH Schiphol-Rijk, the Netherlands Equipment Under Test: Wireless USB printer server Trade Name: BELKIN Model: F1UP0001 Report Number: B30708003-RP Date of Test: JULY 18 ~ September 13, 2003 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jonson Lee Eric Wong Director of Linkou Laboratory Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: B30708003-RP FCC ID: K7SF1UP0001 Date of Issue: September 18, 2003 Page 4 2. EUT DESCRIPTION Product Wireless USB printer server Trade Name BELKIN Model Number F1UP0001 Delta / ADP-10SB I/P: 100-240VAC ~ 50/60Hz, 0.4A O/p: 5.0VDC, 2.0A Power Rating Leader / MU15050200-C5 I/P: 100-240VAC ~ 50/60Hz, 0.5A O/p: 5.0VDC, 2.0A Frequency Range 2412 ~ 2462 MHz (IEEE 80211 b/g) Modulation Technique DSSS (CCK; DQPSK; DBPSK) for IEEE 802.11b, OFDM for IEEE 802.11g Transmitting Speed 1,2,5.5,6,9,12,18,24,36,48 and 54Mbps with Auto Rate Sensing Number of Channels 11 Channels Antenna Designation Dipole Antenna with R-SMA connector non-user changeable. Note: This submittal(s) (test report) is intended for FCC ID: K7SF1UP0001 filing to comply with Section 15.247 of the FCC Part 15, Subpart C Rules. The composite system (digital device) is compliance with Subpart B is authorized under a DoC procedure. Compliance Certification Services Inc. Report No: B30708003-RP FCC ID: K7SF1UP0001 Date of Issue: September 18, 2003 Page 5 3. TEST ME…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B30708003-RP FCC ID: K7SF1UP0001 Date of Issue: September 18, 2003 Page 74 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Compliance Certification Services Inc. Report No: B30708003-RP FCC ID: K7SF1UP0001 Date of Issue: September 18, 2003 Page 75
