K7SF5D6020Wireless Network Card

W W L L 1 1 1 1 0 0 0 0 0 0 Wireless LAN PCMCIA Adapter USER MANUAL Version 0.9.2, February 16, 2000 2 Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy. If this equipment is not installed and used in accordance with the manufacturer's instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by during the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ƒ Reorient or relocate the receiving antenna. ƒ Increase the separation between the equipment and receiver. ƒ Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. ƒ Consult the dealer or an experienced radio/TV technician for help. The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Manufacturer's Disclaimer Statement The information in this document is subject to change without notice and does not represent a commitment on the part of the vendor. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular purpose of this document. The manufacturer reserves the right to make changes to the content of this document and/or the products associated with it at any time without obligation to notify any person or organization of such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages. This document contains materials protected by copyright. All rights are reserved. No part of this manual may be reproduced or transmitted in any form, by any means or for any purpose without expressed written consent of its authors. Product names appearing in this document are mentioned for identification purchases only. All trademarks, product names or brand names appearing in this document are registered property of their respective owners. 3 Contents Chapter 1 About the WL11000 PCMCIA Card ........................................................... 4 1-1 Features .............................................................................................................................................. 4 1-2 Applications ......................................................................................................................................... 4 1-3 Product Kit ........................................................................................................................................... 5 Chapter 2 Network Configuration and Planning ...................................................... 6 2-1 Network Topology................................................................................................................................ 6 2-2 Roaming .............................................................................................................................................. 8 Chapter 3 Adapter Installation and Configuration – Windows ® 98 ......................... 9 3-1 System Requirements ......................................................................................................................... 9 3-2 Inserting the Adapter ........................................................................................................................... 9 3-3 WL11000 Driver Installation -Windows ® 98 ....................................................................................... 10 3-4 Adapter Configuration – Windows ® 98............................................................................................... 13 3-5 Protocol Installation – Windows ® 98 .................................................................................................. 19 3-6 WL11000 Setup for Windows NT 4.0 ................................................................................................ 24 Chapter 4 Installing and Navigating the PRISM Configuration Utility .................. 28 4-1 PRISM Configuration Utility - Installation........................................................................................... 28 4-2 PRISM Configuration Utility- Navigation ............................................................................................ 31 Appendix A Troubleshooting................................................................................... 36 Appendix B Glossary................................................................................................ 38 4 Chapter 1 About the WL11000 PCMCIA Card The WL11000 IEEE 802.11 PCMCIA PC Card is compatible with any standard, notebook computer Type II or Type III PCMCIA slot. As a Plug-and-Play device, Windows 95/98 will automatically recognize the WL11000 PCMCIA card and initiate the installation process. Upon successful installation, the WL11000 PCMCIA card will communicate seamlessly with other WL11000 wireless home and office networkin…

Text truncated - open the document above for the full version.

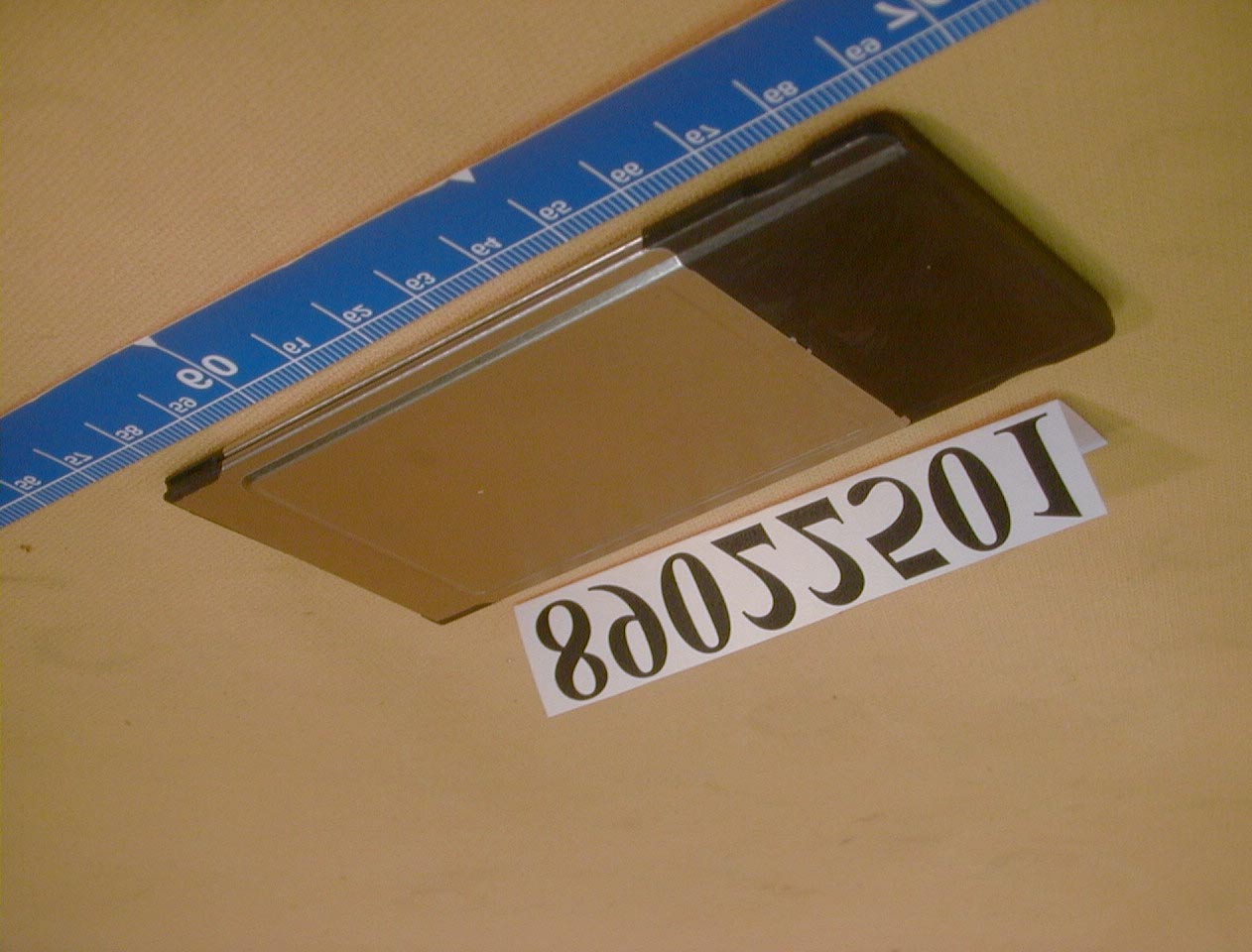

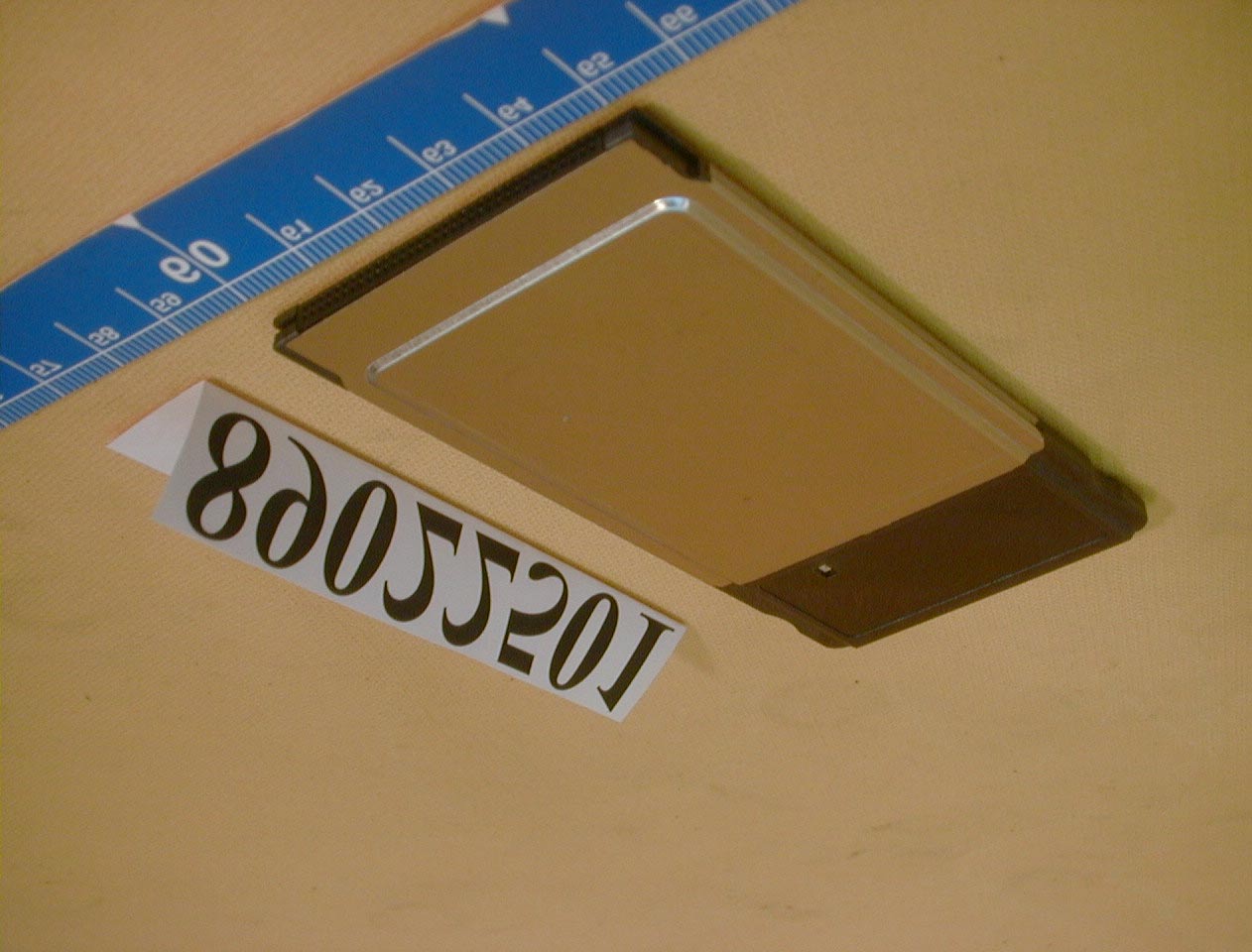

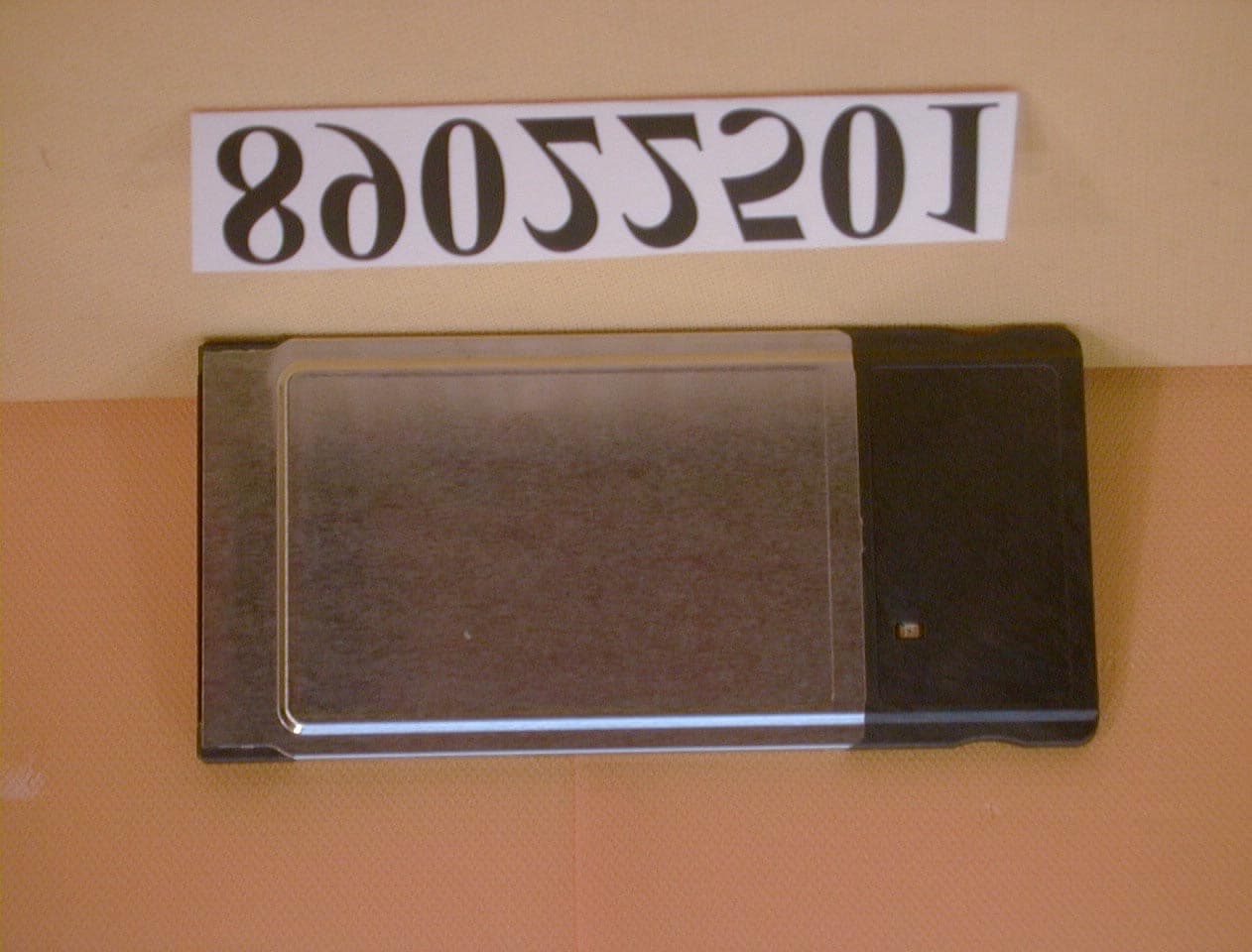

1 PHOTOGRAPHS OF EUT 2

FCC ID Label Location

FORM# R0-04D00-13 V.02 UL Label R02 90 11 09 MM 0.2MM Sary CHECK: APPROVE: 146000013200E WL-11000-1-5V White mylor+ Wording: Black(60%) background: Pantone 420C Ul approve 90 R2.9*4 6 6 m m 42.0 mm R02 Version: 1. Change FCC ID from LLM002 WL11000-1 to K7SF5D6020 2. Add MFG Country and part number and Vender ID 3.Change customer's Label P/N from P81116 to P81116-A

3 4

FCC ID: K7SF5D6020 ADT No.901105R02 Operational Description The transmitter of the EUT (Wireless Network Card) is powered by notebook and plugged in PCMCIA Slot. The antenna is Patch antenna, and there is no antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: K7SF5D6020 ADT No.: 901105R02 FCC TEST REPORT REPORT NO.: RF89022501E MODEL NO.: F5D6020 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Belkin Components ADDRESS: 1303 Walnut Parkway, Compton, 90220, CA, U.S.A ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 Lab Code: 200102-0 FCC ID: K7SF5D6020 ADT No.: 901105R02 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20 cm away from the body of the user. Warning statement for keeping 20 cm separation distance and the prohibition of operating next to a person has been printed on the users manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: K7SF5D6020 ADT No.: 901105R02 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: K7SF5D6020 ADT No.: 901105R02 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is -1dBi or 0.79 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241236.981.52 6243735.891.50 11246240.641.60 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: K7SF5D6020 Report No.: RF89022501E 1 Issued: Nov. 6, 2001 Reference No.: 89022501 FCC TEST REPORT REPORT NO.: RF89022501E MODEL NO.: F5D6020 RECEIVED: NA TESTED: February 10, 2000 APPLICANT: Belkin Components ADDRESS: 1303 Walnut Parkway, Compton, 90220, CA, U.S.A ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 44 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 Lab Code: 200102-0 FCC ID: K7SF5D6020 Report No.: RF89022501E 2 Issued: Nov. 6, 2001 Reference No.: 89022501 Table of Contents 1CERTIFICATION................................................................................................ 4 2SUMMARY OF TEST RESULTS ....................................................................... 5 3GENERAL INFORMATION............................................................................... 6 3.1GENERAL DESCRIPTION OF EUT............................................................................. 6 3.2DESCRIPTION OF TEST MODES............................................................................... 6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................. 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................................... 7 4TEST PROCEDURES AND RESULTS .............................................................. 8 4.1CONDUCTED EMISSION MEASUREMENT.............................................................. 8 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................................8 4.1.2TEST INSTRUMENTS ...............................................................................................................8 4.1.3TEST PROCEDURES .................................................................................................................9 4.1.4TEST SETUP ............................................................................................................................10 4.1.5TEST RESULTS ....................................................................................................................... 11 4.2RADIATED EMISSION MEASUREMENT ................................................................ 17 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...........................................................17 4.2.2TEST INSTRUMENTS .............................................................................................................18 4.2.3TEST PROCEDURES ...............................................................................................................19 4.2.4TEST SETUP ............................................................................................................................20 4.2.5TEST RESULTS .......................................................................................................................21 4.36dB BANDWIDTH MEASUREMENT........................................................................ 27 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT.................................................................27 4.3.2TEST INSTRUMENTS .............................................................................................................27 4.3.3TEST PROCEDURE .................................................................................................................28 4.3.4TEST SETUP ............................................................................................................................28 4.3.5EUT OPERATING CONDITION..............................................................................................28 4.3.6TEST RESULTS .......................................................................................................................29 4.4MAXIMUM PEAK OUTPUT POWER ....................................................................... 33 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT....................................33 4.4.2INSTRUMENTS .......................................................................................................................33 4.4.3TEST PROCEDURES ...............................................................................................................34 4.4.4TEST SETUP ............................................................................................................................34 4.4.5EUT OPERATING CONDITION..............................................................................................34 4.4.6TEST RESULTS .......................................................................................................................35 4.5POWER SPECTRAL DENSITY MEASUREMENT.................................................... 36 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ..............................................36 4.5.2TEST INSTRUMENTS .............................................................................................................36 FCC ID: K7SF5D6020 Report No.: RF89022501E 3 Issued: Nov. 6, 2001 Reference No.: 89022501 4.5.3TEST PROCEDURE .................................................................................................................37 4.5.4TEST SETUP ............................................................................................................................37 4.5.5EUT OPERATING CONDITION..............................................................................................37 4.5.6TEST RESULTS .......................................................................................................................38 5PHOTOGRAPHS OF THE…

Text truncated - open the document above for the full version.

FCC ID: K7SF5D6020 Report No.: RF89022501E 42 Issued: Nov. 6, 2001 Reference No.: 89022501 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: K7SF5D6020 Report No.: RF89022501E 43 Issued: Nov. 6, 2001 Reference No.: 89022501 RADIATED EMISSION TEST
