K7SF5D6021Wireless Notebook Network Card

Wireless NotebookNetwork Card Connect your laptop to awireless network U ser Manual F5D6020 ver. 2 Belkin Corporation 501 West Walnut Street Compton • CA • 90220 • USA Te l: 310.898.1100 Fax: 310.898.1111 Belkin Components, Ltd. Express Business Park Shipton Way • Rushden • NN10 6GL U nited Ki ngdom T el: +44 (0) 1933 35 2000 Fax: +44 (0) 1933 31 2000 Belkin Components B.V. Starparc Building • Boeing Avenue 333 1119 PH Schiphol-Rijk • The Netherlands T el: +31 (0) 20 654 7300 Fax: +31 (0) 20 654 7349 Belkin Components, Ltd. 7 Bowen Crescent • West Gosford NSW 2250 • Australia Te l: +61 (0) 2 4372 8600 Fax: +61 (0) 2 4372 8603 Belkin Tech Support US : 310.898.1100 ext. 2263 800.223.5546 ext. 2263 Europe: 00 800 223 55 460 A ustralia: 1800 666 040 P73851-B © 2002 Belkin Corporation. All rights reserved. All trade names are r egistered trademarks of respective manufacturers listed. belkin.com TABLE OF CONTENTS 1 INTRODUCTION Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1Installing and Setting Up the Card . . . . . . . . . . . . . . . . . . . . . . . . .4Using the Belkin Wireless LAN Monitor Utility . . . . . . . . . . . . . . . . . .9 The Status Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 The Statistics Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 The Site Survey Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 The Encryption Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 The Advanced Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Using Profile Manager Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Operating in Ad-Hoc Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Thank you for purchasing the Belkin Wireless Notebook Network Card (theCard). Now you can take advantage of this great new technology and gain thefreedom you need around the home or office without using cables. TheWireless Notebook Network Card works like a conventional network card, butwithout the wires. The easy installation and setup will have you networkingwirelessly in minutes. Please be sure to read through this manual completelyto be sure that you are getting the most out of your Wireless NotebookNetwork Card.FeaturesThe Card complies with the IEEE 802.11b standard in order to communicatewith other 802.11b-compliant wireless devices.• 2.4GHz ISM (Industrial, Science, and Medical) band operation• Integrated, easy-to-use profile manager for storing multiple wireless network settings for work, school, home, or any other setup • Wireless interface compliance with the IEEE 802.11b standard• PCMCIA Interface, for operation in virtually any notebook computer• 64- or 128-bit Wireless (WEP) Encryption• Wireless access to networked resources• Support for both infrastructure and ad-hoc (peer-to-peer) networking modes • Data rate of up to 11Mbps Supports 11, 5.5, 2 or 1Mbps rates (auto-rollback) • Easy installation and use• I nteg rated a nten na • LED indicators INTRODUCTION INTRODUCTION 3 Applications and Advantages • Wireless roaming with a laptop around the home or office Offers the freedom of networking—without cables. • Difficult-to-wire environments Enables networking in buildings with solid or finished walls, or open areaswhere wiring is difficult to install. • Frequently changing environments Adapts easily in offices or environments that frequently rearrange orchange locations. • Temporary LANs for special projects or peak time Sets up temporary networks such as at trade shows, exhibitions, and construction sites, which need networks on a short-term basis, also companies who need additional workstations for a peak activity period. • SOHO (Small Office/Home Office) networking needsProvides the easy and quick small network installation SOHO users need. Product SpecificationsHost Interface: 16-bit PCMCIA Power Consumption: 300mA (max) Certification: FCC Class B, CE Mark, C-Tick Operating Temperature: 32–131º F (0–55º C) Storage Temperature: -13–158º F (-25–70º C) Typical Operating Range: Ind oor: 160' (50m) @ 11Mbps, 260' (80m) @ 5.5Mbps or lower Outdoor: 490' (150m) @ 11Mbps, up to 1800' (550m) @ 5.5Mbps or lower System Requirements• PC-compatible laptop with one available PCMCIA slot• Windows® 98, 2000, Me, or XPPackage Contents• Belkin Wireless Notebook Network Card• Quick Installation Guide• Installation Software CD• User Manual Knowing your Belkin Wireless Notebook Network Card(a) Power LED: When the Card receives power, this light will be on. (b) Link LED: When the Card has a link to a wireless network, the light will be solid. When not linked to a wireless network, the light will slowly flash. (c) Card Connector: This is the side of the Card that fits into the PCMCIA slot of your laptop. (d) Antenna: Integ rated a nten na. 2 c a d b INSTALLING AND SETTING UP THE CARD 4 INSTALLING AND SETTING UP THE CARD 5 Installing your Card is done in three easy steps:1. Install the software FIRST. If you plug your Card into your laptop before you install the software, it will not work until you install the software. 2. Plug the Card into your laptop. 3. Let your Windows operating system finish installing the Card. Software and Driver Installation1. Insert the CD into your CD-ROM drive. 2. The Belkin Wireless Notebook Network Card Setup Utility screen will automatically appear. If it does not appear within 15-20 seconds, thenselect your CD-ROM drive and double-click on the folder named “Files”. Ne xt double-click on the icon named “F5D6020_UTILITY.exe”. 3. In the menu window, drag your mouse over the “Install” button then select“Click here” to start the software installation program. NOTE: INSTALL THE SOFTWARE FIRST BEFORE YOU INSTALL TH…

Text truncated - open the document above for the full version.

Belkin Components 501 West Walnut Street, Compton, CA 90220 Tel: 1-310-604-2448 Fax: 1-310-631-3629 www.belkin.com FCC ID: K7SF5D6021 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Printed Name: Gene Byrd Title: Configuration Manager Belkin Components Date: 09/06/2002

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 17, 2002 RE: Belkin Components FCC ID: K7SF5D6021 After a review of the submitted information, I have a few comments on the above referenced Application. These comments are all made upon the assumption that the EUT's full conducted output power is 18.2 mW and the antenna gain is -1.0 dBi. 1) The users manual shows a PCMCIA card with external photographs on page 7& 9 of 22. This device contains internal antennas only. Also, the model number given in the manual is a F5D6020 instead of F5D6021. Please explain. 2) Page 12 of 22 the users manual states that the antenna is +1.5 dBi, while the test report/MPE exhibit states -1dBi. Please explain. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

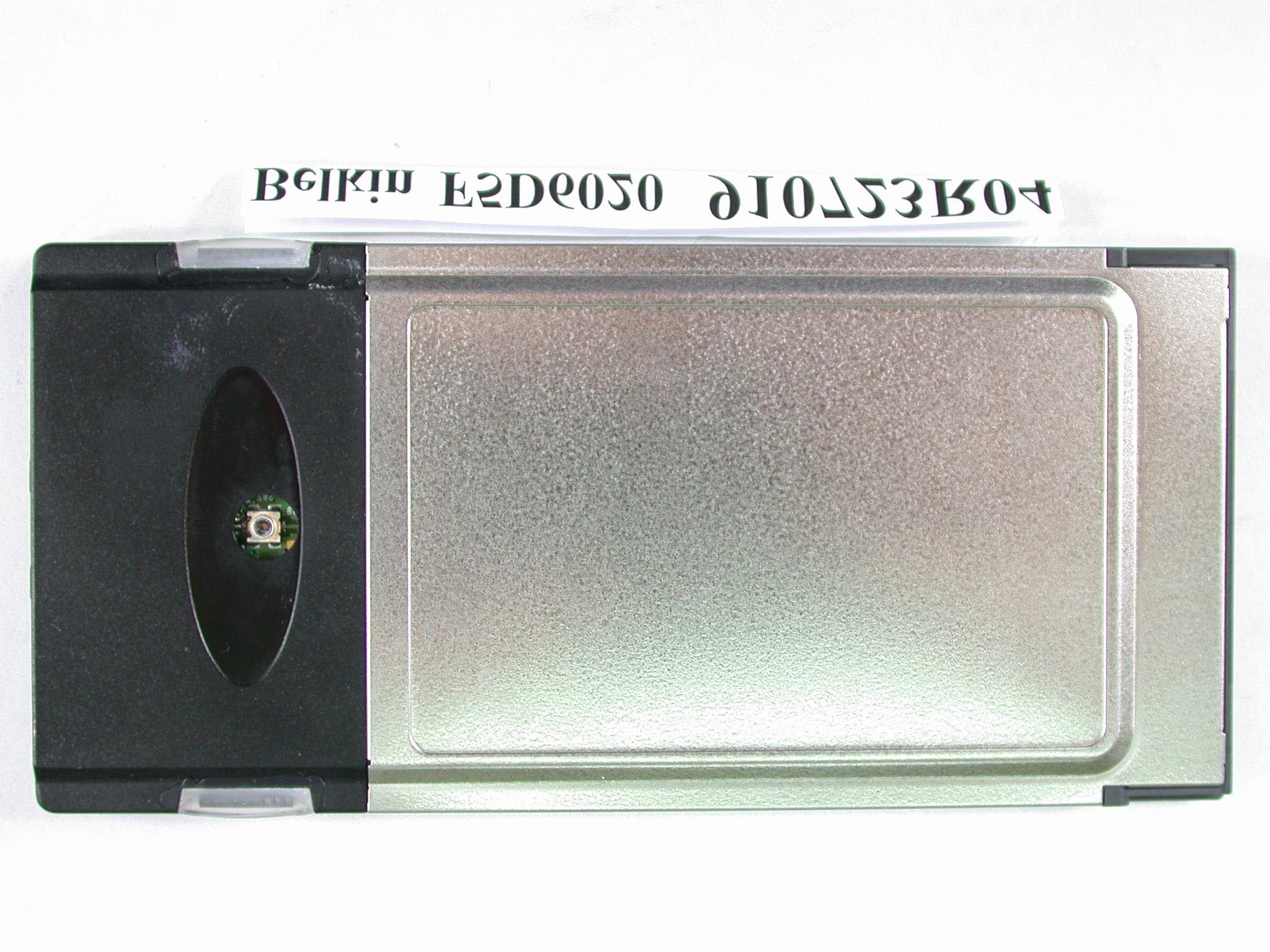

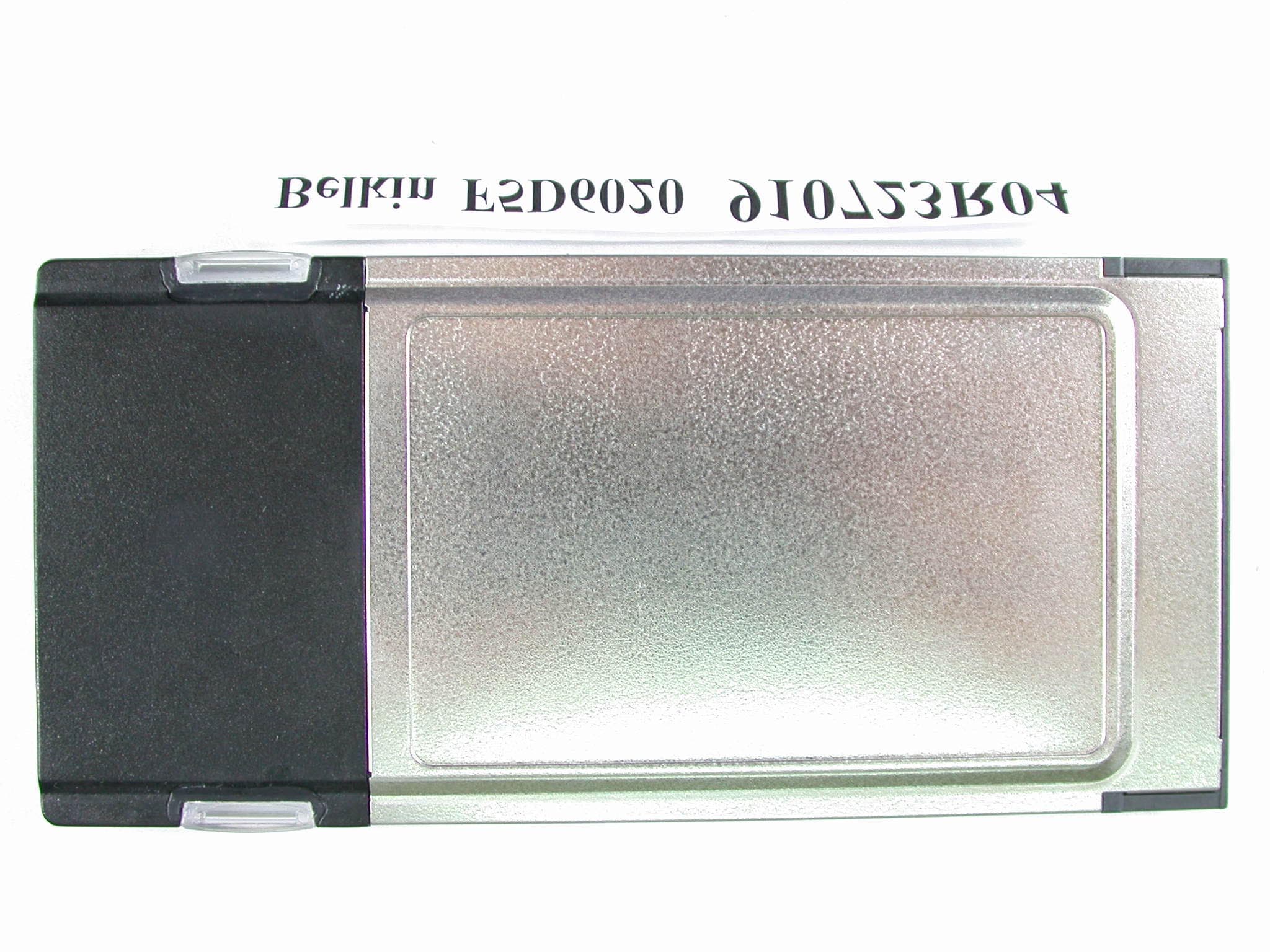

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

FCC ID Label Location

146000021100E 30 Sylin Made in xxxxx 146000021100E R01 xx

Page 3 Page 4 Page 5

FCC ID: K7SF5D6021 ADT No.910723R04 Operational Description The transmitter of the EUT (Wireless Network Card) is powered by notebook and plugged in PCMCIA Slot. The antenna is Printed antenna, and there is no antenna connector. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: K7SF5D6021 ADT No.: 910723R04 FCC TEST REPORT REPORT NO.: RF910723R04 MODEL NO.: F5D6020 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:Belkin Components ADDRESS:501, West Walnut Street, Compton CA 90220, USA ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: K7SF5D6021 ADT No.: 910723R04 RF Exposure Measurement (Portable Device) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: K7SF5D6021 ADT No.: 910723R04 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: K7SF5D6021 ADT No.: 910723R04 5. Test Results 5.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is -1dBi or 0.79 (numeric). 5.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241217.911.06 6243717.861.06 11246218.201.07 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: K7SF5D6021 Report No.: RF910723R04 1 Issued: Oct. 9, 2002 FCC TEST REPORT REPORT NO.: RF910723R04 MODEL NO.: F5D6020 RECEIVED: July 23, 2002 TESTED: July 30 ~ Oct. 8, 2002 APPLICANT:Belkin Components ADDRESS:501, West Walnut Street, Compton CA 90220, USA ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 49 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: K7SF5D6021 Report No.: RF910723R04 2 Issued: Oct. 9, 2002 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ............................................................. 6 3.2DESCRIPTION OF TEST MODES ............................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 4TEST TYPES AND RESULTS ...................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4DEVIATION FROM TEST STANDARD ....................................................... 10 4.1.5TEST SETUP ...............................................................................................11 4.1.6EUT OPERATING CONDITIONS................................................................ 12 4.1.7TEST RESULTS.......................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ................................................... 19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 19 4.2.2TEST INSTRUMENTS ................................................................................ 20 4.2.3TEST PROCEDURES................................................................................. 21 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 21 4.2.5TEST SETUP .............................................................................................. 22 4.2.6EUT OPERATING CONDITIONS................................................................ 22 4.2.7TEST RESULTS.......................................................................................... 23 4.36dB BANDWIDTH MEASUREMENT .......................................................... 27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 27 4.3.2TEST INSTRUMENTS ................................................................................ 27 4.3.3TEST PROCEDURE ................................................................................... 28 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 28 4.3.5TEST SETUP .............................................................................................. 28 4.3.6EUT OPERATING CONDITIONS................................................................ 28 4.3.7TEST RESULTS.......................................................................................... 29 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 33 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 33 4.4.2TEST INSTRUMENTS ................................................................................ 33 FCC ID: K7SF5D6021 Report No.: RF910723R04 3 Issued: Oct. 9, 2002 4.4.3TEST PROCEDURES................................................................................. 34 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 34 4.4.5TEST SETUP .............................................................................................. 34 4.4.6EUT OPERATING CONDITIONS................................................................ 34 4.4.7TEST RESULTS.......................................................................................... 35 4.5POWER SPECTRAL DENSITY MEASUREMENT ..................................... 36 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 36 4.5.2TEST INSTRUMENTS ................................................................................ 36 4.5.3TEST PROCEDURE ................................................................................... 37 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 37 4.5.5TEST SETUP .............................................................................................. 37 4.5.6EUT OPERATING CONDITIONS................................................................ 37 4.5.7TEST RESULTS.......................................................................................... 38 4.6BAND EDGES MEASUREMENT ................................................................ 42 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 42 4.6.2TEST INSTRUMENTS ................................................................................ 42 4.6.3TEST PROCEDURE ..................................…

Text truncated - open the document above for the full version.

FCC ID: K7SF5D6021 Report No.: RF910723R04 47 Issued: Oct. 9, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: K7SF5D6021 Report No.: RF910723R04 48 Issued: Oct. 9, 2002 RADIATED EMISSION TEST
