K7SF5D6130Wireless Access Point

Quick Installation Guide of WLAN 11Mbps Access Point WA3001A Eumitcom Eumticom Technlolgy Inc. 2 Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy. If this equipment is not installed and used in accordance with the manufacturer's instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by during the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ! Reorient or relocate the receiving antenna. ! Increase the separation between the equipment and receiver. ! Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. ! Consult the dealer or an experienced radio/TV technician for help. The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Manufacturer's Disclaimer Statement The information in this document is subject to change without notice and does not represent a commitment on the part of the vendor. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular purpose of this document. The manufacturer reserves the right to make changes to the content of this document and/or the products associated with it at any time without obligation to notify any person or organization of such changes. In no event will 3 the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages. This document contains materials protected by copyright. All rights are reserved. No part of this manual may be reproduced or transmitted in any form, by any means or for any purpose without expressed written consent of its authors. Product names appearing in this document are mentioned for identification purchases only. All trademarks, product names or brand names appearing in this document are registered property of their respective owners. This device requires a radio license, unless it (including antenna ) is installed totally inside a building. (User must obtain this license from Industry Canada ). “To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication.” Printed in Taiwan 1 Introduction WA3001A is an 11Mbps Access Point that bridges between wired Local Area Network and one or more wireless mobile PC based stations. Connected to the Ethernet backbone through RJ-45 connector, the single Access Point wirelessly provides multiple data access with verity of mobile desktop or laptop PC in covered propagation range. The Serial of Wireless LAN products offer a fast, reliable, cost-effective solution. I. Release package 1. One Access Point 2. One Power Adapter (9V/1.11A) 3. One Floppy Diskette 2 II. Hardware Installation 1. Connect the AP RJ45 port to a Ethernet 10BaseT Hub. 2. Connect the power adapter to power source and plug it into power hole of AP. III. Software Installation Following descriptions describe the steps to install the AP Utility 1. Power on the PC and boot it to the windows system 2. Insert the floppy diskette to the floppy driver. 3. Type the “A:\Utility\setup.exe” to start the Installation. 4. Follow the setup wizard to complete the setup process. IV. Access Point Setup and Configure After AP Utility is installed, you may start to setup and configure the AP. You could choose to configure the AP through the Ethernet or WLAN. If you want to configure the AP by WLAN, you should have a WLAN PC or PCI adapter installed and associate with the AP in advance. The default SSID of AP is “WLAN”. 1. Lunch the WLAN AP Utility program from “ Access Point Utility” Folder. 2. Click item “Scan” under the menu item “AP” in the utility program to search the AP in network. 3 3. If an AP is detected, the utility program will show the AP information . 4. Double click the found AP from the list table. 5. Input the IP Address, subnet mask and default gateway correctly, click the “OK” button, you MUST assign the AP IP address with the value that is located within the same subnet of the configured PC. V. Hardware Specification Radio: Complies with IEEE 802.11 Frequency Band: 2400 ~ 2483.5MHz ( for US, Canada, and ETSI) 2400 ~ 2497MHz (for Japan) Modulation TYPE: CCK,BPSK,QPSK Operating Channels: IEEE 802.11 compliant 11 channels (US, Canada) 13 channels (ETSI) 14 channels (Japan) Radio Technology: Direct Sequence Spread Spectrum Data Rate: 1 / 2 / 5.5 / 11 Mbps Output Power: > +15dBm Receive sensitivity: Min. -78dBm for 11Mbps; Min. -82dBm for 5.5/2/1 Mbps ;(@BER 10E-5) Ethernet : Wired Interface : Ethernet IEEE 802.3 10 BaseT Current Consumption : 5V, 750 m A Max. 4 Notice : Eumitcom Technology Inc. reserves the right to change specifications detailed in this document at any time without notice, and assumes no res…

Text truncated - open the document above for the full version.

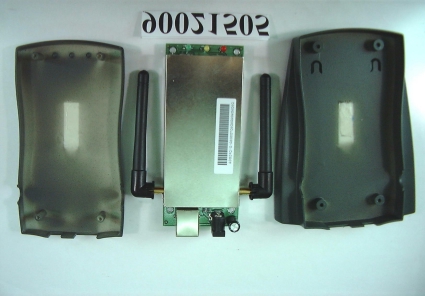

Report No.: RF900215051Issued: February 26, 2001 ANNEX 3 PHOTOGRAPHS OF EUT Report No.: RF900215052Issued: February 26, 2001 Report No.: RF900215059Issued: February 26, 2001 Report No.: RF9002150510Issued: February 26, 2001

FORM# R0-04D00-13 V.02 UL Label R02 90 11 09 MM 0.2MM POWW CHECK: APPROVE: 146000013300E White mylor+ WA3001A-AK Ul approve Wording :Black(60%) background: Pantone 420C 90 5 9 . 6 0 m m 33.70 mm R1 R3*3 R02 Version: 1. Change FCC ID from LLM0102WA3001A to K7SF5D6130 2. Add "MFG Country and part number and Vender ID 3.Change customer's Label P/N from P81117 to P81117-A

Report No.: RF900215053Issued: February 26, 2001 Report No.: RF900215054Issued: February 26, 2001 Report No.: RF900215055Issued: February 26, 2001 Report No.: RF900215056Issued: February 26, 2001 Report No.: RF900215057Issued: February 26, 2001 Report No.: RF900215058Issued: February 26, 2001

FCC ID: K7SF5D6130 ADT No.901105R04 Operational Description The transmitter of the EUT (11Mbps WLAN Access Point) is powered by power adapter and connected with notebook through USB port. The antenna is Dual Monopole Antenna, there is no antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

ADT No: 901105R03 1 FCC TEST REPORT REPORT NO.: RF90021505C MODEL NO.: F5D6130 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Belkin Components ADDRESS: 1303 Walnut Parkway, Compton, 90220, CA, U.S.A ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 Lab Code: 200102-0 ADT No: 901105R03 2 RF Exposure Measurement 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz ADT No: 901105R03 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5 Climate Condition The temperature and related humidity: 30 deg. C and 60 % RH 6. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. ADT No: 901105R03 4 7 Test Results 7.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1dBi or 1.26 (numeric). 7.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) EIRP OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241252.602.57 6243759.432.73 11246256.752.67 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 20 cm separation distance with the antenna.

FCC ID: K7SF5D6130 Report No.: RF90021505C 1 Issued: Nov. 6, 2001 Reference No.: RF90021505 FCC TEST REPORT REPORT NO.: RF90021505C MODEL NO.: F5D6130 RECEIVED: February 15, 2001 TESTED: February 26, 2001 APPLICANT: Belkin Components ADDRESS: 1303 W a l n u t P a r k w ay , C om p t o n , 90220, CA, U.S.A ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 13-1, Lane 19, Wen Shan 3 rd St., Kweishan, Taoyuan Hsien, Taiwan, R.O.C. This test report consists of 49 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. 0528 Lab Code: 200102-0 FCC ID: K7SF5D6130 Report No.: RF90021505C 2 Issued: Nov. 6, 2001 Reference No.: RF90021505 Table of Contents 1CERTIFICATION ................................................................................................... 4 2SUMMARY OF TEST RESULTS .......................................................................... 5 3GENERAL INFORMATION.................................................................................. 6 3.1GENERAL DESCRIPTION OF EUT................................................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................. 8 3.4DESCRIPTION OF SUPPORT UNITS .............................................................................. 8 4TEST PROCEDURES AND RESULTS ................................................................. 9 4.1CONDUCTED EMISSION MEASUREMENT.................................................................. 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................................................ 9 4.1.2TEST INSTRUMENTS ................................................................................................................... 9 4.1.3TEST PROCEDURES ....................................................................................................................10 4.1.4TEST SETUP .................................................................................................................................11 4.1.5TEST RESULTS ............................................................................................................................12 4.2RADIATED EMISSION MEASUREMENT .....................................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................................................18 4.2.2TEST INSTRUMENTS ..................................................................................................................19 4.2.3TEST PROCEDURES ....................................................................................................................20 4.2.4TEST SETUP .................................................................................................................................21 4.2.5TEST RESULTS ............................................................................................................................22 4.36dB BANDWIDTH MEASUREMENT.............................................................................26 4.3.1LIMITS OF 6 D B BANDWIDTH MEASUREMENT......................................................................26 4.3.2TEST INSTRUMENTS ..................................................................................................................26 4.3.3TEST PROCEDURE ......................................................................................................................27 4.3.4TEST SETUP .................................................................................................................................27 4.3.5EUT OPERATING CONDITION...................................................................................................27 4.3.6TEST RESULTS ............................................................................................................................28 4.4MAXIMUM PEAK OUTPUT POWER ............................................................................32 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .........................................32 4.4.2INSTRUMENTS ............................................................................................................................32 4.4.3TEST PROCEDURES ....................................................................................................................33 4.4.4TEST SETUP .................................................................................................................................33 4.4.5EUT OPERATING CONDITION...................................................................................................33 4.4.6TEST RESULTS ............................................................................................................................34 4.5POWER SPECTRAL DENSITY MEASUREMENT.........................................................35 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...................................................35 4.5.2TEST INSTRUMENTS ..................................................................................................................35 FCC ID: K7SF5D6130 Report No.: RF90021505C 3 Issued: Nov. 6, 2001 Reference No.: RF90021505 4.5.3TEST PROCEDURE ......................................................................................................................36 4.5.4TEST SETUP .................................................................................................................................36 4.5.5EUT OPERATING CONDITION........................…

Text truncated - open the document above for the full version.

FCC ID: K7SF5D6130 Report No.: RF90021505C 47 Issued: Nov. 6, 2001 Reference No.: RF90021505 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: K7SF5D6130 Report No.: RF90021505C 48 Issued: Nov. 6, 2001 Reference No.: RF90021505 RADIATED EMISSION TEST
