Wireless Cable/DSL Gateway Router F5D6231-4 Quick Installation Guide Quick Installation Guide Wireless Cable/DSL Gateway - F5D6231-4 10/100 Mbps Wireless Gateway with 4 10/100 Mbps (RJ-45) Ethernet LAN Ports, 1 Uplink Port, and 1 10/100 Mbps (RJ-45) WAN Port F5D6231-4 E112002-R01 i Compliances FCC - Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION STATEMENT: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm (8 in) between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. In order to maintain compliance with the limits for a Class B digital device, it requires that you use a quality interface cable when connecting to this device. Changes or modifications not expressly approved could void the user’s authority to operate this equipment. Compliances ii iii Table of Contents Introduction 1 Package Contents 1 Confirm That You Meet Installation Requirements 1 Hardware Setup 2 Indicator LEDs 2 Connecting Devices 2 Configuring Wireless Connections 3 Configuring Your Computer 4 Configuring Your Computer with Windows 95/98/Me 4 Step 1. Configure TCP/IP Settings 4 Step 2. Disable HTTP Proxy 5 Internet Explorer 5 Netscape 5 Step 3. Obtain IP Settings from Your Gateway 5 Configuring Your Computer with Windows 2000 6 Step 1. Configure TCP/IP Settings 6 Step 2. Disable HTTP Proxy 7 Internet Explorer 7 Netscape 7 Step 3. Obtain IP Settings from Your Gateway 7 Configuring Your Computer with Windows NT 4.0 8 Step 1. Configure TCP/IP Settings 8 Step 2. Disable HTTP Proxy 9 Internet Explorer 9 Netscape 9 Step 3. Obtain IP Settings from Your Gateway 9 Configuring Your Macintosh Computer 10 Step 1. Configure TCP/IP Settings 10 Step 2. Disable HTTP Proxy 11 Internet Explorer 11 Netscape 11 Step 3. Obtain IP Settings from Your Gateway 11 Configuring Your Gateway 12 Configuring LAN 13 Configuring Internet/WAN 14 Configuring Wireless 16 Configuring Firewall 17 Configuring Utilities 18 Table of Contents iv Common Configurations for Popular ISPs 20 Specifications 21 Hardware 21 Wireless RF 22 1 Introduction Congratulations on your purchase of the Belkin Wireless Gateway. This Wireless Gateway, F5D6231-4, is a broadband router designed to share Internet access, provide security, and to network multiple devices with and without wires. This gateway’s simple installation setup can be used by the least experienced of users, while providing networking professionals with easy to configure advanced features. Please read the User Guide for advanced features of this product. Thank you for purchasing a Belkin product. We know you will enjoy the many features of the Belkin’s F5D6231-4 Wireless Gateway. Package Contents •One F5D6231-4 Wireless Gateway •One Power Adapter (9 V, 1000 mA) •This Quick Installation Guide •One Installation CD •One Category 5 Fast Ethernet Cable Confirm That You Meet Installation Requirements Before proceeding with the installation of your F5D6231-4 Wireless Gateway, please be sure you have the following: • A computer with an Ethernet network card installed • Your Windows CD, if your computer is running Windows 95, 98, NT, Me or 2000 • An Internet connection through a cable or DSL modem, or an external dial-up or ISDN modem • An additional Ethernet network cable • A Web browser such as Internet Explorer or Netscape INSTALLATION GUIDE 2 Hardware Setup Indicator LEDs Front Panel The front panel of the F5D6231-4 Wireless Gateway provides indicator LEDs for easy monitoring. The following table defines the function of each LED. Connecting Devices Rear Panel 1.Connecting Computers with Wires: Connect computers directly to the Gateway on ports 1-4 on the rear panel. If you have more than 4 computers to plug in, connect a hub or a switch to one of these ports and connect additional computers to that device. 2.Connecting Wireless Computers: Simply make sure your wireless computers are within range of the Gateway. 3.Connecting a Cable Modem or DSL Modem: Connect your Cable or DSL modem to the WAN port on the rear panel. 4.Power: Plug the power adapter into the power jack (9 V/1000 mA). LEDConditionStatus Ready (Power) On Gre…

Text truncated - open the document above for the full version.

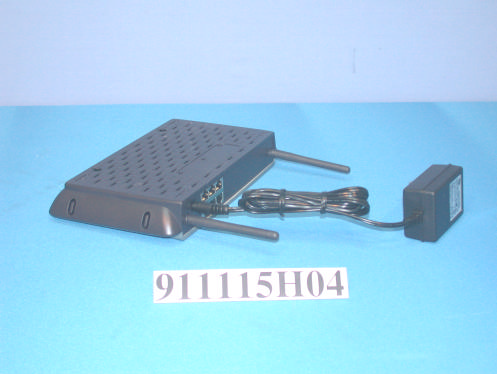

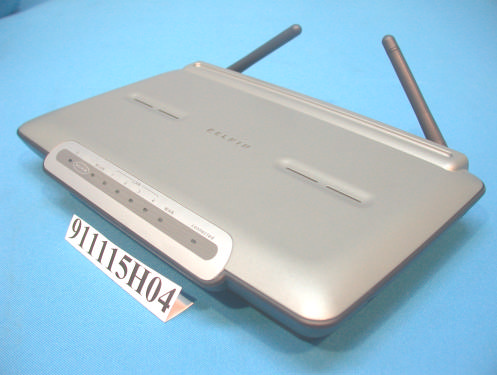

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: K7SF5D6231-4 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

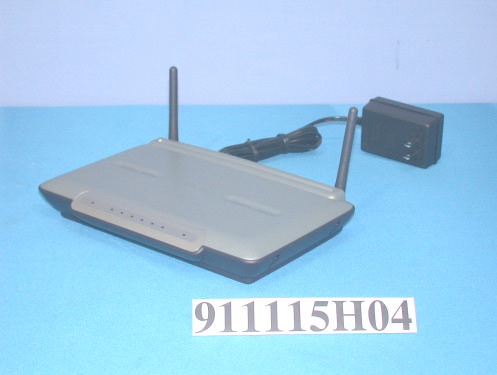

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: K7SF5D6231-4 ADT No.911115H04 Operational Description The transmitter of the EUT (Wireless Cable/DSL Gateway Router) is powered by power adapter and connected with PC through RJ45 port. The antenna used in this product is Dipole Antenna. The antenna connector is integral Dipole Antenna without connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by DBPSK and DQPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps.

FCC ID: K7SF5D6231-4 Report No.: RF911115H041Issued: Dec. 10, 2002 ADT No. 911115H04 FCC TEST REPORT REPORT NO.: RF911115H04 MODEL NO.: F5D6231-4 RECEIVED: Nov. 15, 2002 TESTED: Nov. 22 to Dec. 03, 2002 APPLICANT: Belkin Components ADDRESS: 501, West Walnut Street, Compton CA 90220 USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 51 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: K7SF5D6231-4 Report No.: RF911115H042Issued: Dec. 10, 2002 ADT No. 911115H04 Table of Contents 1CERTIFICATION......................................................................................................4 2SUMMARY OF TEST RESULTS...........................................................................5 3GENERAL INFORMATION....................................................................................6 3.1GENERAL DESCRIPTION OF EUT.....................................................................6 3.2DESCRIPTION OF TEST MODES.......................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................7 3.4DESCRIPTION OF SUPPORT UNITS.................................................................8 4TEST TYPES AND RESULTS.............................................................................10 4.1CONDUCTED EMISSION MEASUREMENT....................................................10 4.1.1TEST INSTRUMENTS.............................................................................................10 4.1.2TEST PROCEDURES..............................................................................................11 4.1.3DEVIATION FROM TEST STANDARD....................................................................11 4.1.4TEST SETUP...........................................................................................................12 4.1.5EUT OPERATING CONDITIONS............................................................................13 4.1.6TEST RESULTS.......................................................................................................14 4.2RADIATED EMISSION MEASUREMENT.........................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT............................................20 4.2.2TEST INSTRUMENTS.............................................................................................21 4.2.3TEST PROCEDURES.............................................................................................22 4.2.4DEVIATION FROM TEST STANDARD...................................................................22 4.2.5TEST SETUP...........................................................................................................23 4.2.6EUT OPERATING CONDITIONS............................................................................23 4.2.7TEST RESULTS.......................................................................................................24 4.36dB BANDWIDTH MEASUREMENT.................................................................29 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT....................................................29 4.3.2TEST INSTRUMENTS.............................................................................................29 4.3.3TEST PROCEDURE................................................................................................30 4.3.4DEVIATION FROM TEST STANDARD...................................................................30 4.3.5TEST SETUP...........................................................................................................30 4.3.6EUT OPERATING CONDITIONS............................................................................30 4.3.7TEST RESULTS.......................................................................................................31 4.4MAXIMUM PEAK OUTPUT POWER.................................................................35 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................35 4.4.2INSTRUMENTS........................................................................................................35 4.4.3TEST PROCEDURES.............................................................................................36 4.4.4DEVIATION FROM TEST STANDARD...................................................................36 4.4.5TEST SETUP...........................................................................................................36 FCC ID: K7SF5D6231-4 Report No.: RF911115H043Issued: Dec. 10, 2002 ADT No. 911115H04 4.4.6EUT OPERATING CONDITIONS............................................................................36 4.4.7TEST RESULTS.......................................................................................................37 4.4.8LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...............................38 4.4.9TEST INSTRUMENTS.............................................................................................38 4.4.10TEST PROCEDURE................................................................................................39 4.4.11DEVIATION FROM TEST STANDARD...................................................................39 4.4.12TEST SETUP...........................................................................................................39 4.4.13EUT OPERATING CONDITION...............................................................................39 4.4.14TEST RESULTS..................................................…

Text truncated - open the document above for the full version.

FCC ID: K7SF5D6231-4 Report No.: RF911115H0449Issued: Dec. 10, 2002 ADT No. 911115H04 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: K7SF5D6231-4 Report No.: RF911115H0450Issued: Dec. 10, 2002 ADT No. 911115H04 RADIATED EMISSION TEST
