K7SF5D70002.4GHz Wireless PCI

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: 2.4GHz wireless PCI (Receiver Part) MODEL NO.: F5D7000 TRADE NAME: Belkin IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D920116R03A THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION： ManufacturerUSA Local Representative Company name: ASKEY COMPUTER CORP. Company name: Belkin Corporation Address: 10F,NO.119, CHIENKANG RD., CHUNG- HO, TAIPEI TAIWAN R.O.C. Address: 501 West Walnut Street Compton, CA 90220 Contact Person: John Chiou Contact Person: Gene Byrd Title: Manager Title: Configuration Manager Te l / F a x : Tel: +886-2-2228-7588 Fax: +886-2-3234-9340 Te l / F a x : Tel: 310-604-2448 Fax: 310-631-3629

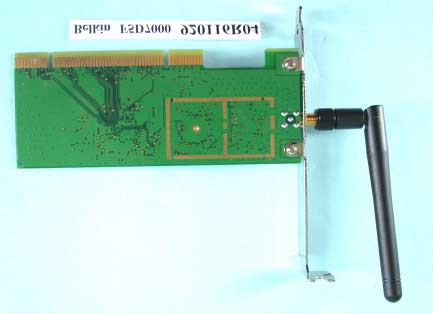

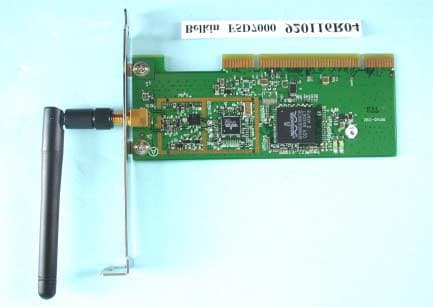

Page 1 ANNEX PHOTOGRAPHS OF EUT

FOR FCC ID LABEL LOCATION

Page 2 Page 3

FCC ID: K7SF5D7000 ADT No.920116R04 Operational Description This device is a 2.4GHz wireless PCI which operates in the 2.4Ghz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a PCI interface. The antenna is Dipole antenna with Reversed SMA connector. The other instruction, please have a look at the users manual.

FCC ID: K7SF5D7000 ADT No.: 920116R04 FCC TEST REPORT REPORT NO.: RF920116R03A MODEL NO.: F5D7000 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:Belkin Corporation ADDRESS:501 West Walnut Street Compton, CA 90220 ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: K7SF5D7000 ADT No.: 920116R04 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: K7SF5D7000 ADT No.: 920116R04 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: K7SF5D7000 ADT No.: 920116R04 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.8dBi. 6.2 Output Power Into Antenna & RF Exposure Distance : For 802.11b CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241236.312.09 6243731.621.95 11246228.641.86 For 802.11g CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241230.271.91 6243731.261.94 11246230.131.91 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition. But it is recommended to always keep, at least, 20cm separation distance with the antenna.

FCC ID: K7SF5D7000 Report No.: RF920116R03A 1 Issued: Jan. 24, 2003 FCC TEST REPORT REPORT NO.: RF920116R03A MODEL NO.: F5D7000 RECEIVED: Jan. 16, 2003 TESTED: Jan. 16 ~ Jan. 23, 2003 APPLICANT:Belkin Corporation ADDRESS: 501 West Walnut Street Compton, CA 90220 ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 63 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: K7SF5D7000 Report No.: RF920116R03A 2 Issued: Jan. 24, 2003 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ............................................................. 6 3.2DESCRIPTION OF TEST MODES ............................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 4TEST TYPES AND RESULTS ...................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4DEVIATION FROM TEST STANDARD ....................................................... 10 4.1.5TEST SETUP ...............................................................................................11 4.1.6EUT OPERATING CONDITIONS.................................................................11 4.1.7TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES................................................................................. 20 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 20 4.2.5TEST SETUP .............................................................................................. 21 4.2.6EUT OPERATING CONDITIONS................................................................ 21 4.2.7TEST RESULTS.......................................................................................... 22 4.2.8TEST RESULTS (A) .................................................................................... 23 4.2.9TEST RESULTS (B) .................................................................................... 26 4.36dB BANDWIDTH MEASUREMENT .......................................................... 29 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 29 4.3.2TEST INSTRUMENTS ................................................................................ 29 4.3.3TEST PROCEDURE ................................................................................... 30 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 30 4.3.5TEST SETUP .............................................................................................. 30 4.3.6EUT OPERATING CONDITIONS................................................................ 30 4.3.7TEST RESULTS (A) .................................................................................... 31 4.3.8TEST RESULTS (B) .................................................................................... 35 FCC ID: K7SF5D7000 Report No.: RF920116R03A 3 Issued: Jan. 24, 2003 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 39 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 39 4.4.2TEST INSTRUMENTS ................................................................................ 39 4.4.3TEST PROCEDURES................................................................................. 40 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 40 4.4.5TEST SETUP .............................................................................................. 40 4.4.6EUT OPERATING CONDITIONS................................................................ 40 4.4.7TEST RESULTS (A) .................................................................................... 41 4.4.8TEST RESULTS (B) .................................................................................... 42 4.5POWER SPECTRAL DENSITY MEASUREMENT ..................................... 43 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 43 4.5.2TEST INSTRUMENTS ................................................................................ 43 4.5.3TEST PROCEDURE ................................................................................... 44 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 44 4.5.5TEST SETUP .............................................................................................. 44 4.5.6EUT OPERATING CONDITIONS................................................................ 44 4.5.7TEST …

Text truncated - open the document above for the full version.

FCC ID: H8NWLH3010 Report No.: RF920116R03 61 Issued: Jan. 24, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: H8NWLH3010 Report No.: RF920116R03 62 Issued: Jan. 24, 2003 RADIATED EMISSION TEST
