501 W. Walnut Street – Compton – California 90220 USA Declaration of Authorization We Name: Belkin Components Address: 501 West Walnut Street City: Compton ............................................................................ Country: CA 90220-5221, USA Declare that: Name: Sporton International Inc.............. Address: No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C City: TaoYuan Country Taiwan, R.O.C is authorized to apply for Certification of the following product(s): Product description: Wireless G Desktop Card Type designation: F5D7000 Trademark: Belkin on our behalf. Date: Dec. 11, 2006. City: Compton Name: Marc Matejka Signature:

Confidential Letter Date: 2006/11/27 Federal Communications Commission Authorization and Evaluation Division FCC IDK7SF5D7000F Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Belkin Corporation Applicant’s company address : 501 West Walnut Street, Compton, CA 90220-5221,US Signature : Job Title and Dept. : Marc Matejka Document Control & Regulatory Compliance Manager

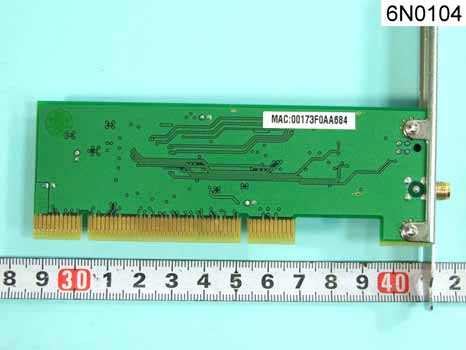

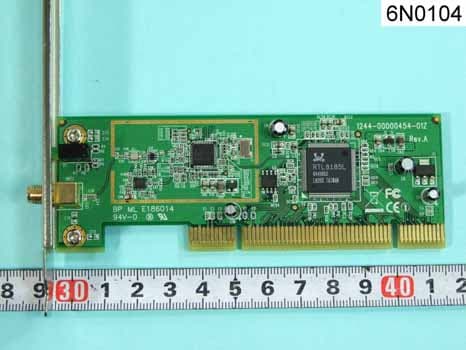

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 30, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 30, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 30, 2006 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 30, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 30, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 30, 2006 FAX : 886-2-2696-2255

Report No.: FR6N0104 FCC ID: K7SF5D7000F Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR6N0104 FCC ID: K7SF5D7000F Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) d GP××30 Power Density: Pd (W/m²) 377 2 E E Electric field (V/m) P Peak RF output power (W) G EUT Antenna numeric gain (numeric) d Separation distance between radiator and human body (m) The formula can be changed to Pd 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR6N0104 FCC ID: K7SF5D7000F Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : Dipole Max Conducted Power for IEEE 802.11b/g : 18.57dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5 3.1623 18.5700 71.9449 0.045285 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: RF-15.247-2006-6-16-e FCC RADIO TEST REPORT Applicant’s company Belkin Corporation Applicant Address 501 West Walnut Street , Compton, CA 90220-5221, US FCC ID K7SF5D7000F Manufacturer’s company Belkin Corporation Manufacturer Address 501 West Walnut Street , Compton, CA 90220-5221, US Product Name Wireless G Desktop Card/F5D7000 Brand Name Belkin Model Name F5D7000 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Nov. 07, 2006 Final Test Date Nov. 28, 2006 Submission Type Original Equipment Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Lab Code: 200079-0 Report No.: FR6N0104 Report Format Version: RF-15.247-2006-2-17-d Page No. : i of ii FCC ID: K7SF5D7000F Issued Date : Nov. 30, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................3 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................4 3.7. Table for Supporting Units ...................................................................................................................................................................4 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................5 3.9. Test Configurations .............................................................................................................................................................................5 4. TEST RESULT ..................................................................................................................................................... 7 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................7 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................11 4.3. Power Spectral Density Measurement ..............................................................................................................................................13 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................18 4.5. Radiated Emissions Measurement ....................................................................................................................................................23 4.6. Band Edge Emissions Measurement .................................................................................................................................................41 4.7. Antenna Requirements .....................................................................................................................................................................46 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 47 6. TEST LOCATION.............................................................................................................................................. 48 7. NVLAP CERTIFICATE OF ACCREDITATION ......................................................................................................... 49 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A3 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B5 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE.................................................…

Text truncated - open the document above for the full version.

Report No.: FR6N0104 FCC ID: K7SF5D7000F Page No. : 1 of 5 Appendix B. Test Photos Report No.: FR6N0104 FCC ID: K7SF5D7000F Page No. : 2 of 5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR6N0104 FCC ID: K7SF5D7000F Page No. : 3 of 5 SIDE VIEW Report No.: FR6N0104 FCC ID: K7SF5D7000F Page No. : 4 of 5 2. Photographs of Radiated Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR6N0104 FCC ID: K7SF5D7000F Page No. : 5 of 5 FRONT VIEW REAR VIEW
