K7SF5D7001Wireless LAN PCI Card

User Manual F5D7000 Belkin Corporation 501 West Walnut Street Compton • CA • 90220 • USA Tel: 310.898.1100 Fax: 310.898.1111 Belkin Components, Ltd. Express Business Park Shipton Way • Rushden • NN10 6GL United Ki ngdom Tel: +44 (0) 1933 35 2000 Fax: +44 (0) 1933 31 2000 Belkin Components B.V. Starparc Building • Boeing Avenue 333 1119 PH Schiphol-Rijk • The Netherlands Tel: +31 (0) 20 654 7300 Fax: +31 (0) 20 654 7349 Belkin, Ltd. 7 Bowen Crescent • West Gosford NSW 2250 • Australia Tel: +61 (0) 2 4372 8600 Fax: +61 (0) 2 4372 8603 Belkin Tech Support US: 310.898.1100 ext. 2263 800.223.5546 ext. 2263 Europe: 00 800 223 55 460 Australia: 1800 666 040 P74216 © 2003 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. belkin.com 54g Wireless DesktopNetwork Card Share your broadband Internet connection and files TABLE OF CONTENTS 1 INTRODUCTION Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2Applications and Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Knowing your Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5Installing and Setting Up the Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Software and Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6Installing the Card on your PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10Finishing the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11Connecting to your Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . .14Uninstalling the Software and Drivers . . . . . . . . . . . . . . . . . . . . . . . .14 Using the Belkin Wireless LAN Configuration Utility . . . . . . . . . . . . . . . . . .15 The Wireless Networks Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21The Link Status Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22The Site Survey Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Thank you for purchasing the Belkin 54g Wireless Desktop Network Card (theCard). Now you can take advantage of this great new technology and gain thefreedom you need around the home or office without using cables. The WirelessDesktop Network Card works like a conventional network card, but without thewires. The easy installation and setup will have you networking wirelessly inminutes. Please be sure to read through this manual completely to be sure thatyou are getting the most out of your Wireless Desktop Network Card. OVERVIEW Applications and Advantages • Wireless connection around the home or office Offers the freedom of networking without cables. • Connection rates of up to 54Mbps Provides immediate, higher-speed wireless connectivity at home, work, and hotspot locations without compromising the use of existing 802.11b products. • Compatibility with 802.11b products 54g wireless LAN solutions are backward-compatible with existing Wi-Fi (IEEE802.11b) products and with other products that display the 54g mark. • Difficult-to-wire environments Enables networking in buildings with solid or finished walls, or open areaswhere wiring is difficult to install. • Frequently changing environments Adapts easily in offices or environments that frequently rearrange or change locations. • Temporary LANs for special projects or peak time Sets up temporary networks such as at trade shows, exhibitions, andconstructions sites, which need networks on a short-term basis; alsocompanies who need additional workstations for a peak activity period. • SOHO (Small Office/Home Office) networking needs Provides the easy and quick, small network installation SOHO users need. OVERVIEW 2 FeaturesThe Card complies with the IEEE 802.11b standard in order to communicate withother 802.11b-compliant wireless devices at 11Mbps as well as other 54gproducts at 54Mbps that have the 54g™ badge on the package.54g products run at speeds of up to 54Mbps and operate on the same 2.4GHzfrequency band as 802.11b Wi-Fi products.• 2.4GHz ISM (Industrial, Science, and Medical) band operation• Integrated easy-to-use Wireless Configuration Utility• Wireless interface compliance with the IEEE 802.11b standard and 54g products • PCI interface, for operation in virtually any desktop computer• 64 or 128-bit Wireless (WEP) Encryption• Wireless access to networked resources• Support for both Infrastructure and Ad-Hoc (peer-to-peer) networking modes• Data rate of up to 54Mbps o Supports 11, 5.5, 2 or 1Mbps rates (802.11b)o Supports 54, 48, 36, 24, 18, 12, 9, or 6Mbps rates (54g) • Easy installation and use• External antenna• LED power and network link indicators 3 KNOWING YOUR CARD (a) Power LED When the Card receives power, this light will be on. (b) Link LED When the Card has a link to a wireless network, the light will be solid.When not linked to a wireless network, the light will slowly flash. (c) Card Connector This is the side of the Card that fits into the PCMCIA slot of your laptop (d) Antenna…

Text truncated - open the document above for the full version.

Belkin Corporation 501, West Walnut Street, Compton, USA 90220-5221 TEL: 310-604-2478 FAX: 31 0-631-3629 Federal Communications Commission Authorization and Evaluation Division FCC ID: K7SF5D7001 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, I'¥'f\ ,.l "-"- \, "'f\\ ~ ~ A. ~- ~-o~ Michael Maher Engineering Services Manager TEL: 310-604-2478 FAX: 310-631-3629 e-mail: [email protected]

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOllOWING EQUIPMENT: PRODUCT NAME: Wireless LAN PCI Card (Receiver Part) ~MODEL NO.: F5D7001 , TRADE NAME: BELKIN IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D920828RO1C THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOllOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOllOWING lOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION: BELKIN CORPORATION (COMPANY NAME) 501 West Walnut Street Comoton. CA 90220 (COMPANY ADDRESS) 310-604-2478 FAX: 310-631-3629 TEL Michael Maher ,Enaineerina Services Manaaer (NAME) '~lJrm~JI\ ~- ~- e=:t (SIGNATURE) (DATE) (TITLE) ~~

belkin.com 501, West Walnut Street, Compton, USA 90220-5221 TEL: 310-604-2448 FAX: 310-631-3629 POWER OF ATTORNEY To whom it may concern: We, the undersigned Ere/kin Corporation hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don't hesitate to contact us. Thank you! Sincerely yours, r'\('(\~.l~ \~ ~ '1 13 I 0 t1 Micahel Maher Engineering Services Manager TEL: 310-604-2478 FAX: 31 0-631-3629 e-mail: [email protected]

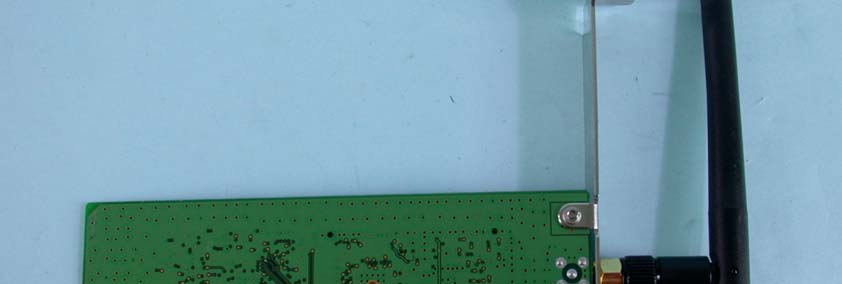

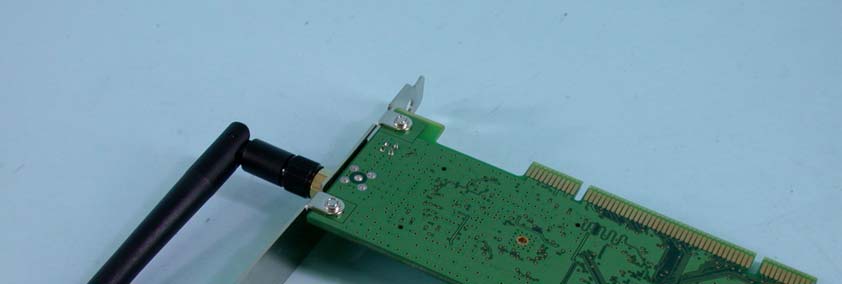

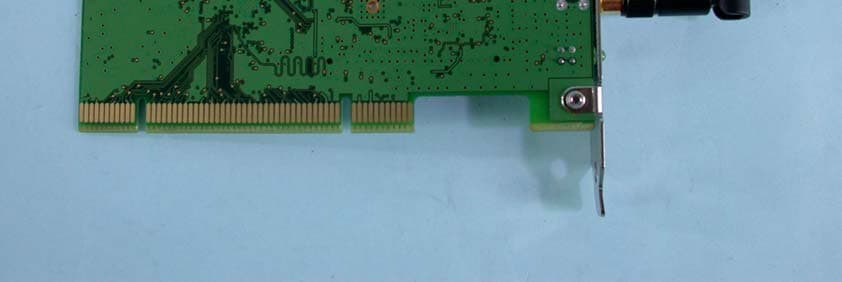

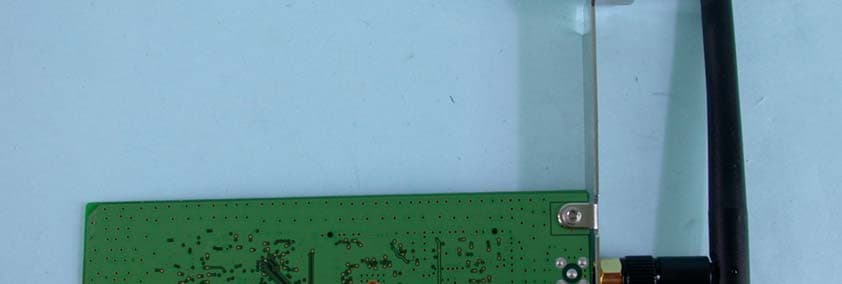

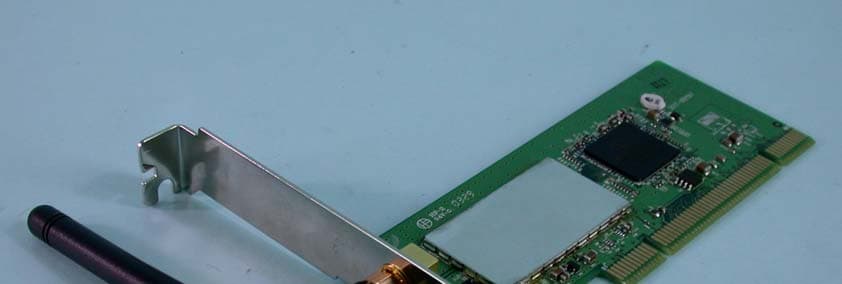

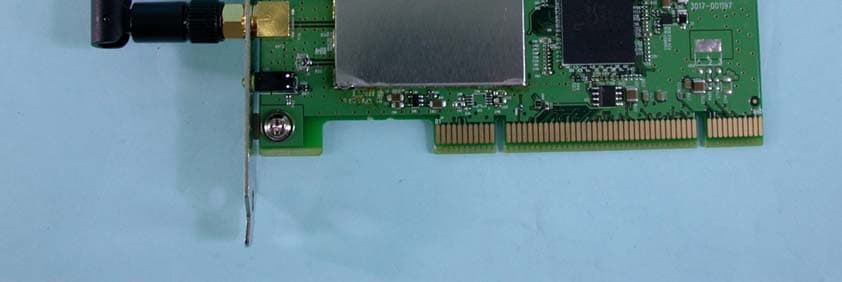

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3


Label Location

Page 4 Page 5 Page 6

FCC ID: K7SF5D7001 Report No.RF920828R01C Operational Description This device is a Wireless LAN PCI Card which operates in 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a PCI interface. The antenna is Dipole antenna with Reversed SMA antenna connector. The other instruction, please have a look at the users manual.

FCC ID: K7SF5D7001 Report No: SA920828R01C 1 RF EXPOSURE REPORT REPORT NO.: SA920828R01C MODEL NO.: F5D7001 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Belkin Corporation ADDRESS: 501 West Walnut Street Compton, CA 90220 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: K7SF5D7001 Report No: SA920828R01C 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: K7SF5D7001 Report No: SA920828R01C 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: K7SF5D7001 Report No: SA920828R01C 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.8dBi or 1.51 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.620.0101.0 6243730.900.0091.0 11246231.620.0101.0 For 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241230.900.0091.0 6243730.200.0091.0 11246231.620.0101.0

FCC ID: K7SF5D7001 Report No.: RF920828R01C1Issued: February 19, 2004 Reference No.: RF920828R01 FCC TEST REPORT REPORT NO.: RF920828R01C MODEL NO.: F5D7001 RECEIVED: NA TESTED: Sept. 6 ~ Sept. 25, 2003 APPLICANT: Belkin Corporation ADDRESS: 501 West Walnut Street Compton, CA 90220 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 69 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: K7SF5D7001 Report No.: RF920828R01C2Issued: February 19, 2004 Reference No.: RF920828R01 Table of Contents 1CERTIFICATION .......................................................................................................4 2SUMMARY OF TEST RESULTS ...............................................................................5 3GENERAL INFORMATION........................................................................................6 3.1GENERAL DESCRIPTION OF EUT ..........................................................................6 3.2DESCRIPTION OF TEST MODES ............................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................7 3.4DESCRIPTION OF SUPPORT UNITS ......................................................................8 3.5CONFIGURATION OF SYSTEM UNDER TEST.......................................................9 4TEST TYPES AND RESULTS .................................................................................10 4.1CONDUCTED EMISSION MEASUREMENT ..........................................................10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................10 4.1.2TEST INSTRUMENTS.............................................................................................10 4.1.3TEST PROCEDURES ............................................................................................. 11 4.1.4DEVIATION FROM TEST STANDARD ................................................................... 11 4.1.5TEST SETUP...........................................................................................................12 4.1.6EUT OPERATING CONDITIONS ............................................................................12 4.1.7TEST RESULTS ......................................................................................................13 4.2RADIATED EMISSION MEASUREMENT ...............................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................................19 4.2.2TEST INSTRUMENTS.............................................................................................20 4.2.3TEST PROCEDURES .............................................................................................21 4.2.4DEVIATION FROM TEST STANDARD ...................................................................21 4.2.5TEST SETUP...........................................................................................................22 4.2.6EUT OPERATING CONDITIONS ............................................................................22 4.2.7TEST RESULTS ......................................................................................................23 4.2.8TEST RESULTS (A) ................................................................................................25 4.2.9TEST RESULTS (B) ................................................................................................28 4.36dB BANDWIDTH MEASUREMENT.......................................................................31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................31 4.3.2TEST INSTRUMENTS.............................................................................................31 4.3.3TEST PROCEDURE................................................................................................31 4.3.4DEVIATION FROM TEST STANDARD ...................................................................32 4.3.5TEST SETUP...........................................................................................................32 4.3.6EUT OPERATING CONDITIONS ............................................................................32 4.3.7TEST RESULTS (A) ................................................................................................33 FCC ID: K7SF5D7001 Report No.: RF920828R01C3Issued: February 19, 2004 Reference No.: RF920828R01 4.3.8TEST RESULTS (B) ................................................................................................37 4.4MAXIMUM PEAK OUTPUT POWER ......................................................................41 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................41 4.4.2TEST INSTRUMENTS.............................................................................................41 4.4.3TEST PROCEDURES .............................................................................................42 4.4.4DEVIATION FROM TEST STANDARD ...................................................................42 4.4.5TEST SETUP...........................................................................................................42 4.4.6EUT OPERATING CONDITIONS ............................................................................42 4.4.7TEST RESULTS (A) ................................................................................................43 4.4.8TEST RESULTS (B) ................................................................................................44 4.5POWER SPECTRAL DENSITY MEASURE…

Text truncated - open the document above for the full version.

FCC ID: K7SF5D7001 Report No.: RF920828R01C67Issued: February 19, 2004 Reference No.: RF920828R01 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: K7SF5D7001 Report No.: RF920828R01C68Issued: February 19, 2004 Reference No.: RF920828R01 RADIATED EMISSION TEST
