K7SF5D7011Wireless PCMCIA Card

Belkin International, Inc.
Wireless PCMCIA Card - FCC ID K7SF5D7011 - Belkin International, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Mar 10, 2004
Application Purpose
Original Equipment
Date of Application
Mar 10, 2004
Equipment Note
Wireless PCMCIA Card
Frequency Range
2412.00000000 - 2462.00000000
Company
Belkin International, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗
↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Manual F5D7010 Belkin Corporation 501 West Walnut Street Compton • CA • 90220 • USA Tel: 310.898.1100 Fax: 310.898.1111 Belkin Components, Ltd. Express Business Park Shipton Way • Rushden • NN10 6GL United Ki ngdom Tel: +44 (0) 1933 35 2000 Fax: +44 (0) 1933 31 2000 Belkin Components B.V. Starparc Building • Boeing Avenue 333 1119 PH Schiphol-Rijk • The Netherlands Tel: +31 (0) 20 654 7300 Fax: +31 (0) 20 654 7349 Belkin, Ltd. 7 Bowen Crescent • West Gosford NSW 2250 • Australia Tel: +61 (0) 2 4372 8600 Fax: +61 (0) 2 4372 8603 Belkin Tech Support US: 310.898.1100 ext. 2263 800.223.5546 ext. 2263 Europe: 00 800 223 55 460 Australia: 1800 666 040 P74217 © 2003 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. belkin.com 54g Wireless NotebookNetwork Card Share your broadband Internet connection and files TABLE OF CONTENTS 1 INTRODUCTION Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2Applications and Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Knowing your Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5Installing and Setting Up the Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Software and Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6Connecting to your Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . .12Uninstalling the Software and Drivers . . . . . . . . . . . . . . . . . . . . . . . .12 Using the Belkin Wireless LAN Configuration Utility . . . . . . . . . . . . . . . . . .13 The Wireless Networks Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19The Link Status Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20The Site Survey Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Thank you for purchasing the Belkin 54g Wireless Notebook Network Card (theCard). Now you can take advantage of this great new technology and gain thefreedom you need around the home or office without using cables. The WirelessNotebook Network Card works like a conventional network card, but without thewires. The easy installation and setup will have you networking wirelessly inminutes. Please be sure to read through this manual completely to be sure thatyou are getting the most out of your Wireless Notebook Network Card. OVERVIEW Applications and Advantages • Wireless roaming with a laptop around the home or office Offers the freedom of networking without cables. • Connection rates of up to 54Mbps Provides immediate, higher-speed wireless connectivity at home, work, and hotspot locations without compromising the use of existing 802.11b products. • Compatibility with 802.11b products 54g wireless LAN solutions are backward-compatible with existing Wi-Fi (IEEE802.11b) products and with other products that display the 54g mark. • Difficult-to-wire environments Enables networking in buildings with solid or finished walls, or open areaswhere wiring is difficult to install. • Frequently changing environments Adapts easily in offices or environments that frequently rearrange or change locations. • Temporary LANs for special projects or peak time Sets up temporary networks such as at trade shows, exhibitions, andconstructions sites, which need networks on a short-term basis; alsocompanies who need additional workstations for a peak activity period. • SOHO (Small Office/Home Office) networking needs Provides the easy and quick, small network installation SOHO users need. OVERVIEW 2 FeaturesThe Card complies with the IEEE 802.11b standard in order to communicate withother 802.11b-compliant wireless devices at 11Mbps as well as other 54gproducts at 54Mbps that have the 54g™ badge on the package.54g products run at speeds of up to 54Mbps and operate on the same 2.4GHzfrequency band as 802.11b Wi-Fi products.• 2.4GHz ISM (Industrial, Science, and Medical) band operation• Integrated easy-to-use Wireless Configuration Utility• Wireless interface compliance with the IEEE 802.11b standard and 54g products • PCMCIA interface, for operation in virtually any notebook computer• 64 or 128-bit Wireless (WEP) Encryption• Wireless access to networked resources• Support for both Infrastructure and Ad-Hoc (peer-to-peer) networking modes• Data rate of up to 54Mbps o Supports 11, 5.5, 2 or 1Mbps rates (802.11b)o Supports 54, 48, 36, 24, 18, 12, 9, or 6Mbps rates (54g) • Easy installation and use• Internal antenna• LED power and network link indicators 3 KNOWING YOUR CARD (a) Power LED When the Card receives power, this light will be on. (b) Link LED When the Card has a link to a wireless network, the light will be solid.When not linked to a wireless network, the light will slowly flash. (c) Card Connector This is the side of the Card that fits into the PCMCIA slot of your laptop (d) Antenna OVERVIEW Product SpecificationsHost Interface: 32-bit CardBus Power Consumption: Tx/Rx peak 550/350mA @ 3.3VDC (max.) Certification: FCC Class B, CE Mark, C-Tick …

Text truncated - open the document above for the full version.

Cover Letter(s)

Belkin Corporation 501, West Walnut Street, Compton, USA 90220-5221 TEL: 310-604-2478 FAX: 31 0-631-3629 Federal Communications Commission Authorization and Evaluation Division FCC 10: K7SF507011 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, 1"'ri\~1~-<. .\, ~ ~ os -3 -a u, Michael Maher Engineering Services Manager TEL: 310-604-2478 FAX: 310-604-3629 e-mail: [email protected]

Cover Letter(s)

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOllOWING EQUIPMENT: PRODUCT NAME: Wireless PCMCIA Card (Receiver Part) MODEL NO.: F5D7011 I TRADE NAME: BELKIN IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D920828RO2C THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOllOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOllOWING lOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION: BELKIN CORPORATION (COMPANY NAME) 501 West Walnut Street Comoton. CA 90220 (COMPANY ADDRESS) FAX310-631-3629 TEL 310-604-2478 Michael Maher I Enaineerina Services Manaaer :TITLE)(NAME) "ri\,...J.v~ A I'fI\ ~ ~ -~ -() 1..), (SIGNATURE) (DATE)

Cover Letter(s)

belkin.com 501, West Walnut Street, Compton, USA 90220-5221 TEL: 310-604-2448 FAX: 310-631-3629 POWER OF ATTORNEY To whom it may concern: We, the undersigned Belkin Corporation hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don't hesitate to contact us. Thank you! Sincerely yours, ~ L1 ~L ~-~-Cl\ Michael Maher Engineering Services Manager TEL: 310-604-2478 FAX: 31 0-631-3629 e-mail: [email protected]

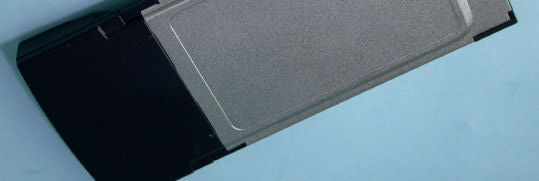

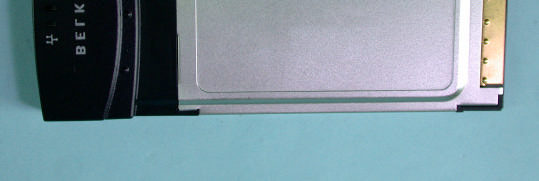

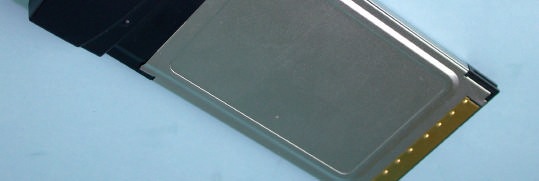

External Photos

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

ID Label/Location Info

Label Location

ID Label/Location Info


Internal Photos

Page 3 Page 4 Page 5 Page 6

Operational Description

FCC ID: K7SF5D7011 Report No. RF920828R02C Operational Description This device is a Wireless PCMCIA Card which operates in 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a PCMCIA interface. The antenna is printed antenna. There is no antenna connector. The other instruction, please have a look at the users manual.

RF Exposure Info

FCC ID: K7SF5D7011 Report No.: SA920828R02C1Issued: February 19, 2004 SAR TEST REPORT REPORT NO.: SA920828R02C MODEL NO.: F5D7011 RECEIVED: NA TESTED: Sept. 19, 2003 APPLICANT: Belkin Corporation ADDRESS: 501 West Walnut Street Compton, CA 90220 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 30 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: K7SF5D7011 Report No.: SA920828R02C2Issued: February 19, 2004 Table of Contents 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION .........................................................................................4 2.1GENERAL DESCRIPTION OF EUT............................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM ...................................................5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION...................9 4.DESCRIPTION OF SUPPORT UNITS......................................................................14 5.TEST RESULTS........................................................................................................15 5.1TEST PROCEDURES ...............................................................................................15 5.2MEASURED SAR RESULT.......................................................................................16 5.3SAR LIMITS ..............................................................................................................18 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................18 5.5TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................20 6.SYSTEM VALIDATION..............................................................................................21 6.1TEST EQUIPMENT...................................................................................................21 6.2TEST PROCEDURE.................................................................................................21 6.3VALIDATION RESULT ..............................................................................................23 6.4SYSTEM VALIDATION UNCERTAINTIES ................................................................24 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................25 7.1PROBE CALIBRATION UNCERTAINTY ..................................................................25 7.2ISOTROPY UNCERTAINTY .....................................................................................25 7.3BOUNDARY EFFECT UNCERTAINTY.....................................................................26 7.4PROBE LINEARITY UNCERTAINTY........................................................................26 7.5READOUT ELECTRONICS UNCERTAINTY ............................................................26 7.6RESPONSE TIME UNCERTAINTY ..........................................................................27 7.7INTEGRATION TIME UNCERTAINTY......................................................................27 7.8PROBE POSITIONER MECHANICAL TOLERANCE...............................................28 7.9PROBE POSITIONING .............................................................................................28 7.10PHANTOM UNCERTAINTY ......................................................................................28 7.11DASY4 UNCERTAINTY BUDGET ............................................................................29 8.INFORMATION ON THE TESTING LABORATORIES ..............................................30 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: K7SF5D7011 Report No.: SA920828R02C3Issued: February 19, 2004 1. CERTIFICATION PRODUCT : Wireless PCMCIA Card MODEL NO. : F5D7011 BRAND NAME : BELKIN APPLICANT : Belkin Corporation TEST ITEM : ENGINEERING SAMPLE STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on Sept. 19, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. PREPARED BY:, DATE: February 19, 2004 APPROVED BY: Stacy Hsueh , DATE:February 19, 2004 Ellis Wu / Manager FCC ID: K7SF5D7011 Report No.: SA920828R02C4Issued: February 19, 2004 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless PCMCIA Card MODEL NO. F5D7011 POWER SUPPLY 3.3Vdc powered by host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE BPSK, QPSK, CCK, 16QAM, 64QAM RADIO TECHNOLOGY DSSS, OFDM TRANSFER RATE 1/2/5.5/6/9/11/12/18/24/36/48/54Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 CONDUCTED OUTPUT POWER 15.02 dBm/CCK 15.14 dBm/OFDM ANTENNA TYPE Internal Antenna AVERAGE SAR(1G) 0.156W/kg DATA CABLE NA I/O PORTS PCMCIA ASSOCIATED DEVICES NA NOTE 1. This is a duplicate report of SA920828R02 and the difference is changing model name. 2. The normal operating condition is taken while this EUT has …

Text truncated - open the document above for the full version.

RF Exposure Info

D2: 2450MHZ SYSTEM VALIDATION DIPOLE D3: DOSIMETRIC E-FIELD PROBE

Test Report

FCC ID: K7SF5D7011 Report No.: RF920828R02C1Issued: February 19, 2004 Reference No.: RF920828R02 FCC TEST REPORT REPORT NO.: RF920828R02C MODEL NO.: F5D7011 RECEIVED: NA TESTED: Sep. 4~ Sep. 16, 2003 APPLICANT: Belkin Corporation ADDRESS: 501 West Walnut Street Compton, CA 90220 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 68 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: K7SF5D7011 Report No.: RF920828R02C2Issued: February 19, 2004 Reference No.: RF920828R02 Table of Contents 1CERTIFICATION ...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 3GENERAL INFORMATION ...........................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...............................7 3.4DESCRIPTION OF SUPPORT UNITS ..........................................................8 3.5CONFIGURATION OF SYSTEM UNDER TEST...........................................8 4TEST TYPES AND RESULTS.......................................................................9 4.1CONDUCTED EMISSION MEASUREMENT ................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..............................9 4.1.2TEST INSTRUMENTS ..................................................................................9 4.1.3TEST PROCEDURES.................................................................................10 4.1.4DEVIATION FROM TEST STANDARD .......................................................10 4.1.5TEST SETUP .............................................................................................. 11 4.1.6EUT OPERATING CONDITIONS................................................................ 11 4.1.7TEST RESULTS..........................................................................................12 4.2RADIATED EMISSION MEASUREMENT ...................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................18 4.2.2TEST INSTRUMENTS ................................................................................19 4.2.3TEST PROCEDURES.................................................................................20 4.2.4DEVIATION FROM TEST STANDARD .......................................................20 4.2.5TEST SETUP ..............................................................................................21 4.2.6EUT OPERATING CONDITIONS................................................................21 4.2.7TEST RESULTS..........................................................................................22 4.36dB BANDWIDTH MEASUREMENT ..........................................................30 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................30 4.3.2TEST INSTRUMENTS ................................................................................30 4.3.3TEST PROCEDURE ...................................................................................30 4.3.4DEVIATION FROM TEST STANDARD .......................................................31 4.3.5TEST SETUP ..............................................................................................31 4.3.6EUT OPERATING CONDITIONS................................................................31 4.3.7TEST RESULTS (A) ....................................................................................32 4.3.8TEST RESULTS (B) ....................................................................................36 FCC ID: K7SF5D7011 Report No.: RF920828R02C3Issued: February 19, 2004 Reference No.: RF920828R02 4.4MAXIMUM PEAK OUTPUT POWER ..........................................................40 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ...........40 4.4.2TEST INSTRUMENTS ................................................................................40 4.4.3TEST PROCEDURES.................................................................................41 4.4.4DEVIATION FROM TEST STANDARD .......................................................41 4.4.5TEST SETUP ..............................................................................................41 4.4.6EUT OPERATING CONDITIONS................................................................41 4.4.7TEST RESULTS (A) ....................................................................................42 4.4.8TEST RESULTS (B) ....................................................................................43 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................44 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ...................44 4.5.2TEST INSTRUMENTS ................................................................................44 4.5.3TEST PROCEDURE ...................................................................................44 4.5.4DEVIATION FROM TEST STANDARD .......................................................45 4.5.5TEST SETUP ..............................................................................................45 4.5.6EUT OPERATING CONDITIONS................................................................45 4.5.7TEST RESULTS (A) ....................................................................................46 4.5.8TEST RESULTS (B) ..........…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: K7SF5D7011 Report No.: RF920828R02C66Issued: February 19, 2004 Reference No.: RF920828R02 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: K7SF5D7011 Report No.: RF920828R02C67Issued: February 19, 2004 Reference No.: RF920828R02 RADIATED EMISSION TEST

Contact Information

Applicant

Jay TU(Manager, Regulatory Compliance)
[email protected]310-633-9309Fax: none

Technical Contact

Advance Data Technology CorporationEllis Wu
[email protected]+886 3 318 3232

No. 19 Hwa Ya 2nd rd. Kueishan · Taoyuan · Taiwan

Test Firm

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchRichard Chen
[email protected]886-3-3183232Fax: 886-3-2115834

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz33.00 mW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted. SAR compliance has been established in a laptop computer configuration with side PCMCIA slot configuration as tested in this filing, and can be used in laptop computers with substantially similar physical dimensions, construction, and electrical and RF characteristics. Compliance of this device in all final host configurations is the responsibility of the Grantee. End-users must be provided with specific information required to satisfy RF exposure compliance for all final host devices. The antenna(s) of the device must not be co-located or operating in conjunction with any other antenna or transmitter within a host device. Maximum measured SAR value: 0.156 W/kg (Body)
