F5D7011 High-Speed Mode Wireless G Notebook Network Card Connect your laptop computer to a FASTER wireless network User Manual 1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Advantages of a Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . 1 Placement of your Wireless Networking Hardware for Optimal Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 2 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Product Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Applications and Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Product Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 3 Installing and Setting Up the Card . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Step 1: Install the Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Step 2: Plug the Card in an Available CardBus Slot o f your Laptop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Step 3: Let Windows Finish the Installation . . . . . . . . . . . . . . . . . 10 4 Using the Belkin Wireless LAN Utility . . . . . . . . . . . . . . . . . . . . . . . 12 Setting Wireless Network Preferences . . . . . . . . . . . . . . . . . . . . . 13 Securing your Wi-Fi Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Monitoring the Status of your Network Connection. . . . . . . . . . . 28 Monitoring Data Transfer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Finding Available Networks in your Area . . . . . . . . . . . . . . . . . . . 31 Performing Diagnostic Tests on your Connection . . . . . . . . . . . . 32 5 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 6 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Table of Contents Introduction section 1 2 3 4 5 6 7 8 9 10 Thank you for purchasing the Belkin High-Speed Mode Wireless G Notebook Network Card (the Card). Now you can take advantage of this great new technology without using cables. The High-Speed Mode Wireless G Notebook Network Card works like a conventional network card, but without the wires. The easy installation and setup will have you networking wirelessly in minutes. Please be sure to read through this User Manual completely, and pay special attention to the section entitled “Placement of your Wireless Networking Hardware for Optimal Performance”. Advantages of a wireless network • Mobility – you no longer need a dedicated “computer room”— you can work on a networked laptop or desktop computer anywhere within your wireless range • Easy installation – Belkin Easy Installation Wizards make setup simple • Flexibility – set up and access printers, computers, and other networking devices from anywhere in your home • Easy Expansion – the wide range of Belkin networking products let you expand your network to include devices such as printers and gaming consoles • No cabling required – you can spare the expense and hassle of retrofitting Ethernet cabling throughout the home or office • Widespread industry acceptance – choose from a wide range of interoperable networking products 1 32 Introduction 32 Introduction Placement of your Wireless Networking Hardware for Optimal Performance Your wireless connection will be stronger the closer your computer is to your Wireless Router (or Access Point). Typical indoor operating range for your wireless devices is between 100 and 200 feet. In the same way, your wireless connection and performance will degrade somewhat as the distance between your Wireless Router (or Access Point) connected devices increases. This may or may not be noticeable to you. As you move further from your Wireless Router (or Access Point), connection speed may decrease. Factors that can weaken signals simply by getting in the way of your network’s radio waves are metal appliances or obstructions, and walls. If you have concerns about your network’s performance that might be related to range or obstruction factors, try moving the computer to a position between five and ten feet from the Wireless Router (or Access Point), in order to see if distance is the problem. If difficulties persist even at close range, please contact Belkin Technical Support. Note: While some of the items listed below can affect network performance, they will not prohibit your wireless network from functioning; if you are concerned that your network is not operating at its maximum effectiveness, this checklist may help. 1. Placement of your Wireless Router or Access Point Place your Wireless Router (or Access Point), the central connection point of your network, as close as possible to the center of your wireless network devices. To achieve the best wireless network coverage for your “wireless clients,” (i.e. computers enabled by Belkin Wireless Notebook Network Cards, Wireless Desktop Network Cards, and Wireless USB Adapters): • Ensure that your Wireless Router (or Access Point) antennas are parallel to each other, and are positioned vertically (toward the ceiling). If your Wireless Router (or Access Point) itself is positioned vertically, point the antennas as much as possible in an upward direction. • In multistory homes, place the Wireless Router (or Access Point) on a floor that is as close to the center of the home as possible. This may mean placing the Wireless Router (or Access Point) on an upper floor. • Try not to place the Wireless Router (or Access Point) near a cordless 2.4GHz phone. 3 IntroductionIntroduction 3 Introduction section 1 2 3 4 5 6 7 8 9 10 2. Avoid Obst…

Text truncated - open the document above for the full version.

3131 1 2 3 4 5 6 7 8 9 10 section Using the Belkin Wireless LAN Utility Finding Available Networks in your Area Click on the “Site Monitor” tab. Clicking on the “Site Monitor” tab will display a list of all available wireless routers or access points in your area. (a) Network Name (SSID) The network name of the wireless router or access point. (b) Channel The current operating channel of the wireless router or access point. (c) Signal Strength The signal strength of the related wireless router or access point. (d) WEP (Encryption) Will display “Off” when encryption is disabled, “64-bit” when 64-bit encryption is enabled, and “128-bit” when 128-bit encryption is enabled. (e) Ad-Hoc Networks Only Check this box to display available Ad-Hoc networks only. An Ad-Hoc network is a computer-to-computer network. (f) Advanced Displays additional information about the selected network. (g) Freeze Takes a “snapshot” of the signal strength at the time of the site survey. Click again to unfreeze. (a) (b) (c) (d) (e) (f) (g) 33323332 Using the Belkin Wireless LAN Utility Performing Diagnostic Tests on your Connection Click on the “Diagnostics” tab. This page allows you to perform several diagnostic tests that are available for your Belkin High-Speed Mode Wireless G Notebook Network Card. Control Registers This test verifies the read and write capabilities of the network controller registers by writing various values to the registers and verifying the result. The device driver uses these registers to perform network functions such as sending and receive information. If the test fails, the network adapter may not work properly. SPROM Format Version This test verifies the content of the SPROM by reading a portion of the SPROM and computing the checksum. The test fails if the computed checksum is different than the checksum stored in the SPROM. Memory Tests This tests verifies that the network controller internal memory is functioning properly. The test writes patterned values to the memory and reading back the results. The test fails if an erroneous value is read back. The network controller will not function without its internal memory. 3333 1 2 3 4 5 6 7 8 9 10 section Using the Belkin Wireless LAN Utility Interrupt Test This test verifies that the NDIS driver is able to receive interrupts from the network controller. Loopback Test This test verifies that the NDIS driver is able to send packets and receive packets from the network controller. LED Test This test verifies that your 802.11 wireless networking hardware is functioning correctly. 35343534 I can’t connect to the Internet wirelessly If yo u are unable to connect to the Internet from a wireless computer, please check the following items: 1. Look at the lights on your Wireless Router. If you’re using a Belkin Wireless Router, the lights should be as follows: • The “Power” light should be on. • The “Connected” light should be on, and not blinking. • The “WAN” light should be either on or blinking. If your Belkin Wireless Router’s lights have the above characteristics, go to number 2. below. If this is NOT the case, make sure: • The Router power cord is plugged in • All cables are connected between the router and the modem • All the modem’s LEDs are functioning correctly. If not, see your modem’s user manual. • Reboot the Router • Reboot the Modem If you continue to have issues, please contact Belkin Technical Support. If you are not using a Belkin Wireless Router, consult that router manufacturer’s user guide. 2. Open your wireless utility software by clicking on the icon in the system tray at the bottom right-hand corner of the screen. If you’re using a Belkin wireless card, the tray icon should look like this (the icon may be red or green): Troubleshooting 3535 section 1 2 3 4 5 6 7 8 9 10 3. The exact window that opens will vary depending on the model of wireless card you have; however, any of the utilities should have a list of “Available Networks”. Available networks are wireless networks you can connect to. If you are using a Belkin 802.11g (125HSM) router, or Belkin 802.11g (54g) router, “Belkin54g” is the default name. If you are using a Belkin 802.11b router, the default name should be “WLAN”. If using a non-Belkin router, please consult your router manufacturers user manual for the default name. The name of your wireless network appears in “Available Networks” If the correct network name is listed in the “Available Networks” list, please follow the steps below to connect wirelessly: 1. Click on the correct network name in the “Available Networks” list. 2. If the network has security (encryption) enabled, you will need to enter the network key. Click “Connect”. For more information regarding security, see the page entitled: “Securing your Wi-Fi Network” on pg. 16 of the user manual. 3. Within a few seconds, the tray icon in the lower right-hand corner of your screen should turn green, indicating a successful connection to the network. If you are still unable to access the Internet after connecting to the wireless network, please contact Belkin Technical Support. Troubleshooting 37363736 Troubleshooting The name of your wireless network DOES NOT appear in the list of “Available Networks” If the correct network name is not listed, c heck the SSID settings to see if they match. The SSID is case-sensitive and the spelling on each computer must be exactly the same in order for the Card to connect to the Wireless Router or Access Point. Note: To check the SSID settings or look for an available network, double-click the Signal Indicator icon to bring up the “Wireless Networks” screen. Click “Add” if you do not see the network you are trying to connect to and type in the SSID. For more information about setting up a SSID please reference your router manufacture’s user manual. If issues persist even at close range, please contact Belkin Technical Support. Installation CD-ROM does not start Setup Utility If the CD-ROM does not start the Setup Utili…

Text truncated - open the document above for the full version.

belkin.com 501, WestWalnut Street, Compton, USA 90220-5221 TEL: 310-604-2448 FAX: 310-631.3629 Federal Communications Commission Authorization and Evaluation Division FCC 10: K7SF507011A Confidentiality Reauest Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, rvn~~ 1"\r'(\...L- 't -~3. ~t)~1..j Michael Maher Engineering Services Manager TEL: 310-604-2478 FAX: 310-631-3629 e-mail: [email protected]

belkin.com 501, West Walnut Street, Compton, USA 90220-5221 TEL; 310-604-2448 FAX: 310-631-3629 POWER OF ATTORNEY To whom it may concern We, the undersigned Belkin Cornorafion hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don't hesitate to contact us. Thank you! Sincerely yours, Y'YY\ ~-..G.-t ~ 1"('(\ L- q -~ '1 ~ () y Michael Maher Engineering Services Manager TEL: 310-604-2478 FAX: 310-631-3629 e-mail: [email protected]

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 10, 2004 RE: Belkin Corporation FCC ID: K7SF5D7011A After a review of the submitted information, I have a few comments on the above referenced Application. 1) The FRN Number did not appear to match any manufacturer. Please verify/check this number. Note that a grant can not be issued without a valid FRN number. 2) Page 43 of the users manual mentions attaching the device to an external antenna and contains RF exposure information that does not seem applicable (see below). Please review and explain or correct as necessary. 3) The users manual mentions modes greater than 54 Mbps on pages (5, 6, 35, and 47), however the test report does not show this. If this device does contain a higher speed mode, these typically have a different waveform and require additional testing. Please correct as necessary. 4) Data on page 38 and 39 is identical. Please review. 5) Have power measurements & Bandedge conducted measurements with the 2 different pre- amplifiers been performed. The test report only shows one appears to have been investigated. 6) It appears that the Turbo mode carrier power listed on page 74 should be 97.62. Please review/correct. 7) Please provide schematics for both versions of the device (with each pre-amplifier). 8) There are a few inconsistencies with Mode 3. The Plots suggest the device was Parallel to the phantom. The photographs is labeled as parallel, but show perpendicular. The description on page 13 suggests Perpendicular. Please explain and correct as necessary. 9) Please explain the difference between Mode 2, 3, and 4 SAR configurations. Essentially how does modes 3 & 4 differ from 1 & 2. 10) Due to the difference in antenna factors, were the 2 different antennas investigated for SAR? 11) Were the 2 different pre-amplifiers investigated for SAR? Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. z Page 2 November 3, 2004 Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Dear Tim: About comment 8 & 9: The testing photo of mode 3 in appendix A was wrong. And the description for each mode on page 13 was wrong, and we revised the report. The mode 1 and 2 are testing for the SAR value at 802.11b with right antenna. The mode 3 and 4 are testing for the SAR value at 802.11b with left antenna. (These modes only tested for the SAR of the EUT at bottom and tip position) The mode 5 is testing for the SAR value at 802.11g with right antenna. The mode 6 is testing for the SAR value at 802.11g with left antenna. (These modes only tested for the SAR of the EUT at tip position, and the channel with maximu SAR value. From mode 1 ~ 4, we found that the SAR value will be the maximum when the EUT is at tip position and transfer at 2462MHz. And the output power of 802.11g is bigger than 802.11b.) And comment 10: As this product have the function of diversity, and pass through a signal switch, so we tested the two antenna in this situation. Comment11: As the two power amplify, we only tested one of the PA which have larger power when testing SAR value used the method of conducted power. (The output power of the two PA only have a little difference.) Thank you for your kind assistance. Best Regards, Stephanie Hung (¬xºkÁ ̈) Page 1 of 1Belkin K7SF5D7011A 11/24/2004Printed for "Timothy R. Johnson" <[email protected]>

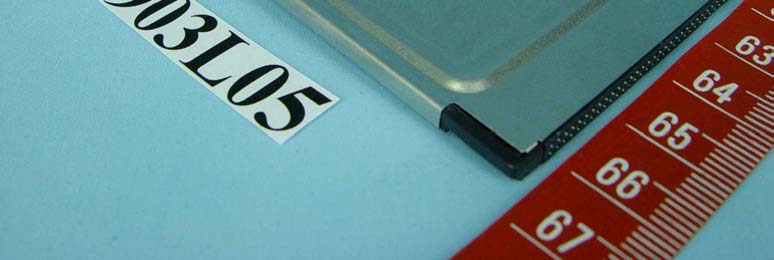

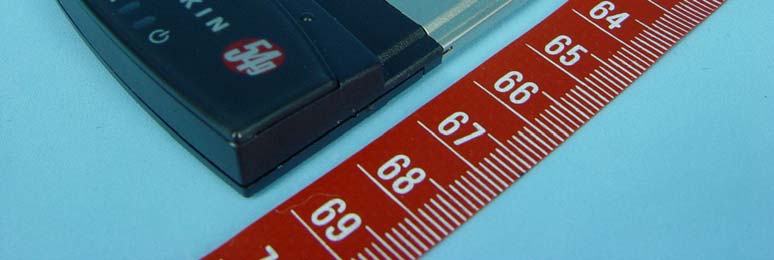

Page 1 CONSTRUCTION PHOTOS OF EUT PA (Model: SE2521A ; Brand: Sige) Page 2 Page 3 PA (Model: SKY65206 ; Brand: Skywork) Page 4

FCC ID Label Location

Page 5 PA (Model: SE2521A ; Brand: Sige) Page 6 Page 7 Page 8 PA (Model: SKY65206 ; Brand: Skywork) Page 9 Page 10

FCC ID: K7SF5D7011A Report No.: RF930903L05 Operational Description This device is a Wireless PCMCIA Card which operates in 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a PCMCIA interface. The antenna is printed antenna. There is no antenna connector. The other instruction, please have a look at the users manual.

FCC ID: K7SF5D7011A Report No.: SA930903L051Issued: Sep. 17, 2004 SAR TEST REPORT REPORT NO.: SA930903L05 MODEL NO.: F5D7011 RECEIVED: Aug. 08, 2004 TESTED: Aug. 08, 2004 APPLICANT: Belkin Corporation ADDRESS: 501 West Walnut Street, Compton, CA 90220, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 33 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: K7SF5D7011A Report No.: SA930903L052Issued: Sep. 17, 2004 Table of Contents 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM .............................................. ....5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ..................9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................13 4.DESCRIPTION OF SUPPORT UNITS ......................................................................15 5.TEST RESULTS ........................................................................................................16 5.1 TEST PROCEDURES ...............................................................................................16 5.2 MEASURED SAR RESULT .......................................................................................17 5.3 SAR LIMITS...............................................................................................................20 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................20 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................22 6.SYSTEM VALIDATION ..............................................................................................23 6.1 TEST EQUIPMENT ...................................................................................................23 6.2 TEST PROCEDURE .................................................................................................23 6.3 VALIDATION RESULT...............................................................................................25 6.4 SYSTEM VALIDATION UNCERTAINTIES ................................................................26 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................27 7.1 PROBE CALIBRATION UNCERTAINTY ...................................................................27 7.2 ISOTROPY UNCERTAINTY......................................................................................27 7.3 BOUNDARY EFFECT UNCERTAINTY .....................................................................28 7.4 PROBE LINEARITY UNCERTAINTY ........................................................................28 7.5 READOUT ELECTRONICS UNCERTAINTY ............................................................28 7.6 RESPONSE TIME UNCERTAINTY...........................................................................29 7.7 INTEGRATION TIME UNCERTAINTY ......................................................................30 7.8 PROBE POSITIONER MECHANICAL TOLERANCE................................................30 7.9 PROBE POSITIONING .............................................................................................31 7.10 PHANTOM UNCERTAINTY ......................................................................................31 7.11 DASY4 UNCERTAINTY BUDGET.............................................................................32 8.INFORMATION ON THE TESTING LABORATORIES ..............................................33 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: K7SF5D7011A Report No.: SA930903L053Issued: Sep. 17, 2004 1. CERTIFICATION PRODUCT : Wireless PCMCIA Card MODEL NO. : F5D7011 BRAND NAME : BELKIN APPLICANT : Belkin Corporation TESTED : Aug. 08, 2004 TEST SAMPLE : ENGINEERING SAMPLE STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Sep. 17, 2004 ( Windy Chou ) TECHNICAL ACCEPTANCE :, DATE:Sep. 17, 2004 Responsible for RF ( Ansen Lei ) APPROVED BY:, DATE:Sep. 17, 2004 ( Cody Chang, Deputy Manager ) FCC ID: K7SF5D7011A Report No.: SA930903L054Issued: Sep. 17, 2004 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless PCMCIA Card MODEL NO. F5D7011 POWER SUPPLY 3.3Vdc from host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE BPSK, QPSK, CCK, 16QAM, 64QAM RADIO TECHNOLOGY DSSS, OFDM TRANSFER RATE 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 MAXIMUN CONDUCTED OUTPUT POWER (FOR CCK) 51.29mW MAXIMUN CONDUCTED OU…
