K7SF5D7011BWireless G Plus Notebook Card

Belkin International, Inc.
Wireless G Plus Notebook Card - FCC ID K7SF5D7011B - Belkin International, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 06, 2006
Application Purpose
Original Equipment
Date of Application
Jun 06, 2006
Equipment Note
Wireless G Plus Notebook Card
Frequency Range
2412.00000000 - 2462.00000000
Company
Belkin International, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗
↗

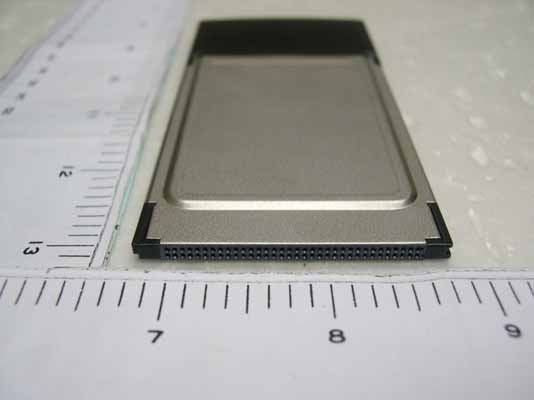

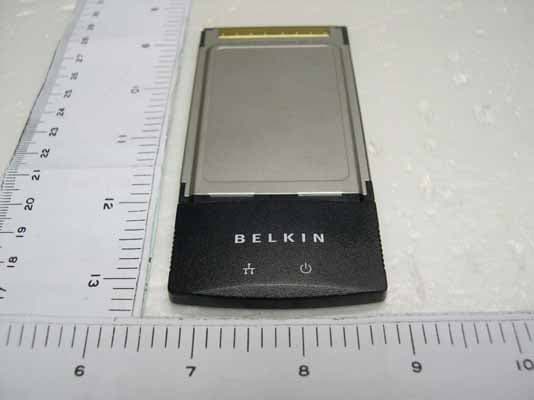

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Belkin Ltd. 7 Bowen Crescent, West Gosford NSW 2250, Australia +61 (0) 2 4372 8600 +61 (0) 2 4372 8603 fax Belkin B.V. Boeing Avenue 333 1119 PH Schiphol-Rijk, The Netherlands +31 (0) 20 654 7300 +31 (0) 20 654 7349 fax Belkin Tech Support US: 877-736-5771 310-898-1100 ext. 2263 Europe: 00 800 223 55 460 Australia: 1800 235 546 New Zealand: 0800 235 546 Singapore: 800 616 1790 Belkin Corporation 501 West Walnut Street Los Angeles, CA 90220-5221, USA 310-898-1100 310-898-1111 fax Belkin Ltd. Express Business Park, Shipton Way Rushden, NN10 6GL, United Kingdom +44 (0) 1933 35 2000 +44 (0) 1933 31 2000 fax © 2006 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. 54g is a trademark of Broadcom Corporation in the United States and/or other countries. The mark Wi-Fi is a registered mark of the Wi-Fi Alliance. The “Wi-Fi CERTIFIED” logo is a certification mark of the Wi-Fi Alliance. P74488-C Wireless G Plus Notebook Card User Manual F5D7011 Connect your notebook computer to a wireless network Wireless G Plus Notebook Card Share 802.11g Share 802.11g 10M � � ������ ������ ����� ������� ������� ������� ������� ��� � � ������ ������ ����� � � 1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Benefits of a Home Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Advantages of a Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . 1 Placement of your Wireless Networking Hardware for Optimal Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 2 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Product Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Applications and Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Product Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 3 Installing and Setting up the Card . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Step 1: Install the Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Step 2: Plug the Card into an Available CardBus Slot on your Notebook Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Step 3: Use the Belkin Wireless Networking Utility . . . . . . . . . . . 10 4 Using the Belkin Wireless Networking Utility . . . . . . . . . . . . . . . . 11 Accessing the WNU from the Windows System Tray . . . . . . . . . 11 Network Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Available Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Network Status and Solution Tips . . . . . . . . . . . . . . . . . . . . . . . . 13 Setting Wireless Network Profiles. . . . . . . . . . . . . . . . . . . . . . . . . 14 Securing your Wi-Fi Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Configuring your Wireless G Plus Notebook Card to use Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 5 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 6 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Table of Contents Introduction section 1 2 3 4 5 6 Thank you for purchasing the Belkin Wireless G Plus Notebook Card (the Card). Now you can take advantage of this great new technology and gain the freedom to network your home and office computers wirelessly. This Card allows you to connect a notebook computer to your network. Please be sure to read through this User Manual completely, and pay special attention to the section entitled “Placement of your Wireless Networking Hardware for Optimal Performance”. Benefits of a Home Network Your Belkin Home Network will allow you to: • Share one high-speed Internet connection with all the computers in your home • Share resources, such as files, and hard drives among all the connected computers in your home • Share a single printer with the entire family • Share documents, music, video, and digital pictures • Store, retrieve, and copy files from one computer to another • Simultaneously play games online, check Internet email, and chat Advantages of a Wireless Network Here are some of the advantages of setting up a Belkin wireless network: • Mobility – you’ll no longer need a dedicated “computer room”—now you can work on a networked laptop or desktop computer anywhere within your wireless range • Easy installation – Belkin Easy Installation Wizard makes setup simple • Flexibility – set up and access printers, computers, and other networking devices from anywhere in your home • Easy expansion – the wide range of Belkin networking products lets you expand your network to include devices such as printers and gaming consoles • No cabling required – you can spare the expense and hassle of retrofitting Ethernet cabling throughout the home or office • Widespread industry acceptance – choose from a wide range of interoperable networking products 1 32 Introduction 32 Introduction Placement of your Wireless Networking Hardware for Optimal Performance Your wireless connection will be stronger the closer your computer is to your wireless router. Typical indoor operating range for your wireless devices is between 100 and 200 feet. In the same way, your wireless connection and performance will degrade somewhat as the distance between your wireless router and connected devices increases. This may or may not be noticeable to you. As you move farther from your wireless router, connection speed may decrease. Factors that can weaken signals simply b…

Text truncated - open the document above for the full version.

Block Diagram

5 5 4 4 3 3 2 2 1 1 D D C C B B A A e l t i T v e R r e b m u N t n e m u c o D e z i S t e e h S : e t a D f o ) 0 N F 0 C A Y 0 7 9 ( 1 1 0 7 D 5 F 0 . 1 m a r g a i D _ k c o l B C 5 2 6 0 0 2 , 1 1 y r a u n a J , y a d s e n d e W e l t i T v e R r e b m u N t n e m u c o D e z i S t e e h S : e t a D f o ) 0 N F 0 C A Y 0 7 9 ( 1 1 0 7 D 5 F 0 . 1 m a r g a i D _ k c o l B C 5 2 6 0 0 2 , 1 1 y r a u n a J , y a d s e n d e W e l t i T v e R r e b m u N t n e m u c o D e z i S t e e h S : e t a D f o ) 0 N F 0 C A Y 0 7 9 ( 1 1 0 7 D 5 F 0 . 1 m a r g a i D _ k c o l B C 5 2 6 0 0 2 , 1 1 y r a u n a J , y a d s e n d e W r e i f i l p m A r e w o P : A P N O I T A M R O F N I Y R A T E I R P O R P m a r g a i D k c o l B 1 1 0 7 D 5 F . p r o C m m o c r e S R E I F I L P M A E S I O N W O L L A N R E T X E : A N L X R E M R O F S N A R T N U L A B : T B A A N N E T N A : A T N A B A N N E T N A : B T N A A P X R / X T H C T I W S A N N E T N A H C T I W S Z H M 0 2 L A T X 8 1 3 4 M C B S D E L CARDBUS CONNECTOR A N L X M O R P E E B T N A A T N A T B M M O C R E S Operating Frequency in USA: 2412-2462 MHz, Operating Frequency in Europe: 2412-2472 MHz

Cover Letter(s)

BELKI N~ 501W.WalnutStreet- Compton- California90220USA BelkinCorporation, 501WestWalnutStreet,Compton CA90220-5221,USA To:TeleficationB.V. Attn:Dept.FCCTCB Edisonstraat12A 6902PKZEVENAAR TheNetherlands Subject:Requestfornon-disclosure(FCCID:K7SF5D701IB) Referencenumber:K7SF5D7011B Date:2006-03-30 DearFCCTCB, Persuantto47CFRSection0.459(a)&(b),<BelkinCorporation>herebyrequestsnon-disclosureand confidentialtreatmentofthefollowingmaterialssubmittedinsupportofFCCcertificationapplicationfor FCCID:K7SF5D7011B a.Schematicdiagrams b.Operationaldescription Abovematerialscontainsecrets,proprietaryandtechnicalinformation,whichwouldcustomarilybequarded fromcompetitorsunder47CFR,section0.457(d)(2).Disclosureorpublicationoranyportionofthiscompany confidentialmaterialtootherpartiescouldcausesubstantialcompetitiveharmandprovideunjustifiedbenefits forcompetitors. BelkinCorporationunderstandsthatpursuantto47CFRsection0.457(d)(l)(ii)disclosureoftheapplicantand allaccompanyingdocumentationwillnotbemadebeforethedateofthegrant. Name:TacPham Signature:-r~P~ --

Cover Letter(s)

501W.WalnutStreet- Compton- California90220USA Declarationof Authorization We, Name:BelkinCorporation Address:501WestWalnutStreet City:ComptonCA90220-5221 Country:USA Declarethat: Name:ExclusiveCertificateCorporation. Address:4F-2,No.28,Lane78,Xing-AiRd.,Nei-hu City:TaipeiCity114 Country:Taiwan,R.O.C. is authorizedtoapplyforCertificationofthefollowingproduct(s): Productdescription:125gW/LCardBusNetworkCard Typedesignation:F5D7011 Trademark:Belkin onourbehalf. Date:2006/3/10 City:USA Name:TacPham Signature:y~p~

External Photos

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 29, 2006 1 of 4 FCC Test Report: FI06030901-A Appendix A. Photographs of EUT 06030901-A 06030901-A

ID Label/Location Info

Location:

Internal Photos

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 29, 2006 2 of 4 FCC Test Report: FI06030901-A 06030901-A 06030901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 29, 2006 3 of 4 FCC Test Report: FI06030901-A 06030901-A 06030901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 29, 2006 4 of 4 FCC Test Report: FI06030901-A 06030901-A

Test Report

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 29, 2006 1 of 54 FCC Test Report: FI06030901-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Laboratory Accreditation 1332 ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Applicant Belkin Corporation Address 501 West Walnut Street, Compton CA 90220-5221, USA Equipment Wireless G Plus Notebook Card Model No. F5D7011 FCC ID K7SF5D7011B Trade Name Belkin Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 29, 2006 2 of 54 FCC Test Report: FI06030901-A Contents CERTIFICATE OF COMPLIANCE ................................................................................................................ 4 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test............................................................................................... 6 2.2 RF Specifications ....................................................................................................................... 6 2.3 Test Mode and Test Software..................................................................................................... 7 2.4 Description of Test System......................................................................................................... 7 2.5 Connection Diagram of Test System..........................................................................................8 2.6 General Information of Test........................................................................................................ 9 2.7 History of this test report ............................................................................................................ 9 3. Antenna Requirements.....................................................................................................................10 3.1 Standard Applicable .................................................................................................................10 3.2 Antenna Construction and Directional Gain............................................................................. 10 4. Test of Conducted Emission............................................................................................................ 11 4.1 Test Limit.................................................................................................................................. 11 4.2 Test Procedures....................................................................................................................... 11 4.3 Typical Test Setup ...................................................................................................................12 4.4 Measurement equipment .........................................................................................................12 4.5 Test Result and Data................................................................................................................13 4.6 Test Photographs .....................................................................................................................15 5. Test of Radiated Emission ...............................................................................................................16 5.1 Test Limit..................................................................................................................................16 5.2 Test Procedures.......................................................................................................................17 5.3 Typical Test Setup ....................................................................................................................18 5.4 Measurement equipment .........................................................................................................18 5.5 Test Result and Data................................................................................................................19 5.6 Test Photographs .....................................................................................................................35 6. 6dB Bandwidth Measurement Data .................................................................................................36 6.1 Test Limit ..................................................................................................................................36 6.2 Test Procedures .......................................................................................................................36 6.3 Test Setup Layout ....................................................................................................................36 6.4 Measurement equipment .........................................................................................................36 6.5 Test Result and Data................................................................................................................36 7. Maximum Peak Output Power .........................................................................................................40 7.1 Test Limit ............................................................................................................…

Text truncated - open the document above for the full version.

Test Report

Report No: 065L118-HP-US-P09V01 Page: 1 of 22 Version:1.0 SAR Test Report Product Name : 125g W/L CardBus Network Card Model No. : F5D7011 Applicant :Belkin Corporation Address :501 West Walnut Street, Compton CA 90200-5221, USA Date of Receipt:2006/05/19 Issued Date :2006/05/29 Report No. :065L118-HP-US-P09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 065L118-HP-US-P09V01 Page: 2 of 22 Version:1.0 Test Report Certification Issued Date: 2006/05/29 Report No.:065L118-HP-US-P09V01 Product Name : 125g W/L CardBus Network Card Applicant : Belkin Corporation Address : 501 West Walnut Street, Compton CA 90200-5221, USA Manufacturer : Exclusive Corporation Corp. Model No. : F5D7011 Trade Name : Belkin Applicable Standard : FCC Oet65 Supplement C June 2001 Test Result : Max. SAR Measurement (1g) 802.11b: 0.763 W/kg 802.11g: 0.481 W/kg Application Type Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : (Genie Chang) Tested By : (Shine Hsu) Approved By : (Gene Chang) Report No: 065L118-HP-US-P09V01 Page: 3 of 22 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................5 2. SAR Measurement System .................................................................. 6 2.1 ALSAS-10U System Description .................................................................................. 6 2.1.1 Applications ................................................................................................................ 6 2.1.2 Area Scans................................................................................................................... 6 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 7 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 7 2.2 Isotropic E-Field Probe .................................................................................................. 7 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ................................................. 9 2.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 10 2.5 Axis Articulated Robot ................................................................................................ 10 2.6 ALSAS Universal Workstation.................................................................................... 11 2.7 Universal Device Positioner......................................................................................... 11 2.8 Phantom Types............................................................................................................. 11 2.8.1 APREL SAM Phantoms ........................................................................................... 12 2.8.2 APREL Laboratories Universal Phantom ................................................................. 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure ........................................................... 15 4.1 SAR System Validation................................................................................................ 15 4.1.1 Validation Dipoles..................................................................................................... 15 4.1.2 Validation Result ....................................................................................................... 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits ......................................................................... 17 6. Test Equipment List............................................................................ 18 7. Measurement Uncertainty .................................................................. 19 8. Test Results ......................................................................................... 20 8.1 SAR Test Results Summary ......................................................................................... 20 Appendix A. SAR System Validation Data........................................................................ 22 Appendix B. SAR measurement Data................................................................................ 22 Report No: 065L118-HP-US-P09V01 Page: 4 of 22 Version:1.0 Appendix C. Test Setup Photographs & EUT Photographs............................................... 22 Appendix D. Probe Calibration Data ................................................................................. 22 Appendix E. Dipole Calibration Data ................................................................................ 22 Report No: 065L118-HP-US-P09V01 Page: 5 of 22 Version:1.0 1. General Information 1.1 EUT Description Product Name 125g W/L CardBus Network Card Trade Name Belkin Model No. F5D7011 TX Frequency 2412MH…

Text truncated - open the document above for the full version.

Test Setup Photos

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 29, 2006 15 of 54 FCC Test Report: FI06030901-A 4.6 Test Photographs Front View Rear View Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 29, 2006 35 of 54 FCC Test Report: FI06030901-A 5.6 Test Photographs Front View Rear View

Contact Information

Applicant

Jay TU(Manager, Regulatory Compliance)
[email protected]310-633-9309Fax: none

Technical Contact

Exclusive Certification CorporationIvy Chen
[email protected]+886 2 2792 3366

4F-2, No. 28, Lane 78, Xing-Ai Road · Taipei · Taiwan

Test Firm

Cerpass Technology CorporationAnson Chou
[email protected]886-2-27923366Fax: 886-2-27921100

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz63.00 mW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted. SAR compliance has been established in a laptop computer configuration with side PCMCIA slot configuration as tested in this filing, and can be used in laptop computers with substantially similar physical dimensions, construction, and electrical and RF characteristics. Compliance of this device in all final host configurations is the responsibility of the Grantee. End-users must be provided with specific information required to satisfy RF exposure compliance for all final host devices. The antenna(s) of the device must not be co-located or operating in conjunction with any other antenna or transmitter within a host device.Maximum measured SAR (1g) value: 0.763 W/kg (Body).
