K7SF5D705054Mbps Wireless USB Network Adapter

Belkin, Ltd. 7 Bowen Crescent • West Gosford NSW 2250 • Australia Tel: +61 (0) 2 4372 8600 Fax: +61 (0) 2 4372 8603 Belkin Components B.V. Starparc Building • Boeing Avenue 333 1119 PH Schiphol-Rijk • The Netherlands Tel: +31 (0) 20 654 7300 Fax: +31 (0) 20 654 7349 Belkin Tech Support US: 877.736.5771 310.898.1100 ext. 2263 Europe: 00 800 223 55 460 Australia: 1800 666 040 Belkin Corporation 501 West Walnut Street Compton • CA • 90220 • USA Tel: 310.898.1100 Fax: 310.898.1111 Belkin Components, Ltd. Express Business Park • Shipton Way Rushden • NN10 6GL • United Kingdom Tel: +44 (0) 1933 35 2000 Fax: +44 (0) 1933 31 2000 © 2004 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. 54g is a trademark of Broadcom Corporation in the U.S. and other countries. Apple, AirPort, Mac, Mac OS, and AppleTalk are trademarks of Apple Computer, Inc., registered in the U.S. and other countries. P74471 Wireless G USB Network Adapter F5D7050 ������������������������ ���� Connect your desktop or notebook computer to a faster wireless network User Manual Wireless G USB Network Adapter 1 2 1 3 4 5 6 7 8 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Benefits of a Home Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Advantages of setting up a Belkin Wireless Network . . . . . . . . . . 1 Placement of your Wireless Networking Hardware for Optimal Performance . . . . . . . . . . . . . . . . . . . . . . . . 2 Important Factors for Placement and Setup . . . . . . . . . . . . . . . . 2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Applications and Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2 Knowing your Wireless USB Network Adapter . . . . . . . . . . 8 3 Installing and Setting Up the USB Network Adapter . . . . . . . 9 Step 1: Install the Software . . . . . . . . . . . . . . . . . . . . 9 Step 2: Connect your USB Adapter to your PC . . . 10 Step 3: Let Windows Finish the Installation . . . . . .11 4 Uninstalling the Software and Drivers . . . . . . . . . . . . . . .13 5 Using the Belkin Wireless LAN Monitor Utility . . . . . . . . .14 6 Securing your Wireless Network . . . . . . . . . . . . . . . . . . .23 7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 8 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Table of Contents 1 2 1 3 4 5 6 7 section 8 Thank you for purchasing the Belkin Wireless G USB Network Adapter (the Adapter). Now you can take advantage of this great new technology and gain the freedom you need around the home or office without using cables. The Wireless USB Network Adapter works like a conventional network adapter, but without the wires. The easy installation and setup will have you networking wirelessly in minutes. Please be sure to read through this User Manual completely, and pay special attention to the section entitled “Placement of your Wireless Networking Hardware for Optimal Performance” on page 2. By following our simple setup instructions your Belkin Home Network will allow you to: • Share one high-speed Internet connection with all the computers in your home • Share resources, such as files, and hard drives among all the connected computers in your home • Share a single printer with the entire family • Share documents, music, video, and digital pictures • Store, retrieve, and copy files from one computer to another • Simultaneously play games online, check Internet e-mail, and chat Here are some of the advantages of setting up a Belkin Wireless Network: • Mobility – you’ll no longer need a dedicated “computer room”— now you can work on a networked laptop or desktop computer anywhere within your wireless range • Easy installation – Belkin Easy Installation Wizard makes setup simple • Flexibility – set up and access printers, computers, and other networking devices from anywhere in your home • Easy Expansion – the wide range of Belkin networking products let you expand your network to include devices such as printers and gaming consoles • No cabling required – you can spare the expense and hassle of retrofitting Ethernet cabling throughout the home or office • Widespread industry acceptance – choose from a wide range of interoperable networking products Introduction 2 IntroductionIntroduction 3 Introduction 2 1 3 4 5 6 7 section 8 Placement of your Wireless Networking Hardware for Optimal Performance Your wireless connection will be stronger the closer your computer is to your Wireless Router (or Access Point). Typical indoor operating range for your wireless devices is between 100 and 200 feet. In the same way, your wireless connection and performance will degrade somewhat as the distance between your Wireless Router (or Access Point) and connected devices increases. This may or may not be noticeable to you. As you move further from your Wireless Router or Access Point, connection speed may decrease. Factors that can weaken signals simply by getting in the way of your network’s radio waves are metal appliances or obstructions, and walls. If you have concerns about your network’s performance that might be related to range or obstruction factors, try moving the computer to a position between five and ten feet from the Wireless Router, in order to see if distance is the problem. If difficulties persist even at close range, please contact Belkin Technical Support. IMPORTANT FACTORS FOR PLACEMENT AND SETUP Note: While some of the items listed below can affect network performance, they will not prohibit your wireless network from functioning; if you are concerned that your network is not operating at its maximum effectiveness, this checklist m…

Text truncated - open the document above for the full version.

Bel ki n Corporation 501 West Walnut Avenue Compton, CA 90220 TEL: 310-604-2478, FAX: 310-631-3629 FCC 10: K75-F507050 Date: January 12, 2004 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, OY'Y\Ml ~J\ ~~ Michael Maher Engineering Services Manager Belkin Corporation TEL: 310-604-2478 FAX: 310-631-3629 e-mail: [email protected]

Belkin Corporation 501 West Walnut Avenue Compton, CA 90220 TEL: 310-604-2478, FAX: 310-631-3629 FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) For the following equipment: Product Name: 54Mbps Wireless use Network Adapter Model No.: F5D7050 Trade Name: Belkin Is herewith confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the AOT test report with number 09301 07R04. And this compliance is subject to the following two conditions: This device may not cause harmful interference and, This device must accept any interference received, including interference that may cause undesired operation. The following local Manufacturer/Importer is responsible for this declaration: Belkin Corporation (Company Name) 501 West Walnut Avenue Compton. CA 90220 (Company Address) ; FAX 310-631-3629 310-604-2478 TEL: E-mail: [email protected] - Michael Maher. Enaineerina Services ManaQer (Title) (Name) 'Y'I\~, ~L (Signature) Jan. 12.2004 (Date)

501 West Walnut Avenue Compton, CA 90220 TEL: 310-604-2478, FAX: 310-631-3629 AGENCY AUTHORIZATION LETTER FCC 10: K7S-F507050 Date: January 12, 2004 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don't hesitate to contact us. Thank you. Sincerely, fv't\J 1 ~ ~. Michael Maher Engineering Services Manager Belkin Corporation TEL: 310-604-2478 FAX: 310-631-3629 e-mail: [email protected]

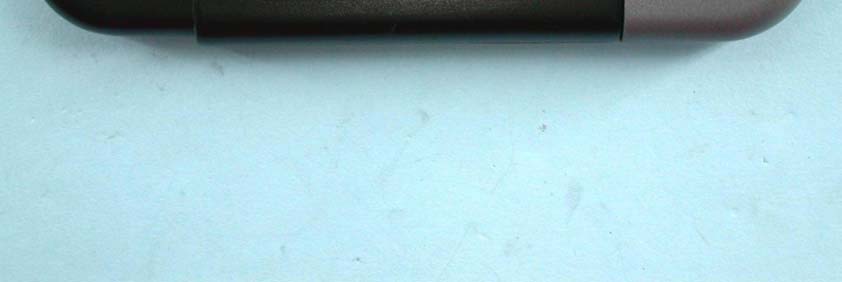

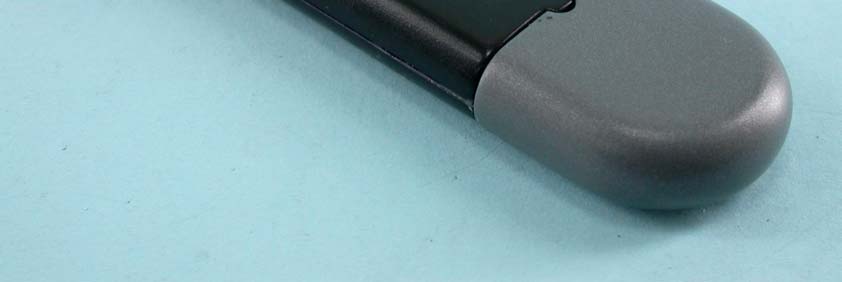

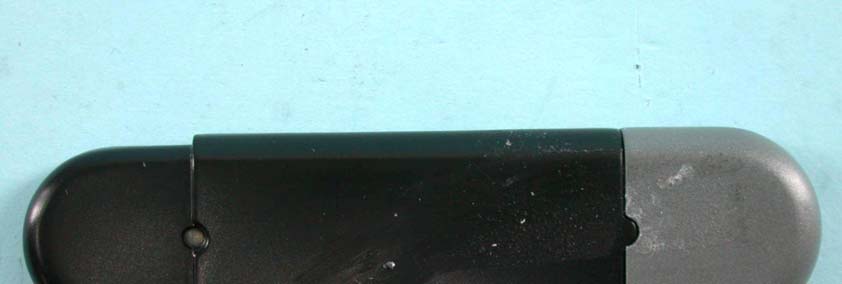

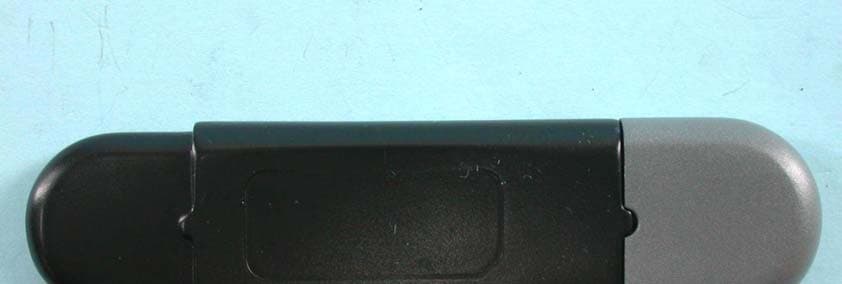

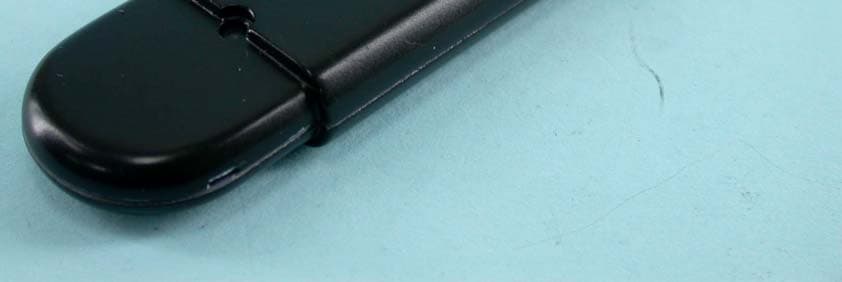

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID Label Location

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

FCC ID: K7SF5D7050 ADT No.930107R04 Operational Description This device is a 54Mbps Wireless USB Network Adapter which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a USB interface. The antenna is printed dipole antenna without a connector. The other instruction, please have a look at the users manual.

FCC ID: K7SF5D7050 Report No: SA930107R04 1 RF EXPOSURE REPORT REPORT NO.: SA930107R04 MODEL NO.: F5D7050 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Belkin Corporation ADDRESS: 501 West Walnut Avenue Compton, CA 90220 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: K7SF5D7050 Report No: SA930107R04 2 Exposure Measurement (Portable Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: K7SF5D7050 Report No: SA930107R04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 2.5cm away from the body of the user. Warning statement for keeping 2.5cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Portable Device. FCC ID: K7SF5D7050 Report No: SA930107R04 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1dBi or 1.259(numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : For Part 802.11b (CCK technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241220.8450.3341.0 6243721.9790.3521.0 11246221.0860.3381.0 For Part 802.11g (OFDM technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241221.1350.3391.0 6243721.9280.3511.0 11246221.0860.3381.0

FCC ID: K7SF5D7050 Report No.: RF930107R041Issued: January 14, 2004 FCC TEST REPORT REPORT NO.: RF930107R04 MODEL NO.: F5D7050 RECEIVED: December 8, 2003 TESTED: December 8, 2003 ~ January 13, 2004 APPLICANT: Belkin Corporation ADDRESS: 501 West Walnut Avenue Compton, CA 90220 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 68 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: K7SF5D7050 Report No.: RF930107R042Issued: January 14, 2004 Table of Contents 1CERTIFICATION.............................................................................................. 4 2SUMMARY OF TEST RESULTS ..................................................................... 5 3GENERAL INFORMATION .............................................................................. 6 3.1GENERAL DESCRIPTION OF EUT ................................................................ 6 3.2DESCRIPTION OF TEST MODES .................................................................. 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ................................. 7 3.4DESCRIPTION OF SUPPORT UNITS ............................................................ 8 3.5 CONFIGURATION OF SYSTEM UNDER TEST.............................................. 9 4TEST TYPES AND RESULTS ....................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT................................................. 10 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .............................. 10 4.1.2 TEST INSTRUMENTS ................................................................................... 10 4.1.3 TEST PROCEDURES ....................................................................................11 4.1.4 DEVIATION FROM TEST STANDARD ...........................................................11 4.1.5 TEST SETUP................................................................................................. 12 4.1.6 EUT OPERATING CONDITIONS .................................................................. 12 4.1.7 TEST RESULTS ............................................................................................ 13 4.2RADIATED EMISSION MEASUREMENT ..................................................... 19 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ................................... 19 4.2.2 TEST INSTRUMENTS ................................................................................... 20 4.2.3 TEST PROCEDURES ................................................................................... 21 4.2.4 DEVIATION FROM TEST STANDARD .......................................................... 21 4.2.5 TEST SETUP................................................................................................. 22 4.2.6 EUT OPERATING CONDITIONS .................................................................. 22 4.2.7. TEST RESULTS ............................................................................................ 23 4.2.8. TEST RESULTS (A)....................................................................................... 25 4.2.9. TEST RESULTS (B)....................................................................................... 28 4.36dB BANDWIDTH MEASUREMENT ............................................................. 31 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT .......................................... 31 4.3.2 TEST INSTRUMENTS ................................................................................... 31 4.3.3 TEST PROCEDURE ...................................................................................... 32 4.3.4 DEVIATION FROM TEST STANDARD .......................................................... 32 4.3.5 TEST SETUP................................................................................................. 32 4.3.6 EUT OPERATING CONDITIONS .................................................................. 32 4.3.7 TEST RESULTS (A)....................................................................................... 33 FCC ID: K7SF5D7050 Report No.: RF930107R043Issued: January 14, 2004 4.3.8 TEST RESULTS (B)....................................................................................... 37 4.4MAXIMUM PEAK OUTPUT POWER............................................................. 41 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............. 41 4.4.2 TEST INSTRUMENTS ................................................................................... 41 4.4.3 TEST PROCEDURES ................................................................................... 42 4.4.4 DEVIATION FROM TEST STANDARD .......................................................... 42 4.4.5 TEST SETUP................................................................................................. 42 4.4.6 EUT OPERATING CONDITIONS .................................................................. 42 4.4.7 TEST RESULTS (A)....................................................................................... 43 4.4.8 TEST RESULTS (B)....................................................................................... 43 4.5POWER SPECTRAL DENSITY MEASUREMENT ........................................ 44 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ...................... 44 4.5.2 TEST INSTRUMENTS ................................................................................... 44 4.5.3 TEST PROCEDURE ...................................................................................... 45 4.5.4 DEVIATION FROM TEST STANDARD ......................................…

Text truncated - open the document above for the full version.

FCC ID: K7SF5D7050 Report No.: RF930107R0466Issued: January 14, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: K7SF5D7050 Report No.: RF930107R0467Issued: January 14, 2004 RADIATED EMISSION TEST
