K7SF5D7051High-Speed Mode Wireless G USB Network Adapter

© 2004 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. 54g is a trademark of Broadcom Corporation in the U.S. and other countries. Apple, AirPort, Mac, Mac OS, and AppleTalk are trademarks of Apple Computer, Inc., registered in the U.S. and other countries. P74845uk High-Speed Mode Wireless G USB Network Adapter F5D7051 User Manual High-Speed Mode Wireless G USB Network Adapter Connect your desktop or notebook computer to a wireless network Belkin Corporation 501 West Walnut Street, Compton, CA 90220-5221 USA +1 310 898 1100 +1 310 898 1111 fax Belkin Ltd. Express Business Park Shipton Way, Rushden NN10 6GL, United Kingdom +44 (0) 1933 35 2000 +44 (0) 1933 31 2000 fax Belkin B.V. Boeing Avenue 333 1119 PH Schiphol-Rijk The Netherlands +31 (0) 20 654 7300 +31 (0) 20 654 7349 fax Belkin GmbH Hanebergstraße 2 80637 Munich Germany +49 (0) 89 143405 0 +49 (0) 89 143405 100 fax Belkin SAS 5 Rue du Petit Robinson 3ème étage, 78350 Jouy en Josas France +33 (0) 1 34 58 14 00 +33 (0) 1 39 46 62 89 fax Belkin Nordic Knarrarnäsgatan 7 164 40 Kista Sweden +46 (0) 8 5229 1870 +46 (0) 8 5229 1874 fax Belkin Tech Support Europe: 00 800 223 55 460 13 Thank you for purchasing the High-Speed Mode Wireless G USB Network Adapter (the Adapter). Now you can take advantage of this great new technology and gain the freedom you need around the home or office without using cables. The Wireless USB Network Adapter works like a conventional network adapter, but without the wires. The easy installation and setup will have you networking wirelessly in minutes. Please be sure to read through this User Manual completely, and pay special attention to the section entitled “Placement of your Wireless Networking Hardware for Optimal Performance” on page 2. By following our simple setup instructions your Belkin Home Network will allow you to: • Share one high-speed Internet connection with all the computers in your home • Share resources, such as files, and hard drives among all the connected computers in your home • Share a single printer with the entire family • Share documents, music, video, and digital pictures • Store, retrieve, and copy files from one computer to another • Simultaneously play games online, check Internet e-mail,and chat Here are some of the advantages of setting up a Belkin Wireless Network: • Mobility – you’ll no longer need a dedicated “computer room”— now you can work on a networked laptop or desktop computer anywhere within your wireless range • Easy installation – Belkin Easy Installation Wizard makes setup simple • Flexibility – set up and access printers, computers, and other networking devices from anywhere in your home • Easy Expansion – the wide range of Belkin networking products let you expand your network to include devices such as printers and gaming consoles • No cabling required – you can spare the expense and hassle of retrofitting Ethernet cabling throughout the home or office • Widespread industry acceptance – choose from a wide range of interoperable networking products 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Benefits of a Home Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Advantages of setting up a Belkin Wireless Network . . . . . . . . . . 1 Placement of your Wireless Networking Hardware for Optimal Performance . . . . . . . . . . . . . . . . . . . . . . . . 2 Important Factors for Placement and Setup . . . . . . . . . . . . . . . . . 2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Applications and Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Product Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2 Knowing your Wireless USB Network Adapter . . . . . . . . . . . . . 8 3 Installing and Setting Up the USB Network Adapter . . . . . . . . 9 Step 1: Install the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Step 2: Connect your USB Adapter to your PC. . . . . . . . . . . 10 Step 3: Let Windows Finish the Installation . . . . . . . . . . . . . . 11 4 Uninstalling the Software and Drivers. . . . . . . . . . . . . . . . . . . 13 5 Using the Belkin Wireless LAN Monitor Utility . . . . . . . . . . . . 14 6 Securing your Wireless Network . . . . . . . . . . . . . . . . . . . . . . . 26 7 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 8 Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Table of Contents 1 2 3 4 5 6 7 8 section Introduction 3232 • In multistory homes, place the Wireless Router (or Access Point) on a floor that is as close to the center of the home as possible. This may mean placing the Router on an upper floor. • Try not to place the Wireless Router (or Access Point) near a cordless 2.4GHz phone. 2. Avoid Obstacles and Interference Avoid placing your Wireless Router or Access Point near devices that may emit radio “noise”, such as microwave ovens. Dense objects that can inhibit Wireless communication can include: • Refrigerators • Washers and/or dryers • Metal cabinets • Large aquariums • Metallic-based UV tinted windows If your wireless signal seems weak in some spots, make sure that objects such as these are not blocking the signal’s path (between your computers and Wireless Router or Access Point) 3. Cordless Phone Placement If the performance of your wireless network is impaired after attending to the above issues, and you have a cordless phone: • Try moving cordless phones away from Wireless Routers (or Access Points) and your wireless-enabled computers • Unplug and remove the battery from any cordless phone that operates on the 2.4GHz band (check manufacturers information). If this fixes the problem, your phone may …

Text truncated - open the document above for the full version.

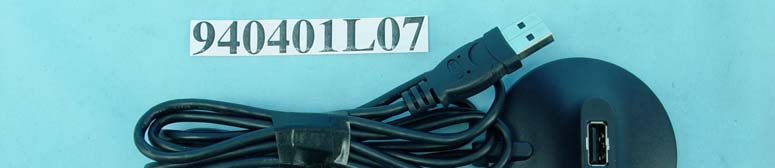

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 3 Page 4 Page 5

FCC ID: K7SF5D7051 Report No. RF940401L07 Operational Description This device is a Belkin High-Speed Mode Wireless G USB Network Adapter which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment The antenna is Sleeve antenna without antenna connector. The other instruction, please have a look at the users manual.

D2: DOSIMETRIC E-FIELD PROBE SN: 1753

D3: DAE SN: 579

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

A - 1 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Tip of EUT Position The Bottom of the EUT to the flat phantom distance 0 mm A - 2 Bottom of EUT Position The Bottom of the EUT to the flat phantom distance 4 mm A - 3 EUT Photo A - 4 Liquid Level Photo MSL 2450MHz D=150mm A - 5 Date/Time: 2005/5/5 09:31:39 Test Laboratory: Advance Data Technology F5D7051 Mode 1 11b DUT: Belkin High-Speed Mode Wireless G USB Network Adapter ; Type: F5D7051 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.98 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1753 ; ConvF(4.25, 4.25, 4.25) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Low Channel 1/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.28 mW/g Low Channel 1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.83 V/m Peak SAR (extrapolated) = 3.34 W/kg SAR(1 g) = 1.21 mW/g; SAR(10 g) = 0.559 mW/g Maximum value of SAR (measured) = 1.34 mW/g A - 6 A - 7 Date/Time: 2005/5/5 09:50:12 Test Laboratory: Advance Data Technology F5D7051 Mode 1 11b DUT: Belkin High-Speed Mode Wireless G USB Network Adapter ; Type: F5D7051 ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 2.02 mho/m; ε r = 53.7; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1753 ; ConvF(4.25, 4.25, 4.25) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Mid Channel 6/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.16 mW/g Mid Channel 6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.18 V/m Peak SAR (extrapolated) = 3.13 W/kg SAR(1 g) = 1.13 mW/g; SAR(10 g) = 0.503 mW/g Maximum value of SAR (measured) = 1.34 mW/g A - 8 Date/Time: 2005/5/5 10:09:25 Test Laboratory: Advance Data Technology F5D7051 Mode 1 11b DUT: Belkin High-Speed Mode Wireless G USB Network Adapter ; Type: F5D7051 ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 2.05 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1753 ; ConvF(4.25, 4.25, 4.25) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 High Channel 11/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.05 mW/g High Channel 11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.21 V/m Peak SAR (extrapolated) = 2.95 W/kg SAR(1 g) = 1.08 mW/g; SAR(10 g) = 0.459 mW/g Maximum value of SAR (measured) = 1.21 mW/g High Channel 11/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.21 V/m Peak SAR (extrapolated) = 2.13 W/kg SAR(1 g) = 1.04 mW/g; SAR(10 g) = 0.537 mW/g Maximum value of SAR (measured) = 1.16 mW/g A - 9 Date/Time: 2005/5/5 10:28:46 Test Laboratory: Advance Data Technology F5D7051 Mode 1 11g DUT: Belkin High-Speed Mode Wireless G USB Network Adapter ; Type: F5D7051 ; Test Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.98 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1753 ; ConvF(4.25, 4.25, 4.25) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Low Channel 1/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.391 mW/g Low Channel 1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.95 V/m Peak SAR (extrapolated) = 0.876 W/kg SAR(1 g) = 0.330 mW/g; SAR(10 g) = 0.159 mW/g Maximum value of SAR (measured) = 0.393 mW/g A - 10 Date/Time: 2005/5/5 10:59:08 Test Laboratory: Advance Data Technology F5D7051 Mode 2 11b DUT: Belkin High-Speed Mode Wireless G USB Network Adapter ; Type: F5D7051 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 Medium parameter…

Text truncated - open the document above for the full version.

FCC ID: K7SF5D7051 Report No.: SA940401L071Report Format Version 2.0.1 SAR TEST REPORT REPORT NO.: SA940401L07 MODEL NO.: F5D7051 RECEIVED: Apr. 20, 2005 TESTED: May 05, 2005 ISSUED: May 06, 2005 APPLICANT: Belkin Corporation ADDRESS: 501 West Walnut Avenue Compton, CA 90220 ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 31 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: K7SF5D7051 Report No.: SA940401L072Report Format Version 2.0.1 Table of Contents 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM .............................................. ....5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ..................9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................13 4.DESCRIPTION OF SUPPORT UNITS ......................................................................14 5.TEST RESULTS ........................................................................................................15 5.1 TEST PROCEDURES ...............................................................................................15 5.2 MEASURED SAR RESULT .......................................................................................16 5.3 SAR LIMITS...............................................................................................................18 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................18 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................20 6.SYSTEM VALIDATION ..............................................................................................21 6.1 TEST EQUIPMENT ...................................................................................................21 6.2 TEST PROCEDURE .................................................................................................21 6.3 VALIDATION RESULT...............................................................................................23 6.4 SYSTEM VALIDATION UNCERTAINTIES ................................................................24 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................25 7.1 PROBE CALIBRATION UNCERTAINTY ...................................................................25 7.2 ISOTROPY UNCERTAINTY......................................................................................25 7.3 BOUNDARY EFFECT UNCERTAINTY .....................................................................26 7.4 PROBE LINEARITY UNCERTAINTY ........................................................................26 7.5 READOUT ELECTRONICS UNCERTAINTY ............................................................26 7.6 RESPONSE TIME UNCERTAINTY...........................................................................27 7.7 INTEGRATION TIME UNCERTAINTY ......................................................................28 7.8 PROBE POSITIONER MECHANICAL TOLERANCE................................................28 7.9 PROBE POSITIONING .............................................................................................29 7.10 PHANTOM UNCERTAINTY ......................................................................................29 7.11 DASY4 UNCERTAINTY BUDGET.............................................................................30 8.INFORMATION ON THE TESTING LABORATORIES ..............................................31 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: K7SF5D7051 Report No.: SA940401L073Report Format Version 2.0.1 1. CERTIFICATION PRODUCT : Belkin High-Speed Mode Wireless G USB Network Adapter MODEL NO. : F5D7051 BRAND NAME : Belkin APPLICANT : Belkin Corporation TESTED : May 05, 2005 TEST SAMPLE : ENGINEERING SAMPLE STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:May 06, 2005 ( Andrea Hsia ) TECHNICAL ACCEPTANCE :, DATE:May 06, 2005 Responsible for RF ( Ansen Lei ) APPROVED BY :, DATE:May 06, 2005 ( Cody Chang, Deputy Manager ) FCC ID: K7SF5D7051 Report No.: SA940401L074Report Format Version 2.0.1 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Belkin High-Speed Mode Wireless G USB Network Adapter MODEL NO. F5D7051 POWER SUPPLY5Vdc from host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE CCK, QPSK, BPSK for DSSS, 64QAM, 16QAM, QPSK, BPSK for OFDM RADIO TECHNOLOGY DSSS, OFDM TRANSFER RATE 802.11b: 11/5.5/2/1Mbps 802.11g: 54/48…

Text truncated - open the document above for the full version.

FCC ID: K7SF5D7051 Report No.: RF940401L071Report Format Version 2.0.2 FCC TEST REPORT REPORT NO.: RF940401L07 MODEL NO.: F5D7051 RECEIVED: Apr. 04, 2005 TESTED: Apr. 04 ~ Apr. 22, 2005 ISSUED: Apr. 26, 2005 APPLICANT: Belkin Corporation ADDRESS: 501 West Walnut Avenue Compton, CA 90220 ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 72 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: K7SF5D7051 Report No.: RF940401L072Report Format Version 2.0.2 Table of Contents 1.CERTIFICATION ..................................................................................................... 4 2.SUMMARY OF TEST RESULTS ............................................................................. 5 2.1MEASUREMENT UNCERTAINTY .......................................................................... 5 3.GENERAL INFORMATION...................................................................................... 6 3.1GENERAL DESCRIPTION OF EUT........................................................................ 6 3.2DESCRIPTION OF TEST MODES.......................................................................... 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..................................................... 8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL: ......................... 9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 11 3.4DESCRIPTION OF SUPPORT UNITS .................................................................. 11 4.TEST TYPES AND RESULTS ............................................................................... 12 4.1CONDUCTED EMISSION MEASUREMENT ........................................................ 12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................... 12 4.1.2 TEST INSTRUMENTS........................................................................................... 12 4.1.3 TEST PROCEDURES ........................................................................................... 13 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 13 4.1.5 TEST SETUP ........................................................................................................ 14 4.1.6 EUT OPERATING CONDITIONS .......................................................................... 14 4.1.7 TEST RESULTS .................................................................................................... 15 4.2RADIATED EMISSION MEASUREMENT ............................................................. 27 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT........................................... 27 4.2.2 TEST INSTRUMENTS........................................................................................... 28 4.2.3 TEST PROCEDURES ........................................................................................... 29 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 29 4.2.5 TEST SETUP ........................................................................................................ 30 4.2.6 EUT OPERATING CONDITIONS .......................................................................... 30 4.2.7 TEST RESULTS .................................................................................................... 31 4.36dB BANDWIDTH MEASUREMENT .................................................................... 39 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 39 4.3.2 TEST INSTRUMENTS........................................................................................... 39 4.3.3 TEST PROCEDURE.............................................................................................. 40 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 40 4.3.5 TEST SETUP ........................................................................................................ 40 4.3.6 EUT OPERATING CONDITIONS .......................................................................... 40 4.3.7 TEST RESULTS .................................................................................................... 41 4.4MAXIMUM PEAK OUTPUT POWER .................................................................... 47 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..................... 47 4.4.2 INSTRUMENTS..................................................................................................... 47 4.4.3 TEST PROCEDURES ........................................................................................... 48 FCC ID: K7SF5D7051 Report No.: RF940401L073Report Format Version 2.0.2 4.4.4 DEVIATION FROM TEST STANDARD ................................................................. 48 4.4.5 TEST SETUP ........................................................................................................ 48 4.4.6 EUT OPERATING CONDITIONS .......................................................................... 48 4.4.7 TEST RESULTS .................................................................................................... 49 4.5POWER SPECTRAL DENSITY MEASUREMENT................................................ 50 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ............................. 50 4.5.2 TEST INSTRUMENTS...........................................…

Text truncated - open the document above for the full version.

FCC ID: K7SF5D7051 Report No.: RF940401L0768Report Format Version 2.0.2 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Mode 1) FCC ID: K7SF5D7051 Report No.: RF940401L0769Report Format Version 2.0.2 CONDUCTED EMISSION TEST (Mode 2) FCC ID: K7SF5D7051 Report No.: RF940401L0770Report Format Version 2.0.2 RADIATED EMISSION TEST (Mode 1) FCC ID: K7SF5D7051 Report No.: RF940401L0771Report Format Version 2.0.2 RADIATED EMISSION TEST (Mode 2)
