K7SF5D7130Wireless AP

54Mbps Wireless Access Point User Manual  2003 All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of the seller. Disclaimer Information in this document is subject to change without notice. The material contained herein is supplied without representation or warranty of any kind. The seller therefore assumes no responsibility and shall have no liability of any kind arising from the supply or use of this document or the material contained herein. Trademarks Microsoft and Windows are registered trademarks of Microsoft Corporation. 54g is a registered trademark of Broadcom corporation. All other trademarks mentioned in this document are the property of their respective owners. March 14, 2003 Rev01 F/W:2.02.10 i Safety Instructions For Installation • Use only the type of power source indicated on the marking labels. • Use only the power adapter supplied with the product. • Do not overload wall outlet or extension cords as this may increase the risk of electric shock or file. If the power cord is frayed, replace it with a new one. • Proper ventilation is necessary to prevent the product overheating. Do not block or cover the slots and openings on the device, which are intended for ventilation and proper operation. It is recommended to mount the product with a stack. • Do not place the product near any source of heat or expose it to direct sunshine. • Do not expose the product to moisture. Never spill any liquid on the product. • Do not attempt to connect with any computer accessory or electronic product without instructions from qualified service personnel. This may result in risk of electronic shock or file. • Do not place this product on an unstable stand or table. For Using • Power off and unplug this product from the wall outlet when it is not in use or before cleaning. Pay attention to the temperature of the power adapter. The temperature might be high. • After powering off the product, power on the product at least 15 seconds later. • Do not block the ventilating openings of this product. • When the product is expected to be not in use for a period of time, unplug the power cord of the product to prevent it from the damage of storm or sudden increases in rating. ii For Service Do not attempt to disassemble or open covers of this unit yourself. Nor should you attempt to service the product yourself, which may void the user’s authority to operate it. Contact qualified service personnel under the following conditions: • If the power cord or plug is damaged or frayed. • If liquid has been spilled into the product. • If the product has been exposed to rain or water. • If the product does not operate normally when the operating instructions are followed. • If the product has been dropped or the cabinet has been damaged. • If the product exhibits a distinct change in performance. iii FCC Information FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Shielded interface cables must be used in order to comply with emission limits. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. iv FCC Conditions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20cm between the radiator & your body. v About This User Manual For brevity, throughout this manual the “Wireless Broadband Router” is referred to as “the router” or “the device” and following terms or abbreviations are used interchangeably: • Access Point-AP • Wireless LAN-WLAN • Ethernet network-LAN-network This User Manual contains information on how to install and configure your Wireless Broadband Router to get your network started accessing the Internet. From now on, we will guide you through the correct configuration steps to get your device up and run. vii Contents 1 Introduction ..................................................1 1.1 Overview........................................................................1 1.2 Package Contents .........................................................1 1.3 Wireless Network Scenarios ..........................................2 2 Hardware Description & Installation .............5 2.1 Physical Outlook ............................................................5 Front Panel..................................................................5 Rear Panel and Connectors ........................................6 2.2 Hardware Connection ................…

Text truncated - open the document above for the full version.

Belkin Corporation Apr.14, 2003 Federal Communications Commission Authorization and Evaluation Division FCC IDK7SF5D7130 Confidentiality Request Pursuant to Sections 0..457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparrting this Application As outlined below: 1. Block Diagram 2. Circuit Schematic The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Will Wang / International Product Manager Applicant: Belkin Corporation ADDRESS: 501 West Walnut Street, Compton, CA 90220-521, U.S.A. TEL: + 1 310 898 1100 FAX:+ 1 310 898 1111

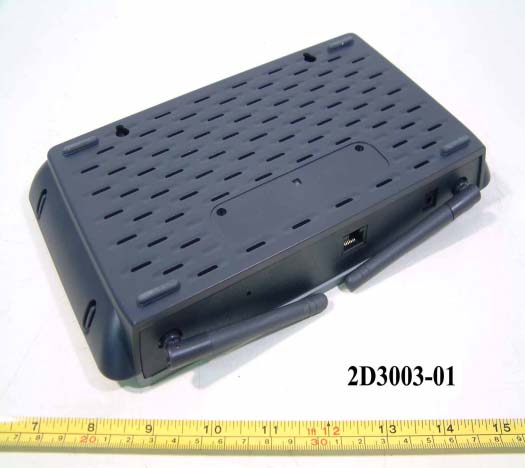

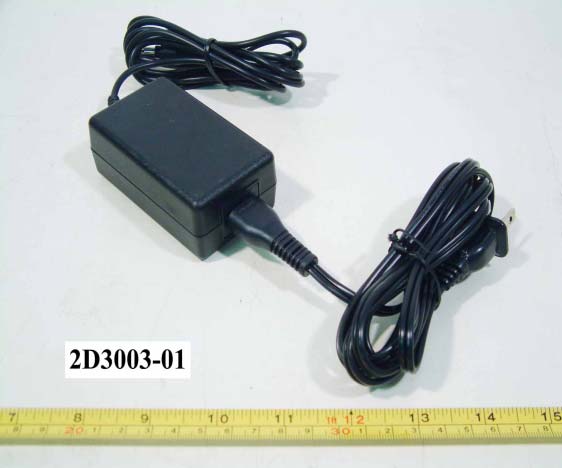

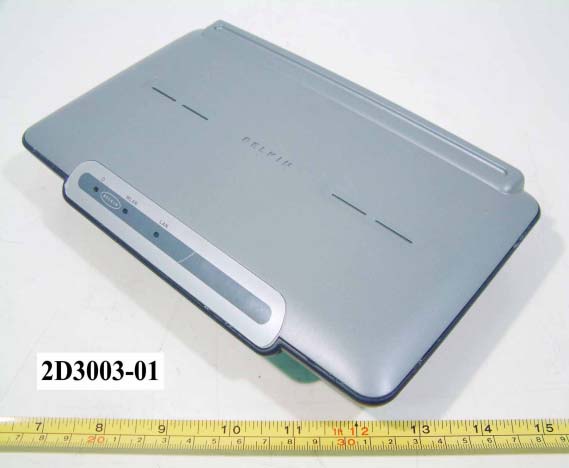

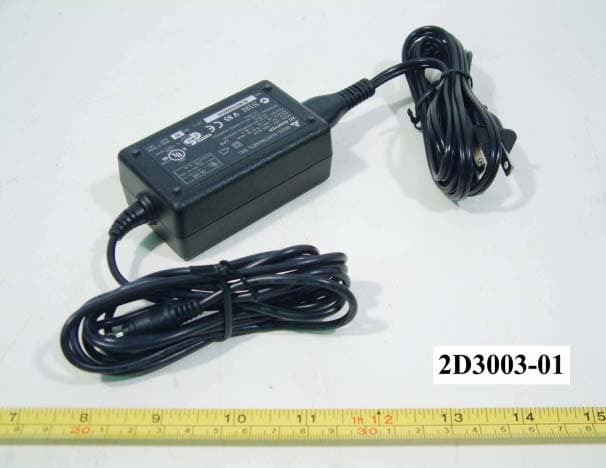

FCC ID : K7SF5D7130 NUMBER 1 FRONT SIDE OF EUT FCC ID : K7SF5D7130 NUMBER 2 REAR SIDE OF EUT FCC ID : K7SF5D7130 NUMBER 3 FRONT SIDE OF ADAPTER FCC ID : K7SF5D7130 NUMBER 4 REAR SIDE OF ADAPTER

FCC ID: K7SF5D7130

FCC ID : K7SF5D7130 Number 1 Mechanical Construction FCC ID : K7SF5D7130 Number 2 Mechanical Construction FCC ID : K7SF5D7130 Number 3 Mechanical Construction FCC ID : K7SF5D7130 Number 4 Front side of Main Board and daughter board FCC ID : K7SF5D7130 Number 5 Rear side of Main Board and daughter board 1

FCC TEST REPORT Report No. : F2D3003-01 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR, Part 15, Subpart C Equipment : Wireless AP Model No. : F5D7130 FCC ID : K7SF5D7130 Filing Type : Certification Applicant : Belkin Corporation 501 West Walnut Street, Compton, CA, 90220-5221 USA ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F2D3003-01 SPORTON International Inc. FCC ID : K7SF5D7130 TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Feb. 27, 2003 Table of Contents History of this test report..................................................................................................................ii CERTIFICATE OF COMPLIANCE........................................................................................................................1 1. General Description of Equipment under Test.............................................................................................2 1.1. Applicant..........................................................................................................................................................................................2 1.2. Manufacturer ...................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test ....................................................................................................................................2 1.4. Feature of Equipment under Test ...................................................................................................................................................3 2. Test Configuration of Equipment under Test ...............................................................................................4 2.1. Test Manner ....................................................................................................................................................................................4 2.2. Description of Test System .............................................................................................................................................................4 2.3. Connection Diagram of Test System ..............................................................................................................................................6 3. Operation of Equipment under Test ..............................................................................................................7 4. General Information of Test............................................................................................................................8 4.1. Test Voltage ....................................................................................................................................................................................8 4.2. Standard for Methods of Measurement...........................................................................................................................................8 4.3. Test in Compliance with ..................................................................................................................................................................8 4.4. Frequency Range Investigated .......................................................................................................................................................8 4.5. Test Distance ..................................................................................................................................................................................8 5. Report of Measurements and Examinations ................................................................................................9 5.1. List of Measurements and Examinations ........................................................................................................................................9 5.2. 6dB Bandwidth ..............................................................................................................................................................................10 5.3. Peak Output Power .......................................................................................................................................................................14 5.4. Power Spectral Density .................................................................................................................................................................15 5.5. Test of Conducted Emission .........................................................................................................................................................19 5.6. Test of Radiated Emission ............................................................................................................................................................23 5.7. Band Edges Measurement............................................................................................................................................................32 5.8. Antenna Requirements .................................................................................................................................................................35 5.9. RF Exposure ......................................................................................................................................................................…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F2D3003-01 SPORTON International Inc. FCC ID : K7SF5D7130 TEL : 886-2-2696-2468 Page No. : 1 of 3 FAX : 886-2-2696-2255 Issued Date : Feb. 27, 2003 1.1. Photographs of Conducted Emission Test Configuration „ The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW FCC TEST REPORT Report No. : F2D3003-01 SPORTON International Inc. FCC ID : K7SF5D7130 TEL : 886-2-2696-2468 Page No. : 2 of 3 FAX : 886-2-2696-2255 Issued Date : Feb. 27, 2003 SIDE VIEW FCC TEST REPORT Report No. : F2D3003-01 SPORTON International Inc. FCC ID : K7SF5D7130 TEL : 886-2-2696-2468 Page No. : 3 of 3 FAX : 886-2-2696-2255 Issued Date : Feb. 27, 2003 1.2. Photographs of Radiated Emission Test Configuration „ The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
