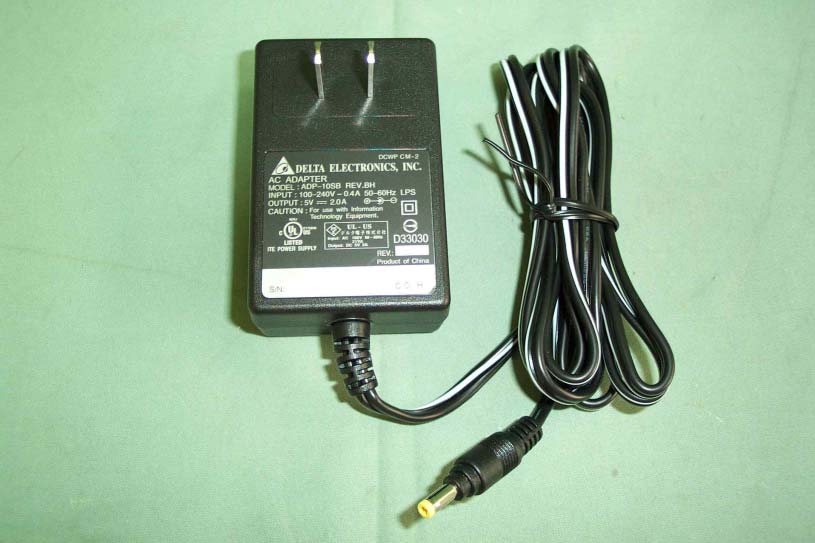

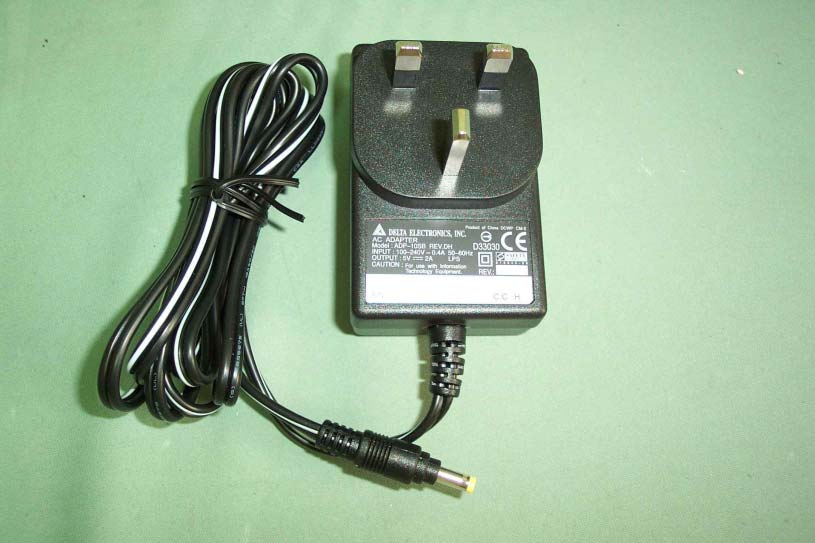

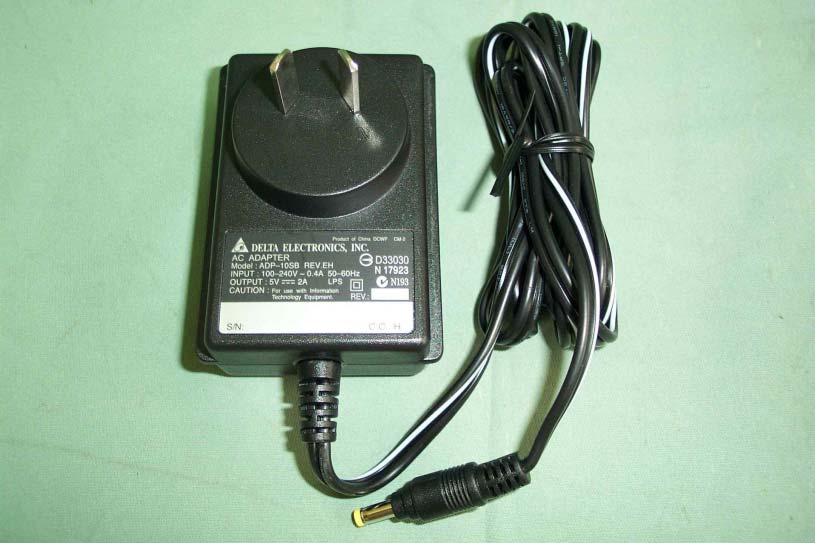

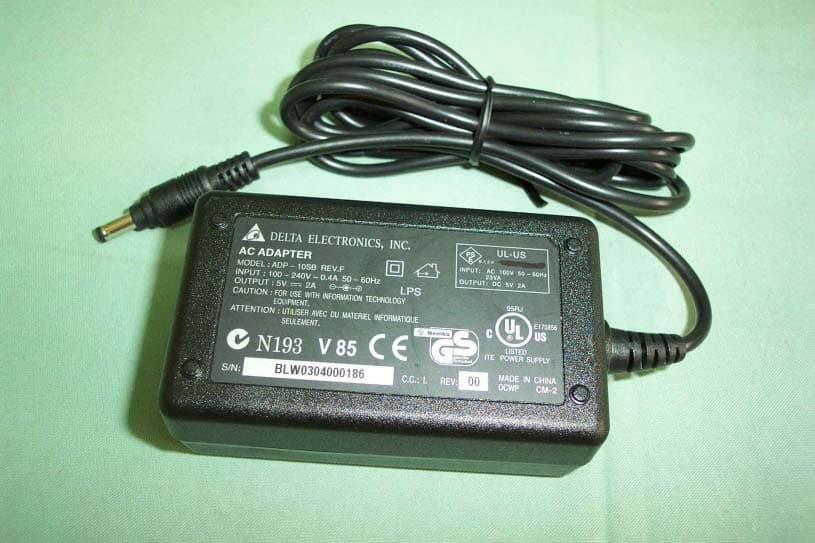

K7SF5D7130A802.11g Wireless Network Access Point

www.askey.com.tw June. 30, 2003 - 1 - Rev: 0.0 ASKEY ’s RT360W-D56 is 802.11g Wireless Access Point & USB Print Server features and 1-port LAN . The 802.11g Access Point features allow PCs/Notebooks with wireless card that adapts 802.11g technology to connect to the Ethernet. Through the LAN connection to connect Local Area Network. [Hardware Specifications] Main Chip Sets • Processor: Broadcom BCM4702 125MHz R3000 MIPS32 CPU • 54g (draft IEEE802.11g) Broadcom Radio − BCM4306 MAC and Baseband Processor − BCM2050 Radio • Memory − 4MB Flash − 16MB SDRAM Interface • One 2.4GHz 54g RF interface for Wireless LAN connection • One 10/100 Mbps RJ-45 Ethernet LAN connection • Two USB 1.1 Ports for printer connection Radio Characteristics • Standard: IEEE 802.11b (Wi-Fi) and 54g (draft IEEE802.11g) • Frequency Band (ISM Band): − 2.412 ~ 2.4835 GHz • Spreading: − Direct Sequence Spread Spectrum (11-chip Barker sequence) • Modulation − OFDM: 54, 48, 36, 24, 18, 12, 9, and 6 Mbps − CCK: 11 , and 5.5 Mbps − DQPSK: 2 Mbps − DBPSK: 1 Mbps • Number of Channels: − 802.11b : 1 - 11 (FCC), 1 - 13 (Europe ETSI), 1 – 14 (Japan) RT360W-D56 Wireless Broadband USB AP www.askey.com.tw June. 30, 2003 - 2 - Rev: 0.0 − 54g : 1 - 11 (FCC), 1 - 13 (Europe ETSI), 1 – 14 (Japan) • Data Rate: − 54g „ 54 Mbps „ 48 Mbps „ 36 Mbps „ 24 Mbps „ 18 Mbps „ 12 Mbps „ 9 Mbps „ 6 Mbps − 802.11b „ 11 Mbps „ 5.5 Mbps „ 2 Mbps „ 1 Mbps • Antenna: − One external antenna • RF Output Power: − 15 dBm (typical) • Range: − 54 Mbps range in a typical office environment of up to 30 m and line-of-sight (LOS) up to 150 m − 11 Mbps range in a typical office environment of up to 60 m and line-of-sight (LOS) up to 300 m − 1 Mbps range in a typical office environment of up to 120 m and LOS up to 650 m − Range differs by environment • Power Consumption: − TX: TDB mA − RX: TDB mA • Receiver Sensitivity: Per <8% @ length 1024 octets − 54 Mbps: TDB dBm − 11 Mbps: -80 dBm − 5.5 Mbps: -88 dBm − 2 Mbps: -91 dBm − 1 Mbps: -93 dBm • WEP Hardware Engine − 64 Bits www.askey.com.tw June. 30, 2003 - 3 - Rev: 0.0 − 128 Bits Power and Operation Environment • Power Input: − 5 Volts DC, 2 A • Temperature − Operating: 0°C to 40°C − Storage: -10°C to 65°C • Humidity: − 5% to 80% (non-condensing) LED Indicators • POWER • WLAN (two color) • WAN (two color) • HOST • ERROR Physical • PCB Dimensions:100 mm (L) × 90 mm (W) [Software Specifications] - Web Management Interface - 11G wireless capability - LPR/LPD protocol • This standard LPR/LPD support makes the print server easily work with all different Windows OSs and almost all different variations of Unix. - Internet Printing Protocol (IPP/1.1) • IPP is a relatively newer printing protocol; it gets widely supported recently. Microsoft has built-in IPP support on Windows 2000/XP. - Support Netbeui (Samba/Windows) • This will enable a printer device showing up on Windows machine networking neighborhood. By double-clicking the printer icon, windows guides user through the process of installing the driver for the printer. - AppleTalk (Mac) • To work with MAC running AppleTalk protocol. Only support postscript printers. - Unix Text File Support • Can configure automatically to convert LF to CR+LF www.askey.com.tw June. 30, 2003 - 4 - Rev: 0.0 - IP Finder utility • Find the IP address of print server and then link to print server's web management page. - Test button • A SW printing test button in print server's web management page. WARNING TEXT Radio Frequency Interference Requirements This device is restricted to INDOOR USE due to its operation in the 5.15 to 5.25GHz frequency range. According to FCC 15.407(e), requires this product to be used indoors for the frequency range 5.15 to 5.25GHz to reduce the potential for harmful interference to co-channel of the Mobile Satellite Systems. High power radars are allocated as primary user of the 5.25 to 5.35GHz and 5.65 to 5.85GHz bands. These radar stations can cause interference with and / or damage this device 802.11b Restrictions: - European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz; - In France, the equipment must be restricted to the 2.4465-2.4835GHz frequency range and must be restricted to indoor use." 15.105 Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Regulatory information / Disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified…

Text truncated - open the document above for the full version.

Model Difference We here declare that due to the business consideration that the following Two models are identical except model name changed: BELKIN: F5D7130 / F5D7330 Any questions regarding this declaration, please don’t hesitate to contact us. Thank you. Sincerely yours,

ࢭᎁ஼ APPROVAL SHEET CUSTOMERˍैٝڶૻֆ׹ FILE NO . F5D7130 / F5D7330 EESCRIPTION : 2.4Ghz Dipole Antenna !!!!!!!!! !!!!!!!!!! ANTENNIQUES P/N :MCF003A-103-05 CUSTOMER P/N : DATE :խဎاഏ92 ڣ 06 !ֲִ Customer Approval Ҵԍ॒ϝѐޟוਨࣴ݉ Antenniques Co.,Ltd ק؀ᗼᖫࣥؑ਴ႼဩԲ੄122৥6ᇆ5ᑔ TELΚ02-2668-5793 FAXΚ02-2668-5795 5F,No.6,Laine 122, Sec 2,Ganyun St, Shulin Chulin City, Taipei Hsien,238 Taiwan R.O.C. E- mailΚ[email protected] ጻీΚwww.antenniques.com.tw ᆖ෻Nbobhfs! ঴অR!D! ՠ!࿓!ஃ!Fohjffs! !!! TECHNICAL DATA Electrical Properties Frequency Range 2.42.5GHz Impedance 50 Ohm nominal VSWR 2.0 Gain 3dBi Radiation Omni Polarization Vertical Electrical Wave /4 Dipole Connector I-PEX Mechanical Properties Antenna Cover PU Color BLACK Operation Temperature2060 Storage Temperature -3075 H-Plane E-Plane VSWR Return Loss SPECIFICATION OF COAX 50 Ohms AWG32 CORE PTFE D=1.13 mm AXON’CABLE S.A.S. CABLE & INTERCONNECT ROUTE DE CHALONS-SUR-MARNE 51210 MONTMIRAIL-FRANCE Tel : (33) 03 26 81 70 00 Fax : (33) 03 26 81 28 83 e-mail : [email protected] N° P530738A Page 1/1 This document is the property of AXON’CABLE SA, and is issued on the condition that it is not copied or disclosed to any third party without prior written consent from AXON’CABLE SA Index Date Designed by Approval Description of the Modifications A 02/04/02 PV SW CREATION I – Scope This specification presents a PTFE jacketed COAXIAL cable AWG32, 1.13 mm O.D.for internal wiring of electronic equipment, such as Computer / Notebook with wireless communication systems. II – Construction Item Unit Details Material - Silver Plated Copper Composition No./mm AWG32 or 7 x 0.079 1-Inner Conductor Nom. O.D. mm 0.237 Material - Extruded PTFE Nom. O.D. mm 0.68 2-Dielectric Color - Natural Material - Tin Plated Copper Composition - Braided Shield AWG44 3-Outer Conductor Approx. O.D. mm 0.90 Material - Extruded FEP O.D. (mm) mm 1.13±0.05 5-Outer Jacket Color - P530738A^ P530738A^V1 P530738A^V2 : Light Grey : Black : Dark Grey III – Characteristics Item Unit Nom. Value Inner Conductor resistance @20°C Ω/km 525 max. Characteristic Impedance Ω 50 ± 2 Capacitance PF/m 98 @ 1.0 GHz 1.8 @ 1.5 GHz 2.3 @ 2.0 GHz 2.6 @ 2.45 GHz 3.0 @ 5.2 GHz 4.6 Nom. Attenuation (dB/m) @ 5.8 GHz 5.0 Temperature Rating °C 150 Approx. Weight g/m 3.5

Compliance Certification Services Inc. Report No: B30708003-RP Date of Issue: September 18, 2003 Page 1 of 75 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Belkin Components B.V. Wireless USB printer server / Wireless AP Brand Name: BELKIN Model Number: F1UP0001 / F5D7130 / F5D7330 Prepared for Belkin Components B.V. Boeing Avenue 333 1119 PH Schiphol-Rijk, the Netherlands Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No: B30708003-RP Date of Issue: September 18, 2003 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................ 3 2. EUT DESCRIPTION........................................................................................................ 4 3. TEST METHODOLOGY ................................................................................................ 5 3.1 EUT CONFIGURATION................................................................................................... 5 3.2 EUT EXERCISE.............................................................................................................. 5 3.3 GENERAL TEST PROCEDURES....................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .................................. 6 3.5 DESCRIPTION OF TEST MODES...................................................................................... 6 4. INSTRUMENT CALIBRATION .................................................................................... 7 5. FACILITIES AND ACCREDITATIONS ...................................................................... 8 5.1 FACILITIES................................................................................................................... 8 5.2 EQUIPMENT.................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING............................................................. 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.................................................................. 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................... 10 6.1 SUPPORT EQUIPMENT................................................................................................. 10 7. FCC PART 15.247 REQUIREMENTS......................................................................... 11 7.1 6 DB BANDWIDTH....................................................................................................... 11 7.2 PEAK POWER.............................................................................................................. 17 7.3 BAND EDGES MEASUREMENT.......................................................................... 23 7.4 PEAK POWER SPECTRAL DENSITY............................................................................... 32 7.5 RADIO FREQUENCY EXPOSURE................................................................................... 38 7.6 SPURIOUS EMISSIONS.............................................................................................. 40 7.7 POWERLINE CONDUCTED EMISSIONS.......................................................................... 68 Compliance Certification Services Inc. Report No: B30708003-RP Date of Issue: September 18, 2003 Page 3 1. TEST RESULT CERTIFICATION Applicant: Belkin Components B.V. Boeing Avenue 333 1119 PH Schiphol-Rijk, the Netherlands Equipment Under Test: Wireless USB printer server / Wireless AP Trade Name: BELKIN Model: F1UP0001 / F5D7130 / F5D7330 Model Difference: Wireless USB printer server for F1UP0001 Wireless AP for F5D7130 / F5D7330 F1UP0001: with USB port as the printer sever, one antenna (diversity) F5D7130 / F5D7330: no USB port, two antennas (one for TX, another or RX) (F5D7130 / F5D7330 are the same except the model designation) Report Number: B30708003-RP Date of Test: July 18 ~ September 13, 2003 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jonson Lee Eric Wong Director of Linkou Laboratory Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: B30708003-RP Date of Issue: September 18, 2003 Page 4 2. EUT DESCRIPTION Product Wireless USB printer server Trade Name BELKIN Model Number F1UP0001 / F5D7130 / F5D7330 Model Difference Wireless USB printer server for F1UP0001 Wireless AP for F5D7130 / F5D7330 F1UP0001: F5D7130 / F5D7330: no USB port, two antennas (one for TX, another or RX) (F5D7130 / F5D7330 are the same except the model designation) Delta / ADP-10SB I/P: 100-240VAC ~ 50/60Hz, 0.4A O/p: 5.0VDC, 2.0A Power Rating Leader / MU15050200-C5 I/P: 100-240VAC ~ 50/60Hz, 0.5A O/p: 5.0VDC, 2.0A Frequency Range 2412 ~ 2462 MHz (IEEE 80211 b/g) Modulation Technique DSSS (CCK; DQPSK; DBPSK) for IEEE 802.11b, OFDM for IEEE 802.11g Transmitting Speed 1,2,5.5,6,9…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B30708003-RP Date of Issue: September 18, 2003 Page 74 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Compliance Certification Services Inc. Report No: B30708003-RP Date of Issue: September 18, 2003 Page 75
