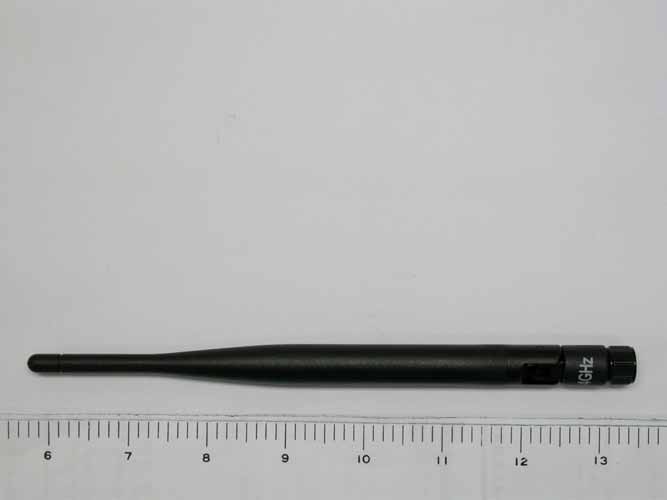

Antenna of Belkin F5D7132 Antenna type 1: Reverse SMA connector, dipole Antenna. Antenna Gain: 5 dBi. Antenna type 2: Reverse SMA connector, dipole Antenna. Antenna Gain: 3 dBi. Antenna type 3: Reverse SMA connector, dipole Antenna. Antenna Gain: 1.8 dBi.

External Photos

las r evi n U G sseleri W rednetxE egnaR 7 9 7 0 1P n a w iaT n i e d a M a i n r of i l aC n i de n g i s eD : o N l ai r eS :ss er d d A CA M NA L / NALW 231 7 D 5 F : led oM A2 3 17 D 5 F S7 K :DI C CF 2 31 7 D5 F ESU E C IFF O R O EMO H RO F y lpmoC ot de ts e T s dr a dnatS CC F ht i w nik l e B # n oisr ev 0 7 4 8 25 Z 0560

Internal Photos

1.1. Test Result of RF Exposure Evaluation . Product: Wireless G Universal Range Extender . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Transmit/ Receive 1.1.1. Antenna Gain Antenna 1 Gain: The maximum Gain is 1.8 dBi. Antenna 2 Gain: The maximum Gain is 3 dBi. Antenna 3 Gain : The maximum Gain is 5 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance (1) Antenna 1, Modulation Standard: IEEE 802.11b (11Mbps) Test Date: Oct. 11, 2005 Temperature: 25 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) 20 cm (mW/cm 2 ) 01 2412 18.07 0.0190 06 2437 18.28 0.0200 11 2462 18.35 0.0210 (2) Antenna 1, Modulation Standard: IEEE 802.11g (48Mbps) Test Date: Oct. 11, 2005 Temperature: 25 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) 20 cm (mW/cm 2 ) 01 2412 15.72 0.0110 06 2437 15.80 0.0110 11 2462 16.05 0.0120 (3) Antenna 2, Modulation Standard: IEEE 802.11b (11Mbps) Test Date: Oct. 11, 2005 Temperature: 25 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) 20 cm (mW/cm 2 ) 01 2412 18.07 0.0250 06 2437 18.28 0.0270 11 2462 18.35 0.0270 (4) Antenna 2, Modulation Standard: IEEE 802.11g (48Mbps) Test Date: Oct. 11, 2005 Temperature: 25 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) 20 cm (mW/cm 2 ) 01 2412 15.72 0.0150 06 2437 15.80 0.0150 11 2462 16.05 0.0160 (5) Antenna 3, Modulation Standard: IEEE 802.11b (11Mbps) Test Date: Oct. 11, 2005 Temperature: 25 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) 20 cm (mW/cm 2 ) 01 2412 18.07 0.0400 06 2437 18.28 0.0420 11 2462 18.35 0.0430 (6) Antenna 3, Modulation Standard: IEEE 802.11g (48Mbps) Test Date: Oct. 11, 2005 Temperature: 25 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) 20 cm (mW/cm 2 ) 01 2412 15.72 0.0230 06 2437 15.80 0.0240 11 2462 16.05 0.0250 The MPE is calculated as 0.043 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 11, 2005 1 of 54 FCC Test Report: FI05092802-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Laboratory Accreditation 1332 ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Applicant Belkin Corporation Address 501 West Walnut Street, Compton CA 90220, USA Equipment Wireless G Universal Range Extender Model No. F5D7132 FCC ID K7SF5D7132A Trade Name Belkin Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 11, 2005 2 of 54 FCC Test Report: FI05092802-A Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test............................................................................................... 6 2.2 RF Specifications ....................................................................................................................... 6 2.3 Test Mode and Test Software..................................................................................................... 7 2.4 Description of Test System......................................................................................................... 7 2.5 Connection Diagram of Test System..........................................................................................8 2.6 General Information of Test........................................................................................................ 9 2.7 History of this test report ............................................................................................................ 9 3. Antenna Requirements.....................................................................................................................10 3.1 Standard Applicable .................................................................................................................10 3.2 Antenna Construction and Directional Gain............................................................................. 10 4. Test of Conducted Emission............................................................................................................ 11 4.1 Test Limit.................................................................................................................................. 11 4.2 Test Procedures....................................................................................................................... 11 4.3 Typical Test Setup ...................................................................................................................12 4.4 Measurement equipment .........................................................................................................12 4.5 Test Result and Data................................................................................................................13 5. Test of Radiated Emission ...............................................................................................................16 5.1 Test Limit..................................................................................................................................16 5.2 Test Procedures.......................................................................................................................17 5.3 Typical Test Setup ....................................................................................................................18 5.4 Measurement equipment .........................................................................................................18 5.5 Test Result and Data................................................................................................................19 6. 6dB Bandwidth Measurement Data .................................................................................................36 6.1 Test Limit ..................................................................................................................................36 6.2 Test Procedures .......................................................................................................................36 6.3 Test Setup Layout ....................................................................................................................36 6.4 Measurement equipment .........................................................................................................36 6.5 Test Result and Data................................................................................................................36 7. Maximum Peak Output Power .........................................................................................................40 7.1 Test Limit ..................................................................................................................................40 7.2 Test Procedures .......................................................................................................................40 7.3 Test Setup Layout ....................................................................................................................40 7.4 List of Measuring Equipment Used .............................................................................…
