K7SF5D7230AWireless G Router

User Manual F5D7230-4 Wireless Router Share your broadband Internet connection without running cables TABLE OF CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Easy Install Wizard Software System Requirements . . . . . . . . . . . . . . . . .5 Knowing your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Placement of your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Connecting and Configuring your Router . . . . . . . . . . . . . . . . . . . . . . . . .11 Alternate Setup Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Using the Web-Based Advanced User Interface . . . . . . . . . . . . . . . . . . . . .40 Manually Configuring Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . .79 Recommended Web Browser Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .84 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92 1 INTRODUCTION Thank you for purchasing the Belkin Cable/DSL Gateway Router (the Router). In minutes you will be able to share your Internet connection and network your computers. The following is a list of features that make your new Router an ideal solution for your home or small office network. Key Features Easy Install Wizard The Easy Install Wizard takes the guesswork out of setting up your Router. This automatic software determines your network settings for you and sets up the Router for connection to your Internet Service Provider (ISP). In a matter of minutes, your Router will be up and running on the Internet. NOTE:Easy Install Wizard software is compatible with Windows 98, Me, 2000, and XP. If you are using another operating system, the Router can be set up using the Alternative Method described in this manual. Integrated 802.11g Wireless Access Point 802.11g is an exciting new wireless technology that achieves data rates up to 54Mbps, nearly five times faster than 802.11b. Integrated Parental Control Web Content Filter Belkin has teamed with Cerberian, a leading content-filtering company, to bring you this unique feature. Your Router is the first home networking solution with an integrated web content filter that allows you to block unwanted or offensive web content before it makes it to your network. Unlike other Parental Control solutions, Parental Control is built into the Belkin Router, so there is no software to install on any computer and you will never be charged a per-computer fee for the service, ever. Your Router comes with a six-month free trial of this feature so you can take advantage of the capabilities right away. No credit card is needed to use the trial. You have control: Belkin Parental Control can be modified to meet your needs. You can set up your own policies and block any website you want. There is also an optional reporting feature (fee-based) that allows you to get a report showing you every website that was visited from your network. INTRODUCTION 2 Works with Both PCs and Mac® Computers The Router supports a variety of networking environments including Mac® OS 8.x, 9.x, X v10.x, AppleTalk®, Linux®, Windows® 95, 98, Me, NT®, 2000, and XP, and others. All that is needed is an Internet browser and a network adapter that supports TCP/IP (the standard language of the Internet). Front-Panel Connected LED Display Lighted LEDs on the front of the Router indicate which functions are in operation. You’ll know at-a-glance whether your Router is connected to the Internet. This feature eliminates the need for advanced software and status- monitoring procedures. Vertical or Horizontal Desktop Application Your Router can stand vertically on the desktop to save space, or lay down flat on a shelf or under your modem. The included vertical mounting base lets you decide how to position the Router. Web-Based Advanced User Interface You can set up the Router’s advanced functions easily through your web browser, without having to install additional software onto the computer. There are no disks to install or keep track of and, best of all, you can make changes and perform setup functions from any computer on the network quickly and easily. NAT IP Address Sharing Your Router employs Network Address Translation (NAT) to share the single IP address assigned to you by your Internet Service Provider while saving the cost of adding additional IP addresses to your Internet service account. INTRODUCTION 3 SPI Firewall Your Router is equipped with a firewall that will protect your network from a wide array of common hacker attacks including IP Spoofing, Land Attack, Ping of Death (PoD), Denial of Service (DoS), IP with zero length, Smurf Attack, TCP Null Scan, SYN flood, UDP flooding, Tear Drop Attack, ICMP defect, RIP defect, and fragment flooding. Integrated 10/100 4-Port Switch The Router has a built-in, 4-port network switch to allow your wired computers to share printers, data and MP3 files, digital photos, and much more. The switch features automatic detection so it will adjust to the speed of connected devices. The switch will transfer data between computers and the Internet simultaneously without interrupting or consuming resources. Universal Plug-and-Play (UPnP) Compatibility UPnP (Universal Plug-and-Play) is a technology that offers seamless operation of voice messaging, video messaging, games, and other applications that are UPnP-compliant. Support for VPN Pass-Through If you connect to your office network from home using a VPN connection, your Router …

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A TitleSize Document Number Rev Date: Sheet of 1.0 Company C 17 Monday, January 10, 2005 TitleSize Document Number Rev Date: Sheet of 1.0 Company C 17 Monday, January 10, 2005 TitleSize Document Number Rev Date: Sheet of 1.0 Company C 17 Monday, January 10, 2005 RS232 16b20 ppm POR and SoftwareConfiguration 6. 88E60607. Ethernet Port 08. Ethernet Ports 1-4 40 MHz 88W8510H 88W8010 SWITCHES& FILTERS FLASH SDRAM POWERSUPPLIES RJ45 MAGNETICS 1. Title Page 2. 88W8510H; POR Configuration Selection 3. Power/Bypass 4. FLASH & SDRAM 5. 88W8010; RF Section 1. v1.0 First Release 10/100 BASE-TX JTAG LEDS 88E6060 RJ45 MAGNETICS 10/100 BASE-TX RJ45 MAGNETICS 10/100 BASE-TX RJ45 MAGNETICS 10/100 BASE-TX RJ45 MAGNETICS 10/100 BASE-TX MII interface WAN port (DSL/cable modem) LAN ports (wired) (PHY mode) 32b Port 0 Port 1Port 2Port 3 Port 4 Port 5 Antenna Connector Antenna Connector WLAN (802.11g Wireless)1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54Mbps Table of Contents Revision History (Any 50 Ohm connection will suffice) PROPRIETARY INFORMATION Sercomm Embeded Server Provider Sercomm Block Diagram

BelkinCorporation FederalCommunicationsCommission DearSir, We,theundersigned,herebyauthorizeExclusiveCertificationCorp.toactonourbehalfin allmattersrelatingtoapplicationforWirelessGRouter,Model:F5D7230-4,FCCIDNo.: K7SF5D7230Aauthorization,includingthesigningofalldocumentsrelatingtothese matters.AnyandallcarriedoutbyExclusiveCertificationCorp.onourbehalfshallhave thesameeffectasactsofourown. Theapplicantcertifiesthatinthecaseofanindividualapplicant(e.g.,corporation),no partytotheapplicantis subjecttoa denialoffederalbenefits,thatincludesFCCbenefits, pursuanttosection5301oftheAnti-drugabuseActof1988.21U.S.A.862.Fora definitionofa "party"forthesepurposesSee47C.F.R.1.2002(b}. By:'YY\ By:t'",C.\-\~t.LM~\4'2:.R.. (Printed) Title:EngineeringServicesManager Applicant:BelkinCorporation. Address:501WestWalnutStreet,ComptonCA90220,USA Tel:3106042478 Fax:3106042089 E-mail:[email protected] Date:March22,2005

BelkinCorporation March22,2005 FederalCommunicationsCommission AuthorizationandEvaluationDivision FCC10:K7SF5D7230A ConfidentialityRequest PursuanttoSections0.457and 0.459oftheCommission'sRules,theApplicant HerebyrequestsconfidentialtreatmentofinformationaccompanimentthisApplication Asoutlinedbelow: 1.BlockDiagram, 2.SchematicDiagram, Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesemattersmightbeharmfultothe Applicantandprovideunjustifiedbenefitstoitscompetitors. TheApplicantunderstandsthatpursuanttoRule0.457,disclosureofthisApplicationand allaccompanyingdocumentationwillnotbemadebeforethedateoftheGrantforthis application Sincerely, Title:EngineeringServicesManager Applicant:BelkinCorporation Address:501WestWalnutStreet,ComptonCA90220,USA TEL:310-604-2478 FAX:310-604-2089

Exclusive Certification Corp. 4F-2, No. 28, Lane 78, Xing-Ai Rd. Nei-hu, Taipei City 114 Taiwan R.O.C 11478284-2F Tel: 886-2-2792-3366 Fax: 886-2-2792-1100 To whom it may concern: The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart C of Part 15 of FCC rules (CFR47) regarding Wireless G Router for the Belkin Corporation model F5D7230-4. Data within this report demonstrates that the equipment tested complied with the FCC limits for intentional radiators. Exclusive Certificate Corp. (ECC), as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact ECC for assistance. Ivy Chen TEL: +886-2-2792-3366 # 204 FAX: +886-2-2792-1100 E-mail: [email protected]

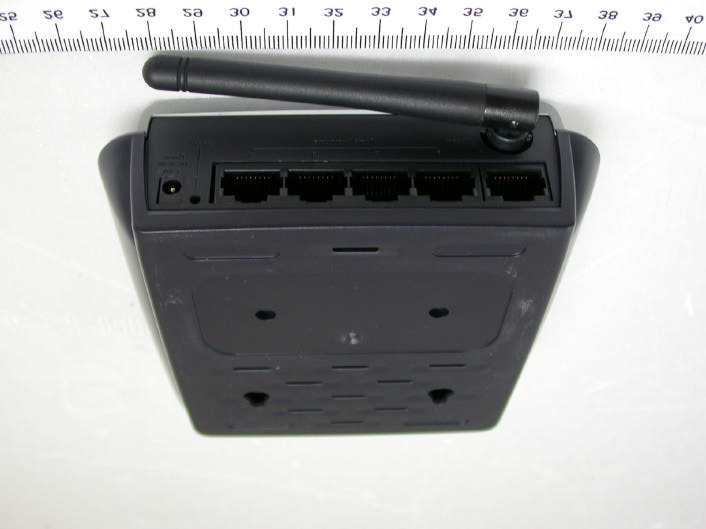

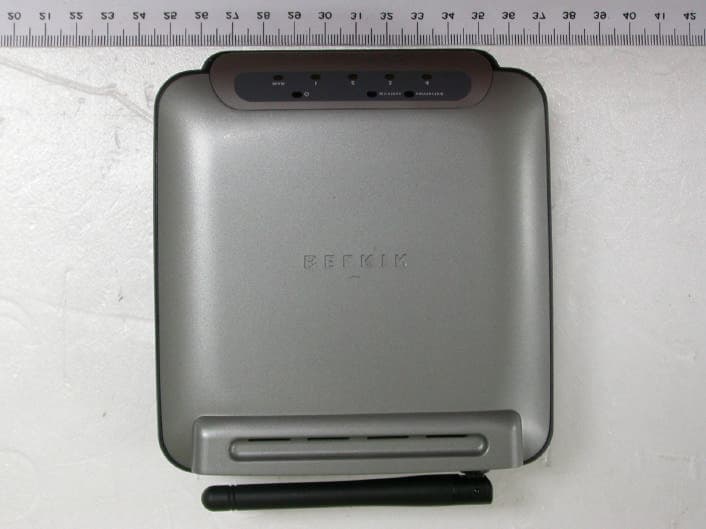

External Photos

-4

Internal Photos

F5D7230-4 Operation Principle 1. CPU, U6, 88W8510 have a 32-bit RISC processor integrated, operation frequency is 160MHz. It needs an external 40 MHz crystal for reference frequency; this crystal is also used for RF module. This chip is responsible to control RF-Baseband Transceiver (88W8010), Flash IC and LED. This chip also has MII interface integrated to communicate with 10/100 Ethernet Switch. 2. FLASH, U13, MX29LV800TTC-70, 8Mbits Flash, bottom sector, 70ns. It is used to store the normal and test firmware. 3. Integrated 2.4GHz ISM Band RF-Baseband Transceiver, U1, 88W8010 which is integrated all RF - Baseband receive and Transmit function. On- Chip PA with up to +18dBm output power in 802.11b mode and +16dBm output power in 802.11g mode for 2.4GHz ISM transmission. Fully integrated frequency synthesizers with optimized phase noise performance for OFDM applications. 4. Components: 5. Power part: There are several regulators are used on the board.U17 is used to transfer 4.5V to 3.3V U3, MVPG31 is used to transfer DC3.3V to DC1.6V U8 CM2860KIM89 is used to transfer DC3.3V to DC2.5V. 6. LED part: Internet Green 10Mbps:Blinking - receiving/ transmitting data Modem 7. Switch button, SW1, it is used to reset the 88W8510. 8.

1.1. Test Result of RF Exposure Evaluation . Product: Wireless G Router . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 2.0 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: Feb. 18, 2005 Temperature: 22 Humidity: 64 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 17.98 0.0200 06 2437 18.03 0.0200 11 2462 18.10 0.0200 Modulation Standard: IEEE 802.11g Test Date: Feb. 18, 2005 Temperature: 22 Humidity: 64 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 13.36 0.0070 06 2437 13.24 0.0070 11 2462 13.44 0.0070 The MPE is calculated as 0.0200 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 24, 2005 1 of 58 FCC ID: K7SF5D7230A FCC Test Report: FI05011203-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Laboratory Accreditation 1332 ILAC MRA † The test result refers exclusively to the test presented test model / sample., † Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. † The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Applicant Belkin Corporation Address 501 West Walnut Street, Compton CA 90220, USA Equipment Wireless G Router Model No. F5D7230-4 FCC ID K7SF5D7230A Trade Name Belkin Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 24, 2005 2 of 58 FCC ID: K7SF5D7230A FCC Test Report: FI05011203-A Contents 1. Report of Measurements and Examinations.................................................................................4 1.1. List of Measurements and Examinations............................................................................4 1.2. Antenna Requirements.....................................................................................................5 1.3. Test of Conducted Emission..............................................................................................6 1.4. Test of Radiated Emission................................................................................................8 1.5. 6dB Bandwidth.................................................................................................................9 1.6. Maximum Peak Output Power...........................................................................................9 1.7. Band Edges Measurement...............................................................................................10 1.8. Power Spectral Density....................................................................................................10 1.9. Restricted Bands of Operation..........................................................................................11 1.10. Labeling Requirement......................................................................................................11 1.11. RF Exposure...................................................................................................................12 2. Test Configuration of Equipment under Test................................................................................14 2.1. Test Mode and Test Software...........................................................................................14 2.2. Description of Test System...............................................................................................14 2.3. Connection Diagram of Test System.................................................................................15 2.4. Feature of Equipment under Test......................................................................................15 2.5. RF Module Specifications.................................................................................................16 2.6. History of this test report..................................................................................................16 3. General Information of Test........................................................................................................17 4. Test Result and Data.................................................................................................................18 4.1. Antenna Requirement......................................................................................................18 4.2. Test Result of Conducted Emission...................................................................................19 4.3. Test Result of Radiated emission......................................................................................32 4.4. 6dB Bandwidth Measurement Data...................................................................................40 4.5. Peak Output Power Measurement Data............................................................................44 4.6. Band Edges Measurement Data.......................................................................................48 4.7. Restrict band emission Measurement Data.......................................................................53 4.8. Power Spectral Density Measurement Data.......................................................................54 5. List of Measuring Equipment Used.............................................................................................58 Appendix A. Photographs of EUT........................................................................ ...............A1 ~ A6 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 24, 2005 3 of 58 FCC ID: K7SF5D7230A FCC Test Report: FI05011203-A CERTIFICATE OF COMPLIANCE according to FCC Rules and Regulations Part 15 Subpart C Applicant Belkin Corporation Address 501 West Walnut Street, Compton CA 90220, USA Equipment Wireless G Router Model No. F5D7230-4 FCC ID K7SF5D7230A I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4 The equipment was passed the test performed according to FCC Rules and Regulations Part 15 Subpart C (2003). The test was carried out on Feb. 21, 2005 at Exclusive Certification Corp. Signature Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 24, 2005 4 of 58 FCC ID: K7SF5D7230A FCC Test Report: FI05011203-A 1. Report of Measurements and Examinations 1.1. List of Measurements and Examinations FCC Rule . Description of Test Result 15.203 . Ant…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 24, 2005 25 of 58 FCC ID: K7SF5D7230A FCC Test Report: FI05011203-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 24, 2005 26 of 58 FCC ID: K7SF5D7230A FCC Test Report: FI05011203-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 24, 2005 27 of 58 FCC ID: K7SF5D7230A FCC Test Report: FI05011203-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 24, 2005 28 of 58 FCC ID: K7SF5D7230A FCC Test Report: FI05011203-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 24, 2005 29 of 58 FCC ID: K7SF5D7230A FCC Test Report: FI05011203-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 24, 2005 30 of 58 FCC ID: K7SF5D7230A FCC Test Report: FI05011203-A Test by: Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 24, 2005 31 of 58 FCC ID: K7SF5D7230A FCC Test Report: FI05011203-A 4.2.1. Photographs of Conducted Emission Test FRONT VIEW REAR VIEW

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 24, 2005 25 of 58 FCC ID: K7SF5D7230A FCC Test Report: FI05011203-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 24, 2005 26 of 58 FCC ID: K7SF5D7230A FCC Test Report: FI05011203-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 24, 2005 27 of 58 FCC ID: K7SF5D7230A FCC Test Report: FI05011203-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 24, 2005 28 of 58 FCC ID: K7SF5D7230A FCC Test Report: FI05011203-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 24, 2005 29 of 58 FCC ID: K7SF5D7230A FCC Test Report: FI05011203-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 24, 2005 30 of 58 FCC ID: K7SF5D7230A FCC Test Report: FI05011203-A Test by: Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 24, 2005 31 of 58 FCC ID: K7SF5D7230A FCC Test Report: FI05011203-A 4.2.1. Photographs of Conducted Emission Test FRONT VIEW REAR VIEW

Test Setup Photos
