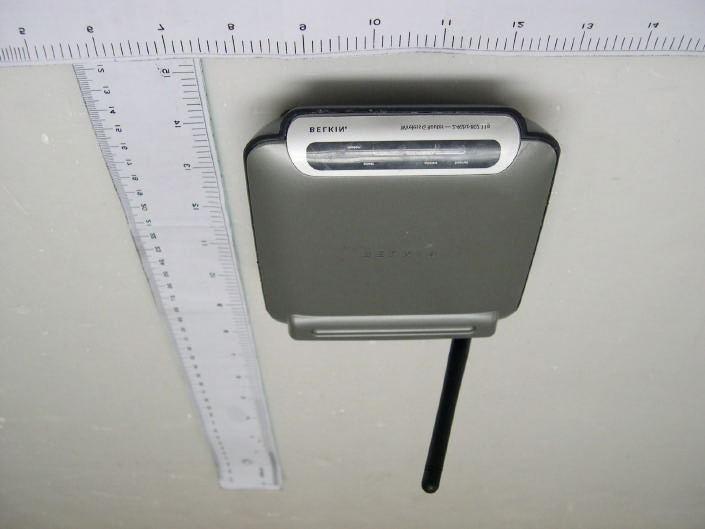

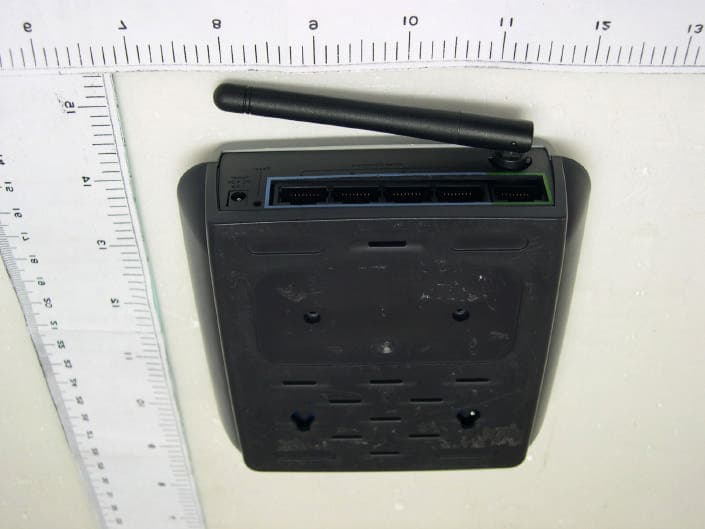

F5D7230-4 Operation Principle 1. CPU, U6, 88W8510 have a 32-bit RISC processor integrated, operation frequency is 160MHz. It needs an external 40 MHz crystal for reference frequency; this crystal is also used for RF module. This chip is responsible to control RF-Baseband Transceiver (88W8010), Flash IC and LED. This chip also has MII interface integrated to communicate with 10/100 Ethernet Switch. 2. FLASH, U13, MX29LV800CTTC-70G, 8Mbits Flash, bottom sector, 70ns. It is used to store the normal and test firmware. 3. Integrated 2.4GHz ISM Band RF-Baseband Transceiver, U1, 88W8010 which is integrated all RF - Baseband receive and Transmit function. On- Chip PA with up to +19dBm output power in 802.11b mode and +16dBm output power in 802.11g mode for 2.4GHz ISM transmission. Fully integrated frequency synthesizers with optimized phase noise performance for OFDM applications. 4. Components: 5. Power part: There are several regulators are used on the board.U4 AME8815AEBT330Z is used to transfer 4.5V to 3.3V U20,CM1117 is used to transfer DC3.3V to DC1.6V U8 CM2860KIM89 is used to transfer DC3.3V to DC2.5V. 6. LED part: Internet Green 10Mbps:Blinking - receiving/ transmitting data Modem 7. Switch button, SW1, it is used to reset the 88W8510. 8.

1.1. Test Result of RF Exposure Evaluation . Product: Wireless G Router . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 1.8 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: Dec. 20, 2005 Temperature: 24 Humidity: 58 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 18.75 0.023 06 2437 19.33 0.026 11 2462 19.37 0.026 Modulation Standard: IEEE 802.11g Test Date: Dec. 20, 2005 Temperature: 24 Humidity: 58 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 13.92 0.007 06 2437 14.68 0.009 11 2462 15.74 0.011 The MPE is calculated as 0.0 26 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limi t warning or SAR test are not required.
