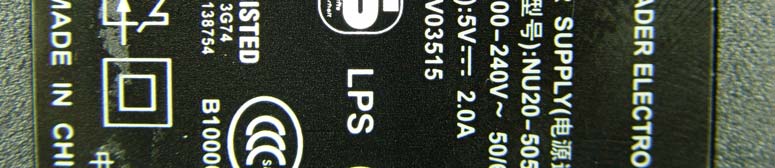

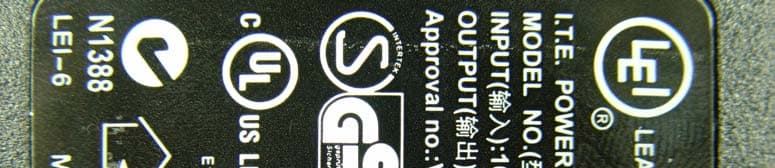

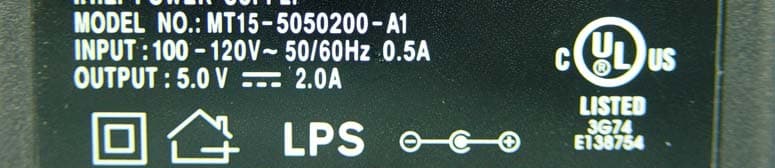

F5D7231-4P User Manual High-Speed Mode Wireless G Router with Built-In USB Print Server Table of Contents 1 2 1 3 4 5 6 7 8 9 10 11 12 section 13 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Benefits of a Home Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Advantages of a Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . .1 Placement of your Wireless G Router . . . . . . . . . . . . . . . . . . . . . . . 2 2 Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 3 Knowing your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Easy Install Wizard Software System Requirements . . . . . . . . . . . .9 4 Connecting and Configuring your Router . . . . . . . . . . . . . . . . . . . . .14 5 Configuring and Using the USB Print Server . . . . . . . . . . . . . . . . . .22 6 Alternate Setup Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 7 Using the Web-Based Advanced User Interface . . . . . . . . . . . . . . . .52 Changing LAN Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Viewing the DHCP Client List Page . . . . . . . . . . . . . . . . . . . . . . . . 55 Configuring the Wireless Network Settings . . . . . . . . . . . . . . . . . . 56 Securing your Wi-Fi Network . . . . . . . . . . . . . . . . . . . . . . . . . . . .61 WEP Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66 WPA Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68 Using the Access Point Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .76 Wireless Range Extension and Bridging . . . . . . . . . . . . . . . . . . . . 77 Configuring the Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 Setting MAC Address Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . .84 Enabling the Demilitarized Zone (DMZ) . . . . . . . . . . . . . . . . . . . . .85 Utilities Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 Restarting the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88 Updating the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 8 Manually Configuring Computer Network Settings . . . . . . . . . . . .101 9 Recommended Web Browser Settings . . . . . . . . . . . . . . . . . . . . . .107 10 Using your Router with AOL Broadband . . . . . . . . . . . . . . . . . . . .109 11 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120 12 USB Print Server FAQs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 13 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141 Table of Contents 1 2 1 3 4 5 6 7 8 9 10 11 12 section 13 Thank you for purchasing the Belkin High-Speed Mode Wireless G Router (the Router) with Built-In USB Print Server. Below are two short sections, one discusses the benefits of home networking, the other outlines best practices in order to maximize your wireless home network range and performance. Please be sure to read through this User Manual completely, and pay special attention to the section entitled “Placement of your Wireless Networking Hardware for Optimal Performance” on the next page. By following our simple setup instructions your Belkin Home Network will allow you to: • Share one high-speed Internet connection with all the computers in your home • Share a single printer with the entire family • Share resources, such as files, and hard drives among all the connected computers in your home • Share documents, music, video, and digital pictures • Store, retrieve, and copy files from one computer to another • Simultaneously play games online, check Internet e-mail, and chat Here are some of the advantages of setting up a Belkin Wireless Network: Mobility – you’ll no longer need a dedicated “computer room”— now you can work on a networked laptop or desktop computer from virtually anywhere within your wireless range Easy installation – Belkin’s Easy Installation Wizard makes setup simple Flexibility – set up and access printers, computers, and other networking devices from anywhere in your home Easy Expansion – the wide range of Belkin networking products let you expand your network to include devices such as printers and gaming consoles No cabling required – you can spare the expense and hassle of retrofitting Ethernet cabling throughout the home or office Widespread industry acceptance – choose from a wide range of interoperable networking products Introduction 2 IntroductionIntroduction 3 Introduction 2 1 3 4 5 6 7 8 9 10 11 12 section 13 Placement of your Wireless G Router Important Factors for Placement and Setup Your wireless connection will be stronger the closer your computer is to your Wireless Router or Access Point. Typical indoor operating range for your wireless devices is between 100 and 200 feet. In the same way, your wireless connection and performance will degrade somewhat as the distance between your Wireless Router or Access Point and connected devices increases. This may or may not be noticeable to you. As you move further from your Wireless Router or Access Point, connection speed may decrease. Factors that can weaken signals simply by getting in the way of your network’s radio waves are metal appliances or obstructions, and walls. If you have concerns about your network’s performance that might be related to range or obstruction factors, try moving the computer to a position between five and ten feet from the…

Text truncated - open the document above for the full version.

18 Connecting and Configuring Your RouterConnecting and Configuring Your Router 19 section 2 1 3 4 5 6 7 8 9 10 11 12 13 Step 3 Checking the Connection 3.1 Once you have completed connecting the Router, the Wizard will check the connection to the Router and then go on to determine what type of Internet connection you have. 3.2 User Name and Password Needed If you have a connection type that requires a user name and a password, the Wizard will ask you to type in your user name and password. If your connection type does not require a user name and password, you will not see this screen. Your user name and password is provided to you by your Internet Service Provider. If you have to type in a user name and password to connect to the Internet, then type that same user name and password in here. Your user name looks something like “[email protected]” or simply “jsmith”. The service name is optional and is very rarely required by your ISP. If you don’t know your service name, leave this blank. When you have entered your information, click “Next” to move on. 20 Connecting and Configuring Your RouterConnecting and Configuring Your Router 21 section 2 1 3 4 5 6 7 8 9 10 11 12 13 3.3 Wireless Setup This Step Is Optional. Click “Next” if you want to skip it. Using this step, you can customize your wireless network settings if you want to. Follow the steps on the screen to complete this step. Click “Next” to continue. Step 4 Configuring the Router The Wizard will now transfer all of the configuration information to the Router. This will take approximately one minute. During this time, do not turn off the Router or computer. The Router will restart itself at the end of this step. 4.1 Checking Internet The Wizard will now check for an Internet connection. This can take a few minutes. The Wizard may not detect a connection right away. If not, it will retry a number of times. The “Connected” light on the front panel of the Router will flash during this time. Please be patient through this process. 20 Connecting and Configuring Your RouterConnecting and Configuring Your Router 21 section 2 1 3 4 5 6 7 8 9 10 11 12 13 4.2 Finished When the Internet connection is complete, the Wizard will tell you that you are finished. The “Connected” LED on the front of the Router will be solid GREEN, indicating that the Router is now connected to the Internet. Your Router is now connected to the Internet. Now you can begin surfing the Internet by opening your browser and going to your favorite web page. Congratulations! You have finished installing your new Belkin Router. You are ready to set up the other computers in your home. You can also add computers to your Router any time you want. 22 Configuring and Using the USB Print ServerConfiguring and Using the USB Print Server 23 section 2 1 3 4 5 6 7 8 9 10 11 12 13 Connecting your printer to the Router’s print server Please closely follow the directions to set up your printer. Before you start Install the printer’s drivers and software on each computer from which you plan to print. This enables the PC to print to the networked printer (printer that is attached to your USB Print Server). Every manufacturer ships its printer with a driver and, usually, printing software. In some cases, while installing the drivers and software for your printer, you may be required to connect the PC directly to the printer in order to complete the installation. This varies according to manufacturer. You must also install the Belkin Printer Port on each of the computers you want to print from. This may be done using the Printer Server Setup Wizard, or can be done manually. Start 1. Insert the CD into your CD-ROM drive. Within 15 seconds, you should see the installation menu on the screen. If the menu does not appear within 15 seconds, select your CD-ROM drive and view the contents of the drive. Double-click on the file named “Start.exe”. 2. From the menu, click on “Run Print Server Setup Wizard”. This will open the Print Server Setup Wizard menu. 22 Configuring and Using the USB Print ServerConfiguring and Using the USB Print Server 23 section 2 1 3 4 5 6 7 8 9 10 11 12 13 3. On the Wizard menu, drag your mouse over the “Run Wizard” button and click the words “Click Here” to start the Wizard. 4. The first screen of the Wizard appears. Be sure that you have installed your printer’s drivers and software on the PCs from which you plan to print. Click “Next”. 24 Configuring and Using the USB Print ServerConfiguring and Using the USB Print Server 25 section 2 1 3 4 5 6 7 8 9 10 11 12 13 5. Next, make sure the Router is ON. Make sure the printer is ON. Plug in the USB cable that is connected to the printer to the USB port on the rear of the Router. The USB port on the Router is color-coded purple. Click “Next”. 6. The Wizard will scan for and locate the Print Server in the Router. Next, a list of the printers installed on the computer will appear. Click once on the name of the printer that is connected to the Router to highlight it. Click “Next”. 24 Configuring and Using the USB Print ServerConfiguring and Using the USB Print Server 25 section 2 1 3 4 5 6 7 8 9 10 11 12 13 7. The next screen that appears will allow you to test print. Click on the “Print Test Page” button. When your test page is finished printing, click “Next”. 8. You are now finished setting up your computer to print to the Print Server. Next, run this Wizard on the other computers on your network from which you wish to print to this printer. 26 Configuring and Using the USB Print ServerConfiguring and Using the USB Print Server 27 section 2 1 3 4 5 6 7 8 9 10 11 12 13 Manually installing the print server port Advanced users can manually install the Belkin Printer Port without using the Wizard. To do this, from the Installer menu, click “Install Printer Port Only” to skip the Wizard. Belkin has also included a standalone installer on the CD. From the CD, double-click on the file called “instportA.exe”. Configuring Computers to Pri…

Text truncated - open the document above for the full version.

28 Configuring and Using the USB Print ServerConfiguring and Using the USB Print Server 29 section 2 1 3 4 5 6 7 8 9 10 11 12 13 Using the Print Server Print Server Configuration Screen For proper operation of the Print Server, install the printer’s drivers and software on each computer from which you plan to print. The Belkin Print Server Port must also be installed on each of these computers. See page 26 of this manual for more information and instructions. The Print Server Configuration screen is the central point in the Router where you can find the printer status (ready/not ready) and make certain adjustments. See page 52 in this manual for directions to access the Advanced Web Based User Interface. Printer field (1) This line shows you the name of the printer that is connected to the Print Server and its status. Print Server Name (2) The Print Server name identifies the Print Server. If you wish, you can change it by typing in a new name such as “My Print Server” then clicking “Apply Changes”. (1) (2) (3) (4) (5) 30 Configuring and Using the USB Print ServerConfiguring and Using the USB Print Server 31 section 2 1 3 4 5 6 7 8 9 10 11 12 13 LPR Printing (3) The Belkin Printer Port uses LPR as the main printing method. Raw TCP/IP Printing (4) This feature allows clients to print to the Print Server using the standard TCP/IP printer port built into Windows XP and 2000, instead of the Belkin Port Monitor. Using Raw Printing requires that you configure all port parameters manually. It is not recommended for users unfamiliar with TCP/IP printing. FTP Printing (5) This feature enables the printer to receive print jobs sent by FTP (see “Using FTP Printing” on this page). Disabling this feature will prevent FTP jobs from printing Using FTP Printing This section describes how to send print jobs to the printer using FTP. 1. In Windows, select the printer’s properties. 30 Configuring and Using the USB Print ServerConfiguring and Using the USB Print Server 31 section 2 1 3 4 5 6 7 8 9 10 11 12 13 2. Set the printer port to “File”, click “Apply”. 3. Print the document using the printer that you configured. A dialogue box will open prompting you to name the print file. After naming the file, click “OK”. A file will be saved to the user’s default Windows directory (typically “C:\” or “C:\Documents and Settings\<user’s name>”). 32 Configuring and Using the USB Print ServerConfiguring and Using the USB Print Server 33 section 2 1 3 4 5 6 7 8 9 10 11 12 13 4. On the Windows desktop, click “Start>Run” and type in “cmd” for Windows XP and 2000 or “command” for Windows 98SE and Me; click “OK” to open a “Command/MS-DOS Prompt” window. 5. At the prompt, type “ftp” followed by the IP address of the Router (default is 192.168.2.1); press the “Enter” key to create an FTP connection with the Print Server. 6. When the connection is made, the user will be prompted to enter a user name and a password. The user name for the Print Server is “anonymous”; the password should be left blank. After a successful login, a list of the printers connected to the Print Server will appear, followed by simple usage instructions for how to print the file. 32 Configuring and Using the USB Print ServerConfiguring and Using the USB Print Server 33 section 2 1 3 4 5 6 7 8 9 10 11 12 13 7. At the prompt, type “put”, followed by the file path and file name, followed by the printer number (for example, “put c: \example printer1”). 8. The file will be sent to the Print Server. When the transfer is complete, another prompt will appear. If finished, type “quit” and press “Enter” to end the FTP session. Then, close the “Command Prompt” window. Note: FTP Printing by default is enabled in the Print Server. It can be disabled using the Router’s Web-Based Setup Interface. See page 29 for details. 34 Alternate Setup MethodAlternate Setup Method 35 section 2 1 3 4 5 6 7 8 9 10 11 12 13 The Advanced User Interface is a web-based tool that you can use to set up the Router if you don’t want to use the Easy Install Wizard. You can also use it to manage advanced functions of the Router. From the Advanced User Interface, you can perform the following tasks: • View the Router’s current settings and status. • Configure the Router to connect to your ISP with the settings that they provided you. • Change the current network settings such as the Internal IP address, the IP address pool, DHCP settings and more. • Set the Router’s firewall to work with specific applications (port forwarding). • Set up security features such as client restrictions, MAC address filtering, WEP and WPA. • Enable the DMZ feature for a single computer on your network. • Change the Router’s internal password. • Enable/Disable UPnP (Universal Plug-and-Play). • Reset the Router. • Back up your configuration settings. • Reset the Router’s default settings. • Update the Router’s firmware. Step 1 Connecting your Router 1.1 Turn off the power to your modem by unplugging the power supply from the modem. 1.2 Locate the network cable that is connected between your modem and your computer and unplug it from your computer, leaving the other end connected to your modem. 1.3 Plug the loose end of the cable you just unplugged into the green port on the back of the Router labeled “Connection to Modem”. 1.4 Connect the new blue network cable (included) from the back of the computer to one of the blue ports labeled “1–4”. Note: It does not matter which numbered port you choose. 34 Alternate Setup MethodAlternate Setup Method 35 section 2 1 3 4 5 6 7 8 9 10 11 12 13 1.5 Turn your cable or DSL modem on by reconnecting the power supply to the modem. Note: Your Router may have ports in different locations than depicted in the illustration above. 1.6 Before plugging the power cord into the Router, plug the cord into the wall, then plug the cord into the Router’s power jack. 1.7 Verify that your modem is connected to the Router by checking the lights on the front of the Router. The green light labeled “…

Text truncated - open the document above for the full version.

40 Alternate Setup MethodAlternate Setup Method 41 section 2 1 3 4 5 6 7 8 9 10 11 12 13 Setting your Connection Type From the connection type page, you can select the type of connection you use. Select the type of connection you use by clicking the button (1) next to your connection type and then clicking “Next” (2). (2) (1) 42 Alternate Setup MethodAlternate Setup Method 43 section 2 1 3 4 5 6 7 8 9 10 11 12 13 Setting your Internet Service Provider (ISP) Connection Type to Dynamic IP A dynamic connection type is the most common connection type found with cable modems. Setting the connection type to “dynamic” in many cases is enough to complete the connection to your ISP. Some dynamic connection types may require a host name. You can enter your host name in the space provided if you were assigned one. Your host name is assigned by your ISP. Some dynamic connections may require that you clone the MAC address of the PC that was originally connected to the modem. 1. Host Name This space is provided to enter a host name that needs to be visible to your ISP. Enter your host name here and click “Apply Changes” (3). If your ISP did not assign you a host name, or you are not sure, leave this blank. 2. Change WAN MAC Address If your ISP requires a specific MAC address to connect to the service, you can enter a specific MAC address or clone the current computer’s MAC address through this link. (2) (1) (3) 42 Alternate Setup MethodAlternate Setup Method 43 section 2 1 3 4 5 6 7 8 9 10 11 12 13 Setting your Internet Service Provider (ISP) Connection Type to Static IP A static IP address connection type is less common than other connection types. If your ISP uses static IP addressing, you will need your IP address, subnet mask, and ISP gateway address. This information is available from your ISP or on the paperwork that your ISP left with you. Type in your information, then click “Apply Changes” (5). After you apply the changes, the Internet Status indicator will read “connection OK” if your Router is set up properly. 1. IP Address Provided by your ISP. Enter your IP address here. 2. Subnet Mask Provided by your ISP. Enter your subnet mask here. 3. ISP Gateway Address Provided by your ISP. Enter the ISP gateway address here. 4. My ISP Provides More Than One Static IP Address If your ISP assigns you more than one static IP address, your Router is capable of handling up to five static WAN IP addresses. Select “My ISP provides more than one static IP address” and enter your additional addresses. (1) (2) (3) (4) (5) 44 Alternate Setup MethodAlternate Setup Method 45 section 2 1 3 4 5 6 7 8 9 10 11 12 13 Setting your ISP connection type to PPPoE Most DSL providers use PPPoE as the connection type. If you use a DSL modem to connect to the Internet, your ISP may use PPPoE to log you into the service. If you have an Internet connection in your home or small office that doesn’t require a modem, you may also use PPPoE. Your connection type is PPPoE if: a) Your ISP gave you a user name and password which is required to connect to the Internet b) Your ISP gave you software such as WinPOET or Enternet300 that you use to connect to the Internet or c) You have to double-click on a desktop Icon other than your browser to get on the Internet (2) (1) (6) (3) (4) (5) 44 Alternate Setup MethodAlternate Setup Method 45 section 2 1 3 4 5 6 7 8 9 10 11 12 13 1. User Name This space is provided to type in your User name that was assigned by your ISP. 2. Password Type in your password and re-type it into the “Retype Password” box to confirm it. 3. Service Name A Service name is rarely required by an ISP. If you are not sure if your ISP requires a service name, leave this blank. 4. MTU The MTU setting should never be changed unless your ISP gives you a specific MTU setting. Making changes to the MTU setting can cause problems with your Internet connection including disconnection from the Internet, slow Internet access and problems with Internet applications working properly. 5. Disconnect after X... The Disconnect feature is used to automatically disconnect the router from your ISP when there is no activity for a specified period of time. For instance, placing a checkmark next to this option and entering 5 into the minute field will cause the router to disconnect from the Internet after 5 minutes of no Internet activity. This option should be used if you pay for your Internet service by the minute. 46 Alternate Setup MethodAlternate Setup Method 47 section 2 1 3 4 5 6 7 8 9 10 11 12 13 Setting your Internet Service Provider (ISP) Connection Type to Point-to-Point Tunneling Protocol (PPTP) [European Countries Only]. Some ISPs require a connection using PPTP protocol, a type of connection most common in European countries. This sets up a direct connection to the ISP’s system. Type in the information provided by your ISP in the space provided. When you have finished, click “Apply Changes” (9). After you apply the changes, the Internet Status indicator will read “connection OK” if your Router is set up properly. 1. PPTP Account Provided by your ISP. Enter your PPTP account name here. 2. PPTP Password Type in your password and retype it into the “Retype Password” box to confirm it. 3. Host Name Provided by your ISP. Enter your host name here. (1) (2) (3) (4) (5) (6) (7) (8) (9) 46 Alternate Setup MethodAlternate Setup Method 47 section 2 1 3 4 5 6 7 8 9 10 11 12 13 4. Service IP Address Provided by your ISP. Enter your service IP address here. 5. My IP Address Provided by your ISP. Enter the IP address here. 6. My Subnet Mask Provided by your ISP. Enter the IP address here. 7. Connection ID (optional) Provided by your ISP. If your ISP did not give you a connection ID, leave this blank. 8. Disconnect after X.... The Disconnect feature is used to automatically disconnect the Router from your ISP when there is no activity for a specified period of time. For instance, placing a check mark next to this option and entering “5” into th…

Text truncated - open the document above for the full version.

68 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface 69 section 2 1 3 4 5 6 7 8 9 10 11 12 13 4. Click “Apply Changes” to finish. You must now set all clients to match these settings. Setting WPA (with radius server) Settings If your network uses a radius server to distribute keys to the clients, use this setting. 1. From the “Security Mode” drop-down menu, select “WPA—Radius Server”. 2. For Encryption Technique, select “TKIP” or “AES”. This setting will have to be identical on the clients that you set up. 3. Enter the IP address of the radius server into the “Radius Server” fields. 4. Enter the radius key into the “Radius Key” field. 5. Enter the key interval. Key interval is how often the keys are distributed (in packets). 6. Click “Apply Changes” to finish. You must now set all clients to match these settings. 70 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface 71 section 2 1 3 4 5 6 7 8 9 10 11 12 13 Configuring your Belkin Wireless G Network Cards to Use Security Please Note: This section is to provide you with the information on how to configure your Belkin Wireless G Network Cards to use security. At this point, you should already have your Wireless Router or Access Point set to use WPA or WEP. In order for you to gain a wireless connection, you will need to set your wireless notebook card and wireless desktop card to use the same security settings. Connecting your Computer to a Wireless Network that Requires a 64-bit or 128-bit WEP key: 1. Double-click the Signal Indicator icon to bring up the Wireless Network screen. The Advanced button will allow you to view and configure more options of your card. 2. Under the “Wireless Network Properties” tab, select a network name from the “Available networks” list and click “Configure”. 3. Under “Data Encryption” select “WEP”. 4. Ensure the check box “Network key is provided for me automatically” at the bottom is unchecked. If you are using this computer to connect to a corporate network, please consult your network administrator if this box needs to be checked. 5. Type your WEP key in the “Network key” box. Important: A WEP key is a mixture of numbers and letters from A–F and 0–9. For 128-bit WEP, you need to enter 26 keys. For 64-bit WEP, you need to enter 10 keys. This Network key needs to match the key you assign to your Wireless Router or Access Point. 6. Click “OK” to save the settings. 70 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface 71 section 2 1 3 4 5 6 7 8 9 10 11 12 13 Connecting your Computer to a Wireless Network that Requires WPA-PSK (no server) 1. Double-click the “Signal Indicator” icon to bring up the “Wireless Network” screen. The Advanced button will allow you to view and configure more options of your card. 2. Under the “Wireless Networks” tab, select a network name from the “Available networks” list and click “Configure”. 3. Under “Network Authentication” select “WPA-PSK (No Server)”. 4. Type your WPA key in the “Network key” box. Important: WPA-PSK is a mixture of numbers and letters from A–Z and 0–9. For WPA-PSK you can enter 8 to 63 keys. This Network key needs to match the key you assign to your Wireless Router or Access Point. 5. Click “OK” to save the settings. 72 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface 73 section 2 1 3 4 5 6 7 8 9 10 11 12 13 Connecting your Computer to a Wireless Network that Requires WPA (with radius server) 1. Double-click the Signal Indicator icon to bring up the “Wireless Network” screen. The “Advanced” button will allow you to view and configure more options of your Card. 2. Under the “Wireless Networks” tab, select a network name from the “Available networks” list and click “Configure”. 3. Under “Network Authentication” select WPA. 4. Under the “Authentication” tab, select the settings that are indicated by your network administrator. 5. Click “OK” to save the settings. 72 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface 73 section 2 1 3 4 5 6 7 8 9 10 11 12 13 Setting Up WPA for a Non-Belkin Wireless Desktop and Wireless Notebook Cards For non-Belkin WPA Wireless Desktop and Wireless Notebook Cards that are not equipped with WPA-enabled software, a file from Microsoft called “Windows XP Support Patch for Wireless Protected Access” is available for free download. Please Note: The file that Microsoft has made available works only with Windows XP. Other operating systems are not supported at this time. Important: You also need to ensure that the wireless card manufacturer supports WPA and that you have downloaded and installed the latest driver from their support site. Supported Operating Systems: • Windows XP Professional • Windows XP Home Edition 74 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface 75 section 2 1 3 4 5 6 7 8 9 10 11 12 13 Setting Up Windows XP Wireless Network Utility to Use WPA-PSK In order to use WPA-PSK, ensure you are using Windows Wireless Network Utility by doing the following: 1. Under Windows XP, click “Start > Control Panel > Network Connections”. 2. Right-click on “Wireless Network Connection”, and select “Properties”. 3. Clicking on the “Wireless Networks” tab will display the following screen. Ensure the “Use Windows to configure my wireless network settings” check box is checked. 74 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface 75 section 2 1 3 4 5 6 7 8 9 10 11 12 13 4. Under the Wireless Networks tab, click the “Configure” button, and you will see the following screen. 5. For a home or small business user, select “WPA-PSK” under “Network Authentication”. Note: Select “WPA” if you are using this computer to connect to a corporate network that supports an authentication server such as a radius server, please consult your network administrator for further information. 6. Select “TKIP” o…
