K7SF5D7632-4V5ADSL2+ Modem with Wireless G Router

2.4GHz • Wireless802.11b Ethernet E Wired Mbps 10/100 Ethernet Gigabit E Wired Mbps 10/100/1000 Gigabit Ethernet Mbps 2.4GHz • Wireless802.11g Mbps Share F5D7632uk4v3000 Network your computers and share your ADSL Internet access User Manual ADSL Modem with Wireless G Router Designed to Meet ADSL2+ Specification 2.4GHz • Wir802.11g User Manual 3 Table of Contents 3 1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Benefits of a Home Network . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Advantages of a Belkin Wireless Network . . . . . . . . . . . . . . . . . 5 2 Make Sure You Have the Following . . . . . . . . . . . . . . . . . . . . . . . 6 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Internet Connection Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 3 Knowing your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 4 Connecting your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Positioning your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Connecting your Computers . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Connecting your ADSL Line . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Powering up your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Running the Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 5 Manually Configuring Your Router . . . . . . . . . . . . . . . . . . . . . . 17 Understanding the Web-Based User Interface . . . . . . . . . . . . 17 Changing LAN Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 DHCP Client List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Internet WAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 6 Setting up your Computers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Manually Configuring Network Adapters . . . . . . . . . . . . . . . . . 69 Recommended Web Browser Settings . . . . . . . . . . . . . . . . . . 76 7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 8 Technical Support Inf ormation. . . . . . . . . . . . . . . . . . . . . . . . . . 92 9 Ap pendixes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 Appendix A: Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 Appendix B: Important Factors for Placement and Setup . . . 98 Appendix C: Internet Connection Setting Table . . . . . . . . . . 102 10 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4 3 Introduction 3 2 1 3 4 5 6 7 8 9 10 section Thank you for purchasing the Belkin ADSL Modem with Wireless G Router (the Router). In minutes you will be able to share your Internet connection and network your computers with your new Router. The following is a list of features that make your Router an ideal solution for your home or small office network. Please be sure to read through this User Manual completely, and pay special attention to Appendix B entitled “Important Factors for Placement and Setup”. Pr oduct Features Compatibility with Both PCs and Mac ® Computers The Router supports a variety of networking environments including Mac OS ® 8.x, 9.x, X v10.x, AppleTalk ® , Linux ® , Windows ® 95, 98SE, Me, NT ® , 2000, and XP, and others. You need an Internet browser and a network adapter that supports TCP/IP (the standard language of the Internet). Front-Panel LED Display Lighted LEDs on the front of the Router indicate which functions are in operation. You’ll know at-a-glance whether your Router is connected to the Internet. This feature eliminates the need for advanced software and status-monitoring procedures. Web-Based Advanced User Interface You can set up the Router’s advanced functions easily through your web browser, without having to install additional software onto the computer. There are no disks to install or keep track of and, best of all, you can make changes and perform setup functions from any computer on the network quickly and easily. Integrated 10/100 4-Port Switch The Router has a built-in, 4-port network switch to allow your wired computers to share printers, data and MP3 files, digital photos, and much more. The switch features automatic detection so it will adjust to the speed of connected devices. The switch will transfer data between computers and the Internet simultaneously without interrupting or consuming resources. 54 Introduction 54 Integrated 802.11g Wireless Access Point 802.11g is an exciting new wireless technology that achieves data rates up to 54Mbps, nearly five times faster than 802.11b. Built-In Dynamic Host Configuration Protocol (DHCP) Built-In Dynamic Host Configuration Protocol (DHCP) on-board makes for the easiest possible connection of a network. The DHCP server will assign IP addresses to each computer automatically so there is no need for a complicated networking setup. NAT IP Address Sharing Your Router employs Network Address Translation (NAT) to share the single IP address assigned to you by your Internet Service Provider while saving the cost of adding additional IP addresses to your Internet service account. SPI Firewall Your Router is equipped with a firewall that will protect your network from a wide array of common hacker attacks including IP Spoofing, Land Attack, Ping of Death (Po…

Text truncated - open the document above for the full version.

25 Manually Configuring your Router 25 section 2 1 3 4 5 6 7 8 9 10 Setting your Connection Type to Dynamic IP (1483 Bridged) This connection method bridges your network and ISP’s network together. The Router will obtain IP address automatically from your ISP’s DHCP server. 1. IP Assigned by ISP – Leave “Yes” if your ISP automatically assigns IP address. If your ISP assigned a fixed IP address, select “No” and enter assigned values. 2. VPI/VCI - Enter your Virtual Path Identifier (VPI) and Virtual Circuit Identifier (VCI) parameter here. These identifiers are assigned by your ISP. 3. Encapsulation - Select LLC or VC MUX your ISP uses. Setting your ISP Connection Type to Static IP (IPoA) This connection type is also called “Classical IP over ATM” or “CLIP”, which your ISP provides a fixed IP for your Router to connect to the Internet. 1. IP Address – Enter an IP address assigned by your ISP for the Router WAN interface. 1) 2) 3) 1) 2) 3) 2726 Manually Configuring your Router 2726 2. Subnet Mask - Enter a subnet mask assigned by your ISP. 3. Default Route - Enter a default gateway IP address. If the Router cannot find the destination address within its local network, it will forward the packets to the default gateway assigned by your ISP. 4. VPI/VCI - Enter your Virtual Path Identifier (VPI) and Virtual Circuit Identifier (VCI) parameter here. These identifiers are assigned by your ISP. 5. Encapsulation - Select LLC or VC MUX your ISP uses. Setting your Connection Type to Modem Only (Disable Internet Sharing) In this mode, the Router simply acts as a bridge passing packets across the DSL port. It requires additional software to be installed on your computers in order to access the Internet. 1. VPI/VCI - Enter your Virtual Path Identifier (VPI) and Virtual Circuit Identifier (VCI) parameter here. (Assigned by your ISP). 2. Encapsulation - Select LLC or VC MUX. (Assigned by your ISP). DNS (Domain Name Server) Settings A “Domain Name Server” is a server located on the Internet that translates Universal Resource Links (URLs) like “www.belkin.com” to IP addresses. Many ISPs do not require you to enter this information into the Router. The “Automatic from ISP” box (1) should be checked if your ISP did not give you a specific DNS address. If you are using a static IP connection type, then you may need to enter a specific DNS address and secondary DNS address for your connection to work properly. If your connection type is dynamic or PPPoE, it is likely that you do not have to enter a DNS address. 27 Manually Configuring your Router 27 section 2 1 3 4 5 6 7 8 9 10 Leave the “Automatic from ISP” box checked. To enter the DNS address settings, uncheck the “Automatic from ISP” box and enter your DNS entries in the spaces provided. Click “Apply Changes” (2) to save the settings. Using DDNS (Dynamic DNS) The DDNS service allows you to alias a dynamic IP address to a static host name in any of the many domains DynDNS.org offers, allowing your network computers to be more easily accessed from various locations on the Internet. DynDNS.org provides this service, for up to five host names, free to the Internet community. TZO.com is another alternative to DynDNS.org. DDNS service is ideal for a home website, file server, or to make it easy to access your home PC and stored files while you’re at work. Using the service can ensure that your host name always points to your IP address, no matter how often your ISP changes it. When your IP address changes, your friends and associates can always locate you by visiting yourname.dyndns.org instead! To register free for your Dynamic DNS host name, please visit http://www.dyndns.org . 2928 Manually Configuring your Router 2928 Setting up the Router’s Dynamic DNS Update Client You must register with DynDNS.org’s free update service before using this feature. Once you have your registration, follow the directions below. 1. Enter your DynDNS.org user name in the “Account / E-mail” field (1). 2. Enter your DynDNS.org password in the “Password / Key” field (2). 3. Enter the DynDNS.org domain name you set up with DynDNS.org in the “Domain Name” field (3). 4. Click “Apply Changes” to update your IP address. Whenever your IP address assigned by your ISP changes, the Router will automatically update DynDNS.org’s servers with your new IP address. You can also do this manually by clicking the “Apply Changes” button (4). Wireless The “Wireless” tab lets you make changes to the wireless network settings. From this tab, you can make changes to the wireless network name (SSID), operating channel, and encryption security settings. 29 Manually Configuring your Router 29 section 2 1 3 4 5 6 7 8 9 10 Channel and SSID 1. Changing the Wireless Network Name (SSID) To identify your wireless network, a name called the SSID (Service Set Identifier) is used. The default SSID of the Router is “belkin54g”. You can change this to anything you want to or you can leave it unchanged. If there are other wireless networks operating in your area, you will want to make sure that your SSID is unique (does not match that of another wireless network in the area). To change the SSID, type in the SSID that you want to use in the SSID field (1) and click “Apply Changes” (2). The change is immediate. If you make a change to the SSID, your wireless-equipped computers may also need to be reconfigured to connect to your new network name. Refer to the documentation of your wireless network adapter for information on making this change. 2. Using the ESSID Broadcast Feature For security purposes, you can choose not to broadcast your network’s SSID. Doing so will keep your network name hidden from computers that are scanning for the presence of wireless networks. To turn off the broadcast of the SSID, select “DISABLE” and then click “Apply Changes”. The change is immediate. Each computer now needs to be set to connect to your specific SSID; an SSID of “ANY” will no longer be accepted. Refer to the documentation of yo…

Text truncated - open the document above for the full version.

61 Manually Configuring your Router 61 section 2 1 3 4 5 6 7 8 9 10 Checking for a New Version of Firmware The “Check Firmware” (1) button allows you to instantly check for a new version of firmware. When you click the button, a new browser window will appear informing you that either no new firmware is available or that there is a new version available. If a new version is available, you will have the option to download it. Downloading a New Version of Firmware If you click the “Check Firmware” button and a new version of firmware is available, you will see a screen similar to the one below: 1. To download the new version of firmware, click “Download”. 2. A window will open that allows you to select the location where you want to save the firmware file. Select a location. You can name the file anything you want, or use the default name. Be sure to locate the file in a place where you can locate it yourself later. When you have selected the location, click “Save”. 3. When the save is complete, you will see the following window. Click “Close”. The download of the firmware is complete. To update the firmware, follow the next steps in “Updating the Router’s Firmware”. 6362 Manually Configuring your Router 6362 Updating the Router’s Firmware 1. In the “Firmware Update” page, click “Browse” (2). A window will open that allows you to select the location of the firmware update file. 2. Browse to the firmware file you downloaded. Select the file by double-clicking on the file name. 3. The “Update Firmware” box will now display the location and name of the firmware file you just selected. Click “Update”. 63 Manually Configuring your Router 63 section 2 1 3 4 5 6 7 8 9 10 4. You will be asked if you are sure you want to continue. Click “OK”. 5. You will see one more message. This message tells you that the Router may not respond for as long as one minute as the firmware is loaded into the Router and the Router is rebooted. Click “OK”. A 60-second countdown will appear on the screen. When the countdown reaches zero, the Router firmware update will be complete. The Router home page should appear automatically. If not, type in the Router’s address (default = 192.168.2.1) into the navigation bar of your browser. System Settings The “System Settings” page is where you can enter a new administrator password, set the time zone, enable remote management, and turn on and off the UPnP function of the Router. Setting or Changing the Administrator Password The Router ships with NO password entered. If you wish to add a password for greater security, you can set a password here. Write down your password and keep it in a safe place, as you will need it if you need to log into the Router in the future. It is also recommended that you set a password if you plan to use the remote management feature of your Router. 6564 Manually Configuring your Router 6564 Changing the Login Time-Out Setting The login time-out option allows you to set the period of time that you can be logged into the Router’s advanced setup interface. The timer starts when there has been no activity. For example, you have made some changes in the advanced setup interface, then left your computer alone without clicking “Logout”. Assuming the time-out is set to 10 minutes, then 10 minutes after you leave, the login session will expire. You will have to log into the Router again to make any more changes. The login time- out option is for security purposes and the default is set to 10 minutes. Note: Only one computer can be logged into the Router’s advanced setup interface at one time. Setting the Time and Time Zone The Router keeps time by connecting to a Simple Network Time Protocol (SNTP) server. This allows the Router to synchronize the system clock to the global Internet. The synchronized clock in the Router is used to record the security log and control client filtering. Select the time zone that you reside in. If you reside in an area that observes daylight saving, then place a check mark in the box next to “Automatically Adjust Daylight Saving”. The system clock may not update immediately. Allow at least 15 minutes for the Router to contact the time servers on the Internet and get a response. You cannot set the clock yourself. You now have the option to select a primary and a backup NTP server to keep your router’s clock synchronize with different NTP time servers on the Internet. Select from the drop down boxes your desire NTP server. Or simply keep it as is. 65 Manually Configuring your Router 65 section 2 1 3 4 5 6 7 8 9 10 Enabling Remote Management Before you enable this advanced feature of your Belkin Router, MAKE SURE YOU HAVE SET THE ADMINISTRATOR PASSWORD. Remote management allows you to make changes to your Router’s settings from anywhere on the Internet. There are two methods of remotely managing the Router. The first is to allow access to the Router from anywhere on the Internet by selecting “Any IP address can remotely manage the Router”. By typing in your WAN IP address from any computer on the Internet, you will be presented with a login screen where you need to type in the password of your Router. The second method is to allow a specific IP address only to remotely manage the Router. This is more secure, but less convenient. To use this method, enter the IP address you know you will be accessing the Router from in the space provided and select “Only this IP address can remotely manage the Router”. Before you enable this function, it is STRONGLY RECOMMENDED that you set your administrator password. Leaving the password empty will potentially open your Router to intrusion. The Remote Access Port is default to port 8080. You can a different port by entering a new port number for the “remote port” field. Click on the “Apply Changes” button to save your settings. 6766 Manually Configuring your Router 6766 Enabling/Disabling NAT (Network Address Translation) Note : This advanced feature should be employed by advanced users only. Bef…

Text truncated - open the document above for the full version.

F5D7632-4BlockDiagram (PAGE4) HYBRID (Page6) UART/IIC GPIO TR (Page6) JTAG ADSL LIN EIN RJ11 Circuitry XFRM 25MHz FP5003 UART HostProcessor Phy PowerSupply TENTD7200 ADSL Ethernet Transceiver (Page3) (Page 5) MARVELL 88E6060 (Page7) TNETW 1350A ANTENNA 12V DC 1A TNETW3422 SDRAM 8Mx16bit FLASH 2Mx16bit 1 6 Baseband/MAC 1 6 (PAGE5) AME8805 (PAGE5) AM1117 (PAGE5) 88E6060 Switching TXRFO RXRFI 2 USB Manageme POWER 3.3V 2.85V 2.2V 1.5V RADIO 2 12V MII 3.3V POWER Man agement 3.3V 2 2 2 RXI 2 TXI RXQ TXQ (Page8) ADSL RX_EN Subsystem TX_EN 3.3V_PABC 40MHz 2.5V1.5V 25MHz VLYNQ Interfance External Memory 125MHZRISC Bus EJTAG PA+LNA 3427 TNETW (Page8) 4 PORT ET HERNET 4x RJ45 2 2 TXRFO RXRFI 3.3V1.5V Boots 35.328MHz Operating Frequency in USA: 2412-2462 MHz Operating Frequency in Europe: 2412-2472 MHz

RF_160, Issue 01 Declaration of Authorization We Name: Belkin Corporation Address: 501 West Walnut Street City: Compton CA 90220 Country: USA Declare that: Name: Exclusive Certificate Corporation. Address: 4F-2, No. 28, Lane 78, Xing-Ai Rd., Nei-hu City: Taipei City 114 Country: Taiwan, R. O. C. is authorized to apply for Certification of the following product(s): Product description: ADSL2+ Modem with Wireless G Router Type designation: F5D7632-4 Trademark: Belkin on our behalf. Date: 2006/3/3 City: USA Name: Tac Pham Signature:

Request for non-disclosure RF_501_02 <Belkin Corporation, 501 West Walnut Street, Compton CA 90220, USA> To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for non-disclosure (FCC ID: K7SF5D7632-4v5) Reference number: F5D7632-4 Date: 2006-03-03 Dear FCC TCB, Persuant to 47 CFR Section 0.459(a) & (b), <Belkin Corporation> hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: (K7SF5D7632-4v5) a. Schematic diagrams b. Operational description Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. < Belkin Corporation > understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Name: Tac Pham Signature:

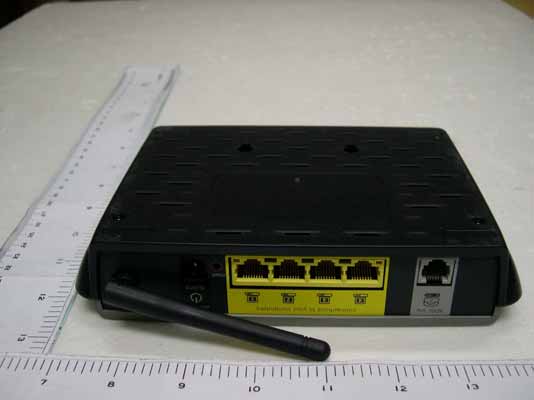

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 03, 2006 1 of 7 FCC Test Report: FI06020901-A Appendix A. Photographs of EUT 06020901-A 06020901-A

v5 Location:

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 03, 2006 2 of 7 FCC Test Report: FI06020901-A 06020901-A 06020901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 03, 2006 3 of 7 FCC Test Report: FI06020901-A 06020901-A 06020901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 03, 2006 4 of 7 FCC Test Report: FI06020901-A ADS18B-W 06020901-A 06020901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 03, 2006 5 of 7 FCC Test Report: FI06020901-A 06020901-A 06020901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 03, 2006 6 of 7 FCC Test Report: FI06020901-A DSA-0131F-12 06020901-A 06020901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 03, 2006 7 of 7 FCC Test Report: FI06020901-A 06020901-A 06020901-A

1.1. Test Result of RF Exposure Evaluation . Product: ADSL2+ Modem with Wireless G Router . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 2 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance of 20 cm Modulation Standard: IEEE 802.11b Test Date: Mar. 21, 2006 Temperature: 24 Humidity: 68 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 22.45 0.0550 06 2437 24.24 0.0840 11 2462 22.10 0.0510 Modulation Standard: IEEE 802.11g Test Date: Mar. 21, 2006 Temperature: 24 Humidity: 68 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 20.80 0.0380 06 2437 23.69 0.0740 11 2462 20.38 0.0340 The MPE is calculated as 0.0840 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For 2412-2462 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 03, 2006 1 of 75 FCC Test Report: FI06020901-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Laboratory Accreditation 1332 ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Applicant Belkin Corporation Address 501 West Walnut Street, Compton CA 90220, USA Equipment ADSL2+ Modem with Wireless G Router Model No. F5D7632-4 FCC ID K7SF5D7632-4v5 Trade Name Belkin Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 03, 2006 2 of 75 FCC Test Report: FI06020901-A Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test............................................................................................... 6 2.2 RF Specifications ....................................................................................................................... 6 2.3 Test Mode and Test Software..................................................................................................... 7 2.4 Description of Test System......................................................................................................... 7 2.5 Connection Diagram of Test System..........................................................................................8 2.6 General Information of Test........................................................................................................ 9 2.7 History of this test report ............................................................................................................ 9 3. Antenna Requirements.....................................................................................................................10 3.1 Standard Applicable .................................................................................................................10 3.2 Antenna Construction and Directional Gain............................................................................. 10 4. Test of Conducted Emission............................................................................................................ 11 4.1 Test Limit .................................................................................................................................. 11 4.2 Test Procedures ....................................................................................................................... 11 4.3 Typical Test Setup ....................................................................................................................12 4.4 Measurement equipment .........................................................................................................12 4.5 Test Result and Data................................................................................................................13 4.6 Test Photographs .....................................................................................................................19 5. Test of Radiated Emission ...............................................................................................................20 5.1 Test Limit ..................................................................................................................................20 5.2 Test Procedures .......................................................................................................................21 5.3 Typical Test Setup ....................................................................................................................22 5.4 Measurement equipment .........................................................................................................22 5.5 Test Result and Data................................................................................................................23 5.6 Test Photographs .....................................................................................................................55 6. 6dB Bandwidth Measurement Data .................................................................................................56 6.1 Test Limit ................................................................................................................. .................56 6.2 Test Procedures .......................................................................................................................56 6.3 Test Setup Layout ....................................................................................................................56 6.4 Measurement equipment .........................................................................................................56 6.5 Test Result and Data................................................................................................................56 7. Maximum Peak Output Power .........................................................................................................60 7.1 Test Limit ..................................................................................................................................60 7.2 Test Procedures ....................................................................................…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 03, 2006 19 of 75 FCC Test Report: FI06020901-A 4.6 Test Photographs Front View Rear View Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 03, 2006 55 of 75 FCC Test Report: FI06020901-A 5.6 Test Photographs Front View Rear View
