K7SF5D8011N1 Wireless Notebook Card

Belkin International, Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Apr 27, 2006
Application Purpose: Original Equipment
Date of Application: Apr 27, 2006
Equipment Note: N1 Wireless Notebook Card
Frequency Range: 2412.00000000 - 2462.00000000
Company: Belkin International, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

` Page 1 of 36 N1 Wireless Notebook Card Connect your notebook computer to a wireless network User Manual F5D8011 Introduction Thank you for purchasing the Belkin N1 Wireless Notebook Card. Now you can take advantage of this great new technology and gain the freedom to network your home and office computers wirelessly. This Card allows you to connect a notebook computer to your network. Please be sure to read through this User Manual completely, and pay special attention to the section entitled “Placement of your Wireless Networking Hardware for Optimal Performance”. Benefits of a Home Network Your Belkin Home Network will allow you to: • Share one high-speed Internet connection with all the computers in your home • Share resources, such as files, and hard drives among all the connected computers in your home • Share a single printer with the entire family • Share documents, music, video, and digital pictures • Store, retrieve, and copy files from one computer to another • Simultaneously play games online, check Internet email, and chat Advantages of a Wireless Network • Mobility –you’ll no longer need a dedicated “computer room”—now you can work on a networked laptop or desktop computer anywhere within your wireless range • Easy installation – Belkin Easy Installation Wizards make setup simple • Flexibility – set up and access printers, computers, and other networking devices from anywhere in your home F5D8011 Page 2 of 36 • Easy expansion – the wide range of Belkin networking products let you expand your network to include devices such as printers and gaming consoles • No cabling required – you can spare the expense and hassle of retrofitting Ethernet cabling throughout the home or office • Widespread industry acceptance – choose from a wide range of interoperable networking products Placement of your Wireless Networking Hardware for Optimal Performance Your wireless connection will be stronger the closer your computer is to your wireless router (or access point). Typical indoor operating range for your wireless devices is between 100 and 200 feet. In the same way, your wireless connection and performance will degrade somewhat as the distance between your wireless router (or access point) and connected devices increases. This may or may not be noticeable to you. As you move farther from your wireless router (or access point), connection speed may decrease. Factors that can weaken signals simply by getting in the way of your network’s radio waves are metal appliances or obstructions, and walls. If you have concerns about your network’s performance that might be related to range or obstruction factors, try moving the computer to a position between five and 10 feet from the wireless router (or access point) in order to see if distance is the problem. If difficulties persist even at close range, please contact Belkin Technical Support. Note: While some of the items listed below can affect network performance, they will not prohibit your wireless network from functioning; if you are concerned that your network is not operating at its maximum effectiveness, this checklist may help. 1. Placement of your Wireless Router (or Access Point) Place your wireless router (or access point), the central connection point of your network, as close as possible to the center of your wireless network devices. To achieve the best wireless network coverage for your “wireless clients,” (i.e. computers enabled by Belkin Wireless Notebook Cards, Wireless Desktop Cards, and Wireless USB Adapters): • Ensure that your wireless router’s (or access point’s) antennas are parallel to each other, and are positioned vertically (toward the ceiling). If your wireless router (or access point) itself is positioned vertically, point the antennas as much as possible in an upward direction. • In multistory homes, place the wireless router (or access point) on a floor that is as close to the center of the home as possible. This may mean placing the wireless router (or access point) on an upper floor. F5D8011 Page 3 of 36 • Try not to place the wireless router (or access point) near a cordless 2.4GHz phone. 2. Avoid Obstacles and Interference Avoid placing your wireless router (or access point) near devices that may emit radio “noise”, such as microwave ovens. Other objects that can inhibit wireless communication can include: • Refrigerators • Washers and/or dryers • Metal cabinets • Large aquariums • Metallic-based, UV-tinted windows If your wireless signal seems weak in some spots, make sure that objects such as these are not blocking the signal’s path between your computers and wireless router (or access point). 3. Cordless Phone Placement If the performance of your wireless network is impaired after attending to the above issues, and you have a cordless phone: • Try moving cordless phones away from the wireless router (or access point) and your wireless-enabled computers. • Unplug and remove the battery from any cordless phone that operates on the 2.4GHz band (check manufacturer’s information). If this fixes the problem, your phone may be interfering. • If your phone supports channel selection, change the channel on the phone to the farthest channel from your wireless network as possible. For example, change the phone to channel 1 and move your wireless router (or access point) to channel 11. (Your channel selection will vary depending on your region.) See your phone’s user manual for detailed instructions. • If necessary, consider switching to a 900MHz or 5GHz cordless phone. 4. Choose the “Quietest” Channel for your Wireless Network In locations where homes or offices are close together, such as apartment buildings or office complexes, there may be wireless networks nearby that can conflict with yours. Use the Site Survey capabilities of your Belkin Wireless F5D8011 Page 4 of 36 Networking Utility to locate any other wireless networks, and move your wireless router (or access point) and computers to a channel as far away fr…

Text truncated - open the document above for the full version.

Cover Letter(s)

BELKINe 501W.WalnutStreet- Compton- California90220USA FCCID:K7SF5D8011 Date:April27,2006 FEDERALCOMMUNICATIONSCOMMISSION AuthorizationandEvaluationDivision ConfidentialitvReauest PursuanttoSections0.457and0.459oftheCommission'sRules,theapplicanthereby requestsconfidentialtreatmentofinformationaccompanyingthisapplicationasoutlined below: Schematics BlockDiagram Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarily releasedtothepublic.Thepublicdisclosureof thesemattersmightbeharmfultothe applicantandprovideunjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoRule0.457,disclosureof thisapplicationand allaccompanyingdocumentationwillnotbemadebeforethedateof thegrantforthis application. Sincerely, TacPham/ Int'lRegulatoryComplianceManager BelkinCorporation TEL:310-604-2448 FAX:310-604-2220 E-mail:[email protected] F5D8011.FCCConfidentiality

Cover Letter(s)

BELKIN"501W.WalnutStreet- Compton- California90220USA AGENCYAUTHORIZATIONLETTER FCCID:K7SF5D8011 Date:April27,2006 Towhomit mayconcern: We,theundersigned,herebyauthorizeAdvanceDataTechnologyCorp.(ADT)of Taiwantoactonourbehalf,asouragent,in thefollowingmattersrelatedtotheFCC approvalofourproducts:reportsubmittal,relatedcorrespondence,thesigningofall documentsrelatingtothesematters,andanyotherlawfulactivitynecessaryto obtainsuchcertification.AnyactcarriedoutbyADTwithinthescopeofthis authorizationshallhavethesameeffectsasourown. Thisauthorizationshallexpire6 monthsfromoriginaldate.If youhaveanyquestions regardingtheauthorization,pleasedon'thesitatetocontactus. Thankyou. Sincerely, TacPham/ Int'IRegulatoryComplianceManager BelkinCorporation TEL:310-604-2448 FAX:310-604-2220 E-mail: [email protected] F5D8011-FCCPOA

External Photos

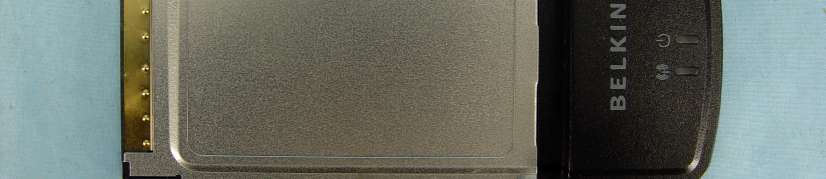

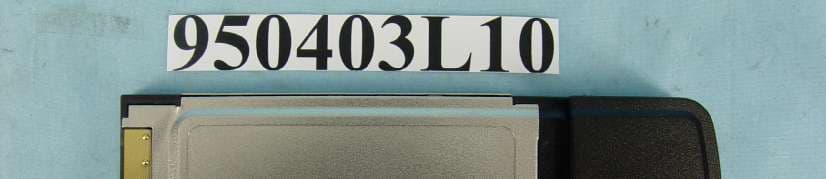

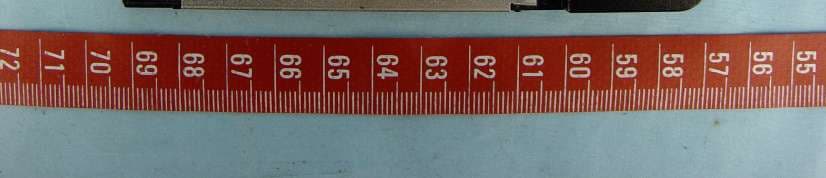

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Internal Photos

Page 1 Page 2 Page 3 Page 4

Operational Description

FCC ID: K7SF5D8011 Report No.: RF950403L10 OPERATIONAL DESCRIPTION This device is a N1 Wireless Notebook Card, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is PIFA antenna without connector. For more detailed instruction, please take a look at the user’s manual.

RF Exposure Info

A - 1 APPENDIX A: TEST DATA Liquid Level Photo MSL 2450MHz D=152mm A - 2 Date/Time: 2006/4/26 13:16:52 Test Laboratory: Advance Data Technology N6000-11b-CH1-Mode 1 DUT: N1 Wireless Notebook Card ; Type: F5D8011 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.95 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : PIFA Antenna ; Air temp. : 23.2 degrees ; Liquid temp. : 22.1 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 Low Channel 1/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.565 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.1 V/m Peak SAR (extrapolated) = 1.72 W/kg SAR(1 g) = 0.591 mW/g; SAR(10 g) = 0.299 mW/g Maximum value of SAR (measured) = 0.640 mW/g A - 3 Date/Time: 2006/4/26 13:36:17 Test Laboratory: Advance Data Technology N6000-11b-CH6-Mode 1 DUT: N1 Wireless Notebook Card ; Type: F5D8011 ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.98 mho/m; ε r = 51.4; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : PIFA Antenna ; Air temp. : 23.2 degrees ; Liquid temp. : 22.1 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 Mid Channel 6/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.816 mW/g Mid Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.8 V/m Peak SAR (extrapolated) = 1.86 W/kg SAR(1 g) = 0.783 mW/g; SAR(10 g) = 0.399 mW/g Maximum value of SAR (measured) = 0.909 mW/g A - 4 A - 5 Date/Time: 2006/4/26 14:01:36 Test Laboratory: Advance Data Technology N6000-11b-CH11-Mode 1 DUT: N1 Wireless Notebook Card ; Type: F5D8011 ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 2.02 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : PIFA Antenna ; Air temp. : 23.2 degrees ; Liquid temp. : 22.1 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 High Channel 11/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.596 mW/g High Channel 11/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.7 V/m Peak SAR (extrapolated) = 1.31 W/kg SAR(1 g) = 0.574 mW/g; SAR(10 g) = 0.307 mW/g Maximum value of SAR (measured) = 0.653 mW/g A - 6 Date/Time: 2006/4/26 14:25:51 Test Laboratory: Advance Data Technology N6000-11g-CH1-Mode 2 DUT: N1 Wireless Notebook Card ; Type: F5D8011 ; Test Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.95 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : PIFA Antenna ; Air temp. : 23.2 degrees ; Liquid temp. : 22.1 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 Low Channel 1/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.299 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.2 V/m Peak SAR (extrapolated) = 0.525 W/kg SAR(1 g) = 0.279 mW/g; SAR(10 g) = 0.151 mW/g Maximum value of SAR (measured) = 0.302 mW/g A - 7 Date/Time: 2006/4/26 14:43:52 Test Laboratory: Advance Data Technology N6000-11g-CH6-Mode 2 DUT: N1 Wireless Notebook Card ; Type: F5D8011 ; Test Frequency: 2437 MHz Communication System: 802.11g ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.98 mho/m; ε r = 51.4; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : PIFA Antenna ; Air temp. : 23.2 degrees ; Liquid temp. : 22.1 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement …

Text truncated - open the document above for the full version.

RF Exposure Info

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION D4: SYSTEM VALIDATION DIPOLE D4：DAE3 (Cal Date：August 17.2005) APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

RF Exposure Info

Report no.: SA950403L101Report Format Version 2.0.3 SAR TEST REPORT REPORT NO.: SA950403L10 MODEL NO.: F5D8011 RECEIVED: Apr. 24, 2006 TESTED: Apr. 26, 2006 ISSUED: Apr. 28, 2006 APPLICANT: Belkin Corporation ADDRESS: 501 West Walnut Avenue, Compton, CA 90220, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 41 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report no.: SA950403L102Report Format Version 2.0.3 TABLE OF CONTENTS 1.CERTIFICATION..................................................................................................................3 2.GENERAL INFORMATION...................................................................................................4 2.1GENERAL DESCRIPTION OF EUT................................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS..................................................5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM........................................................7 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION......................10 3.DESCRIPTION OF SUPPORT UNITS................................................................................14 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS..............................................15 4.1.DESCRIPTION OF ANTENNA LOCATION...................................................................15 4.2.DESCRIPTION OF ASSESSMENT POSITION.............................................................16 4.3.DESCRIPTION OF TEST MODE..................................................................................17 4.4.SUMMARY OF TEST RESULTS...................................................................................17 5.TEST RESULTS.................................................................................................................19 5.1TEST PROCEDURES..................................................................................................19 5.2MEASURED SAR RESULTS........................................................................................21 5.3SAR LIMITS.................................................................................................................25 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS...........................................................26 5.5TEST EQUIPMENT FOR TISSUE PROPERTY............................................................28 6.SYSTEM VALIDATION.......................................................................................................29 6.1TEST EQUIPMENT......................................................................................................29 6.2TEST PROCEDURE.....................................................................................................30 6.3VALIDATION RESULTS................................................................................................32 6.4SYSTEM VALIDATION UNCERTAINTIES....................................................................33 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES....................................................34 7.1.PROBE CALIBRATION UNCERTAINTY.......................................................................34 7.2.ISOTROPY UNCERTAINTY.........................................................................................35 7.3.BOUNDARY EFFECT UNCERTAINTY.........................................................................35 7.4.PROBE LINEARITY UNCERTAINTY............................................................................36 7.5.READOUT ELECTRONICS UNCERTAINTY................................................................36 7.6.RESPONSE TIME UNCERTAINTY..............................................................................36 7.7.INTEGRATION TIME UNCERTAINTY..........................................................................37 7.8.PROBE POSITIONER MECHANICAL TOLERANCE....................................................38 7.9.PROBE POSITIONING.................................................................................................38 7.10.PHANTOM UNCERTAINTY.........................................................................................39 7.11.DASY4 UNCERTAINTY BUDGET................................................................................40 8.INFORMATION ON THE TESTING LABORATORIES.........................................................41 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report no.: SA950403L103Report Format Version 2.0.3 1. CERTIFICATION PRODUCT: N1 Wireless Notebook Card MODEL: F5D8011 BRAND: Belkin APPLICANT: Belkin Corporation TESTED : Apr. 26, 2006 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS:FCC Part 2 (Section 2.1093), RSS-102 FCC OET Bulletin 65, Supplement C (01-01) The above equipment have been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Apr. 28, 2006 Rennie Wang TECHNICAL ACCEPTANCE:, DATE:Apr. 28, 2006 Responsible for RF Stanely Hsu APPROVED BY : , DATE: Apr. 28, 2006 Gary Chang / Supervisor Report no.: SA950403L104Report Format Version 2.0.3 2. GENERAL IN…

Text truncated - open the document above for the full version.

Test Report

Report No.: RF950403L101Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950403L10 MODEL NO.: F5D8011 RECEIVED: Apr. 24, 2006 TESTED: Apr. 25, ~ Apr. 26, 2006 ISSUED: Apr. 28, 2006 APPLICANT: Belkin Corporation ADDRESS: 501 West Walnut Avenue, Compton, CA 90220, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 113 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950403L102Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION ........................................................................................................................ 4 2.SUMMARY OF TEST RESULTS................................................................................................ 5 2.1 MEASUREMENT UNCERTAINTY ............................................................................................. 5 3.GENERAL INFORMATION ........................................................................................................ 6 3.1GENERAL DESCRIPTION OF EUT........................................................................................... 6 3.2DESCRIPTION OF TEST MODES............................................................................................. 7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST........................................................................ 7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................................ 8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................................... 10 3.4DESCRIPTION OF SUPPORT UNITS..................................................................................... 10 4.TEST TYPES AND RESULTS ...................................................................................................11 4.1CONDUCTED EMISSION MEASUREMENT............................................................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT .........................................................11 4.1.2TEST INSTRUMENTS ..............................................................................................................11 4.1.3TEST PROCEDURES .............................................................................................................. 12 4.1.4DEVIATION FROM TEST STANDARD .................................................................................... 12 4.1.5TEST SETUP ........................................................................................................................... 13 4.1.6EUT OPERATING CONDITIONS............................................................................................. 13 4.1.7TEST RESULTS ....................................................................................................................... 14 4.2RADIATED EMISSION MEASUREMENT................................................................................ 32 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ............................................................. 32 4.2.2TEST INSTRUMENTS ............................................................................................................. 33 4.2.3TEST PROCEDURES .............................................................................................................. 34 4.2.4DEVIATION FROM TEST STANDARD .................................................................................... 34 4.2.5TEST SETUP ........................................................................................................................... 35 4.2.6EUT OPERATING CONDITIONS............................................................................................. 35 4.2.7TEST RESULTS ....................................................................................................................... 36 4.36dB BANDWIDTH MEASUREMENT ....................................................................................... 51 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT.................................................................... 51 4.3.2TEST INSTRUMENTS ............................................................................................................. 51 4.3.3TEST PROCEDURE ................................................................................................................ 51 4.3.4DEVIATION FROM TEST STANDARD .................................................................................... 51 4.3.5TEST SETUP ........................................................................................................................... 52 4.3.6EUT OPERATING CONDITIONS............................................................................................. 52 4.3.7TEST RESULTS ....................................................................................................................... 53 4.4MAXIMUM PEAK OUTPUT POWER ....................................................................................... 69 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ....................................... 69 4.4.2INSTRUMENTS........................................................................................................................ 69 4.4.3TEST PROCEDURES .............................................................................................................. 69 Report No.: RF950403L103Report Format Version 2.0.4 4.4.4DEVIATION FROM TEST STANDARD .....................................................................…

Text truncated - open the document above for the full version.

Test Report

Report No.: RF950403L1081Report Format Version 2.0.4 FOR CHAIN 1: CH 1 CH 6 Report No.: RF950403L1082Report Format Version 2.0.4 CH 11 Report No.: RF950403L1083Report Format Version 2.0.4 DRAFT 802.11n (20MHz) OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 7.2Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg.C, 65% RH, 991hPa TESTED BY Brad Wu RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz ) CHAIN 0CHAIN 1 MAXIMUM LIMIT (dBm) PASS / FAIL 12412-12.24-12.388PASS 62437-10.56-10.988PASS 112462-11.86-11.958PASS FOR CHAIN 0: CH 1 Report No.: RF950403L1084Report Format Version 2.0.4 CH 6 CH 11 Report No.: RF950403L1085Report Format Version 2.0.4 FOR CHAIN 1: CH 1 CH 6 Report No.: RF950403L1086Report Format Version 2.0.4 CH 11 Report No.: RF950403L1087Report Format Version 2.0.4 DRAFT 802.11n (40MHz) OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 15.0Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg.C, 65% RH, 991hPa TESTED BY Brad Wu RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz ) CHAIN 0CHAIN 1 MAXIMUM LIMIT (dBm) PASS / FAIL 12422-13.93-14.138PASS 42437-11.72-11.828PASS 72452-13.94-14.128PASS FOR CHAIN 0: CH 1 Report No.: RF950403L1088Report Format Version 2.0.4 CH 4 CH 7 Report No.: RF950403L1089Report Format Version 2.0.4 FOR CHAIN 1: CH 1 CH 4 Report No.: RF950403L1090Report Format Version 2.0.4 CH 7 Report No.: RF950403L1091Report Format Version 2.0.4 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO.SERIAL NO.CALIBRATED UNTIL R&S SPECTRUM ANALYZER FSEK30100049Aug. 14, 2006 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF950403L1092Report Format Version 2.0.4 4.6.3 TEST PROCEDURE a. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3 meter semi-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. b. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. c. The antenna is a broadband antenna, and its height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. d. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the rotatable table was turned from 0 degrees to 360 degrees to find the maximum reading. e. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100MHz bandwidth from band edge. The band edges was measured and recorded. The spectrum plots (Peak RBW = VBW = 100kHz; Average RBW = 1MHz, VBW = 10Hz) NOTE: The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and the video bandwidth is 1kHz for Average detection (AV) at frequency above 1GHz. 4.6.4 DEVIATION FROM TEST STANDARD No deviation 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 Report No.: RF950403L1093Report Format Version 2.0.4 4.6.6 TEST RESULTS The spectrum plots are attached on the following 24 images. D1 line indicates the highest level, and D2 l…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jay TU(Manager, Regulatory Compliance)

[email protected]310-633-9309Fax: none

Technical Contact

Advance Data Technology Corporation (Hwa Ya)Gary Chang

[email protected]886-3-3183232

No. 19, Hwa Ya 2nd Rd., Kwei Shan Hsiang · Taoyuan Hsien · Taiwan

Non-Technical Contact

Advance Data Technology CorporationEllis Wu

[email protected]886-3-3183232

Test Firm

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchRichard Chen

[email protected]886-3-3183232Fax: 886-3-2115834

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	203.00 mW

Confidentiality

Long Term

Grant Notes

Power listed is the maximum combined conducted output power. Device is an integral antenna draft 802.11n CardBus card operating in a 2x3 Spatial Multiplexing MIMO configuration as described in this filing. SAR compliance has been established in the laptop computer(s) CardBus slot configurations as tested in this filing, and can be used in laptop computers with substantially similar physical dimensions, construction, and electrical and RF characteristics. Compliance of this device in all final host configurations is the responsibility of the Grantee. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within a host device. The highest reported body SAR value is: 0.783 W/kg.
