K7SF5D8071N1 Wireless ExpressCard

` Page 1 of 36 N1 Wireless ExpressCard Connect your notebook computer to a wireless network User Manual F5D8071 Introduction Thank you for purchasing the Belkin N1 Wireless ExpressCard. Now you can take advantage of this great new technology and gain the freedom to network your home and office computers wirelessly. This Adapter allows you to connect a notebook computer to your network. Please be sure to read through this User Manual completely, and pay special attention to the section entitled “Placement of your Wireless Networking Hardware for Optimal Performance”. Benefits of a Home Network Your Belkin Home Network will allow you to: • Share one high-speed Internet connection with all the computers in your home • Share resources, such as files, and hard drives among all the connected computers in your home • Share a single printer with the entire family • Share documents, music, video, and digital pictures • Store, retrieve, and copy files from one computer to another • Simultaneously play games online, check Internet email, and chat Advantages of a Wireless Network • Mobility –you’ll no longer need a dedicated “computer room”—now you can work on a networked laptop or desktop computer anywhere within your wireless range • Easy installation – Belkin Easy Installation Wizards make setup simple • Flexibility – set up and access printers, computers, and other networking devices from anywhere in your home N1 Wireless ExpressCard_Revised_20061016 by ADT Page 2 of 36 • Easy expansion – the wide range of Belkin networking products let you expand your network to include devices such as printers and gaming consoles • No cabling required – you can spare the expense and hassle of retrofitting Ethernet cabling throughout the home or office • Widespread industry acceptance – choose from a wide range of interoperable networking products Placement of your Wireless Networking Hardware for Optimal Performance Your wireless connection will be stronger the closer your computer is to your wireless router (or access point). Typical indoor operating range for your wireless devices is between 100 and 200 feet. In the same way, your wireless connection and performance will degrade somewhat as the distance between your wireless router (or access point) and connected devices increases. This may or may not be noticeable to you. As you move farther from your wireless router (or access point), connection speed may decrease. Factors that can weaken signals simply by getting in the way of your network’s radio waves are metal appliances or obstructions, and walls. If you have concerns about your network’s performance that might be related to range or obstruction factors, try moving the computer to a position between five and 10 feet from the wireless router (or access point) in order to see if distance is the problem. If difficulties persist even at close range, please contact Belkin Technical Support. Note: While some of the items listed below can affect network performance, they will not prohibit your wireless network from functioning; if you are concerned that your network is not operating at its maximum effectiveness, this checklist may help. 1. Placement of your Wireless Router (or Access Point) Place your wireless router (or access point), the central connection point of your network, as close as possible to the center of your wireless network devices. To achieve the best wireless network coverage for your “wireless clients,” (i.e. computers enabled by Belkin Wireless ExpressCards, Wireless ExpressCards, and Wireless USB Adapters): • Ensure that your wireless router’s (or access point’s) antennas are parallel to each other, and are positioned vertically (toward the ceiling). If your wireless router (or access point) itself is positioned vertically, point the antennas as much as possible in an upward direction. • In multistory homes, place the wireless router (or access point) on a floor that is as close to the center of the home as possible. This may mean placing the wireless router (or access point) on an upper floor. N1 Wireless ExpressCard_Revised_20061016 by ADT Page 3 of 36 • Try not to place the wireless router (or access point) near a cordless 2.4GHz phone. 2. Avoid Obstacles and Interference Avoid placing your wireless router (or access point) near devices that may emit radio “noise”, such as microwave ovens. Other objects that can inhibit wireless communication can include: • Refrigerators • Washers and/or dryers • Metal cabinets • Large aquariums • Metallic-based, UV-tinted windows If your wireless signal seems weak in some spots, make sure that objects such as these are not blocking the signal’s path between your computers and wireless router (or access point). 3. Cordless Phone Placement If the performance of your wireless network is impaired after attending to the above issues, and you have a cordless phone: • Try moving cordless phones away from the wireless router (or access point) and your wireless-enabled computers. • Unplug and remove the battery from any cordless phone that operates on the 2.4GHz band (check manufacturer’s information). If this fixes the problem, your phone may be interfering. • If your phone supports channel selection, change the channel on the phone to the farthest channel from your wireless network as possible. For example, change the phone to channel 1 and move your wireless router (or access point) to channel 11. (Your channel selection will vary depending on your region.) See your phone’s user manual for detailed instructions. • If necessary, consider switching to a 900MHz or 5GHz cordless phone. 4. Choose the “Quietest” Channel for your Wireless Network In locations where homes or offices are close together, such as apartment buildings or office complexes, there may be wireless networks nearby that can conflict with yours. Use the Site Survey capabilities of your Belkin Wireless N1 Wireless ExpressCard_Revised_20061016 by ADT Page 4 of 36 Networking Utility to locate an…

Text truncated - open the document above for the full version.

Belkin Corporation 501 West Walnut Avenue Compton, CA 90220 TEL : 310-604-2303, FAX : 310-631-3629 FCC ID: K7SF5D8071 Date: 13.10.2006 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: Schematics Bills of Material Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Marc S. Matejka / Manager Belkin Corporation TEL: 310 604-2448 FAX: 310 898 1107 E-mail: [email protected]

Belkin Corporation 501 West Walnut Avenue Compton, CA 90220 TEL : 310-604-2303, FAX : 310-631-3629 AGENCY AUTHORIZATION LETTER FCC ID: K7SF5D8071 Date: 13.10.2006 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Marc S. Matejka / Manager Belkin Corporation TEL: 310 604-2448 FAX: 310 898 1107 E-mail: [email protected]

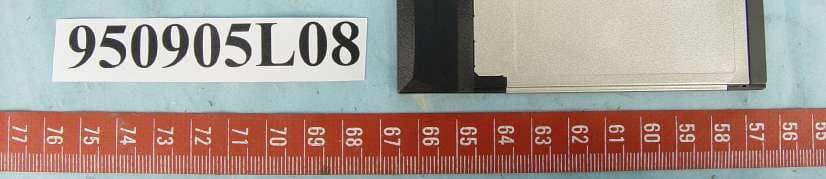

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID .: K7SF5D8071 Label Location

This device complies with part 15 of the FCC Rules, Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 3 Page 4 Page 5

FCC ID: K7SF5D8071 Report No. RF950905L08 Operational Description This device is a N1 Wireless ExpressCard in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered from host equipment. The antenna is printed antenna without connector. The other instruction, please have a look at the users manual.

Report no.: SA950905L081Report Format Version 2.0.5 SAR TEST REPORT REPORT NO.: SA950905L08 MODEL NO.: F5D8071 RECEIVED: Oct. 02, 2006 TESTED: Oct. 08, 2006 ISSUED: Oct. 12, 2006 APPLICANT: Belkin Corporation ADDRESS: 501 West Walnut Street, Compton, CA 90220- 5221 ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 44 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report no.: SA950905L082Report Format Version 2.0.5 TABLE OF CONTENTS 1.CERTIFICATION..................................................................................................................3 2.GENERAL INFORMATION...................................................................................................4 2.1GENERAL DESCRIPTION OF EUT................................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS..................................................5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM........................................................7 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION......................10 3.DESCRIPTION OF SUPPORT UNITS................................................................................14 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS..............................................15 4.1.DESCRIPTION OF ANTENNA LOCATION...................................................................15 4.2.DESCRIPTION OF ASSESSMENT POSITION.............................................................16 4.3.DESCRIPTION OF TEST MODE..................................................................................17 4.4.SUMMARY OF TEST RESULTS...................................................................................18 5.TEST RESULTS.................................................................................................................19 5.1TEST PROCEDURES..................................................................................................19 5.2MEASURED SAR RESULTS........................................................................................21 5.3SAR LIMITS.................................................................................................................23 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS...........................................................28 5.5TEST EQUIPMENT FOR TISSUE PROPERTY............................................................31 6.SYSTEM VALIDATION.......................................................................................................32 6.1TEST EQUIPMENT......................................................................................................32 6.2TEST PROCEDURE.....................................................................................................33 6.3VALIDATION RESULTS................................................................................................35 6.4SYSTEM VALIDATION UNCERTAINTIES....................................................................36 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES....................................................37 7.1.PROBE CALIBRATION UNCERTAINTY.......................................................................37 7.2.ISOTROPY UNCERTAINTY.........................................................................................38 7.3.BOUNDARY EFFECT UNCERTAINTY.........................................................................38 7.4.PROBE LINEARITY UNCERTAINTY............................................................................39 7.5.READOUT ELECTRONICS UNCERTAINTY................................................................39 7.6.RESPONSE TIME UNCERTAINTY..............................................................................39 7.7.INTEGRATION TIME UNCERTAINTY..........................................................................40 7.8.PROBE POSITIONER MECHANICAL TOLERANCE....................................................41 7.9.PROBE POSITIONING.................................................................................................41 7.10.PHANTOM UNCERTAINTY.........................................................................................42 7.11.DASY4 UNCERTAINTY BUDGET................................................................................43 8.INFORMATION ON THE TESTING LABORATORIES.........................................................44 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report no.: SA950905L083Report Format Version 2.0.5 1. CERTIFICATION PRODUCT: N1 Wireless ExpressCard MODEL: F5D8071 BRAND: Belkin APPLICANT: Belkin Corporation TESTED : Oct. 08, 2006 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093) FCC OET Bulletin 65, Supplement C (01-01) RSS-102 IEEE 1528-2003 The above equipment have been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY , DATE :Oct. 12, 2006 Wendy Liao TECHNICAL ACCEPTANCE :, DATE :Oct. 12, 2006 Responsible for RF Stanely Hsu APPROVED BY:, DATE :Oct. 12, 2006 Gary Chang / Supervisor Report no.: SA950905L084Report Format Version 2.0.5 2.…

Text truncated - open the document above for the full version.

A - 1 APPENDIX A: TEST DATA Liquid Level Photo MSL 2450MHz D=150mm A - 2 Date/Time: 2006/10/8 11:50:18 Test Laboratory: Advance Data Technology G430-11b-CH1-Mode 1 DUT: N1 Wireless ExpressCard ; Type: F5D8071 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: DBPSK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.93 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance :14 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.3 degrees ; Liquid temp. : 21.1 degrees DASY4 Configuration: - Probe: EX3DV4 - SN3578; ConvF(6.47, 6.47, 6.47) ; Calibrated: 2006/3/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2006/3/15 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 44 ; Postprocessing SW: SEMCAD, V1.8 Build 171 Low Channel 1/Area Scan (5x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.874 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.7 V/m Peak SAR (extrapolated) = 1.60 W/kg SAR(1 g) = 0.776 mW/g; SAR(10 g) = 0.415 mW/g Maximum value of SAR (measured) = 0.840 mW/g A - 3 Date/Time: 2006/10/8 12:07:03 Test Laboratory: Advance Data Technology G430-11b-CH6-Mode 1 DUT: N1 Wireless ExpressCard ; Type: F5D8071 ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: DBPSK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.97 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance :14 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.3 degrees ; Liquid temp. : 21.1 degrees DASY4 Configuration: - Probe: EX3DV4 - SN3578; ConvF(6.47, 6.47, 6.47) ; Calibrated: 2006/3/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2006/3/15 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 44 ; Postprocessing SW: SEMCAD, V1.8 Build 171 Mid Channel 6/Area Scan (5x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.976 mW/g Mid Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.7 V/m Peak SAR (extrapolated) = 1.80 W/kg SAR(1 g) = 0.857 mW/g; SAR(10 g) = 0.455 mW/g Maximum value of SAR (measured) = 0.934 mW/g A - 4 Date/Time: 2006/10/8 12:23:08 Test Laboratory: Advance Data Technology G430-11b-CH11-Mode 1 DUT: N1 Wireless ExpressCard ; Type: F5D8071 ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: DBPSK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 2 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance :14 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.3 degrees ; Liquid temp. : 21.1 degrees DASY4 Configuration: - Probe: EX3DV4 - SN3578; ConvF(6.47, 6.47, 6.47) ; Calibrated: 2006/3/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2006/3/15 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 44 ; Postprocessing SW: SEMCAD, V1.8 Build 171 High Channel 11/Area Scan (5x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.00 mW/g High Channel 11/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.8 V/m Peak SAR (extrapolated) = 2.14 W/kg SAR(1 g) = 0.934 mW/g; SAR(10 g) = 0.483 mW/g Maximum value of SAR (measured) = 1.01 mW/g A - 5 A - 6 Date/Time: 2006/10/8 12:43:52 Test Laboratory: Advance Data Technology G430-11g-CH1-Mode 2 DUT: N1 Wireless ExpressCard ; Type: F5D8071 ; Test Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: BPSK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.93 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance :14 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.3 degrees ; Liquid temp. : 21.1 degrees DASY4 Configuration: - Probe: EX3DV4 - SN3578; ConvF(6.47, 6.47, 6.47) ; Calibrated: 2006/3/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2006/3/15 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 44 ; Postprocessing SW: SEMCAD, V1.8 Build 171 Low Channel 1/Area Scan (5x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.376 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.7 V/m Peak SAR (extrapolated) = 0.751 W/kg SAR(1 g) = 0.352 mW/g; SAR(10 g) = 0.184 mW/g Maximum value of SAR (measured) = 0.381 mW/g A - 7 Date/Time: 2006/10/8 13:00:02 Test Laboratory: Advance Data Technology G430-11g-CH6-Mode 2 DUT: N1 Wireless ExpressCard ; Type: F5D8071 ; Test Frequency: 2437 MHz Communication System: 802.11g ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: BPSK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.97 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 14 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.3 degrees ; Liquid temp. : 21.1 degrees DASY4 Configuration: - Probe: EX3DV4 - SN3578; ConvF(6.47, 6.47, 6.47) ; Calibrated: 2006/3/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2006/3/15 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4…

Text truncated - open the document above for the full version.

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D3: DAE D4: SYSTEM VALIDATION DIPOLE

Report No.: RF950905L081Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF950905L08 MODEL NO.: F5D8071 RECEIVED: Sep. 11, 2006 TESTED: Sep. 11 ~ Oct. 03, 2006 ISSUED: Oct. 05, 2006 APPLICANT: Belkin Corporation ADDRESS: 501 West Walnut Street, Compton, CA 90220- 5221 ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 111 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF950905L082Report Format Version 2.0.5 TABLE OF CONTENTS 1.CERTIFICATION....................................................................................................4 2.SUMMARY OF TEST RESULTS............................................................................5 2.1 MEASUREMENT UNCERTAINTY..........................................................................5 3.GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT.......................................................................6 3.2DESCRIPTION OF TEST MODES.........................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST.....................................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..........................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................10 3.4DESCRIPTION OF SUPPORT UNITS..................................................................10 4.TEST TYPES AND RESULTS..............................................................................11 4.1CONDUCTED EMISSION MEASUREMENT........................................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................11 4.1.2TEST INSTRUMENTS..........................................................................................11 4.1.3TEST PROCEDURES..........................................................................................12 4.1.4DEVIATION FROM TEST STANDARD.................................................................12 4.1.5TEST SETUP.......................................................................................................13 4.1.6EUT OPERATING CONDITIONS.........................................................................13 4.1.7TEST RESULTS...................................................................................................14 4.2RADIATED EMISSION MEASUREMENT.............................................................32 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...........................................32 4.2.2TEST INSTRUMENTS..........................................................................................33 4.2.3TEST PROCEDURES..........................................................................................34 4.2.4DEVIATION FROM TEST STANDARD.................................................................34 4.2.5TEST SETUP.......................................................................................................35 4.2.6EUT OPERATING CONDITIONS.........................................................................35 4.2.7TEST RESULTS...................................................................................................36 4.36dB BANDWIDTH MEASUREMENT....................................................................51 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................51 4.3.2TEST INSTRUMENTS..........................................................................................51 4.3.3TEST PROCEDURE.............................................................................................51 4.3.4DEVIATION FROM TEST STANDARD.................................................................51 4.3.5TEST SETUP.......................................................................................................52 4.3.6EUT OPERATING CONDITIONS.........................................................................52 Report No.: RF950905L083Report Format Version 2.0.5 4.3.7TEST RESULTS...................................................................................................53 4.4MAXIMUM PEAK OUTPUT POWER....................................................................69 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................69 4.4.2INSTRUMENTS....................................................................................................69 4.4.3TEST PROCEDURES..........................................................................................69 4.4.4DEVIATION FROM TEST STANDARD.................................................................69 4.4.5TEST SETUP.......................................................................................................70 4.4.6EUT OPERATING CONDITIONS.........................................................................70 4.4.7TEST RESULTS...................................................................................................71 4.5POWER SPECTRAL DENSITY MEASUREMENT................................................73 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..............................73 4.5.2TEST INSTRUMENTS..........................................................................................73 4.5.3TEST PROCEDURE.............................................................................................73 4.5.4DEVIATION FROM TEST STANDARD...........................................................…

Text truncated - open the document above for the full version.

Report No.: RF950905L0881Report Format Version 2.0.5 FOR CHAIN 1: CH 1 CH 6 Report No.: RF950905L0882Report Format Version 2.0.5 CH 11 Report No.: RF950905L0883Report Format Version 2.0.5 DRAFT 802.11n (20MHz) OFDM MODULATION: DUAL TX: MODULATION TYPE BPSK TRANSFER RATE 7.2Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg.C, 63%RH, 991hPa TESTED BY Long Chen RF POWER LEVEL IN 3kHz BW (mW) RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1CHAIN 0CHAIN 1 TOTAL POWER DENSITY (mW) TOTAL POWER DENSITY (dBm) MAX. LIMIT (dBm) PASS / FAIL 124120.0700.071-11.56-11.510.141-8.518PASS 624370.1710.179-7.68-7.460.350-4.568PASS 1124620.0560.054-12.51-12.680.110-9.598PASS FOR CHAIN 0: CH 1 Report No.: RF950905L0884Report Format Version 2.0.5 CH 6 CH 11 Report No.: RF950905L0885Report Format Version 2.0.5 FOR CHAIN 1: CH 1 CH 6 Report No.: RF950905L0886Report Format Version 2.0.5 CH 11 Report No.: RF950905L0887Report Format Version 2.0.5 DRAFT 802.11n (40MHz) OFDM MODULATION: DUAL TX: MODULATION TYPE BPSK TRANSFER RATE 15.0Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg.C, 63%RH, 991hPa TESTED BY Long Chen RF POWER LEVEL IN 3kHz BW (mW) RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1CHAIN 0CHAIN 1 TOTAL POWER DENSITY (mW) TOTAL POWER DENSITY (dBm) MAX. LIMIT (dBm) PASS / FAIL 12422 0.0200.021 -16.93-16.720.041-13.878PASS 42437 0.0320.033 -14.90-14.770.065-11.878PASS 72452 0.0190.018 -17.22-17.330.037-14.328PASS FOR CHAIN 0: CH 1 Report No.: RF950905L0888Report Format Version 2.0.5 CH 4 CH 7 Report No.: RF950905L0889Report Format Version 2.0.5 FOR CHAIN 1: CH 1 CH 4 Report No.: RF950905L0890Report Format Version 2.0.5 CH 7 Report No.: RF950905L0891Report Format Version 2.0.5 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO.SERIAL NO. CALIBRATED UNTIL Spectrum Analyzer ROHDE & SCHWARZ FSP40100025Dec. 05, 2006 HORN Antenna SCHWARZBECK 9120D9120D-408Jan. 08, 2007 HORN Antenna SCHWARZBECK BBHA 9170BBHA9170243Jan. 19, 2007 RF signal cable HUBER+SUHNNER SUCOFLEX 104214377/4Dec. 13, 2006 RF signal cable HUBER+SUHNNER SUCOFLEX 104219272/4Dec. 13, 2006 Software ADT. ADT_Radiated_V5.14NANA Antenna Tower inn-co GmbH MA 4000013303NA Antenna Tower Controller inn-co GmbH CO2000017303NA Turn Table ADT. TT100.TT93021703NA Turn Table Controller ADT. SC100.SC93021703NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF950905L0892Report Format Version 2.0.5 4.6.3 TEST PROCEDURE a. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3 meter semi-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. b. The EUT was set 3 meters away from th…

Text truncated - open the document above for the full version.
