K7SF5D8231-4DN1 Wireless Router

Belkin B.V. Boeing Avenue 333 1119 PH Schiphol-Rijk, The Netherlands +31 (0) 20 654 7300 +31 (0) 20 654 7349 fax Belkin Ltd. 4 Pioneer Avenue Tuggerah Business Park Tuggerah, NSW 2259, Australia +61 (0) 2 4350 4600 +61 (0) 2 4350 4700 fax Belkin Tech Support US: 877-736-5771 310-898-1100 ext. 2263 UK: 0845 607 77 87 Australia: 1800 235 546 New Zealand: 0800 235 546 Singapore: 800 616 1790 Europe: www.belkin.com/support Belkin International, Inc. 501 West Walnut Street Los Angeles, CA 90220, USA 310-898-1100 310-898-1111 fax Belkin Ltd. Express Business Park, Shipton Way Rushden, NN10 6GL, United Kingdom +44 (0) 1933 35 2000 +44 (0) 1933 31 2000 fax © 2007 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Mac, Mac OS, Apple, and AirPort are trademarks of Apple Inc., registered in the U.S. and other countries. Windows, NT, Microsoft, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. P75170-C N1 Wireless Router User Manual F5D8231-4 N1 Wireless Router 1. Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Advantages of a Wireless Network. . . . . . . . . . . . . . . . . . . . 1 Placement of your N1 Wireless Router. . . . . . . . . . . . . . . . . 3 2. Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 3. Knowing your Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Setup Assistant Software System Requirements . . . . . . . .10 4. Connecting and Configuring your Router . . . . . . . . . . . . . . .15 5. Alternate Setup Method. . . . . . . . . . . . . . . . . . . . . . . . . . . .23 6. Using the Web-Based Advanced User Interface . . . . . . . . . .38 Changing LAN Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . .39 Viewing the DHCP Client List Page. . . . . . . . . . . . . . . . . . 41 Configuring the Wireless Network Settings. . . . . . . . . . . . 41 Setting WPA Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 Setting WEP Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . .50 Using the Access Point Mode. . . . . . . . . . . . . . . . . . . . . . .52 Setting MAC Address Control. . . . . . . . . . . . . . . . . . . . . . 53 Configuring the Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . .55 Using Dynamic DNS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Restarting the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Updating the Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . 66 7. Manually Configuring Network Settings. . . . . . . . . . . . . . . .74 8. Recommended Web Browser Settings . . . . . . . . . . . . . . . . .79 9. Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81 10. Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97 Table of Contents 2 Introduction 1 2 1 Thank you for purchasing the Belkin N1 Wireless Router (the Router). Following are two short sections—the first discusses the benefits of home networking, and the other outlines best practices that maximize your wireless home network range and performance. Please be sure to read through this User Manual completely, and pay special attention to the section entitled “Placement of your N1 Wireless Router” on the next page. By following our simple setup instructions you will be able to use your Belkin Home Network to: • Share one high-speed Internet connection with all the computers in your home • Share resources, such as files and hard drives among all the connected computers in your home • Share a single printer with the entire family • Share documents, music, video, and digital pictures • Store, retrieve, and copy files from one computer to another • Simultaneously play games online, check Internet email, and chat Advantages of a Wireless Network Here are some of the advantages of setting up a Belkin Wireless Network: • Mobility – you’ll no longer need a dedicated “computer room”—now you can work on a networked laptop or desktop computer anywhere within your wireless range • Easy installation – Belkin’s Easy Installation Wizard makes setup simple • Flexibility – set up and access printers, computers, and other networking devices from anywhere in your home • Easy expansion – the wide range of Belkin networking products let you expand your network to include devices such as printers and gaming consoles • No cabling required – you can spare the expense and hassle of retrofitting Ethernet cabling throughout the home or office • Widespread industry acceptance – choose from a wide range of interoperable networking products 2 Introduction 2 2 1 3 4 5 6 7 8 9 10 section Revolutionary N1 Wireless Technology with MIMO (N1 MIMO) Your Belkin N1 Wireless Router uses a new smart-antenna technology called Multiple Input Multiple Output (MIMO). N1 MIMO complies with the IEEE draft 802.11n specification. It increases speed, range, reliability, and spectral efficiency for wireless networking systems. The element that makes Belkin’s N1 MIMO technology different from a conventional radio is the use of multiple antennas and two simultaneous data streams to deliver wireless transfers around your home or office. A conventional radio uses one antenna to transmit a data stream. Belkin’s N1 MIMO, on the other hand, uses three antennas. This design helps combat distortion and interference. Belkin’s N1 MIMO is multidimensional. It builds on one-dimensional smart-antenna technology by simultaneously transmitting tw…

Text truncated - open the document above for the full version.

Configuring your WAN Media Access Controller (MAC) Address All network components including cards, adapters, and routers, have a unique “serial number” called a MAC address. Your Internet Service Provider (ISP) may record the MAC address of your computer’s adapter and only let that particular computer connect to the Internet service. When you install the Router, its own MAC address will be “seen” by the ISP and may cause the connection not to work. Belkin has provided the ability to clone (copy) the MAC address of the computer into the Router. This MAC address, in turn, will be seen by the ISP’s system as the original MAC address and will allow the connection to work. If you are not sure whether your ISP needs to see the original MAC address, simply clone the MAC address of the computer that was originally connected to the modem. Cloning the address will not cause any problems with your network. Cloning your MAC Address To clone your MAC address, make sure that you are using the computer that was ORIGINALLY CONNECTED to your modem before the Router was installed. Click the “Clone” button (1). Click “Apply Changes” (3). Your MAC address is now cloned to the Router. Entering a Specific MAC Address In certain circumstances you may need a specific WAN MAC address. You can manually enter one in the “MAC Address” page. Type in a MAC address in the spaces provided (2) and click “Apply Changes” (3) to save the changes. The Router’s WAN MAC address will now be changed to the MAC address you specified. (1) (3) (2) 3837 Alternate Setup Method Using your Internet browser, you can access the Router’s Web-Based Advanced User Interface. In your browser, type “192.168.2.1” (do not type in anything else such as “http://” or “www”) then press the “Enter” key. You will see the Router’s home page in your browser window. Viewing the LAN Settings Clicking on the header of the LAN tab (1) will take you to the LAN tab’s header page. A quick description of the functions can be found here. To view the settings or make changes to any of the LAN settings, click on “LAN Settings” (2) or to view the list of connected computers, click on “DHCP client list” (3). (1) (2) (3) Using the Web-Based Advanced User Interface section 2 1 3 4 5 6 7 8 9 10 38 4039 Using the Web-Based Advanced User Interface 4039 Using the Web-Based Advanced User Interface Changing LAN Settings All settings for the internal LAN setup of the Router can be viewed and changed here. (1) (2) (4) (5) (6) (3) 1. IP Address The “IP address” is the internal IP address of the Router. The default IP address is “192.168.2.1”. To access the advanced setup interface, type this IP address into the address bar of your browser. This address can be changed if needed. To change the IP address, type in the new IP address and click “Apply Changes”. The IP address you choose should be a non-routable IP. Examples of a non-routable IP are: 192.168.x.x (where x is anything between 0 and 255) 10.x.x.x (where x is anything between 0 and 255) 2. Subnet Mask There is no need to change the subnet mask. This is a unique, advanced feature of your Belkin Router. It is possible to change the subnet mask if necessary; however, do NOT make changes to the subnet mask unless you have a specific reason to do so. The default setting is “255.255.255.0”. 40 Using the Web-Based Advanced User Interface 40 section 2 1 3 4 5 6 7 8 9 10 3. DHCP Server The DHCP server function makes setting up a network very easy by assigning IP addresses to each computer on the network automatically. The default setting is “On”. The DHCP server can be turned OFF if necessary; however, in order to do so you must manually set a static IP address for each computer on your network. To turn off the DHCP server, select “Off” and click “Apply Changes”. 4. IP Pool The range of IP addresses set aside for dynamic assignment to the computers on your network. The default is 2–100 (99 computers). If you want to change this number, you can do so by entering a new starting and ending IP address and clicking on “Apply Changes”. The DHCP server can assign 100 IP addresses automatically. This means that you cannot specify an IP address pool larger than 100 computers. For example, starting at 50 means you have to end at 150 or lower so as not to exceed the 100-client limit. The starting IP address must be lower in number than the ending IP address. 5. Lease Time The length of time the DHCP server will reserve the IP address for each computer. We recommend that you leave the lease time set to “Forever”. The default setting is “Forever”, meaning that any time a computer is assigned an IP address by the DHCP server, the IP address will not change for that particular computer. Setting lease times for shorter intervals such as one day or one hour frees IP addresses after the specified period of time. This also means that a particular computer’s IP address may change over time. If you have set any of the other advanced features of the Router such as DMZ or client IP filters, these are dependent on the IP address. For this reason, you will not want the IP address to change. 6. Local Domain Name The default setting is “Belkin”. You can set a local domain name (network name) for your network. There is no need to change this setting unless you have a specific advanced need to do so. You can name the network anything you want such as “MY NETWORK”. 4241 Using the Web-Based Advanced User Interface 4241 Using the Web-Based Advanced User Interface Viewing the DHCP Client List Page You can view a list of the computers (known as clients), which are connected to your network. You are able to view the IP address (1) of the computer, the host name (2) (if the computer has been assigned one), and the MAC address (3) of the computer’s network interface card (NIC). Pressing the “Refresh” (4) button will update the list. If there have been any changes, the list will be updated. (1)(2)(3) (4) Configuring the Wireless Network Settings The “Wireless” tab …

Text truncated - open the document above for the full version.

6867 Using the Web-Based Advanced User Interface 6867 Using the Web-Based Advanced User Interface Downloading a New Version of Firmware If you click the “Check Firmware” button and a new version of firmware is available, you will see a screen similar to the one below: 1. To download the new version of firmware, click “Download”. 2. A window will open that allows you to select the location where you want to save the firmware file. Select a location. You can name the file anything you want, or use the default name. Be sure to locate the file in a place where you can locate it yourself later. When you have selected the location, click “Save”. 68 Using the Web-Based Advanced User Interface 68 section 2 1 3 4 5 6 7 8 9 10 Updating the Router’s Firmware 1. In the “Firmware Update” page, click “Browse”. A window will open that allows you to select the location of the firmware update file. 2. Browse to the firmware file you downloaded. Select the file by double-clicking on the file name. 3. When the save is complete, you will see the following window. Click “Close”. The download of the firmware is complete. To update the firmware, follow the next steps in “Updating the Router’s Firmware”. 7069 Using the Web-Based Advanced User Interface 7069 Using the Web-Based Advanced User Interface 3. The “Update Firmware” box will now display the location and name of the firmware file you just selected. Click “Update”. 4. You will be asked if you are sure you want to continue. Click “OK”. 5. You will see one more message. This message tells you that the Router may not respond for as long as one minute as the firmware is loaded into the Router and the Router is rebooted. Click “OK”. 6. A 60-second countdown will appear on the screen. When the countdown reaches zero, the Router firmware update will be complete. The Router home page should appear automatically. If not, type in the Router’s address (default = 192.168.2.1) into the navigation bar of your browser. 70 Using the Web-Based Advanced User Interface 70 section 2 1 3 4 5 6 7 8 9 10 Changing System Settings The “System Settings” page is where you can enter a new administrator password, set the time zone, enable remote management, and turn on and off the NAT function of the Router. Setting or Changing the Administrator Password The Router ships with NO password entered. If you wish to add a password for greater security, you can set a password here. Write down your password and keep it in a safe place, as you will need it if you need to log into the Router in the future. It is also recommended that you set a password if you plan to use the remote management feature of your Router. Changing the Login Time-Out Setting The login time-out option allows you to set the period of time that you can be logged into the Router’s advanced setup interface. The timer starts when there has been no activity. For example, imagine you have made some changes in the advanced setup interface, then left your computer alone without clicking “Logout”. Assuming the time-out is set to 10 minutes, 10 minutes after you leave, the login session will expire. You will have to log into the Router again to make any more changes. The login time-out option is for security purposes and the default is set to 10 minutes. Note: Only one computer can be logged into the Router’s advanced setup interface at one time. 7271 Using the Web-Based Advanced User Interface 7271 Using the Web-Based Advanced User Interface Setting the Time and Time Zone The Router keeps time by connecting to a Simple Network Time Protocol (SNTP) server. This allows the Router to synchronize the system clock to the global Internet. The synchronized clock in the Router is used to record the security log and control client filtering. Select the time zone that you reside in. You have the option to select a primary and a backup NTP server to keep your Router’s clock synchronized. Select your desired NPT server from the drop-down box, or simply keep it as is. If you reside in an area that observes daylight saving, then place a check mark in the box next to “Enable Daylight Saving”. The system clock may not update immediately. Allow at least 15 minutes for the Router to contact the time servers on the Internet and get a response. You cannot set the clock yourself. Enabling Remote Management Before you enable this advanced feature of your Belkin Router, MAKE SURE YOU HAVE SET THE ADMINISTRATOR PASSWORD. Remote management allows you to make changes to your Router’s settings from anywhere on the Internet. There are two methods of remotely managing the Router. The first is to allow access to the Router from anywhere on the Internet by selecting “Any IP address can remotely manage the Router”. By typing in your WAN IP address from any computer on the Internet, you will be presented with a login screen where you need to type in the password of your Router. The second method is to allow a specific IP address only to remotely manage the Router. This is more secure, but less convenient. To use this method, enter the IP address you know you will be accessing the Router from in the space provided and select “Only this IP address can remotely manage the Router”. Before you enable this function, it is STRONGLY RECOMMENDED that you set your administrator password. Leaving the password empty will potentially open your Router to intrusion. 72 Using the Web-Based Advanced User Interface 72 section 2 1 3 4 5 6 7 8 9 10 Advanced Feature: The “Remote Access Port” option allows you to configure the desired “Remote Access Port for Remote Management” feature. The default access port is set to port 80. Enabling/Disabling NAT (Network Address Translation) Note: This advanced feature should be employed by advanced users only. Before enabling this function, MAKE SURE YOU HAVE SET THE ADMINISTRATOR PASSWORD. Network Address Translation (NAT) is the method by which the Router shares the single IP address assigned by your ISP with the other computers on your n…

Text truncated - open the document above for the full version.

501 W. Walnut Street – Compton – California 90220 USA April 17, 2007 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely yours, Marc Matejka Manager, Document Control & Regulatory Compliance Belkin International, Inc. Tel. 310 604 2448 Fax 310 604 2007 [email protected]

501 W. Walnut Street – Compton – California 90220 USA April 17, 2007 Federal Communications Commission Authorization and Evaluation Division FCC ID: K7SF5D8231-4D Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Marc Matejka Manager, Document Control & Regulatory Compliance Belkin International, Inc. Tel. 310 604 2448 Fax 310 604 2007 [email protected]

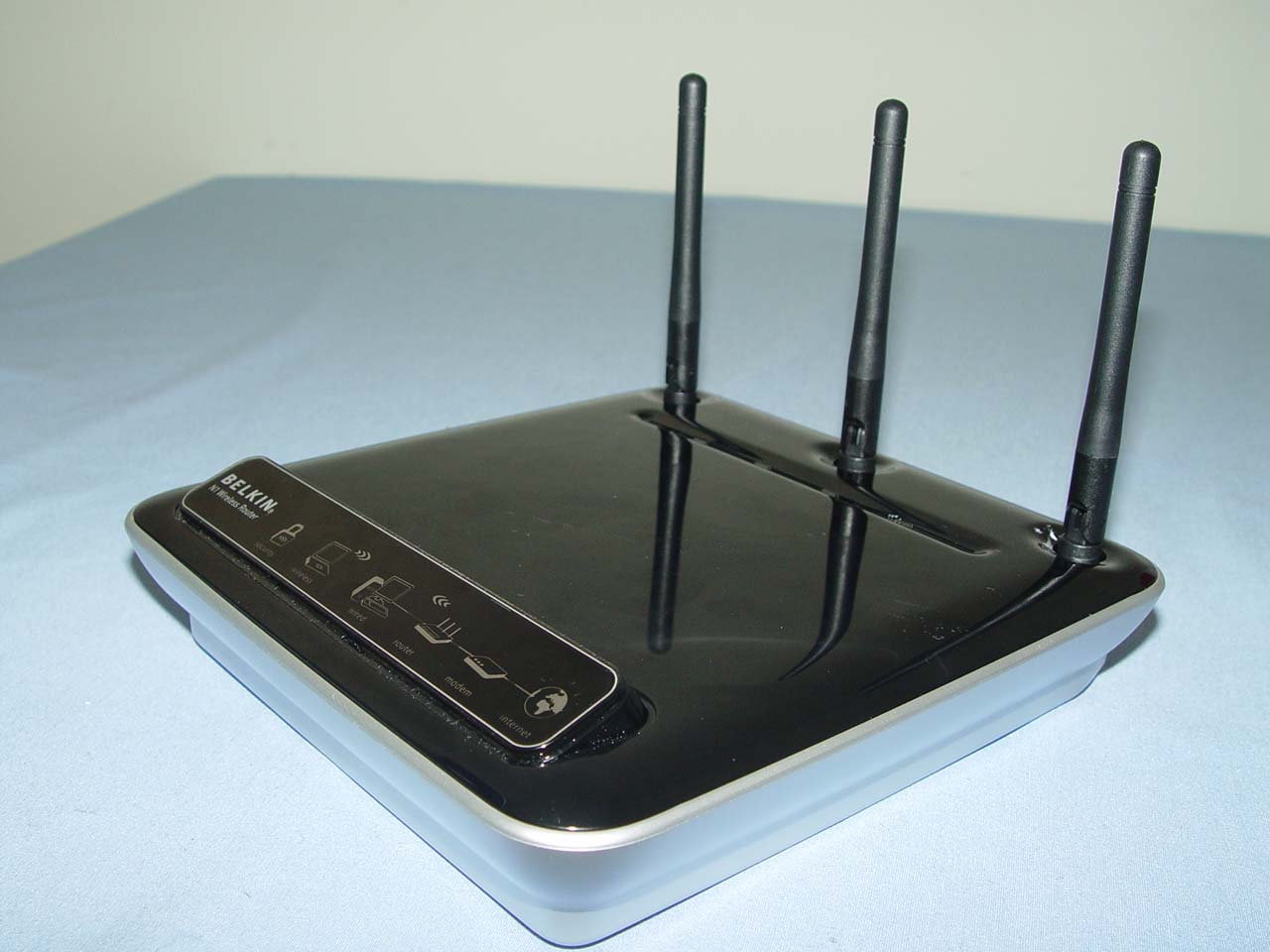

Compliance Certification Services Inc. Report No.: 70410210 Date of Issue: May 11, 2007 Page 1 Total Page: 7 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70410210 Date of Issue: May 11, 2007 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 70410210 Date of Issue: May 11, 2007 Page 3 Rev.00 Model: DSA-12R-12 AUS 120120 Model: RHN-120100-1-1

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

Compliance Certification Services Inc. Report No.: 70410210 Date of Issue: May 11, 2007 Page 4 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70410210 Date of Issue: May 11, 2007 Page 5 Rev.00 Compliance Certification Services Inc. Report No.: 70410210 Date of Issue: May 11, 2007 Page 6 Rev.00 Compliance Certification Services Inc. Report No.: 70410210 Date of Issue: May 11, 2007 Page 7 Rev.00

Specification 1. Electrical Properties : 1.1 Frequency Range............ 1.2 Impedance .................. 1.3 VSWR ..................... ... 1.4 Return Loss.................. 1.5 Radiation ..................... 1.6 Gain(peak)................... 1.8dBi (excluding cable loss) 1.7 Cable Loss.................. ...1.3dB 1.8 Polarization............... ...Linear Vertical 1.9 Admitted Power............ 2. Physical Properties : 2.1 Cable...........................φ1.13 Coaxial Cable 2.2 Antenna Cover............ ...TPE 2.3 Antenna Base............... PC 2.4 Antenna Base............... PBT 2.5 Operating Temp. ......... ...-20 ~ +65 2.6 Storage Temp. ............ ...-30 ~ +75 2.7 Color ........................ .Black 2.8 Connector.................. ...I-PEX MHF Connector 1W 2.4GHz ~ 2.5GHz 50Ω Nominal 1.92 Max. -10 dB Maximum RF Antenna Cable Assembly Omni-directional 1 2 RF Antenna Assembly P/NO :C147-510231-A SPEC : 2.4GHz 5/18/2006 3 5/18/2006 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C147-510231-A-H.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 4 5/18/2006 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C147-510231-A-V.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 5 6 7 8 9

Compliance Certification Services Inc. Report No.: 70410210-RP1 FCC ID: K7SF5D8231-4D Date of Issue: May 11 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 114 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For N1 Wireless Router Model: F5D8231-4 Trade Name: Belkin Issued to Belkin International, Inc. 501 West Walnut Street, Compton CA 90220, USA Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 70410210-RP1 FCC ID: K7SF5D8231-4D Date of Issue: May 11, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................23 7.3 AVERAGE POWER............................................................................................................................34 7.4 BAND EDGES MEASUREMENT ................................................................................................45 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................62 7.6 SPURIOUS EMISSIONS ................................................................................................................77 7.7 RADIATED EMISSIONS ..............................................................................................................90 7.8 POWERLINE CONDUCTED EMISSIONS.............................................................................................106 APPENDIX I RADIO FREQUENCY EXPOSURE .............................................................................109 APPENDIX II PHOTOGRAPHS OF TEST SETUP ...........................................................................112 Compliance Certification Services Inc. Report No.: 70410210-RP1 FCC ID: K7SF5D8231-4D Date of Issue: May 11, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product N1 Wireless Router Trade Name Belkin Model Number F5D8231-4 Model Discrepancy N/A Power Adapter 1. BELKIN / DSA-12R-12 AUS 120120 I/P: 100-120V, 50/60Hz, 0.3A O/P: 12V, 1A 2. RHN-120100-1-1 I/P: 100-120V, 50/60Hz, 0.36A O/P: 12V, 1A Frequency Range 2412 ~ 2462 MHz Transmit Power IEEE 802.11b mode: 23.35 dBm IEEE 802.11g mode: 20.71 dBm draft 802.11n Standard-20 MHz Channel mode: 20.17 dBm draft 802.11n Wide-40 MHz Channel mode: 15.00 dBm Modulation Technique IEEE 802.11b mode: DSSS (1, 2, 5.5 and 11 Mpbs) IEEE 802.11g mode: OFDM (6, 9, 12, 18, 24, 36, 48 and 54 Mpbs) draft 802.11n Standard-20 MHz Channel mode: OFDM (6.5, 7.2…

Text truncated - open the document above for the full version.
