K7SF5D9010CWireless G Plus MIMO Notebook Card

Attestation Date: Dec. 25, 2006 FCC ID ：K7SF5D9010C Product ：Wireless G Plus MIMO Notebook Card Model ：F5D9010 Statements: We don’t provide with any controls or software to allow operation outside the USA frequency band for all future applications when we sell this product in USA. Sincerely, Signature:

501 W. Walnut Street – Compton – California 90220 USA Confidentiality Request FCC ID : K7SF5D9010C Product : Wireless G Plus MIMO Notebook Card Model : F5D9010 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Signature: Marc Matejka Manager, Document Control and Regulatory Compliance Belkin International, Inc.

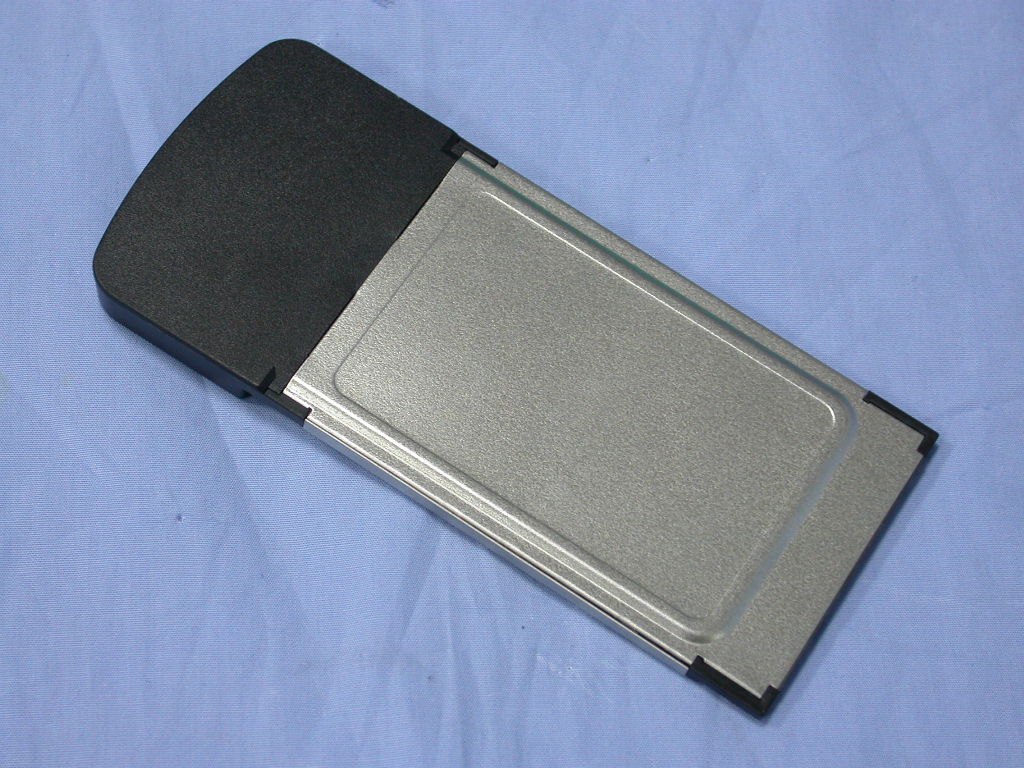

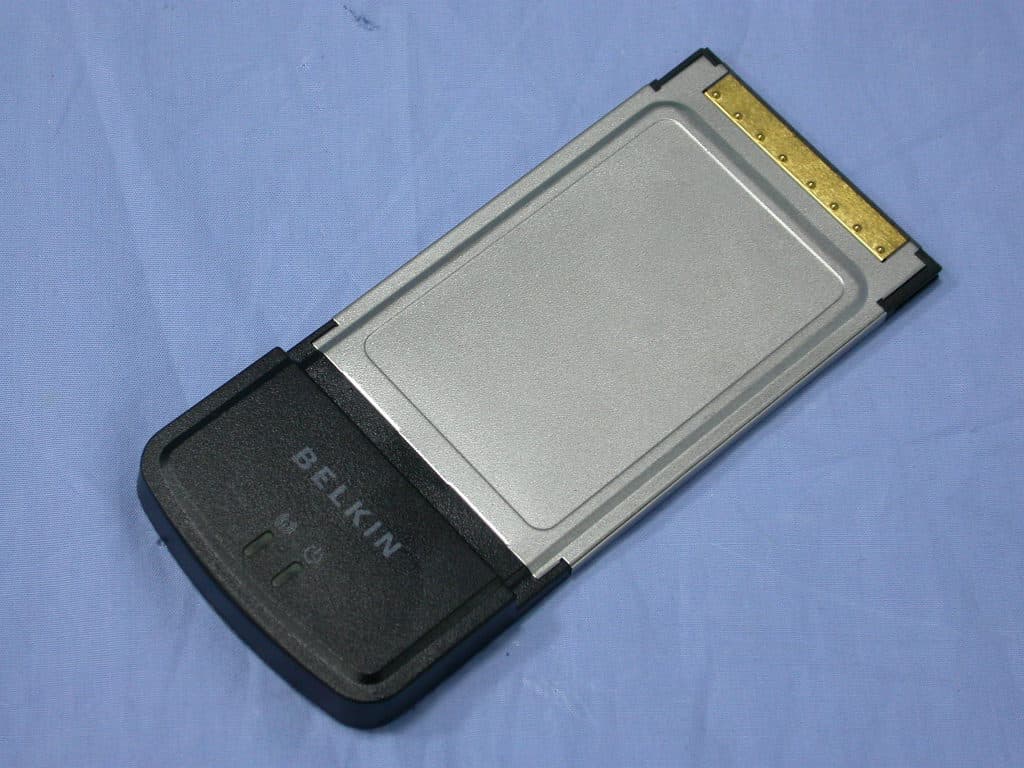

Compliance Certification Services Inc. Report No.：61106402-RP1 External Photo ( Model : F5D9010)

Company : Belkin Corporation Model : F5D9010 Product : Wireless G Plus MIMO Notebook Card Wireless G Plus MIMO Notebook Card Model No: F5D9010 FCC IDK7SF5D9010C This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan Label Here

Compliance Certification Services Inc. Report No.：61106402-RP1 Internal Photo Compliance Certification Services Inc. Report No.：61106402-RP1

Compliance Certification Services Inc. Report No.: 61106402-SF FCC ID: K7SF5D9010C Date of Issue: December 22, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 24 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For Wireless G Plus MIMO Notebook Card Trade Name: Belkin Model: F5D9010 Issued to Belkin Corporation 501 West Walnut Street Compton CA, USA Issued by Compliance Certification Services Inc. No. 11, Wugong 6th Rd., Wugu Industrial Park, Taipei Hsien, 248 Taiwan. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 61106402-SF Date of Issue: December 22, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. EUT DESCRIPTION ..................................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .................5 3. DOSIMETRIC ASSESSMENT SYSTEM ................................................................................5 3.1 MEASUREMENT SYSTEM DIAGRAM .........................................................................6 3.2 SYSTEM COMPONENTS.................................................................................................7 4. EVALUATION PROCEDURES ...............................................................................................9 5. MEASUREMENT UNCERTAINTY ......................................................................................13 6. EXPOSURE LIMIT ..................................................................................................................14 7. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS .15 8. MEASUREMENT RESULTS..................................................................................................16 8.1 SYSTEM PERFORMANCE CHECK..............................................................................16 8.2 TEST LIQUID CONFIRMATION...................................................................................17 8.3 EUT TUNE-UP PROCEDURES AND TEST MODE.....................................................18 8.4 SAR MEASUREMENTS RESULTS...............................................................................19 9. EUT PHOTOS ...........................................................................................................................21 10. EQUIPMENT LIST & CALIBRATION STATUS................................................................22 11. FACILITIES..............................................................................................................................23 12. REFERENCES ..........................................................................................................................23 13. ATTACHMENTS......................................................................................................................24 Compliance Certification Services Inc. Report No.: 61106402-SF Date of Issue: December 22, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product Wireless G Plus MIMO Notebook Card Trade Name Belkin Model Number F5D9010 Model Discrepancy N/A Frequency Range 802.11b: 2400 ~ 2483.5 MHz 802.11g: 2400 ~ 2483.5 MHz Max. O/P Power: (Conducted/Peak) 802.11b: 19.50 dBm 802.11g: 17.88 dBm Max. SAR (1g): 802.11b: 0.491 W/kg 802.11g: 0.185 W/kg Modulation Technique 802.11b: Direct Sequence Spread Spectrum(DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM) Antenna Specification Antenna type: Printed antenna Host IBM x31, Model: 2672-I8V, SN: 99KPZYN Remark: The sample selected for test was prototype that approximated to production product and was provided by manufacturer. Compliance Certification Services Inc. Report No.: 61106402-SF Date of Issue: December 22, 2006 Page 5 Rev. 00 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992 [6]. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 4. DOSIMETRIC ASSESSMENT SYSTEM These measurements were performed with the automated near-field scanning system DASY4 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9 m) which positions the probes with a positional repeatability of better than ± 0.02 mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a Schottky diode and connected via highly resistive lines to the data acquisition unit. The SAR measurements were conducted with the dosimetric probe EX3DV4-SN: 3554 (manufactured by SPEAG), designed in the classical triangular configuration and optimized for dosimetric evaluation. The probe has been calibrated according to the procedure with accura…

Text truncated - open the document above for the full version.

Date/Time: 12/18/2006 2:12:04 PM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.98 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); z Sensor-Surface: 2.5mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.2 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 97.6 V/m; Power Drift = -0.033 dB Peak SAR (extrapolated) = 28.4 W/kg SAR(1 g) = 13.6 mW/g; SAR(10 g) = 6.21 mW/g Maximum value of SAR (measured) = 19.3 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 19.7 mW/g Page1 Page2 Date/Time: 12/18/2006 5:09:21 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Ant-A Bottom Touch mode DUT: F5D9010; Type: Wireless Notebook Card; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; σ = 1.93 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature: 24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Low CH, Rate=1M/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.669 mW/g Low CH, Rate=1M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 11.9 V/m; Power Drift = -0.020 dB Peak SAR (extrapolated) = 0.982 W/kg SAR(1 g) = 0.491 mW/g; SAR(10 g) = 0.246 mW/g Maximum value of SAR (measured) = 0.663 mW/g Low CH, Rate=1M/Z Scan (1x1x26): Measurement grid: dx=20mm, dy=20mm, dz=4mm Maximum value of SAR (measured) = 0.180 mW/g Page1 Page2 Date/Time: 12/18/2006 2:50:19 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Ant-A Bottom Touch mode DUT: F5D9010; Type: Wireless Notebook Card; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.96 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature: 24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Middle CH, Rate=1M/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.450 mW/g Middle CH, Rate=1M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 10.3 V/m; Power Drift = -0.041 dB Peak SAR (extrapolated) = 0.742 W/kg SAR(1 g) = 0.363 mW/g; SAR(10 g) = 0.181 mW/g Maximum value of SAR (measured) = 0.490 mW/g Page1 Date/Time: 12/18/2006 5:26:22 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Ant-B Bottom Touch mode DUT: F5D9010; Type: Wireless Notebook Card; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; σ = 1.93 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature: 24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Low CH, Rate=1M/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.336 mW/g Low CH, Rate=1M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 8.12 V/m; Power Drift = -0.003 dB Peak SAR (extrapolated) = 0.533 W/kg SAR(1 g) = 0.271 mW/g; SAR(10 g) = 0.137 mW/g Maximum value of SAR (measured) = 0.367 mW/g Page1 Date/Time: 12/18/2006 3:11:29 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Ant-B Bottom Touch mode DUT: F5D9010; Type: Wireless Notebook Card; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.96 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature: 24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Middle C…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 61106402-RP1 FCC ID: K7SF5D9010C Date of Issue: December 13, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 74 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless G Plus MIMO Notebook Card Model Number: F5D9010 Brand Name: Belkin Issued to Belkin Corporation 501 West Walnut Street Compton CA ,USA Issued by Compliance Certification Services Inc. Ta i n a n L a b . No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Compliance Certification Services Inc. Report No: 61106402-RP1 FCC ID: K7SF5D9010C Date of Issue: December 13, 2006 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION .................................................................................................................5 3.2 EUT EXERCISE...............................................................................................................................5 3.3 GENERAL TEST PROCEDURES...................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .....................................................6 3.5 DESCRIPTION OF TEST MODES .................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES .....................................................................................................................................8 5.2 EQUIPMENT ...................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING ..................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ........................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SETUP CONFIGURATION OF EUT ............................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 6DB BANDWIDTHD......................................................................................................................11 7.2 PEAK POWER ...............................................................................................................................17 7.3 BAND EDGES MEASUREMENT ................................................................................................23 7.4 PEAK POWER SPECTRAL DENSITY.........................................................................................33 7.5 RADIO FREQUENCY EXPOSURE..............................................................................................39 7.6 SPURIOUS EMMISSIONS............................................................................................................40 7.7 POWERLINE CONDUCTED EMISSIONS ..................................................................................68 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP .......................................................................71 Compliance Certification Services Inc. Report No: 61106402-RP1 FCC ID: K7SF5D9010C Date of Issue: December 13, 2006 Page 3 1. TEST RESULT CERTIFICATION Applicant: Belkin Corporation 501 West Walnut Street Compton CA ,USA Manufacture: Advance Multimedia Internet Technology Inc. No.32 ,Hwan-Gong Rd. Yung Kang City ,Tainan Hsien ,Taiwan Equipment Under Test: Wireless G Plus MIMO Notebook Card Model Number: F5D9010 Brand Name: Belkin Date of Test: November 02, 2006 ~ November 30, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: December 13, 2006 December 13, 2006 Alex Chiu Jeter Wu Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: 61106402-RP1 FCC ID: K7SF5D9010C Date of Issue: December 13, 2006 Page 4 2. EUT DESCRIPTION Product Wireless G Plus MIMO Notebook Card Model Number F5D9010 Brand Name Belkin Model Discrepancy N/A Power Supply Powered from Notebook 3.3Vdc Frequency Range IEEE 802.11b/g:2412~2462 MHz Transmit Power IEEE 802.11b: 19.50 dBm IEEE 802.11g: 17.88dBm Modu…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 61106402-RP1 FCC ID: K7SF5D9010C Date of Issue: December 13, 2006 Page 71 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. Report No: 61106402-RP1 FCC ID: K7SF5D9010C Date of Issue: December 13, 2006 Page 72 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc. Report No: 61106402-RP1 FCC ID: K7SF5D9010C Date of Issue: December 13, 2006 Page 73 Compliance Certification Services Inc. Report No: 61106402-RP1 FCC ID: K7SF5D9010C Date of Issue: December 13, 2006 Page 74 Conducted Emission Set Up Photos END OF REPORT
