K7SF5L075USBWireless Mouse

© 2009 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. 8820-00400 • F5L075-USB belkin.com Bel kin Tech Support US: 310-898-1100, e xt. 2 263 800-223- 5546, e xt. 2 263 UK: 0845 607 77 87 Australia: 1 800 235 546 New Zealand: 0800 235 546 Europe: www.belkin.com/support FCC Statement (15.21) Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. 15.19 (a)(3) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC Statement Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device Quick Installation Guide Wireless Mouse Wireless Mouse 1 Battery Compartment Cover 3 The Receiver 4 Receiver’s Connect Button 2 On/Off Button 5 Mouse’s Connect Button Quick Installation Guide Setup Instructions Connect the mouse and receiver when you use the mouse for the first time and when replacing batteries. 1. Remove the battery compartment cover and install two AAA alkaline batteries as indicated by the polarity symbols (+/-), then replace the cover. 2. Turn on the mouse. 3. Plug the receiver into an available USB port. 4. Press the USB receiver’s Connect button. 5. Press the mouse’s Connect button. Note: • The unit will go into stand-by mode after a few seconds of idling. Slide the mouse around to wake it up. • The unit will go into sleep mode after 6–8 minutes of idling and the LED will go off. Click the mouse button to wake it up.

501 W. Walnut Street – Compton – California 90220 USA Confidentility Letter (Permanent) Attention: Application Examiner Re: Request for confidentiality Applicant: Belkin International Inc. FCC ID: K7SF5L075USB To whom it may concern, Request is hereby submitted by Belkin International Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: Belkin International Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Title: EMC Regulatory Compliance Engineer Company name: Belkin International Inc. Date: 16, November, 2009

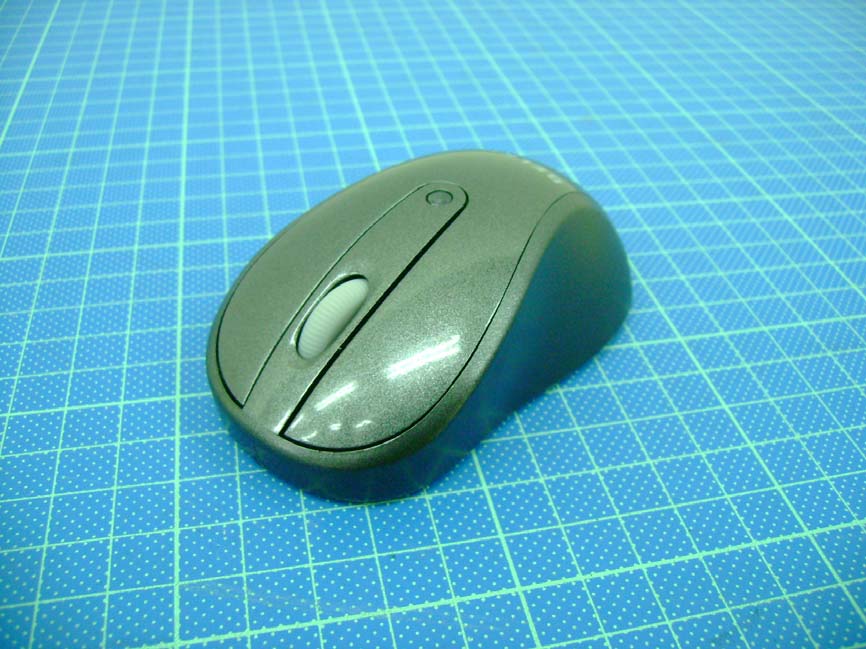

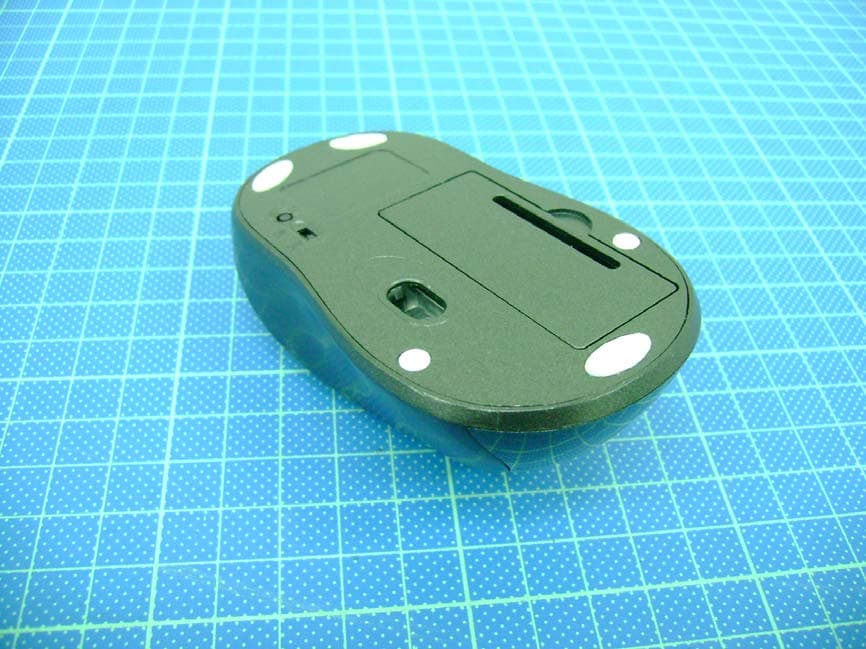

Photo 1: External photo of EUT with PCB Printed antenna F5L075-USB Photo 2: External photo of EUT with PCB Printed antenna F5L075-USB

FCC ID Label Location

Photo 1: Internal photo of EUT with PCB Printed antenna F5L075-USB Photo 2: Internal photo of EUT with PCB Printed antenna F5L075-USB PCB printed antenna Photo 3: Internal photo of EUT with PCB Printed antenna F5L075-USB Photo 4: Internal photo of EUT with PCB Printed antenna F5L075-USB Photo 5: External photo of PCB Printed antenna F5L075-USB Photo 6: External photo of PCB Printed antenna F5L075-USB F5L075-USB

Report No.: TS09110024-EME Page 1 of 13 EMC TEST REPORT Applicant: Belkin International Inc. 501 West Walnut Street Compton, CA 90220, USA Test Method/ Standard: FCC Part 15 Subpart C Section §15.205、、§15.209、 §15.227, and ANSI C63.4/2003. Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Julie Liu/ Certificate Assistant These measurements were taken by: Sign on File Leon Cheng/ Engineer The test report was reviewed by: Name Rex Liao Title Engineer Report No.: TS09110024-EME Model No.: F5L075-USB-*** Issued Date: Nov. 16, 2009 Report No.: TS09110024-EME Page 2 of 13 Table of Contents Summary of Tests ..................................................................................................................... 3 1. General information............................................................................................................. 4 1.1 Identification of the EUT ................................................................................................. 4 1.2 Additional information about the EUT............................................................................. 5 1.3 Antenna description.......................................................................................................... 5 2. Test specifications ................................................................................................................. 6 2.1 Test standard..................................................................................................................... 6 2.2 Operation mode ................................................................................................................ 6 2.3 Test equipment ................................................................................................................. 7 3. Radiated emission test FCC 15.227 (a)/(b)......................................................................... 8 3.1 Operating environment..................................................................................................... 8 3.2 Test setup & procedure.....................................................................................................8 3.3 Emission limit .................................................................................................................. 9 3.3.1 Fundamental and harmonics emission limits ................................................................ 9 3.3.2 General radiated emission limits ................................................................................... 9 3.4 Radiated emission test data ............................................................................................ 10 3.4.1 Fundamental emission .................................................................................................. 10 3.4.2 Harmonic Radiated Emission Data ............................................................................. 12 4. Emission on the band edge ................................................................................................ 13 4.1 Operating environment................................................................................................... 13 4.2 Test Result ...................................................................................................................... 13 Report No.: TS09110024-EME Page 3 of 13 Summary of Tests Wireless optical mouse-Model: F5L075-USB-*** FCC ID: K7SF5L075USB Test Reference Results Field strength of fundamental frequency 15.227(a) Complies Radiated emission 15.227(b), 15.209 Complies Emission on the band edge 15.205 Complies Report No.: TS09110024-EME Page 4 of 13 1. General information 1.1 Identification of the EUT Product: Wireless optical mouse Model No.: F5L075-USB-BLK FCC ID.: K7SF5L075USB Frequency Range: 27.045 MHz Channel Number: Single channel Frequency of Each Channel: 27.045 MHz Type of Modulation: FSK Power Supply: DC 3V from battery Power Cord: N/A Sample Received: Nov. 4, 2009 Test Date(s): Nov. 9, 2009 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered. Report No.: TS09110024-EME Page 5 of 13 1.2 Additional information about the EUT The EUT is a Wireless optical mouse, and was defined as information technology equipment. For model F5L075-USB-*** The customer confirmed denote of “*” in model number as 0~9, A~Z, or blank, the different model number for different brand serves as marketing strategy. These models are identical in hardware aspect. The customer confirmed, F5L075-USB-ASH and F5L075-USB-RAS are series models to F5L075-USB-BLK (EUT), the different model numbers are served as marketing strategy. For more detail features, ple…

Text truncated - open the document above for the full version.

Photo 1: Radiated Emission Test set-up photo F5L075-USB Photo 2: Radiated Emission Test set-up photo F5L075-USB
