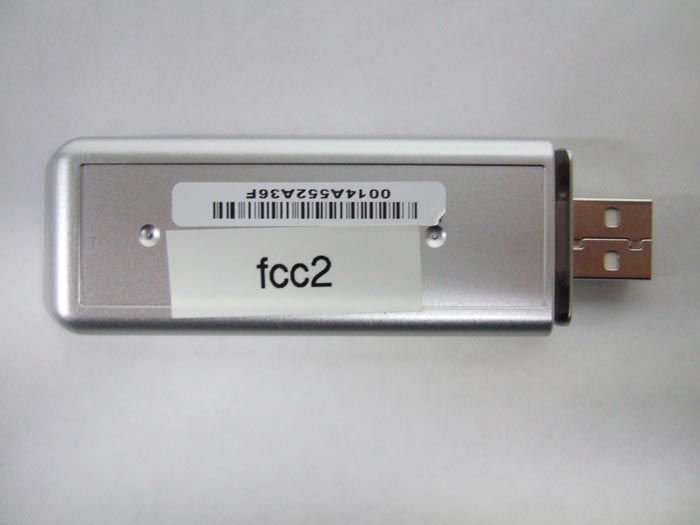

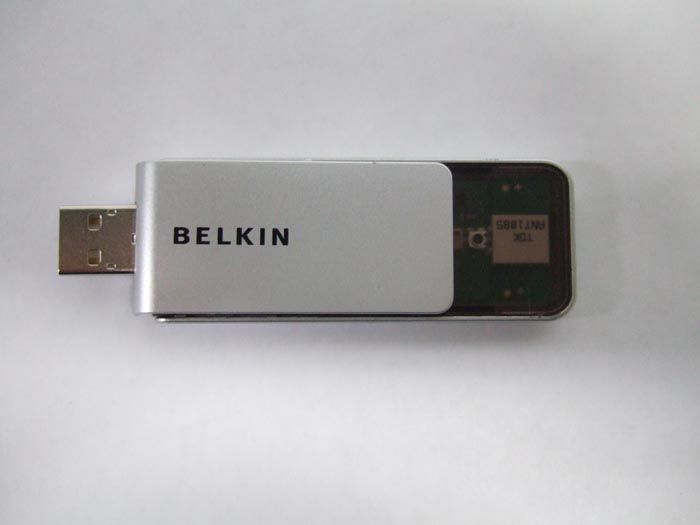

K7SF5U035Wireless USB PC to PC adapter

Revision 0.25 - 1 - Belkin Wireless USB P.C. to P.C. Adapter Model F5U035 Revision 0.25 - 2 - Table of Contents Introduction ............................................................................... 3 Features ................................................................................. 3 Operating System Supported ..................................................... 3 System Requirements ............................................................... 3 Package Includes ..................................................................... 3 Technical Specification ................................................................. 4 How to insert the Belkin Dongle to a computer ................................ 5 How to use the Belkin Dongles ...................................................... 7 Install the Belkin Dongle Software .............................................. 9 Operating the Belkin USB Dongles ............................................... 15 How to use Belkin(R) WiMedia Manager........................................ 17 Uninstallation ........................................................................... 18 Uninstall Belkin(R) Wireless UWB Link Software.......................... 18 Uninstall Belkin(R) Wireless UWB Link Drivers ............................ 18 Uninstall Intel(R) UWB Device Firmware Utility (DFU) Driver (This may not be required) .............................................................. 18 Channel Selection ..................................................................... 19 Multi-Channel Operations ........................................................ 19 Troubleshooting ........................................................................ 20 Customer Support..................................................................... 20 Information.............................................................................. 20 FCC Statement ...................................................................... 20 Revision 0.25 - 3 - Introduction Congratulations and thank you for purchasing the Belkin(R) Wireless USB 2.0 PC to PC Adapter. This revolutionary product lets you connect your computer or laptop wirelessly to other computers and perform operations such as fast file transfers, video streaming. Please review this User Manual carefully so that you are sure to get the most from your Wireless UWB Adapter. Features - Wireless Connectivity between computers and or laptops. - Connect almost instantly without any access point. - Data transfer rate of up to 480 Mbps* at a distance of 3 meters away - Data transfer rate of up to 110 Mbps* at a distance of 10 meters away - Create your own Personal Area Network and exchange files, play videos Operating System Supported - Microsoft* Windows Vista - Microsoft* Windows XP with Service Pack 2 System Requirements - Personal Computer with USB 2.0 port - 128 Megabytes Physical Memory Note: Do not plug the Belkin dongle into USB port which is not USB 2.0. Package Includes - Belkin(R) Wireless UWB Adapter – (Qty 2) - USB Flexible Connector – (Qty 2) - Installation CD-ROM - User Manual Revision 0.25 - 4 - Technical Specification Model Number F5U035 UWB Chipset Alereon Baseband, RF Intel(R) Wireless UWB Link 1480M MAC Antenna On-board Omni-directional Antenna Operating Temperature 0 0 C to 55 0 C Operating Range Up to 30 Feet (10 Meters) Power Mode USB Bus powered. PHY Data Rate 480 Mbps (Automatic Rate Adaptation) Frequency Range 3.1 GHz – 4.8 GHz Supporting 3 sub-bands 528 MHz each RF Modulation Multiband OFDM PHY Compliance Complies with WiMedia(R) PHY Specification Revision 1.0 MAC Compliance Complies with WiMedia(R) MAC Specification Revision .85 FCC Compliance Complies with FCC 47 CFR Part 15, Subpart F Section 15.519 USB Compliance Complies with USB 2.0 Specification OS Compliance Complies with Microsoft* Windows* XP SP2, Vista Co-existence Coexists with other standard WiMedia devices Revision 0.25 - 5 - How to insert the Wireless USB 2.0 PC to PC Adapter to a computer Insert the dongle into the USB adapter as shown in the diagram below. Insert the adapter with the dongle into the USB port of the computer. B6473-01 Belkin ® Wireless UWB Adapter Belkin ® USB Adapter Figure 1 How to Insert Dongle into USB Adapter Revision 0.25 - 6 - Recommended ways to connect the adapter to a computer B6474-01 Figure 2 Recommended Dongle Orientation Revision 0.25 - 7 - How to use the Wireless USB 2.0 PC to PC Adapter The Wireless USB 2.0 PC to PC Adapter can be used with laptops or desktop systems to communicate wirelessly. A few scenarios have been listed below to give you an idea of how the adapter can be used to share information almost instantly and improve your productivity. Figure 3 Laptop to Laptop Wireless Communication B6476-01 Figure 4 Laptop to Computer Wireless Communication Revision 0.25 - 8 - B6477-01 Figure 5 Multi-Laptop communication creating a Personal Area Network Revision 0.25 - 9 - Installation The following steps will illustrate the procedure to install the software and the Wireless USB 2.0 PC to PC Adapter for the first time. Note: Do not attach the USB dongle before the software is installed. Step 1 Install the software from the CD-ROM onto your computer. Step 2 Connect the USB dongle to the PC or laptop and complete the multi driver installation. Step 3 After successful installation, now you are ready to use the Belkin dongles for copying files, or streaming video. Install the Wireless USB 2.0 PC to PC Adapter Software 1. If this is not the first time the software has been installed, please uninstall the old version of the software. Click Start -> Control Panel -> Add or Remove Programs. In the Add or Remove Programs Window, scroll down to select Belkin(R) Wireless UWB Link software and click Remove button to delete the software. 2. Install the Wireless USB 2.0 PC to PC Adapter software by running the installation file setup.exe provided in a CD-ROM as part of the package. 3. If the…

Text truncated - open the document above for the full version.

501 W. Walnut Street – Compton – California 90220 USA April 17, 2007 Chief, Authorizations Branch Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Please be advised that Belkin International, Inc. authorizes TDK RF Solutions to act on our behalf, until otherwise notified, for applications submitted to the Federal Communications Commission (FCC) regarding Ultra-Wideband (UWB) products. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Sincerely, Marc Matejka Manager, Document Control & Regulatory Compliance Belkin International, Inc. Tel. 310 604 2448 Fax 310 604 2007 [email protected] cc: TDK RF Solutions

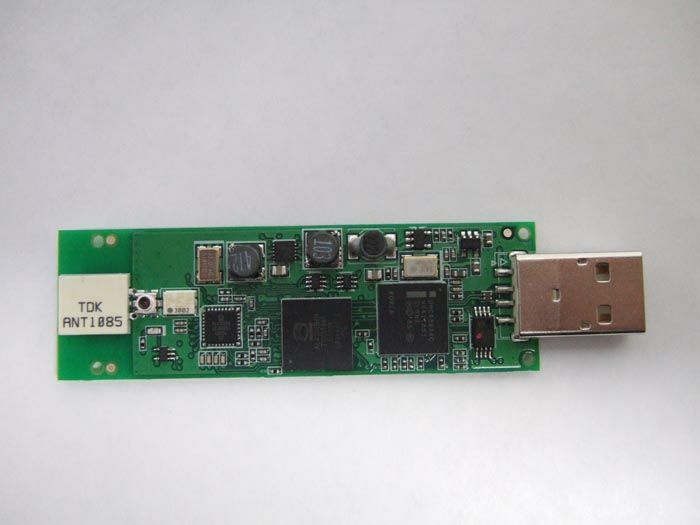

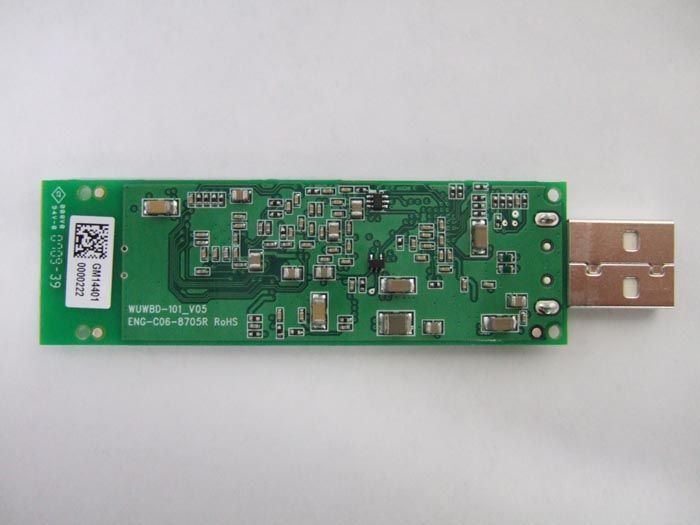

Belkin Confidential Page 1 3/28/2007 Theory of operation; Belkin F5U035 USB Dongle. The Belkin F5U035 is a UWB radio device with a USB interface to the host computer. This device is intended to provide a short-range wireless USB connection for computers and peripheral units equipped with a USB 2.0 interface. The F5U035 is powered entirely from the USB connector of the device to which it is attached. The F5U035 operates in the frequency band defined in the FCC rules and Regulations for UWB devices. Specifically, it operates between the frequencies of 3.168 and 4.752 GHz per the industry-defined WiMedia 1.1 specification. The F5U035 is comprised of three integrated circuit devices and supporting circuitry for filtering, interface and power conditioning. The F5U035 has an integrated antenna, there is no facility for an external antenna. The schematic diagram shows a connector, Murata type MM8430, in the RF path. This is a production test connector, it is not accessible from outside of the unit housing. Following the integrated antenna is a bandpass filter with a passband from 3.1 GHz to 4.752 GHz which provides suppression of unwanted transmitter emissions and receiver interference rejection in the 2.4 GHz and 5.1 GHz bands. The AL4100 RF Transceiver generates the system reference frequency from a 33 MHz crystal resonator. The 33 MHz reference frequency is multiplied to 4.224 GHz internally in the AL4100 by a PLL multiplier. From this frequency the three band frequencies, 3.432 GHz, 3.960 GHz and 4,488 GHz for both transmit and receive modes are derived internally within the AL4100 by direct synthesis. In addition to the band frequencies, a 1056 MHz clock for ADCs and DACs within the AL4200 Baseband Processor is generated. The interface between the AL4100 RF Transceiver and the AL4200 Baseband Processor consists of the analog RX-I and –Q signals and the analog TX–I and –Q signals all of which are baseband, having 2 MHz to 264 MHz frequency band. The interface also includes a 1056 MHz clock signal and CMOS logic-level control signals which determine the band frequency and mode. The interface between the AL4200 Baseband Processor and the I1480 MAC device is the industry-defined MPI consisting of CMOS logic-level: 8 data bits, control signals and a 66 MHz clock signal. The interface between the F5U035 USB dongle and the host system is via the industry-defined USB 2.0. References. MultiBand OFDM Physical Layer Specification 1.1. MAC-PHY Interface Specification 1.0. Universal Serial Buss Specification 2.0.

501 W. Walnut Street – Compton – California 90220 USA April 17, 2007 Chief, Authorizations Branch Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Belkin International, Inc. Certification Application FCC ID: K7SF5U035 To Whom It May Concern: Please be advised that the following exhibits are to be held confidential on behalf of Belkin International, Inc: • Schematics • Block Diagrams • Bill of Materials This application contains technical information that Belkin International, Inc considers to be trade secrets and proprietary. If made public, the information might be used tothe disadvantage of the applicant in the market place. Sincerely, Marc Matejka Manager, Document Control & Regulatory Compliance Belkin International, Inc. Tel. 310 604 2448 Fax 310 604 2007 [email protected]

Belkin Confidential Page 1 3/28/2007 Theory of operation; Belkin F5U035 USB Dongle. The Belkin F5U035 is a UWB radio device with a USB interface to the host computer. This device is intended to provide a short-range wireless USB connection for computers and peripheral units equipped with a USB 2.0 interface. The F5U035 is powered entirely from the USB connector of the device to which it is attached. The F5U035 operates in the frequency band defined in the FCC rules and Regulations for UWB devices. Specifically, it operates between the frequencies of 3.168 and 4.752 GHz per the industry-defined WiMedia 1.1 specification. The F5U035 is comprised of three integrated circuit devices and supporting circuitry for filtering, interface and power conditioning. The F5U035 has an integrated antenna, there is no facility for an external antenna. The schematic diagram shows a connector, Murata type MM8430, in the RF path. This is a production test connector, it is not accessible from outside of the unit housing. Following the integrated antenna is a bandpass filter with a passband from 3.1 GHz to 4.752 GHz which provides suppression of unwanted transmitter emissions and receiver interference rejection in the 2.4 GHz and 5.1 GHz bands. The AL4100 RF Transceiver generates the system reference frequency from a 33 MHz crystal resonator. The 33 MHz reference frequency is multiplied to 4.224 GHz internally in the AL4100 by a PLL multiplier. From this frequency the three band frequencies, 3.432 GHz, 3.960 GHz and 4,488 GHz for both transmit and receive modes are derived internally within the AL4100 by direct synthesis. In addition to the band frequencies, a 1056 MHz clock for ADCs and DACs within the AL4200 Baseband Processor is generated. The interface between the AL4100 RF Transceiver and the AL4200 Baseband Processor consists of the analog RX-I and –Q signals and the analog TX–I and –Q signals all of which are baseband, having 2 MHz to 264 MHz frequency band. The interface also includes a 1056 MHz clock signal and CMOS logic-level control signals which determine the band frequency and mode. The interface between the AL4200 Baseband Processor and the I1480 MAC device is the industry-defined MPI consisting of CMOS logic-level: 8 data bits, control signals and a 66 MHz clock signal. The interface between the F5U035 USB dongle and the host system is via the industry-defined USB 2.0. References. MultiBand OFDM Physical Layer Specification 1.1. MAC-PHY Interface Specification 1.0. Universal Serial Buss Specification 2.0.

Compliance Report of BELKIN F5U035 Customer: Belkin Corporation Date: March 28, 2007 TDK Report: TTS-TR-T111-112 Test performed by: TDK R&D Corporation 1101 Cypress Creek Rd Cedar Park, TX 78613 Technician Checked by Radiated 30 MHz to 40 GHz A. Medina K. Yata Report A. Medina K. Yata All services undertaken are subject to the following general policy. Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of TDK R&D Corporation. This report must not be used to claim product endorsement by A2LA, NVLAP nor any other agency of the US Government. This document contains confidential information and cannot be disclosed outside of Belkin or any affiliated company in whole or in part without the express written permission of TDK R&D Corporation. 1. Executive Summary An EMC evaluation to determine compliance of the BELKIN F5U035 with requirements of FCC 47 CFR Part 15, Subpart F Section 15.519 was conducted. All references are to the most current version of the Code of Federal Regulations 47 that are currently in effect. In accordance with §2.1033, the following data is presented in support of the Certification of the WUSB Dongle reference design. The client should retain a copy of this document on file for at least 5 years after the manufacturing of the product has been discontinued. Test Description FCC 47 CFR Section Compliance Operational Limitations 15.519(a) The client has been notified of these limitations. In normal operating mode the transmitter will only send data when associated with a receiver. See section 5 for detail UWB Bandwidth 15.519(b) Yes Radiated Emissions 15.519(c), 15.209 Yes Radiated Emissions in GPS Bands 15.519(d) Yes Peak Emissions within a 50 MHz Bandwidth 15.519(e) Yes Labelling Requirements 15.19 Yes Report prepared by Approved by Armando Medina Kunio Yata March 28, 2007 April 17, 2007 TTS-TR-T111-112 page 2 of 48 2. Task Description 2.1. Scope Reference FCC ET Docket No. 98-153, FCC 02-48 First R&O; FCC 47 CFR, Part 15, Subpart A; FCC 47 CFR, Part 15, Subpart B; FCC 47 CFR, Part 15, Subpart C; FCC 47 CFR, Part 15, Subpart F FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) Title Revision of Part 15 of the Commission’s Rules Regarding Ultra-Wideband Transmissions Systems; Code of Federal Regulations, Part 15 Subpart A: General Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation Purpose of Test To gain FCC Certification for technical requirements for Handheld UWB Systems operating between 3.1 GHz and 10.6 GHz. Test Procedures The tests were conducted in accordance with the following documents: FCC ET Docket 98-153, FCC 02-48 First R&O ANSI C63.4: 2003: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Code of Federal Regulations 47, Part 15 Subpart A: General FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) General Procedures FCC Code of Federal Regulations 47, Part 2 Frequency Allocations and Radio Treaty Matter: General Rules and Regulations Classification of EUT Hand Held Ultra-Wideband System Page 3 of 48 2.2. Related Submittal(s)/Grant(s) None 2.3. Test Plan Reference Publication Year Title FCC 47 CFR, Part 15, Subpart A 10/2004 Code of Federal Regulations, Part 15 Subpart A: General FCC 47 CFR, Part 15, Subpart B 10/2004 Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators FCC 47 CFR, Part 15, Subpart C 10/2004 Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators FCC 47 CFR, Part 15, Subpart F 10/2004 Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation FCC ET Docket 98-153, FCC 02-48 First R&O 04/2002 Revision of Part 15 of the Commission’s Rules Regarding Ultra- Wideband Transmissions Systems: First Report & Order ANSI C63.4 01/2004 Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC ET Docket No. 04- 352 3/2005 Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG 2.4. Client Information APPLICANT Name: Belkin Corporation Address: 501 Walnut St, Compton, CA 90220 Contact Person: Mark Freeman MANUFACTURER Name: Belkin Corporation Address: 501 Walnut St, Compton, CA 90220 Contact Person: Mark Freeman Page 4 of 48 2.5. Equipment Under Test (EUT) The following information (with the exception of the date information) has been supplied by the applicant. The test results in this report pertain only to the item tested. General Brand Name Belkin Product Name PC/PC Wireless USB Adapter Model Name or Number F5U035 Serial Number FCC2 Type of Equipment Wireless USB dongle Input Power Supply Type USB port Classification Hand held Ultra-Wideband system Technical Power Supply Requirements Powered through USB port of host PC RF Output Rating -42 dBm EIRP @ 3 meters Operating Frequency Range 3100 MHz to 4800 MHz RF Output Impedance 50 Ω Channel Spacing N/A Pulse Width N/A Pulse Repetition Frequency N/A 10 dB Bandwidth >500 MHz Modulation/Constellation Multiband OFDM Oscillators’ Frequencies 24MHz, 33MHz, 66MHz, 1056MHz EUT Ports USB Antenna Connector Type Internal Antenna Description Linear polarized ceramic Logistics EUT Receive Date March 16, 2007 EUT Receive Condition Good Test Start Date March 19, 2007 Test Completion Date March 22, 2007 Page 5 of 48 2.5.1.Support Equipment Description MFGR Model No. Serial No. FCC ID AC Power Adapter Lenovo 92P1113 11S92P1113Z1ZBEL 6BW07…

Text truncated - open the document above for the full version.
