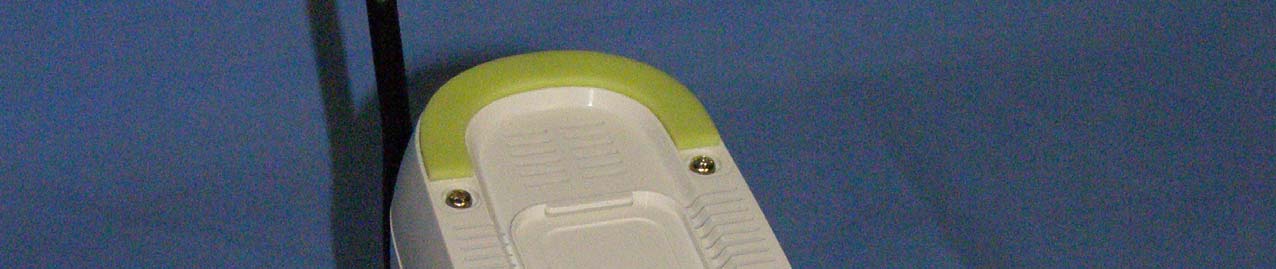

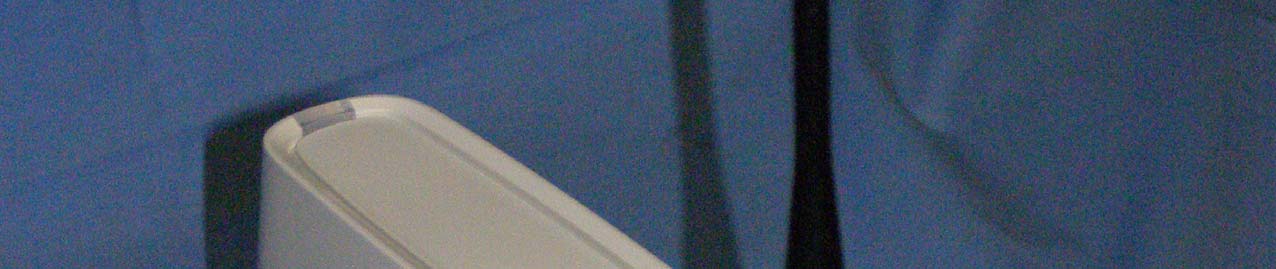

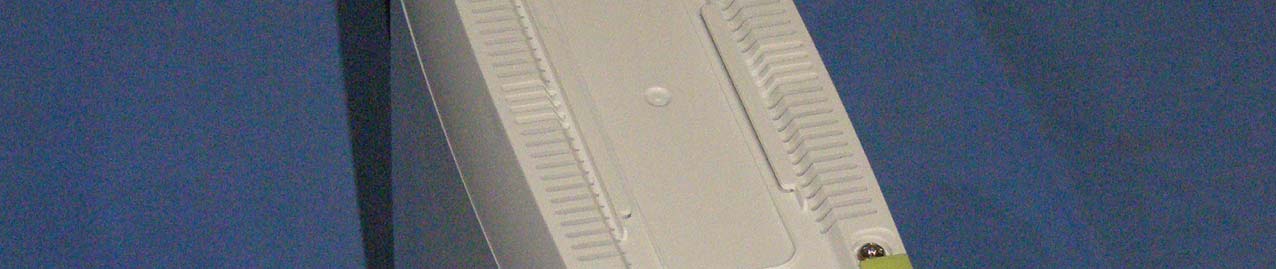

K7SF7C001Conserve Gateway Connect

501 W. Walnut Street – Compton – California 90220 USA Letter Of Agency Date: Aug. 28, 2008 CETCB 114 Olinda drive Brea, CA 92823 To Whom It May Concern: Please be advised that Belkin International Inc. authorizes Compatible Electronics and its employees to act on our behalf, until otherwise notified, for applications submitted to CETCB. We certify that we are not subject to denial of federal benefits that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party as defined in 47 CFR 1.2002(b), for this application is subject to denial of federal benefits that includes FCC benefits. Thank you for your attention to this matter. Sincerely Yours, EMC Regulatory Compliance Engineer Belkin International Inc.

BELKIN INTERNATIONAL INC. 2045 East Waterfront rive Playa Vista, CA 90094 USA Declaration of non-duplicate submittal 12/09/08 Compatible Electronics TCB, 114 Olinda Drive Brea, CA 92828 Subject: TCB application submittal Gentlemen: We Belkin International would like to declare that the application being submitted for the device with FCC ID: K7SF7C001, has not been submitted to another TCB or FCC. If you have any question, please do not hesitate to contact us at (310) 604-2315 Sincerely, Name/ Title: Daniel Wesey/ EMC Regulatory Compliance Engineer Signature:

12045 East Waterfront Drive, Playa Vista, CA 90094 USA September 29, 2010 Compatible Electronics TCB 114 Olinda Drive Brea, CA 92823 Subject: Modification to the device CETCB 114 Olinda Drive Brea, CA 92823 Gentlemen: This letter is to formally notify you that the following modifications were made during the testing at Compatible Electronic, Inc to our Gateway Connect F7C001 and F7C015 during FCC certification and will be implemented in production. Modifications: • The value for R5 is 2.7pF • The antenna is the ACX AT9520-B2R4HAAT/LF • The TDK ZCAT1518-0730 ferrite bead was attached to the power cable 1 inch from the connector Sincerely, Daniel Wesey/EMC Regulatory Compliance Engineer. .

12045 East Waterfront Drive, Playa Vista, CA 90094 USA Request for non-disclosure RF_501_02 Subject: Request for non-disclosure (FCC ID:K7SF7C001) Reference number:F7C001 Dear FCC TCB, Date: 2010-08-20 Pursuant to 47 CFR Section 0.459(a) & (b), Belkin International Inc. Hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: (K7SF7C001) a. b. c. Schematic diagrams Operational description Block Diagram Above materials contain secrets, proprietary and technical information, which would customarily be guided from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Belkin International Inc. Understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Name/ Title: Daniel Wesey/ EMC Regulatory Compliance Engineer Signature:

Correspondence by Project Project Number: Correspondence NumberMemo K7SF7C001-1 1)The sample label provided does not contain the FCC logo required for a device that is authorized under the Declaration of Conformity procedure. Please submit a corrected label. A: See Attached, A New FCC label 2)The confidentiality request letter contains an incorrect FCC ID. Please provide a corrected letter. A: See Attached, A New Request for Confidentiality 3)The Declaration of Conformity does not contain the telephone number of the Responsible Party as required by 2.1077. The customer states that the telephone number is provided 2 pages up (pg 31) in the users’ manual. 4)There is no data supplied for the b mode of the device for harmonics, radiated or conducted emissions. Please provide. A: The data has been added to the test report. 5)There is no emissions data supplied for the g mode from 10 kHz to 30 MHz and for above 2 GHz. Also, no harmonics data has been supplied for the g mode. Please provide. A: The data has been added to the test report. 6)The operational description and block diagram suggests that up to six transmitters may be used, two zigbee, one z-wave, one ERT and two WIFI, however the FCC label shows that only one additional FCC ID is in the device and test data for only one WIFI radio has been provided in the report. Please provide clarification on how many transmitters are used in this device with a more complete operational description. Per section 2.1033, the operational description should include “A brief description of the circuit functions of the device along with a statement describing how the device operates. This statement should contain a description of the ground system and antenna, if any, used with the device.” A: A new document was added to the existing Operational Description that gives a better description to support the information provided. The was removed because it was planned to have it as part of the final unit but it never made it to the final revision; The port wes unpopulated during testing. The ERT reciever is for a different model which would replace one of the Zigbee radios with the ERT reciever, The block diagram was provided without the Z-wave or ERT included. 7)Please provide MPE calculations with the correct power level and antenna gains. A: The MPE calculations with the correct antenna gain was provided. 8)Please provide data showing compliance to 15.31(e). A: Test has been added to the test report showing compliance. 9)The block diagram submitted is not sufficient. As per section 2.1033(b)(5) of the FCC rules, the block diagram must show “the frequency of all oscillators used in the device. The signal path and frequency shall be indicated at each block. The tuning range(s) and intermediate frequency(ies) shall be indicated at each block.” A: See attached, A New block diagram was provided with the signal paths and all oscillators. 10)Please provide a letter stating the modifications made to the device and that they will be implemented in production. A: See attached, Declaration concerning modification

Integrated Antenna Solutions  Product Specification AE020157-F Rufa 2.4 GHz SMD Antenna Product Specification 1 Features Designed for 2.4 GHz applications [Bluetooth™, WiFi™ (802.11b/g), Zigbee™, WiMedia™ etc.] Intended for SMD mounting Supplied in tape on reel 2 Description The Rufa antenna is intended for use with all 2.4 GHz applications. The antenna requires a groundplane, i.e your device acts as an active part of the antenna and thus demand careful consideration concerning its placement 3 Application Mobile phones PDAs Headsets Laptops PC- Cards CF- Cards • • • • • • • • • Integrated Antenna Solutions 2 Product Specification AE020157-F Rufa 2.4 GHz SMD Antenna Contents 1 Features  2 Description  3 Application  4 Model name 3 5 General data 3 6 Electrical characteristics 3 7 Electrical performance 4 7-1 Voltage Standing Wave Ratio 4 7-2 3D-Radiation 4 7-3 Radiation patterns 4 8 Antenna Dimensions 5 9 Antenna Foot print 5 10 Electrical interface 6 10-1 Transmission line and matching 6 10-2 Test board dimensions 6 10-3 Test board matching 6 11 Soldering 7 11-1 Recommended soldering conditions 7 11-2 Leadfree soldering 7 12 Reliability 7 12-1 Temperature and Humidity 7 12-2 Mechanical 8 12-3 Miscellaneous 8 12-4 Judgement standard 8 13 Hazardous Material Regulation Conformance 8 14 Application example 9 15 Packaging 1 0 15-1 Shelf storage recommendation 1 0 15-2 Tape characteristics 1 0 15-3 Reel dimension 1 0 15-4 Box dimension 1  15-5 Bag properties 1  15-6 Reel label information 1  Integrated Antenna Solutions 3 Product Specification AE020157-F Rufa 2.4 GHz SMD Antenna 4 Model name Right feeding Left feeding 3030A5839 - 01 Antenna Family -SMD Technology -PCB Drawing No. 3030A5887 - 01 Antenna Family -SMD Technology -PCB Drawing No. 5 General data Product NameRufa 2.4 GHz Article No. 3030A5839-01(Left) 3030A5887-01 (Right) Frequency2.4-2.5 GHz PolarizationLinear Operating temperature-40 to + 85 degC Impedance50 Ohm Weight0.1 gram Antenna typeSMD 6 Electrical characteristics Characteristics Conditions* MinTypMax Peak Gain4.0 dBi4.1 dBi4.4 dBi Frequency 2.4-2.5 GHz, Measured in 3D chamber ( near field) Efficiency66%68%69% VSWR1.3:11.5:11.6:1Frequency 2.4-2.5 GHz, Measured in Network Analyzer *Note all data provided in this table are based on the Antenova reference board Integrated Antenna Solutions 4 Product Specification AE020157-F Rufa 2.4 GHz SMD Antenna 7 Electrical performance 7-1 Voltage Standing Wave Ratio 7-2 3D-Radiation 7-3 Radiation patterns XY- Plane XZ- Plane YZ- Plane Total polarization Vertical polarization Horizontal polarization Integrated Antenna Solutions 5 Product Specification AE020157-F Rufa 2.4 GHz SMD Antenna 8 Antenna Dimensions Art no: 3030A5839-01 (Left) Art no: 3030A5887-01 (Right) LWHGFS1S2S3IJKL1MNO LengthWidthHeightGroundFeedSolder 12.8 ±0.23.9 ±0.21.1±0.152.0±0.12.0±0.12.0±0.11.0±0.10.25±0.18.1±0.13.7±0.12.4±0.11.3±0.10.3±0.15 Dimensions in millimeters 9 Antenna Foot print Art no: 3030A5839-01 (Left) Art no: 3030A5887-01 (Right) GFS1S2S3IJKL1MNO GroundFeedSolder 2.0±0.12.0±0.12.0±0.11.0±0.10.25±0.18.1±0.13.7±0.12.4±0.11.3±0.10.5±0.15 Dimensions in milimeters Integrated Antenna Solutions 6 Product Specification AE020157-F Rufa 2.4 GHz SMD Antenna 10 Electrical interface 10-1 Transmission line and matching The matching network has to be individually designed using one, two or three components. t, w = Unique dimensioning according to your PCB * C = Inductor and capacitor values according to your specific device* * Antenova provides this service upon request 10-2 Test board dimensions The testboard is designed for evaluation purposes for Rufa 2.4 GHz SMD antenna. The card has the same size as a typical PCMCIA card and is fitted with an SMA connector. 10-3 Test board matching Series capacitor 6.8 pF The testboard is matched with above specified component. Integrated Antenna Solutions 7 Product Specification AE020157-F Rufa 2.4 GHz SMD Antenna Note! The component value(s) will vary depending on size of PCB, surrounding components etc. 11 Soldering 11-1 Recommended soldering conditions 11-2 Leadfree soldering The antenna has been tested and approved for leadfree soldering. The reflow curve and solder paste used is listed below. Solder paste: KOKI S3X58-M405 12 Reliability 12-1 Temperature and Humidity ItemStandardLowHighDuration Operating temperature EN/IEC 60068-2-2, Test Bd: Dry heat -30 degC+90 degC- Temperature cycling EN/IEC 60068-2-14, Test Na: Change of temperature -40 degC+90 degC500 cycles / 10 min Storage life Humidity EN/IEC 60068-2-1, Test Ca: Damp heat +60 degC / 90% RH500 h Storage life Low temperature EN/IEC 60068-2-1, Test Ad: Cold -55 degC-500 h Storage life High temperature EN/IEC 60068-2-2, Test Bb: Dry heat -+125 degC500 h Integrated Antenna Solutions 8 Product Specification AE020157-F Rufa 2.4 GHz SMD Antenna 12-2 Mechanical ItemStandardLowHighDuration Bending IEC 60068-2-21, Test Ue1: Bending Bending 1 mm at a rate of 1 mm/s with support at end of PCB 1mm depth on reference board Shear IEC 60068-2-21, Test Ue3: Shear Force of 5 N applied to the side of the antenna. Drop test Dummy weight: 150g Height: 170cm One drop at each side, total drops: 6 Vibration EN/IEC 60068-2-6, Test Fc (sinusoidal) Acceleration spectral density:10-1000Hz Acceleration: 20m/s2 Number of axes: 3 mutually perpendicular 5 cycles per axis 12-3 Miscellaneous ItemStandardLowHighDuration Solderability EN/IEC 60068-2-58, Test Td Visual inspection of soldering pads. Estimation of how many % of the pads that are well tin plated. 12-4 Judgement standard The judgement of the above tests should be made as follows: Visual inspection - Normal apperance with no obvious cracking, peeling-off. Electrical inspection - The DUT satisfies the VSWR specification throughout the 2.4-2.5 GHz band 13 Hazardous Material Regulation Conformance Cadmium and cadmium compound. Organic brominated compound (PBB, PBDE) Polychlorinated biphenyl (PCB) Polychlorinated naphthalene (PCN) Organic ti…

Text truncated - open the document above for the full version.

ACX Adv anced Ceramic X SPECIFICATION FOR APPROVAL Customer磊 Product Description Multilayer Chip Antenna, AT9520 series Your Part Number 61721000AC ACX Part Number AT9520-B2R4HAAT/LF File Number Date Jul. 20, 2006 Approved Comments 磊 Prepared by ACX Advanced Ceramic X Corporation 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien, Taiwan, 30316 TEL(03)598-7008 FAX(03)598-7001 http://www.acxc.com.tw : T-S00-E007 : 1 量零 ACX Advanced Ceramic X AT9520 Series Multilayer Chip Antenna Features ™ Monolithic SMD with small, low-profile and light-weight type. ™ Wide bandwidth Applications ™2.4GHz WLAN, Home RF, Bluetooth Modules, etc. Specifications Part Number Frequency Range (MHz) Peak Gain (XZ-V) Average Gain (XZ-V) VSWR Impedance AT9520- B2R4HAA_ 2400~2500 3.0 dBi typ. 1.0 dBi typ. 2 max. 50 Q’ty/Reel (pcs) : 1000pcs Operating Temperature Range : -40 ~ +85 o C Storage Temperature Range : -40 ~ +85 o C Power Capacity : 3W max. Part Number AT 9520 - B 2R4 HAA ‡ /LF c d e f g h i c Type AT : Antenna d Dimensions ( L × W ) 9.5× 2.0 mm e Material Code B f Frequency Range 2R4=2400MHz g Specification Code HAA h Packaging T: Tape & Reel B: Bulk i Soldering =lead-containing /LF=lead-free Terminal Configuration No. Terminal Name No. Terminal Name c Feeding Point d NC d c ACX Advanced Ceramic X Dimensions and Recommended PC Board Pattern Unit : mm a W T L Mark L W T a Dimensions 9.50.2 2.00.2 1.2+ 0.1/-0.2 0.50.3 (a) Without Matching Circuits (Moderate Bandwidth) 7.5 10.5 1.0 * * 1.8 * (b) With Matching Circuits (Wide Bandwidth) * 1.8 7.5 10.5 1.0 (Matching circuit and component values will be different, depending on PCB layout) 1.5pF 3.9nH * * *Line width should be designed to match 50characteristic impedance, depending on PCB material and thickness. ACX Advanced Ceramic X Typical Electrical Characteristics (T=25 o C) ™Test Board ™Return Loss (a) Without Matching Circuits (b) With Matching Circuits Antenna No Ground Ground 20mm 12mm 40mm 19mm 50Ω Feed Line ACX ™Radiation Patterns Advanced Ceramic X XY cut @2.45GHz Vertical Horizontal Y X 270 o Z XY-V/XY-H 180 o XY-cut scanning direction 90 o 0 o 0 o 90 o 180 o 270 o X Z Y XZ-cut scanning direction 0 o 90 o 180 o 270 o X Z Y YZ-cut scanning direction XZ cut @2.45GHz Vertical Horizontal YZ cut @2.45GHz Vertical Horizontal YZ-V/YZ-H XZ-V/XZ-H Advanced Ceramic X Corp. 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan TEL:886-3-5987008 FAX:886-3-5987001 E-mail: [email protected] http://www.acxc.com.tw ACX Adv anced Ceram ic X Item Requirements Procedure Solderability 1. No apparent damage 2. More than 75% of the terminal electrode shall be covered with new solder 1. Preheat: 120± 5 o C 2. Solder: 230± 5 o C for 5± 1 sec Thermal shock (Temperature Cycle) 1. No apparent damage 2. Fulfill the electrical specification after test 1. One cycle/ step 1: 85 ± 5 o C for 20sec step 2: -40 ± 3 o C for 20sec 2. Cycle time: 30min 3. No. of cycles: 100 4. Recovery: 1-2hrs Heat Resistance 1. No apparent damage 2. Fulfill the electrical specification after test 1. Temperature: 85± 2 o C 2. Duration: 24±2hrs 3. Recovery: 1-2hrs Low Temperature Resistance 1. No apparent damage 2. Fulfill the electrical specification after test 1. Temperature: -40 o ± 5 o C 2. Duration: 24 ±2hrs 3. Recovery: 1-2hrs Humidity Resistance 1. No apparent damage 2. Fulfill the electrical specification after test 1. Temperature: 85± 2 o C 2. Humidity: 80% ~ 85% RH 3. Duration: 1000±48hrs 4. Recovery: 1-2hrs Soldering strength (Push strength) 1. 9.8N minimum 1. Solder specimen onto test jig. 2. Apply push force at 0.5mm/s until electrode pads are peeled off or ceramic are broken. Pushing force is applied to longitude direction Deflection (Bending) 1. No apparent damage 2. Fulfill the electrical specification 1. Solder specimen onto test jig (FR4, 0.8mm) using the recommend soldering profile. 2. Apply a bending force of 2mm deflection ` Drop Shock 1. No apparent damage 1. Dropped onto hard wood from height of 50 cm for 3 times ; each x,y and z direction except terminal direction Mechanical & Environmental Characteristics R230 Pressure Rod 90mm ACX Adv anced Ceram ic X Typical Soldering Profile ™Typical Soldering Profile for Lead-free Process Flow Soldering : Reflow Soldering : T e m p erature ( o C) 20s. 230 o C 180 o C 260C 5s, max. Time (s.) 60s, min. Pre-heating 30s. 230 o C 180 o C 250 o C 10s, max. Time (s.) 60s, min. Pre-heating T e m p erature ( o C) The sample must be pre-heated before soldering .The temperature difference between preheating and soldering must be within 150 . Notes ™The contents of this data sheet are subject to change without notice. Please confirm the specifications and delivery conditions when placing your order. ACX Advanced Ceramic X Taping Specifications ™Tape Dimensions (Unit: mm) φ1.55 +0.05 A’ t D 7.5 ± 0. 1.75 ± 0 1 .1 C T AB 16± 0.2 W A A’ B C D t T W 4.0 0.1 4.0 0.1 1.9 0.1 3.5 0.1 2.0 0.1 0.20 0.05 Max. 1.4 8.00 0.2 4.0 0.1 4.0 0.1 2.4 0.1 5.5 0.1 2.0 0.1 0.20 0.05 Max. 2.35 12.0 0.1 7020 4.0 0.1 4.0 0.1 2.4 0.1 7.3 0.1 2.0 0.1 0.22 0.05 Max. 2.35 12.0 0.1 7635 8.0 0.1 4.0 0.1 3.75 0.1 7.85 0.1 2.0 0.1 0.30 0.05 Max. 1.40 16.0 0.1 8516 4.0 0.1 4.0 0.1 1.85 0.1 8.70 0.1 2.0 0.1 0.25 0.05 Max. 1.40 16.0 0.1 9520 4.0 0.1 4.0 0.1 2.3 0.1 9.7 0.1 2.0 0.1 0.22 0.05 Max. 1.45 16.0 0.1 R130 8.0 0.1 4.0 0.1 3.35 0.1 10.35 0.1 2.0 0.1 0.25 0.05 Max. 1.40 16.0 0.1 R151 8.0 0.1 4.0 0.1 5.3 0.1 11.30 0.1 2.0 0.05 0.35 0.05 Max. 1.85 24.0 0.3 Type 3216 5020 ™Quantity Type 3216 5020 7020 7635 8516 9520 R130 R151 Quantity /per reel 3,000pcs2,000 1,000 pcs1,000 pcs1000pcs1,000 pcs 1,000 pcs1,000pcs ™Reel Dimensions (Unit: mm) 178 ± 2.0 60 ± 0.5 1.4 D:21.8 ± 0.8 3 5 D:13.0 ± 0. 0.2.0 ± Label: Customer’s Name, ACX P/N, Q’ty, Date, ACX Corp. Label 19.5 w Type 3216 5020 7020 7635 8516 9520 R130 R151 w 9.4 0.5 18.1 0.5 18.1 0.518.1 0.518.1 0.518.1 0.5 18.1 0.525.3 0.5 ACX Advanced Ceramic X ™Leader and Trailer Tape (Plastic material) Trailer End Trailer …

Text truncated - open the document above for the full version.

SCALE 1:1 ALL TEXTS ARE: HELVETICA NEUE 55 ROMAN DATE: 10/11/2010REVISION: 1.6 Conserve ConnectF7C001 DESIGNER: mw REVISION NOTES: 1.1 UPDATED ARTWORK, CORNER RADIUS 1.2 ADDED WORD “CONTAINS” ABOVE FCC ID 1.3 ADDITIONAL ICONS ADDED, ARTWORK REARRANGED 1.4 PRODUCT NAME AND COUNTRY UPDATED 1.5 FCC ID NUMBERS REVISED 1.6 ADDED FCC LOGO DO NOT MAKE CHANGES WITHOUT PERMISSION FROM BELKIN IDG. SPECIFICATIONS FOR ID LABEL ALL DIMENSIONS IN [mm]. LABEL MATERIAL: Mylar with Matte PP finish ELEMENTS SHOWN IN DARK GRAY: PANTONE 425C ELEMENTS SHOWN IN LIGHT GRAY: PANTONE COOL GRAY 3C ELEMENTS SHOWN IN BLACK: BLACK INNOVATION DESIGN GROUP Elements within red boxes are to be printed in BLACK on pre-printed label at the factory. *** Please try to use the same font and keep the printed element within the red boxes’ dimensions. *** 30.0 20.0 R5.50 87.50 24.50

MPE Calculations For RF Exposure Requirements Conserve Gateway Connect Model: F7C001 Page 1 of 1 MAXIMUM PERMISSIBLE EXPOSURE FOR SUBPART C 2.4 GHz BAND Calculations EUT Power density at the specific separation: S1 = PG 1 /(4 π R 2 ) S1 = (562.341 * 2.75) / (4 * π * 20 2 ) S1 = 0.307654 mW/cm 2 (at 20 cm) Limit = 1 mW/cm 2 Internal Approved Modals Power density at the specific separation: S 2 = PG 2 /(4 π R 2 ) S 2 = (95.499 * 1.12) / (4 * π * 20 2 ) S 2 = 0.021279 mW/cm 2 (at 20 cm) Limit = 1 mW/cm 2 S 3 = PG 3 /(4 π R 2 ) S 3 = (48.977 * 3.16) / (4 * π * 20 2 ) S 3 = 0.030790 mW/cm 2 (at 20 cm) Limit = 1 mW/cm 2 Combine Power density at the specific separation: S T = S 1 / LPD + S 2 / LPD + S 3 / LPD S T = (0.307654 / 1) + (0.021279 / 1) + (0.030790 / 1) S T = 0.359723 mW/cm 2 (at 20 cm) Limit = 1 mW/cm 2 Where S1 = DAC-0 Maximum power density (mW/cm 2 ) S2 = Zigbee Maximum power density (mW/cm 2 ) S3 = Zigbee (with 5 dBi antenna) Maximum power density (mW/cm 2 ) ST = Total Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G 1 = DAC-0 Numeric power gain of the antenna G 2 = Zigbee Numeric power gain of the antenna G 3 = Zigbee (with 5 dBi antenna)Numeric power gain of the antenna R = distance to the center of the radiation of the antenna (20 cm = limit for MPE) LPD = Limit of power density The maximum permissible exposure (MPE) for the general population is 1 mW/cm2. The power density at 20 cm does not exceed the 1 mW/cm2. Therefore, the exposure condition is compliant with FCC rules. The numeric gain (G) of the antenna with a gain specified in dB is determined by: G1 = Log-1 (dB antenna gain/10) G1 = Log-1 (4.4 dBi/10) G1 = 2.75 G2 = Log-1 (dB antenna gain/10) G2 = Log-1 (.5 dBi/10) G2 = 1.12 G3 = Log-1 (dB antenna gain/10) G3 = Log-1 (5 dBi/10) G3 = 3.16

Report Number: D00901P1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Conserve Gateway Connect Model: F7C001 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 19 FCC PART 15, SUBPART B and C TEST REPORT for Conserve Gateway Connect MODEL: F7C001 Prepared for BELKIN INTERNATIONAL, INC. 12045 EAST WATERFRONT DRIVE PLAYA VISTA, CA 90094 Prepared by:_____________________ JOSH HANSEN Approved by:____________________ JOEY MADLANGBAYAN COMPATIBLE ELECTRONICS INC. 20621 PASCAL WAY LAKE FOREST, CALIFORNIA 92630 (949) 587-0400 DATE: September 17, 2010 REPORT APPENDICES TOTAL BODY A B C D E PAGES 19 2 2 2 14 94 133 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: D00901P1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Conserve Gateway Connect Model: F7C001 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 19 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. Description of Test Configuration 9 4.1 Description of Test Configuration - EMI 9 4.1.1 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 5.2 EMI Test Equipment 12 6. TEST SITE DESCRIPTION1 13 6.1 Test Facility Description 13 6.2 EUT Mounting, Bonding and Grounding 13 7. CHARACTERISTICS OF THE TRANSMITTER 14 7.1 Antenna Gain 14 8. Test Procedures 15 8.1 RF Emissions 15 8.1.1 Conducted Emissions Test 15 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 16 8.2 6 dB Bandwidth 17 8.3 Peak Output Power 17 8.4 RF Antenna Conducted Test 17 8.5 RF Band Edges 18 8.6 Spectral Density Test 18 8.6 Voltage Fluctuations 18 9. CONCLUSIONS 19 Report Number: D00901P1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Conserve Gateway Connect Model: F7C001 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 19 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos  Test Setup Diagrams  Radiated and Conducted Emissions Photos  Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site Report Number: D00901P1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Conserve Gateway Connect Model: F7C001 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 19 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: Conserve Gateway Connect Model: F7C001 S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was modified in order to meet the specifications. See Annex B for description Manufacturer: BELKIN INTERNATIONAL, INC. 12045 East Waterfront Drive Playa Vista, CA 90094 Test Dates: August 26 th , and September 1 st , 2 nd , and 3 rd 2010 Test Specifications: EMI requirements CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.207, 15.209, and 15.247 Test Procedure: ANSI C63.10: 2009 Test Deviations: The test procedure was not deviated from during the testing. Report Number: D00901P1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Conserve Gateway Connect Model: F7C001 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 19 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz – 30 MHz Complies with the Class B limits of CFR Title 47, Part 15 Subpart B; and the limits of CFR Title 47, Part 15, Subpart C, section 15.207 2 Spurious Radiated RF Emissions, 30 MHz – 1000 MHz Complies with the Class B limits of CFR Title 47, Part 15 Subpart B; and the limits of CFR Title 47, Part 15, Subpart C, section 15.209 3 Spurious Radiated RF Emissions, 9 kHz – 30 MHz and 1000 MHz – 25000 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and CFR Title 47, Part 15, Subpart C, section 15.247(d) 4 Fundamental and Emiss…
