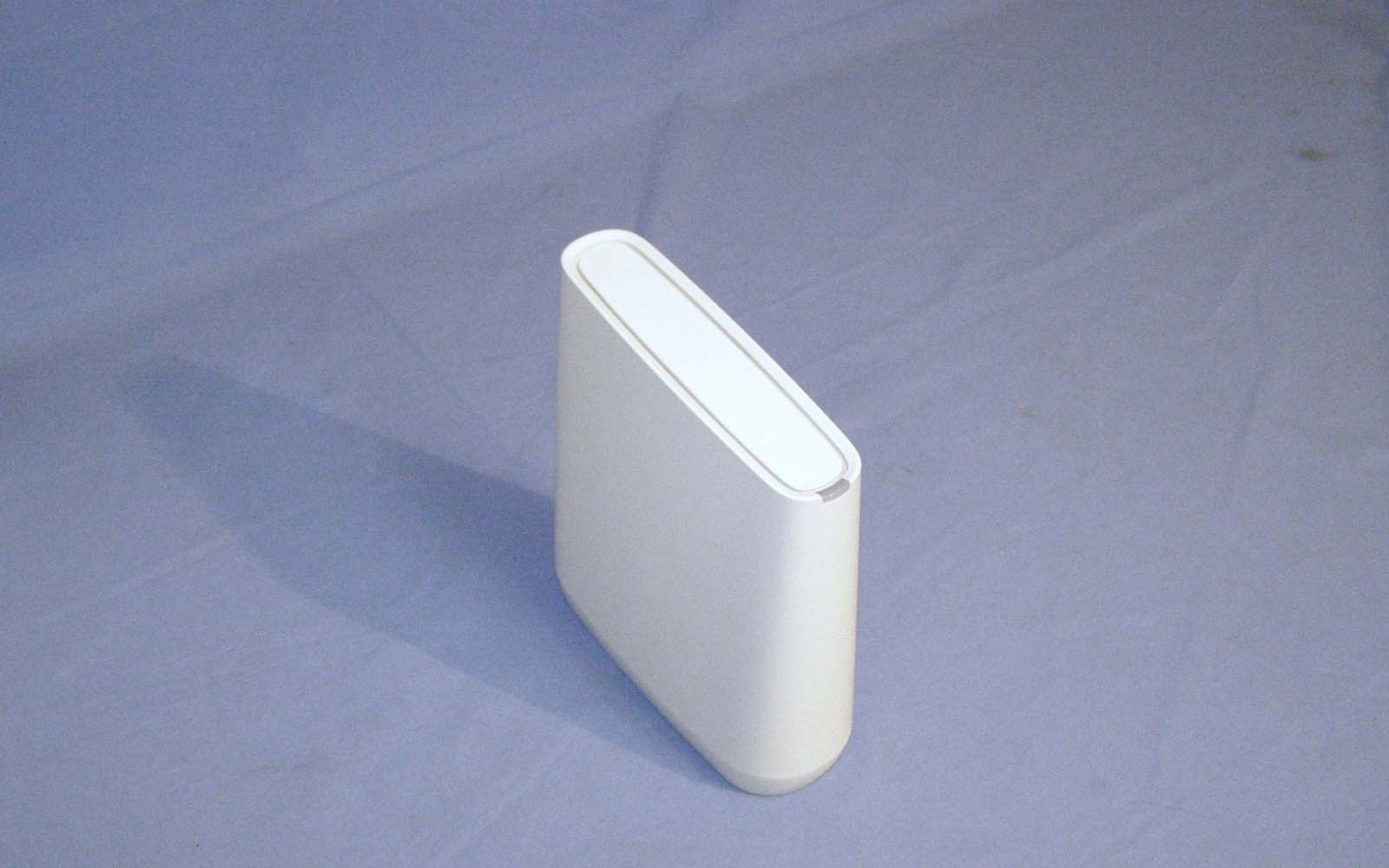

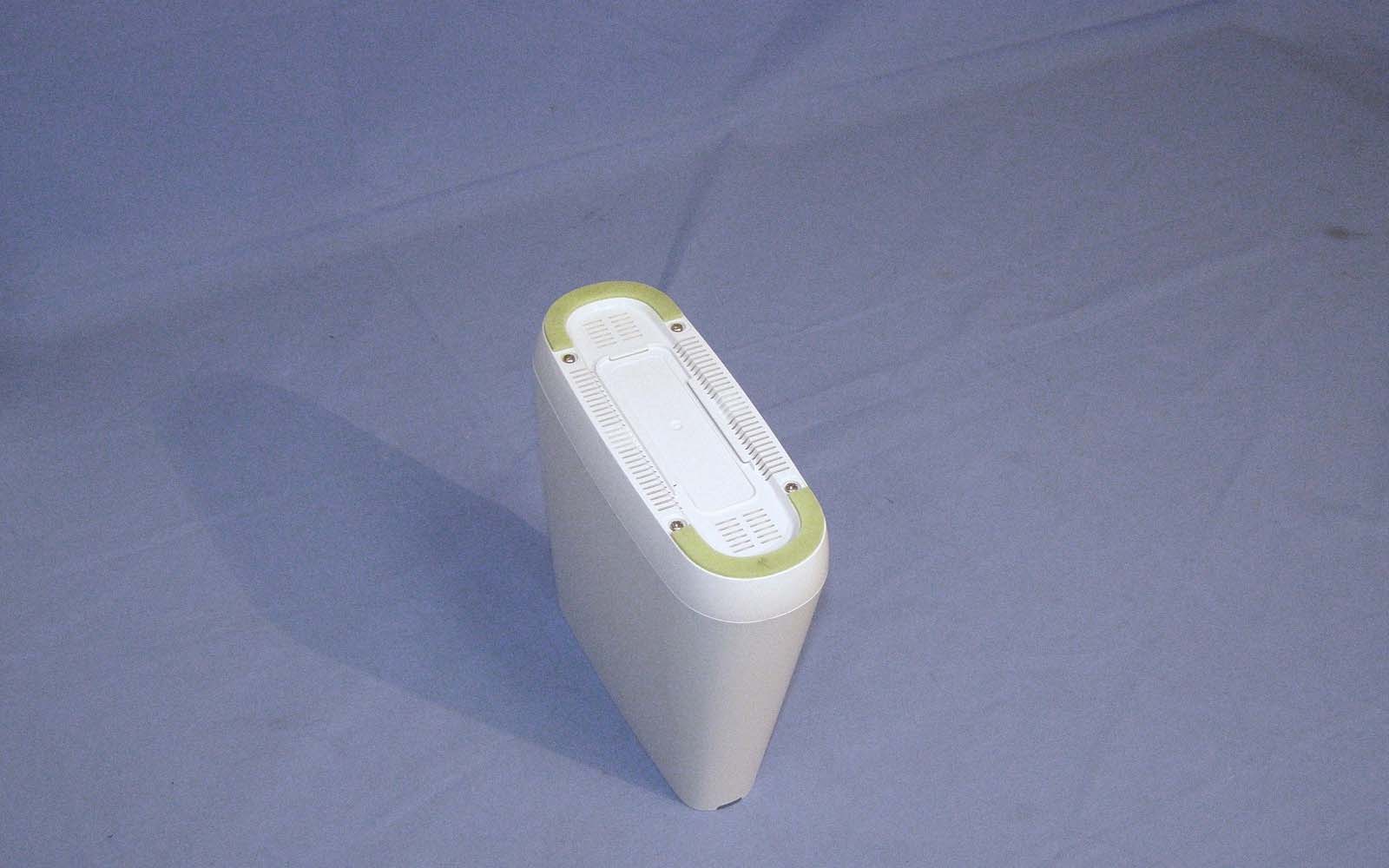

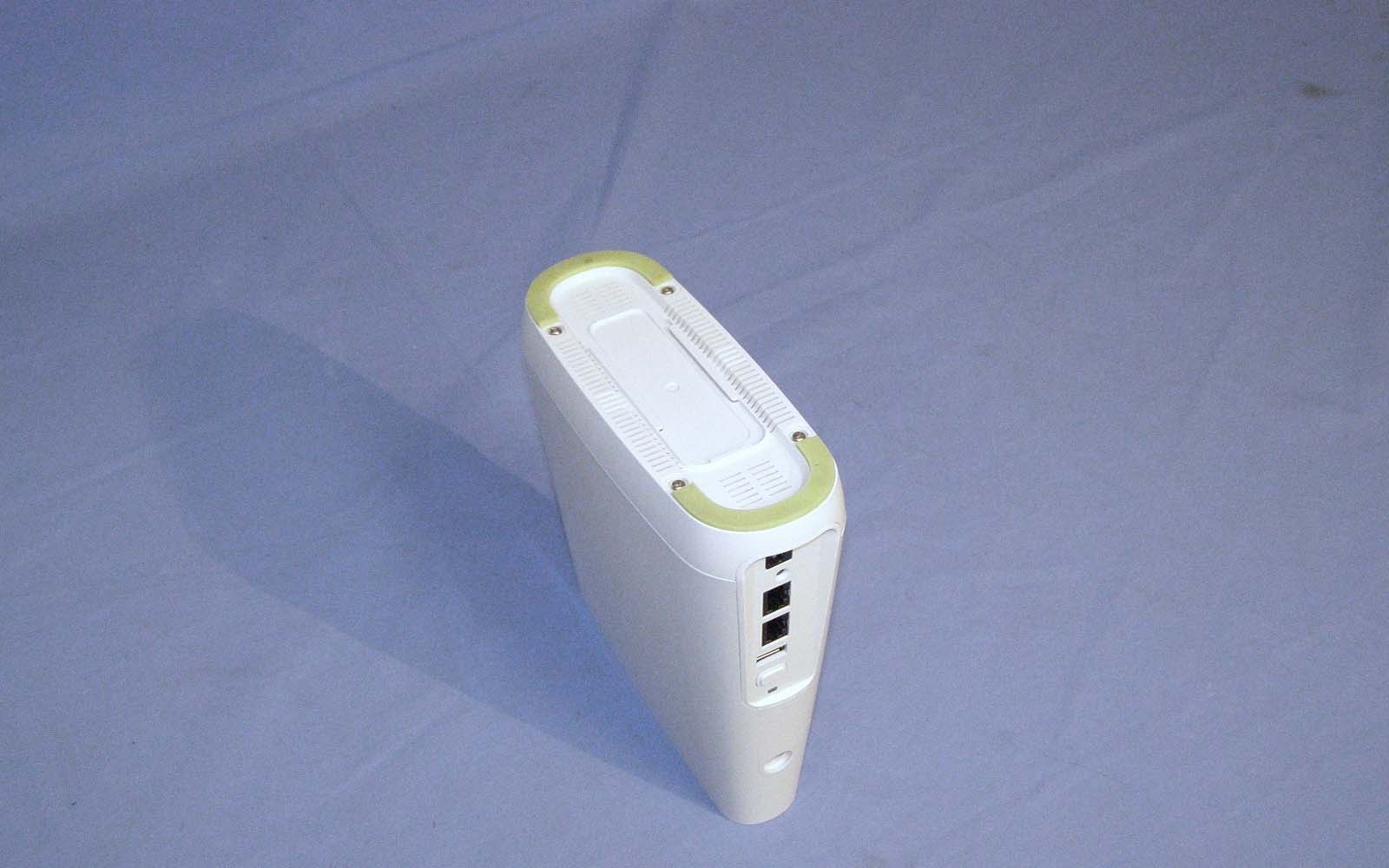

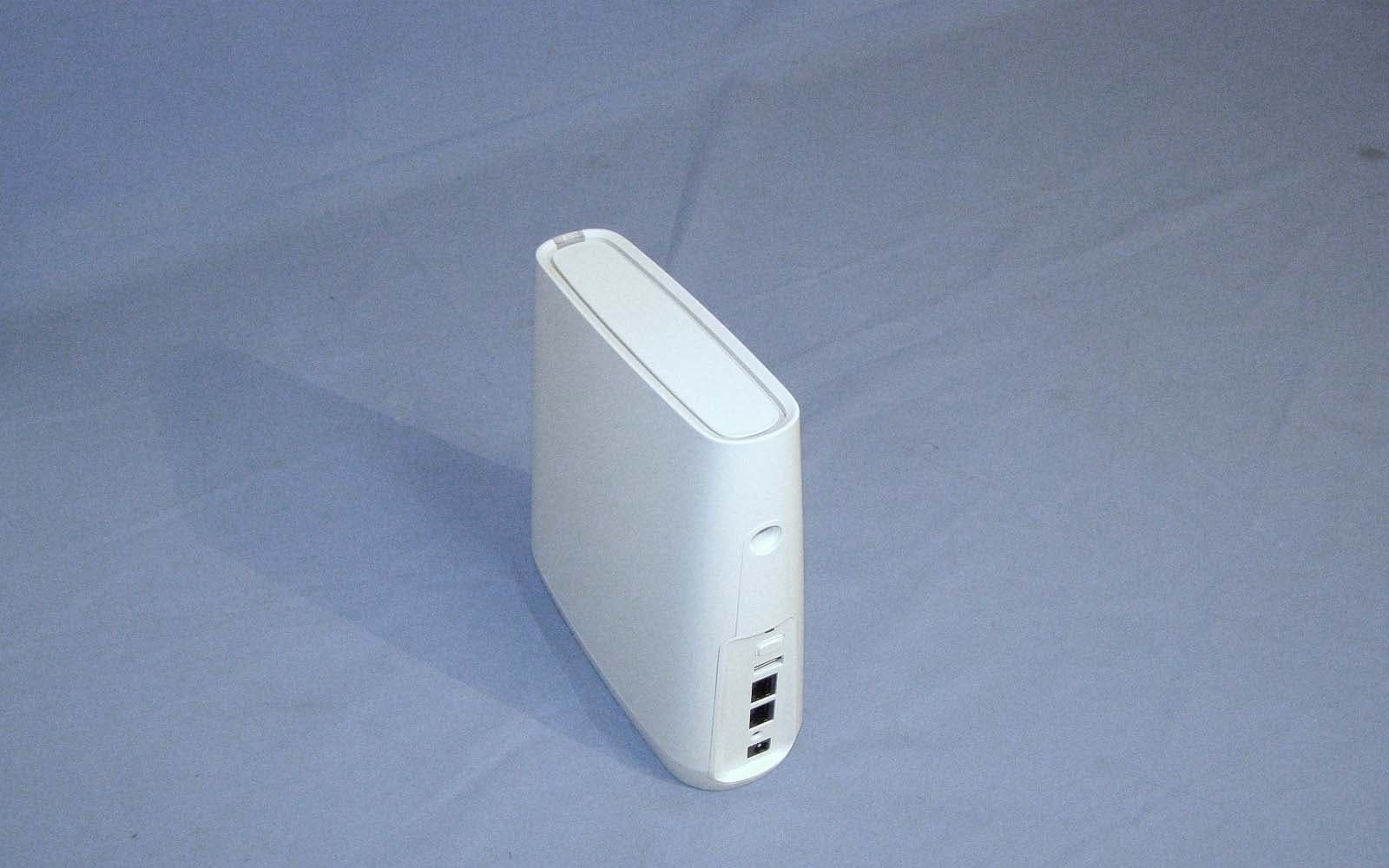

K7SF7C015Conserve Gateway Connect

Company Information Belkin Tech Support U.S. http://www.belkin.com/support For more information and to learn about other Belkin Conserve energy management products, please go to belkin.com/conserve 8820-00693 F7C015 © 2010 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Safari is a trademark of Apple Inc., registered in the U.S. and other countries. Internet Explorer is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. Belkin International, Inc. reserves the right to make any modification to this manual or the information contained herein at any time without notice. Conserve Gateway ™ Your Connection to Saving Energy User Guide 01 Introduction 03 Installation and Setup 05 Getting Connected 09 Settings 19 Troubleshooting 23 Information 29 Table of ConTenTs 02 03 Making progress every day Making a better world doesn’t happen all at once; it’s about making progress. Your Conserve energy management system can help you make progress on your energy goals every day. 03 04 Welcome to Conserve Welcome to your Conserve energy management system. Here you can track your energy use, estimate your bill, get answers to your energy questions, and set goals to help you save energy and money. Your Conserve System Your Conserve energy management system is made up of three key parts. inTroduCTion Smart Meter located on the outside of your home Conserve Gateway Professionally installed by your utility company Computer Interface accessible from home or remotely 05 What was just installed in my home? Your utility company sent a representative to your house to professionally install your Conserve Gateway, the nerve center for your Conserve system. The following pages describe what was installed. 05 06 Introducing Your Conserve Gateway Your Conserve Gateway was professionally installed in your home and set up to link wirelessly to your smart meter. insTallaTion and seTuP Smart Meter Conserve Gateway 07 insTallaTion and seTuP Here’s what the installer did to set up your Conserve Gateway: . Found the optimal location for the Conserve Gateway in your home. Your Conserve Gateway requires a strong wireless signal to link to your smart meter and other connected devices. Please avoid moving the Conserve Gateway. if you experience connection problems, see the Troubleshooting section at the back of this guide. . Connected your Conserve Gateway to an appropriate power source. Your Conserve Gateway needs to be powered on at all times and cannot be connected to an outlet controlled by a switch. . Established a secure wireless connection to your smart meter. Your Conserve Gateway transmits information about your energy use from the smart meter to your personalized Conserve interface to help you understand your bill and set energy goals. 08 insTallaTion and seTuP The installer may have also: . Paired the Conserve Gateway to other devices in your home, if applicable. additional devices, including in-home displays, smart thermostats, and load controllers may have been connected to enhance your Conserve system. refer to any additional information your utility company may have provided. . Linked the Conserve Gateway to your existing home router, if applicable. Connecting your Conserve Gateway to the internet enables additional functionality, such as remote access. 09 How do I get connected? now that your Conserve Gateway has been installed, how do you make it work for you? Getting connected is easy. Just follow one of the four connection options on the following pages. from there you can access the Conserve system from your home computer, or enable remote access to manage your energy use from anywhere. 09 10 The Back of Your Conserve Gateway GeTTinG ConneCTed Pair Button May be used to link the Conserve Gateway to compatible devices. refer to instructions included with the device you wish to pair. Note: This feature may not be enabled by your utility provider. Computer Port for connecting the Conserve Gateway to your home computer. Network Port for connecting the Conserve Gateway to the internet. Note: You must have an existing internet connection and compatible wired or wireless router with available ethernet ports to use this functionality. Power Jack Connects the Conserve Gateway to the included power supply. Note: only use the included power supply (power rating 5V/2a) with the Conserve Gateway. USB Port used with compatible usb devices. Reset Button use to restart your Conserve Gateway in the rare case that it functions incorrectly. existing settings will be preserved during restart. Back 11 GeTTinG ConneCTed Simple Connection You can access the Conserve interface at home from your computer. You don’t need to be connected to the internet to do this, but connecting to the internet will enable additional functionality, such as remote access. Choose the connection option that’s right for you. Connecting without Internet: Linking your Conserve Gateway to your home computer: Step 1: Plug an ethernet cable into the Computer Port on the back panel of the Conserve Gateway. Step 2: Plug the other end of the ethernet cable into an ethernet port on your home computer. Step 2 Step 1 12 GeTTinG ConneCTed Accessing the Conserve interface: Step 1: open up a browser window on your computer (for example, internet explorer ® or safari ® ). Step 2: Type the following address into the address bar: http://www.ConserveAdvisor.com This will open up the Conserve interface that allows you to manage your energy use. Step 3: if this is your first time accessing the Conserve interface, create an account by entering the required information. Then log in to access your personalized energy management system. 13 GeTTinG ConneCTed Connecting through wired Internet: if you have broadband internet access and a compatible router, linking your Conserve Gateway to the internet will enable additional functionality, such as r…

Text truncated - open the document above for the full version.

501 W. Walnut Street – Compton – California 90220 USA Letter Of Agency Date: Aug. 28, 2008 CETCB 114 Olinda drive Brea, CA 92823 To Whom It May Concern: Please be advised that Belkin International Inc. authorizes Compatible Electronics and its employees to act on our behalf, until otherwise notified, for applications submitted to CETCB. We certify that we are not subject to denial of federal benefits that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party as defined in 47 CFR 1.2002(b), for this application is subject to denial of federal benefits that includes FCC benefits. Thank you for your attention to this matter. Sincerely Yours, EMC Regulatory Compliance Engineer Belkin International Inc.

BELKIN INTERNATIONAL INC. 2045 East Waterfront rive Playa Vista, CA 90094 USA Declaration of non-duplicate submittal 12/09/08 Compatible Electronics TCB, 114 Olinda Drive Brea, CA 92828 Subject: TCB application submittal Gentlemen: We Belkin International would like to declare that the application being submitted for the device with FCC ID: K7SF7C015, has not been submitted to another TCB or FCC. If you have any question, please do not hesitate to contact us at (310) 604-2315 Sincerely, Name/ Title: Daniel Wesey/ EMC Regulatory Compliance Engineer Signature:

12045 East Waterfront Drive, Playa Vista, CA 90094 USA September 29, 2010 Compatible Electronics TCB 114 Olinda Drive Brea, CA 92823 Subject: Modification to the device CETCB 114 Olinda Drive Brea, CA 92823 Gentlemen: This letter is to formally notify you that the following modifications were made during the testing at Compatible Electronic, Inc to our Gateway Connect F7C015 during FCC certification and will be implemented in production. Modifications: • The value for R5 is 2.7pF • The antenna is the ACX AT9520-B2R4HAAT/LF • The TDK ZCAT1518-0730 ferrite bead was attached to the power cable 1 inch from the connector • Installed copper strips that connected the above two shields together (ERT receiver PCB will be changed to connect the two shields together) Sincerely, Daniel Wesey/EMC Regulatory Compliance Engineer. .

12045 East Waterfront Drive, Playa Vista, CA 90094 USA Request for non-disclosure RF_501_02 Subject: Request for non-disclosure (FCC ID:K7SF7C015) Reference number:F7C015 Dear FCC TCB, Date: 2010-08-20 Pursuant to 47 CFR Section 0.459(a) & (b), Belkin International Inc. Hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: (K7SF7C015) a. b. c. Schematic diagrams Operational description Block Diagram Above materials contain secrets, proprietary and technical information, which would customarily be guided from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Belkin International Inc. Understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Name/ Title: Daniel Wesey/ EMC Regulatory Compliance Engineer Signature:

Integrated Antenna Solutions  Product Specification AE020157-F Rufa 2.4 GHz SMD Antenna Product Specification 1 Features Designed for 2.4 GHz applications [Bluetooth™, WiFi™ (802.11b/g), Zigbee™, WiMedia™ etc.] Intended for SMD mounting Supplied in tape on reel 2 Description The Rufa antenna is intended for use with all 2.4 GHz applications. The antenna requires a groundplane, i.e your device acts as an active part of the antenna and thus demand careful consideration concerning its placement 3 Application Mobile phones PDAs Headsets Laptops PC- Cards CF- Cards • • • • • • • • • Integrated Antenna Solutions 2 Product Specification AE020157-F Rufa 2.4 GHz SMD Antenna Contents 1 Features  2 Description  3 Application  4 Model name 3 5 General data 3 6 Electrical characteristics 3 7 Electrical performance 4 7-1 Voltage Standing Wave Ratio 4 7-2 3D-Radiation 4 7-3 Radiation patterns 4 8 Antenna Dimensions 5 9 Antenna Foot print 5 10 Electrical interface 6 10-1 Transmission line and matching 6 10-2 Test board dimensions 6 10-3 Test board matching 6 11 Soldering 7 11-1 Recommended soldering conditions 7 11-2 Leadfree soldering 7 12 Reliability 7 12-1 Temperature and Humidity 7 12-2 Mechanical 8 12-3 Miscellaneous 8 12-4 Judgement standard 8 13 Hazardous Material Regulation Conformance 8 14 Application example 9 15 Packaging 1 0 15-1 Shelf storage recommendation 1 0 15-2 Tape characteristics 1 0 15-3 Reel dimension 1 0 15-4 Box dimension 1  15-5 Bag properties 1  15-6 Reel label information 1  Integrated Antenna Solutions 3 Product Specification AE020157-F Rufa 2.4 GHz SMD Antenna 4 Model name Right feeding Left feeding 3030A5839 - 01 Antenna Family -SMD Technology -PCB Drawing No. 3030A5887 - 01 Antenna Family -SMD Technology -PCB Drawing No. 5 General data Product NameRufa 2.4 GHz Article No. 3030A5839-01(Left) 3030A5887-01 (Right) Frequency2.4-2.5 GHz PolarizationLinear Operating temperature-40 to + 85 degC Impedance50 Ohm Weight0.1 gram Antenna typeSMD 6 Electrical characteristics Characteristics Conditions* MinTypMax Peak Gain4.0 dBi4.1 dBi4.4 dBi Frequency 2.4-2.5 GHz, Measured in 3D chamber ( near field) Efficiency66%68%69% VSWR1.3:11.5:11.6:1Frequency 2.4-2.5 GHz, Measured in Network Analyzer *Note all data provided in this table are based on the Antenova reference board Integrated Antenna Solutions 4 Product Specification AE020157-F Rufa 2.4 GHz SMD Antenna 7 Electrical performance 7-1 Voltage Standing Wave Ratio 7-2 3D-Radiation 7-3 Radiation patterns XY- Plane XZ- Plane YZ- Plane Total polarization Vertical polarization Horizontal polarization Integrated Antenna Solutions 5 Product Specification AE020157-F Rufa 2.4 GHz SMD Antenna 8 Antenna Dimensions Art no: 3030A5839-01 (Left) Art no: 3030A5887-01 (Right) LWHGFS1S2S3IJKL1MNO LengthWidthHeightGroundFeedSolder 12.8 ±0.23.9 ±0.21.1±0.152.0±0.12.0±0.12.0±0.11.0±0.10.25±0.18.1±0.13.7±0.12.4±0.11.3±0.10.3±0.15 Dimensions in millimeters 9 Antenna Foot print Art no: 3030A5839-01 (Left) Art no: 3030A5887-01 (Right) GFS1S2S3IJKL1MNO GroundFeedSolder 2.0±0.12.0±0.12.0±0.11.0±0.10.25±0.18.1±0.13.7±0.12.4±0.11.3±0.10.5±0.15 Dimensions in milimeters Integrated Antenna Solutions 6 Product Specification AE020157-F Rufa 2.4 GHz SMD Antenna 10 Electrical interface 10-1 Transmission line and matching The matching network has to be individually designed using one, two or three components. t, w = Unique dimensioning according to your PCB * C = Inductor and capacitor values according to your specific device* * Antenova provides this service upon request 10-2 Test board dimensions The testboard is designed for evaluation purposes for Rufa 2.4 GHz SMD antenna. The card has the same size as a typical PCMCIA card and is fitted with an SMA connector. 10-3 Test board matching Series capacitor 6.8 pF The testboard is matched with above specified component. Integrated Antenna Solutions 7 Product Specification AE020157-F Rufa 2.4 GHz SMD Antenna Note! The component value(s) will vary depending on size of PCB, surrounding components etc. 11 Soldering 11-1 Recommended soldering conditions 11-2 Leadfree soldering The antenna has been tested and approved for leadfree soldering. The reflow curve and solder paste used is listed below. Solder paste: KOKI S3X58-M405 12 Reliability 12-1 Temperature and Humidity ItemStandardLowHighDuration Operating temperature EN/IEC 60068-2-2, Test Bd: Dry heat -30 degC+90 degC- Temperature cycling EN/IEC 60068-2-14, Test Na: Change of temperature -40 degC+90 degC500 cycles / 10 min Storage life Humidity EN/IEC 60068-2-1, Test Ca: Damp heat +60 degC / 90% RH500 h Storage life Low temperature EN/IEC 60068-2-1, Test Ad: Cold -55 degC-500 h Storage life High temperature EN/IEC 60068-2-2, Test Bb: Dry heat -+125 degC500 h Integrated Antenna Solutions 8 Product Specification AE020157-F Rufa 2.4 GHz SMD Antenna 12-2 Mechanical ItemStandardLowHighDuration Bending IEC 60068-2-21, Test Ue1: Bending Bending 1 mm at a rate of 1 mm/s with support at end of PCB 1mm depth on reference board Shear IEC 60068-2-21, Test Ue3: Shear Force of 5 N applied to the side of the antenna. Drop test Dummy weight: 150g Height: 170cm One drop at each side, total drops: 6 Vibration EN/IEC 60068-2-6, Test Fc (sinusoidal) Acceleration spectral density:10-1000Hz Acceleration: 20m/s2 Number of axes: 3 mutually perpendicular 5 cycles per axis 12-3 Miscellaneous ItemStandardLowHighDuration Solderability EN/IEC 60068-2-58, Test Td Visual inspection of soldering pads. Estimation of how many % of the pads that are well tin plated. 12-4 Judgement standard The judgement of the above tests should be made as follows: Visual inspection - Normal apperance with no obvious cracking, peeling-off. Electrical inspection - The DUT satisfies the VSWR specification throughout the 2.4-2.5 GHz band 13 Hazardous Material Regulation Conformance Cadmium and cadmium compound. Organic brominated compound (PBB, PBDE) Polychlorinated biphenyl (PCB) Polychlorinated naphthalene (PCN) Organic ti…

Text truncated - open the document above for the full version.

SCALE 1:1 ALL TEXTS ARE: HELVETICA NEUE 55 ROMAN DATE: 10/11/2010REVISION: 1.6 Conserve ConnectF7C015 DESIGNER: mw REVISION NOTES: 1.1 UPDATED ARTWORK, CORNER RADIUS 1.2 ADDED WORD “CONTAINS” ABOVE FCC ID 1.3 ADDITIONAL ICONS ADDED, ARTWORK REARRANGED 1.4 PRODUCT NAME AND COUNTRY UPDATED 1.5 FCC ID NUMBERS REVISED 1.6 ADDED FCC LOGO DO NOT MAKE CHANGES WITHOUT PERMISSION FROM BELKIN IDG. SPECIFICATIONS FOR ID LABEL ALL DIMENSIONS IN [mm]. LABEL MATERIAL: Mylar with Matte PP finish ELEMENTS SHOWN IN DARK GRAY: PANTONE 425C ELEMENTS SHOWN IN LIGHT GRAY: PANTONE COOL GRAY 3C ELEMENTS SHOWN IN BLACK: BLACK INNOVATION DESIGN GROUP Elements within red boxes are to be printed in BLACK on pre-printed label at the factory. *** Please try to use the same font and keep the printed element within the red boxes’ dimensions. *** 30.0 7.0 R5.50 87.50 24.50

MPE Calculations For RF Exposure Requirements Conserve Gateway Connect Model: F7C015 Page 1 of 1 MAXIMUM PERMISSIBLE EXPOSURE FOR SUBPART C 2.4 GHz BAND Calculations EUT Power density at the specific separation: S1 = PG 1 /(4 π R 2 ) S1 = (562.341 * 2.75) / (4 * π * 20 2 ) S1 = 0.307654 mW/cm 2 (at 20 cm) Limit = 1 mW/cm 2 Internal Approved Modals Power density at the specific separation: S 2 = PG 2 /(4 π R 2 ) S 2 = (95.499 * 1.12) / (4 * π * 20 2 ) S 2 = 0.021279 mW/cm 2 (at 20 cm) Limit = 1 mW/cm 2 Combine Power density at the specific separation: S T = S 1 / LPD + S 2 / LPD S T = (0.307654 / 1) + (0.021279 / 1) S T = 0.328933 mW/cm 2 (at 20 cm) Limit = 1 mW/cm 2 Where S1 = DAC-0 Maximum power density (mW/cm 2 ) S2 = Zigbee Maximum power density (mW/cm 2 ) ST = Total Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G 1 = DAC-0 Numeric power gain of the antenna G 2 = Zigbee Numeric power gain of the antenna R = distance to the center of the radiation of the antenna (20 cm = limit for MPE) LPD = Limit of power density The maximum permissible exposure (MPE) for the general population is 1 mW/cm2. The power density at 20 cm does not exceed the 1 mW/cm2. Therefore, the exposure condition is compliant with FCC rules. The numeric gain (G) of the antenna with a gain specified in dB is determined by: G1 = Log-1 (dB antenna gain/10) G1 = Log-1 (4.4 dBi/10) G1 = 2.75 G2 = Log-1 (dB antenna gain/10) G2 = Log-1 (.5 dBi/10) G2 = 1.12

Report Number: D01019P1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Conserve Gateway Connect Model: F7C015 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 19 FCC PART 15, SUBPART B and C TEST REPORT for Conserve Gateway Connect MODEL: F7C015 Prepared for BELKIN INTERNATIONAL, INC. 12045 EAST WATERFRONT DRIVE PLAYA VISTA, CA 90094 Prepared by:_____________________ JOSH HANSEN Approved by:____________________ JOEY MADLANGBAYAN COMPATIBLE ELECTRONICS INC. 20621 PASCAL WAY LAKE FOREST, CALIFORNIA 92630 (949) 587-0400 DATE: October 19, 2010 REPORT APPENDICES TOTAL BODY A B C D E PAGES 19 2 2 2 14 94 133 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: D01019P1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Conserve Gateway Connect Model: F7C015 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 19 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. Description of Test Configuration 9 4.1 Description of Test Configuration - EMI 9 4.1.1 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 5.2 EMI Test Equipment 12 6. TEST SITE DESCRIPTION1 13 6.1 Test Facility Description 13 6.2 EUT Mounting, Bonding and Grounding 13 7. CHARACTERISTICS OF THE TRANSMITTER 14 7.1 Antenna Gain 14 8. Test Procedures 15 8.1 RF Emissions 15 8.1.1 Conducted Emissions Test 15 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 16 8.2 6 dB Bandwidth 17 8.3 Peak Output Power 17 8.4 RF Antenna Conducted Test 17 8.5 RF Band Edges 18 8.6 Spectral Density Test 18 8.6 Voltage Fluctuations 18 9. CONCLUSIONS 19 Report Number: D01019P1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Conserve Gateway Connect Model: F7C015 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 19 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos  Test Setup Diagrams  Radiated and Conducted Emissions Photos  Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site Report Number: D01019P1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Conserve Gateway Connect Model: F7C015 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 19 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: Conserve Gateway Connect Model: F7C015 S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was modified in order to meet the specifications. See Annex B for description Manufacturer: BELKIN INTERNATIONAL, INC. 12045 East Waterfront Drive Playa Vista, CA 90094 Test Dates: August 26 th , and September 1 st , 2 nd , and 3 rd 2010 Test Specifications: EMI requirements CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.207, 15.209, and 15.247 Test Procedure: ANSI C63.10: 2009 Test Deviations: The test procedure was not deviated from during the testing. Report Number: D01019P1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Conserve Gateway Connect Model: F7C015 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 19 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz – 30 MHz Complies with the Class B limits of CFR Title 47, Part 15 Subpart B; and the limits of CFR Title 47, Part 15, Subpart C, section 15.207 2 Spurious Radiated RF Emissions, 30 MHz – 1000 MHz Complies with the Class B limits of CFR Title 47, Part 15 Subpart B; and the limits of CFR Title 47, Part 15, Subpart C, section 15.209 3 Spurious Radiated RF Emissions, 9 kHz – 30 MHz and 1000 MHz – 25000 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and CFR Title 47, Part 15, Subpart C, section 15.247(d) 4 Fundamental and Emissio…
