K7SF7C029V2WeMo Insight

8820fc02067 Rev. A00 46SHRL03.013 80 gsm wood free paper 155.575 mm 77.7875mm 130.175 mm FrontBack

4 15 / 16 [125.414] 9 21 / 32 [245.090] 4 15 / 16 [125.414] 12 Pt. SBS 9 21 / 32 [245.090]

Date:10/25/2014 Subject: Ad Hoc Mode Function Declaration FCC ID: K7SF7C029V2 To Whom it may concern, We, Belkin International, Inc. declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. Regards, ( Signature Here) ------------------------------------------------------------------- Daniel Wesey / Manager, Global Engineering Services Belkin International, Inc. Tel No.:1-310-751-2816 Fax No.: 1-310-751-5912 E-mail: [email protected]

AUTHORIZATION LETTER Date: 10/25/2014 FCC ID: K7SF7C029V2 To whom it may concern: We, the undersigned, hereby authorize (name: Amanda Wu and Title: Senior Specialist) of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by (name: Amanda Wu and Title: Senior Specialist) of BV CPS Taoyuan on our behalf shall have the same effect as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, Daniel Wesey / Manager, Global Engineering Services Belkin International, Inc. Tel No.:1-310-751-2816 Fax No.: 1-310-751-5912 E-mail: [email protected]

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: 10/25/2014 Subject: Request for Confidentiality FCC ID: K7SF7C029V2 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 2014/12/30. External Photos Internal Photos User Manual Test Setup photos It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Sincerely yours, ------------------------------------------------------- Daniel Wesey /Manager, Global Engineering Services Belkin International, Inc. Tel No.:1-310-751-2816, Fax No.: 1-310-751-5912 E-mail: [email protected]

Report No.:141007E05 Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig.1) FCC ID: K7SF7C029V2 Label FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. REVAPPROVEDDATE REV SIZE DWG TITLE DWG NO. SCALESHEET REV A4A4 D 1/1 1 OF 1 SANDY CHEN SANDY CHEN 10/14/14 10/14/14 10/14/14 10/14/14 D DRELEASE TO FILE 4L-SHR2003-001 4L-SHR2003-001 DESCRIPTION REVISIONS PART NUMBER BLOCK PART NUMBER SHR2-L2 WNC PROPRIETARY 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Tel: 886-3-6667799 Fax: 886-3-5788726 KEVIN HUANG KEVIN HUANG WHITE,30X10.4,TLW,SHR1-L1 NOTES: 1. MATERIAL: WHITE PET, T=0.0100±0.003, FINISH: MAT COATING, T=0.025±0.003 GLUE: EMBOSSED ADHESIVE, T=0.035±0.003 2. COLOR: a. BACKGROUND= PAPER COLOR (WHITE) b. PRINTING= PANTONE COOL 425 C 3. TEMPERATURE RESISTANT= 80 0 C. PANTONE COOL 428 C 58.6 58.2 35.2 19.320.5 R 1.3,2PLS 1.9 4.9 -0.2 +0 -0.2 +0 -0.2 +0 +0.2 -0

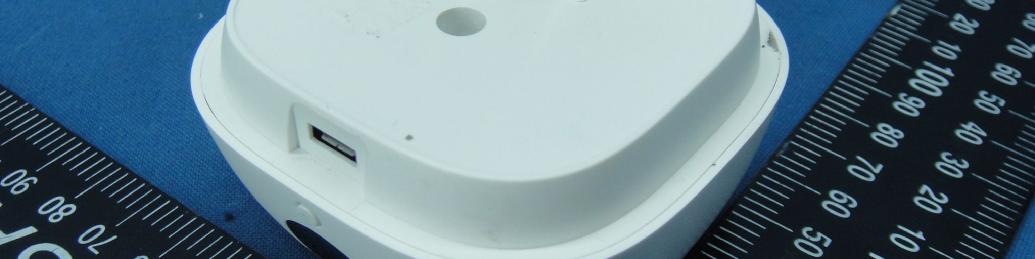

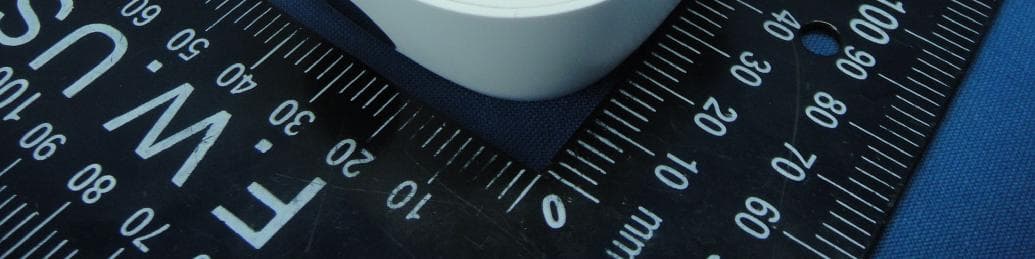

Report No.:141007E05 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.:141007E05 Page 2 Report No.:141007E05 Page 3 Report No.:141007E05 Page 4

Report No.: SA141007E05 1 of 6 Report Format Version 5.2.1 RF EXPOSURE REPORT REPORT NO.: SA141007E05 MODEL NO.: F7C029V2 FCC ID: K7SF7C029V2 RECEIVED:Oct. 07, 2014 TESTED:Oct. 16, 2014 ISSUED:Nov. 12, 2014 APPLICANT: Belkin, International Inc., ADDRESS: 12045 East Waterfront Drive Playa Vista, California 90094 United States ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA141007E05 2 of 6 Report Format Version 5.2.1 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT ............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. ANTENNA GAIN ...................................................................................................... 5 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .......................... 6 Report No.: SA141007E05 3 of 6 Report Format Version 5.2.1 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA141007E05 Original release Nov. 12, 2014 Report No.: SA141007E05 5 of 6 Report Format Version 5.2.1 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 5. ANTENNA GAIN The antenna provided to the EUT, please refer to the following table: Gain (dBi) Antenna Type Connecter Type Frequency range (MHz to MHz) Cable Loss (dB) 1.85 PCB NA 2400~2483.5 NA Report No.: SA141007E05 6 of 6 Report Format Version 5.2.1 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN: 15.247(2.4GHz) 802.11b FREQUENCY (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 78.705 1.85 20 0.02397 1.00 802.11g FREQUENCY (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 157.036 1.85 20 0.04783 1.00 802.11n (HT20) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 187.068 1.85 20 0.05698 1.00 802.11n (HT40) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2422 - 2452 163.682 1.85 20 0.04986 1.00 --- END ---

Report No.: RF141007E05 1 of 57 Report Format Version 5.2.1 FCC TEST REPORT REPORT NO.: RF141007E05 MODEL NO.: F7C029V2 FCC ID: K7SF7C029V2 RECEIVED: Oct. 07, 2014 TESTED: Oct. 15 to 29, 2014 ISSUED: Nov. 12, 2014 APPLICANT: Belkin, International Inc., ADDRESS: 12045 East Waterfront Drive Playa Vista, California 90094 United States ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF141007E05 2 of 57 Report Format Version 5.2.1 Table of Contents RELEASE CONTROL RECORD ........................................................................................ 4 1. CERTIFICATION .................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................ 6 2.1 MEASUREMENT UNCERTAINTY .......................................................................... 7 3. GENERAL INFORMATION ..................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ....................................................................... 8 3.2 DESCRIPTION OF TEST MODES ....................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................ 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 14 3.4 DUTY CYCLE OF TEST SIGNAL ......................................................................... 15 3.5 DESCRIPTION OF SUPPORT UNITS .................................................................. 16 3.6 CONFIGURATION OF SYSTEM UNDER TEST ................................................... 16 4. TEST TYPES AND RESULTS .............................................................................. 17 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................ 17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................... 17 4.1.2 TEST INSTRUMENTS .......................................................................................... 17 4.1.3 TEST PROCEDURES .......................................................................................... 18 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 18 4.1.5 TEST SETUP ....................................................................................................... 18 4.1.6 EUT OPERATING CONDITIONS ......................................................................... 19 4.1.7 TEST RESULTS ................................................................................................... 20 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 22 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 22 4.2.2 TEST INSTRUMENTS .......................................................................................... 23 4.2.3 TEST PROCEDURES .......................................................................................... 25 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 25 4.2.5 TEST SETUP ....................................................................................................... 26 4.2.6 EUT OPERATING CONDITIONS ......................................................................... 26 4.2.7 TEST RESULTS ................................................................................................... 27 4.3 6dB BANDWIDTH MEASUREMENT .................................................................... 40 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 40 4.3.2 TEST INSTRUMENTS .......................................................................................... 40 4.3.3 TEST PROCEDURE ............................................................................................. 40 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 40 4.3.5 TEST SETUP .................................................................................................…
