23530_8820-00388_F7D1401 v1_Basic Modem Router_0205 change BASIC WIRELESS MODEM-ROUTER USER MANUAL F7D1401 v1 TABLE OF CONTENTS Getting Started What’s in the Box Initial Setup Advanced Tools & Settings The Belkin Router Manager Manual Setup Using Your Browser Adding Computers to Your Network Getting to Know Your Router Front Panel Back Panel Technical Details Technical Features System Requirements Troubleshooting, Support, and Warranty Troubleshooting Technical Support Belkin International, Inc., Limited 2-Year Product Warranty Regulatory Information FCC Statement 23530_8820-00388_F7D1401 v1_Basic Modem Router_0205 change Getting Started What’s in the Box Basic Wireless Modem-Router ADSL cable (attached to router) In some regions, a phone-jack adapter (microfilter) will be included. Power supply (attached to router) Network information card (attached to router) Belkin Setup CD with User Manual Initial Setup Where to Place Your Router For the best results, place the Router in an open location away from large metal objects and magnets such as those found in speakers. Raising the Router above floor level can improve the strength of your wireless signal. How to Set It Up [MR BASIC/SURF SETUP DIAGRAM mr basicsurf setup.ai] 1) Connect your Router’s ADSL cable to your phone jack or phone-jack adapter (microfilter). If you are replacing an existing Router or gateway, this may require unplugging the existing gateway. Note: If required by your Internet Service Provider (ISP), plug the included phone-jack adapter (microfilter) into your wall-mounted phone jack. Please check with your provider before connecting your Router if you are unsure whether or not you need to use the included phone-jack adapter. 2) Plug the Router’s power supply into a wall outlet. 23530_8820-00388_F7D1401 v1_Basic Modem Router_0205 change 3) Put the CD into your computer. If the CD doesn’t open automatically, please browse to your CD drive and double- click on the Belkin Setup CD icon. [SCREENSHOT OF SETUP MENU setup menu.png] 4) Click the Setup icon on the CD menu. [SCREENSHOT OF NETWORK INFO CARD SCREEN setup netinfo card.png] 5) After a brief installation, the setup software will ask you for the network name and password from the network information card that is attached to your Router. Store the card under the base of your Router for future reference. [SCREENSHOT OF SUCCESS setup success.png] 6) A progress screen will appear while additional software is installed. This may take a few minutes to complete. Once finished, a “Success” message will appear indicating that you are connected to the Internet via your new Belkin Router. During setup you may be asked for additional information. You may need to enter a username and password provided by your ISP. This username and password is likely to be found on materials that came from your ISP when you signed up for service. If necessary, you may need to contact your ISP to retrieve your username and password. If you have a static IP address, you may need to enter additional information also provided by your ISP. If your computer doesn’t have a wireless adapter, or the setup software is unable to control it, you may be asked to connect your computer to the Router with a network cable. 23530_8820-00388_F7D1401 v1_Basic Modem Router_0205 change If the setup software is unable to detect your VCI and VPI settings based on your country, you may also need to enter this information. Your ISP is likely to have provided it. Advanced Tools & Settings [SCREENSHOT OF ADVANCED MENU setup advanced2.png] After the initial setup is complete, you have the option to change settings like your network name, security type, and password. To make these changes and others, click on the Advanced Tools icon at the CD Setup menu and select one of the following settings that you would like to change: Network Name & Security Personalize your network name (SSID), password, and strength of wireless security. Internet Service Provider & Login Settings Have you moved or changed Internet Service Providers? If you’d like to change these settings without running through the setup process again, this is the place. The Belkin Router Manager [BASIC/ SCREENSHOT OF TRAY APP MENU (TBD)] The Belkin Router Manager appears in your system tray (Windows) or menu bar (Mac). Its icon indicates the current status of your Router and also allows you to access your Router’s settings to make changes. It also provides quick access to software that came bundled with your Router. To access the Router settings, click on the icon and select from the menu that appears. The status of your Router is shown by the Belkin Router Manager icon, which closely mimics the light on the front of the Router. Green: You are connected to your Belkin Router and it is connected to the Internet. Amber: You are connected to your Belkin Router, but it is not connected to the Internet. 23530_8820-00388_F7D1401 v1_Basic Modem Router_0205 change Manual Setup Using Your Browser [ZOOMED SCREENSHOT OF ADDRESS BAR address bar.png] In your browser, type “http://router” (you do not need to type in anything else such as “www”). Then press the Enter key. If you’re still having trouble running the manual setup option, type “192.168.2.1” in your browser (you do not need to type in anything else such as “http://” or “www”). Then press the Enter key. Adding Computers to Your Network Wireless devices such as computers, network printers, and gaming systems can connect to your Router with a few simple steps. Using the CD 1) Put the Setup CD into your computer. If the CD doesn’t open automatically, browse to your CD drive and open the Belkin Setup CD icon. 2) Click the Setup icon on the CD menu. 3) After a brief installation, the setup software will ask you for the network name and password from the network information card that came with your Router. This card is most likely now located underneath the foot of your Router in the provided card slot. 4) A progress screen will a…

Text truncated - open the document above for the full version.

Belkin International, Inc. 501 West Walnut Street, Compton, CA 90220-5221, USA Date: 2010/1/19 GENERAL DECLARATION We, Belkin International, Inc. declares that device does not have “Ad Hoc on non-US frequencies while applying for the follow product. FCC ID: K7SF7D1401V1 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! -------------------------------------------------------------------------------------- Daniel Wesey / EMC Regulatory Compliance Engineer Belkin International, Inc. TEL: 1 (310) 604-2315 FAX: 1 (310) 631-3629 Email: [email protected]

Belkin International, Inc. 501 West Walnut Street, Compton, CA 90220-5221, USA 2010/1/19 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: K7SF7D1401V1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------- Daniel Wesey / EMC Regulatory Compliance Engineer Belkin International, Inc. TEL: 1 (310) 604-2315 FAX: 1 (310) 631-3629 Email: [email protected]

Belkin International, Inc. 501 West Walnut Street, Compton, CA 90220-5221, USA Power of Attorney 2010/1/19 To whom it may concern: We, the undersigned Belkin International, Inc. hereby authorize Bureau Veritas Consumer Product Service (Hong Kong) Limited, Taoyuan Branch of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by Bureau Veritas Consumer Product Service (Hong Kong) Limited, Taoyuan Branch on our behalf shall have the same effects as acts of our own. This authorization is limited to the following products： FCC ID: K7SF7D1401V1 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------------- Daniel Wesey / EMC Regulatory Compliance Engineer Belkin International, Inc. TEL: 1 (310) 604-2315 FAX: 1 (310) 631-3629 Email: [email protected]

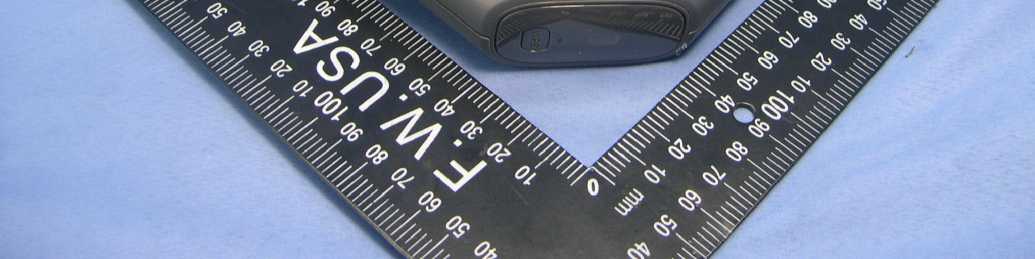

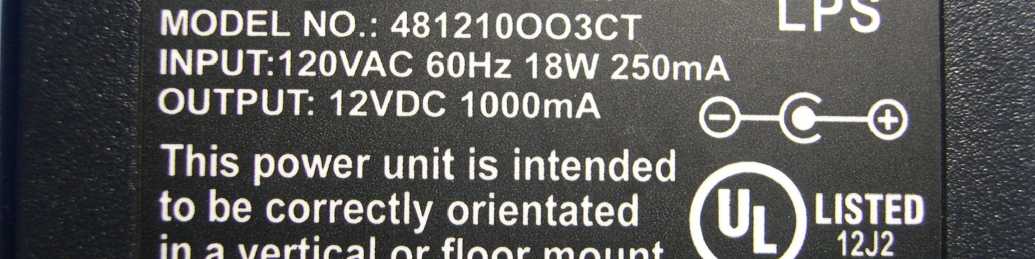

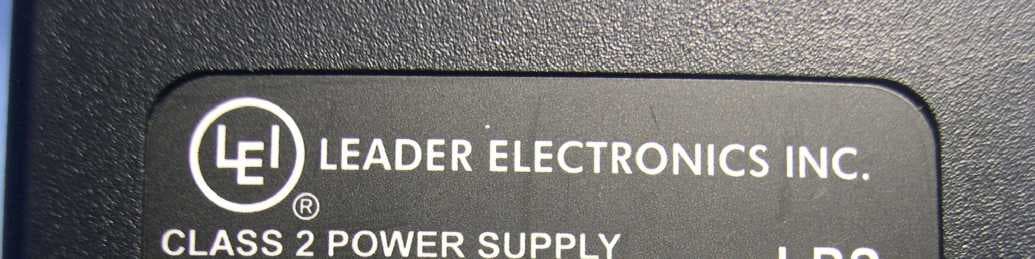

Page 1 CONSTRUCTION PHOTOS OF EUT Page 4 Page 5

LAN/WLAN MAC: XXXXXXXXXXXX WAN MAC: XXXXXXXXXXXX Serial #: XXXXXXXXXXXXXX Ver. XXXXPIN code: XXXXXXXX LAN/WLAN MAC: XXXXXXXXXXXX WAN MAC: XXXXXXXXXXXX Serial #: XXXXXXXXXXXXXX Ver. XXXXPIN code: XXXXXXXX Belkin.XXXX XXXXXXXX WPA/WPA2 Network Name (SSID): Password: Security Type: 62mm 62mm 8.5mm 13mm Elements within red boxes are to be printed in BLACK on pre-printed label at the factory. *** Please try to use the same font and keep the printed element within the red boxes’ dimensions. *** Belkin.XXXX XXXXXXXX WPA/WPA2 Network Name (SSID): Password: Security Type: 88mm R2.5mm 32mm SCALE 1:1 ALL TEXTS ARE: HELVETICA NEUE 65 MEDIUM DATE: 12/20/2009REVISION: A01 Basic Wireless Modem Router v1F7D1401 v1 DESIGNER: [YI] REVISION NOTES: A01: factory-print elements modified; P# added DO NOT MAKE CHANGES WITHOUT PERMISSION FROM BELKIN IDG. SPECIFICATIONS FOR ID LABEL ALL DIMENSIONS IN [mm]. LABEL MATERIAL: Mylar with Matte PP finish ELEMENTS SHOWN IN DARK GRAY: PANTONE 425C ELEMENTS SHOWN IN LIGHT GRAY: PANTONE COOL GRAY 3C ELEMENTS SHOWN IN BLACK: BLACK INNOVATION DESIGN GROUP

FCC ID： ：： ：K7SF7D1401V1 LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 2 Page 3

Report No.: SA981204H03A Report Format Version 3.0.1 Reference No.:981216H01 1 RF EXPOSURE REPORT REPORT NO.: SA981204H03A MODEL NO.: F7D1401 v1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Belkin International, Inc. ADDRESS: 501 West Walnut Street, Compton, CA 90220-5221, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan. Report No.: SA981204H03A Report Format Version 3.0.1 Reference No.:981216H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA981204H03A Report Format Version 3.0.1 Reference No.:981216H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA981204H03A Report Format Version 3.0.1 Reference No.:981216H01 4 6. TEST RESULTS 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.584893 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 93.3 0.029 1.0 6 2437 93.3 0.029 1.0 11 2462 81.3 0.026 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 380.2 0.120 1.0 6 2437 389.0 0.123 1.0 11 2462 363.1 0.114 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 323.6 0.102 1.0 6 2437 407.4 0.128 1.0 11 2462 371.5 0.117 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 263.0 0.083 1.0 4 2437 346.7 0.109 1.0 7 2452 263.0 0.083 1.0

Report No.: RF981204H03A 1 Report Format Version 3.0.1 Reference no.:981216H01 FCC TEST REPORT REPORT NO.: RF981204H03A MODEL NO.: F7D1401 v1 RECEIVED: Dec. 16, 2009 TESTED: Jan. 05 to 28, 2010 ISSUED: Feb. 01, 2010 APPLICANT: Belkin International, Inc. ADDRESS: 501 West Walnut Street, Compton, CA 90220-5221, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 81 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981204H03A 2 Report Format Version 3.0.1 Reference no.:981216H01 Table of Contents 1. CERTIFICATION...........................................................................................4 2. SUMMARY OF TEST RESULTS...................................................................5 2.1 MEASUREMENT UNCERTAINTY................................................................6 3. GENERAL INFORMATION...........................................................................7 3.1 GENERAL DESCRIPTION OF EUT..............................................................7 3.2 DESCRIPTION OF TEST MODES................................................................9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................12 3.4 DESCRIPTION OF SUPPORT UNITS........................................................13 3.5 CONFIGURATION OF SYSTEM UNDER TEST.........................................14 4. TEST TYPES AND RESULTS.....................................................................15 4.1 CONDUCTED EMISSION MEASUREMENT..............................................15 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................15 4.1.2 TEST INSTRUMENTS................................................................................15 4.1.3 TEST PROCEDURES.................................................................................16 4.1.4 DEVIATION FROM TEST STANDARD.......................................................16 4.1.5 TEST SETUP..............................................................................................17 4.1.6 EUT OPERATING CONDITIONS................................................................17 4.1.7 TEST RESULTS..........................................................................................18 4.2 RADIATED EMISSION MEASUREMENT...................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................20 4.2.2 TEST INSTRUMENTS................................................................................21 4.2.3 TEST PROCEDURES.................................................................................23 4.2.4 DEVIATION FROM TEST STANDARD.......................................................23 4.2.5 TEST SETUP..............................................................................................24 4.2.6 EUT OPERATING CONDITIONS................................................................24 4.2.7 TEST RESULTS..........................................................................................25 4.3 6dB BANDWIDTH MEASUREMENT..........................................................54 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................54 4.3.2 TEST INSTRUMENTS................................................................................54 4.3.3 TEST PROCEDURE...................................................................................55 4.3.4 DEVIATION FROM TEST STANDARD.......................................................55 4.3.5 TEST SETUP..............................................................................................55 4.3.6 EUT OPERATING CONDITIONS................................................................55 4.3.7 TEST RESULTS..........................................................................................56 4.4 MAXIMUM PEAK OUTPUT POWER..........................................................60 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........60 Report No.: RF981204H03A 3 Report Format Version 3.0.1 Reference no.:981216H01 4.4.2 INSTRUMENTS..........................................................................................60 4.4.3 TEST PROCEDURES.................................................................................60 4.4.4 DEVIATION FROM TEST STANDARD.......................................................60 4.4.5 TEST SETUP..............................................................................................60 4.4.6 EUT OPERATING CONDITIONS................................................................61 4.4.7 TEST RESULTS..........................................................................................62 4.5 POWER SPECTRAL DENSITY MEASUREMENT......................................64 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...................64 4.5.2 TEST INSTRUMENTS................................................................................64 4.5.3 TEST PROCEDURE...................................................................................65 4.5.4 DEVIATION FROM TEST STANDARD.......................................................65 4.5.5 TEST SETUP..............................................................................................65 4.5.6 EUT OPERATING CONDITION..................................................................65 4.5.7 TEST RESULTS..................................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
