K7SF7D4301V1WLAN Router

011916 PLAY MAX WIRELESS ROUTER USER MANUAL F7D4301 v1 TABLE OF CONTENTS Getting Started What’s in the Box Initial Setup Advanced Tools & Settings The Belkin Router Manager Manual Setup Using Your Browser Adding Computers to Your Network Adding USB Devices Bundled Software Additional Capabilities Getting to Know Your Router Front Panel Back Panel Technical Details Technical Features System Requirements Troubleshooting, Support, and Warranty Troubleshooting Technical Support Belkin International, Inc., Limited 2-Year Product Warranty Regulatory Information FCC Statement 011916 Getting Started What’s in the Box Play Max Wireless Router Ethernet cable (attached to router) Power supply (attached to router) Network information card (attached to router) Belkin Setup CD with User Manual Initial Setup Where to Place Your Router For the best results, place the Router next to your modem in an open location away from large metal objects and magnets such as those found in speakers. Raising the Router above floor level can improve the strength of your wireless signal. How to Set It Up [R PLAY MAX SETUP DIAGRAM r playmax setup.ai] 1) Connect your Router’s Ethernet cable to your modem’s Ethernet port (on the back of your modem). This port might be labeled differently on your particular modem. If you are adding a Router for the first time, this port may be connected to your computer by an Ethernet cable. It is OK to disconnect your computer and plug the Router into the modem instead. 2) Plug the Router’s power supply into a wall outlet. 3) Put the CD into your computer. If the CD doesn’t open automatically, please browse to your CD drive and double­ click on the Belkin Setup CD icon. [SCREENSHOT OF SETUP MENU setup menu.png] 4) Click the Setup icon on the CD menu. [SCREENSHOT OF NETWORK INFO CARD SCREEN setup netinfo card.png] 011916 5) After a brief installation, the setup software will ask you for the network name and password from the network information card that is attached to your Router. Store the card under the base of your Router for future reference. [SCREENSHOT OF SUCCESS setup success.png] 6) A progress screen will appear while additional software is installed. This may take a few minutes to complete. Once finished, a “Success” message will appear indicating that you are connected to the Internet via your new Belkin Router. During setup you may be asked for additional information. You may need to enter a username and password provided by your ISP. This username and password is likely to be found on materials that came from your ISP when you signed up for service. If necessary, you may need to contact your ISP to retrieve your username and password. If you have a static IP address, you may need to enter additional information also provided by your ISP. If your computer doesn’t have a wireless adapter, or the setup software is unable to control it, you may be asked to connect your computer to the Router with a network cable. Advanced Tools & Settings [SCREENSHOT OF ADVANCED MENU setup advanced2.png] After the initial setup is complete, you have the option to change settings like your network name, security type, and password. To make these changes and others, click on the Advanced Tools icon at the CD Setup menu and select one of the following settings that you would like to change: Network Name & Security Personalize your network name (SSID), password, and strength of wireless security. Internet Service Provider & Login Settings Have you moved or changed Internet Service Providers? If you’d like to change these settings without running through the setup process again, this is the place. 011916 The Belkin Router Manager [PLAY MAX SCREENSHOT OF TRAY APP MENU (TBD)] The Belkin Router Manager appears in your system tray (Windows) or menu bar (Mac). Its icon indicates the current status of your Router and also allows you to access your Router’s settings to make changes. It also provides quick access to software that came bundled with your Router. To access the Router settings, click on the icon and select from the menu that appears. The status of your Router is shown by the Belkin Router Manager icon, which closely mimics the light on the front of the Router. Green: You are connected to your Belkin Router and it is connected to the Internet. Amber: You are connected to your Belkin Router, but it is not connected to the Internet. 011916 Manual Setup Using Your Browser [ZOOMED SCREENSHOT OF ADDRESS BAR address bar.png] In your browser, type “http://router” (you do not need to type in anything else such as “www”). Then press the Enter key. If you’re still having trouble running the manual setup option, type “192.168.2.1” in your browser (you do not need to type in anything else such as “http://” or “www”). Then press the Enter key. Adding Computers to Your Network Wireless devices such as computers, network printers, and gaming systems can connect to your Router with a few simple steps. Using the CD 1) Put the Setup CD into your computer. If the CD doesn’t open automatically, browse to your CD drive and open the Belkin Setup CD icon. 2) Click the Setup icon on the CD menu. 3) After a brief installation, the setup software will ask you for the network name and password from the network information card that came with your Router. This card is most likely now located underneath the foot of your Router in the provided card slot. 4) A progress screen will appear while additional software is installed. This may take a few minutes to complete. Once finished, a “Success” message will appear indicating that you are connected to the Internet via your new Belkin Router. Note: The setup software runs only on Windows and Mac OS X systems. Manually If you choose not to use the included Setup CD for adding additional computers or wireless devices, you can manually add these items to your network. 1) Locate the wireless­network­connections option on your computer or wireless device. 011916 2) Select your Belkin Rou…

Text truncated - open the document above for the full version.

Belkin International, Inc. 12045 East Waterfront Drive, Playa Vista, CA 90094, U.S.A. Tel: 1 (310) 751-2816 Fax: 1 (310) 898-1503 Confidential Letter Date: 2010/3/8 Federal Communications Commission Authorization and Evaluation Division FCC ID：K7SF7D4301V1 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, FCC Grantee contact person information. Applicant’s company name : Belkin International, Inc. Applicant’s company address : 12045 East Waterfront Drive, Playa Vista, CA 90094, U.S.A. Signature : _____________________________ Job Title and Dept. : Daniel Wesey / EMC Regulatory Compliance Engineer E-Mail : [email protected] Tel. : 1 (310) 751-2816

Belkin International, Inc. 12045 East Waterfront Drive, Playa Vista, CA 90094, U.S.A. Tel: 1 (310) 751-2816 Fax: 1 (310) 898-1503 Date: 2010/3/8 To Whom it may concern, We, as the grantee of this project FCC ID: K7SF7D4301V1 /IC: 3623A - F7D4301V1, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Applicant’s company name : Belkin International, Inc. Applicant’s company address : 12045 East Waterfront Drive, playa Vista, CA 90094, U.S.A. Signature : _____________________________ Job Title and Dept. : Daniel Wesey / EMC Regulatory Compliance Engineer E-Mail : [email protected] Tel. : 1 (310) 751-2816

Belkin International, Inc. 12045 East Waterfront Drive, Playa Vista, CA 90094, U.S.A. Tel: 1 (310) 751-2816 Fax: 1 (310) 898-1503 Power of Attorney Date: 2010/3/8 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Belkin / F7D4301 v1 FCC ID: K7SF7D4301V1 Product name: Belkin Router FCC Grantee contact person information. Applicant’s company name : Belkin International, Inc. Applicant’s company address : 12045 East Waterfront Drive, Playe Vista, CA 90094, U.S.A. Signature : _____________________________ Job Title and Dept. : Daniel Wesey / EMC Regulatory Compliance Engineer E-Mail : [email protected] Tel. : 1 (310) 751-2816

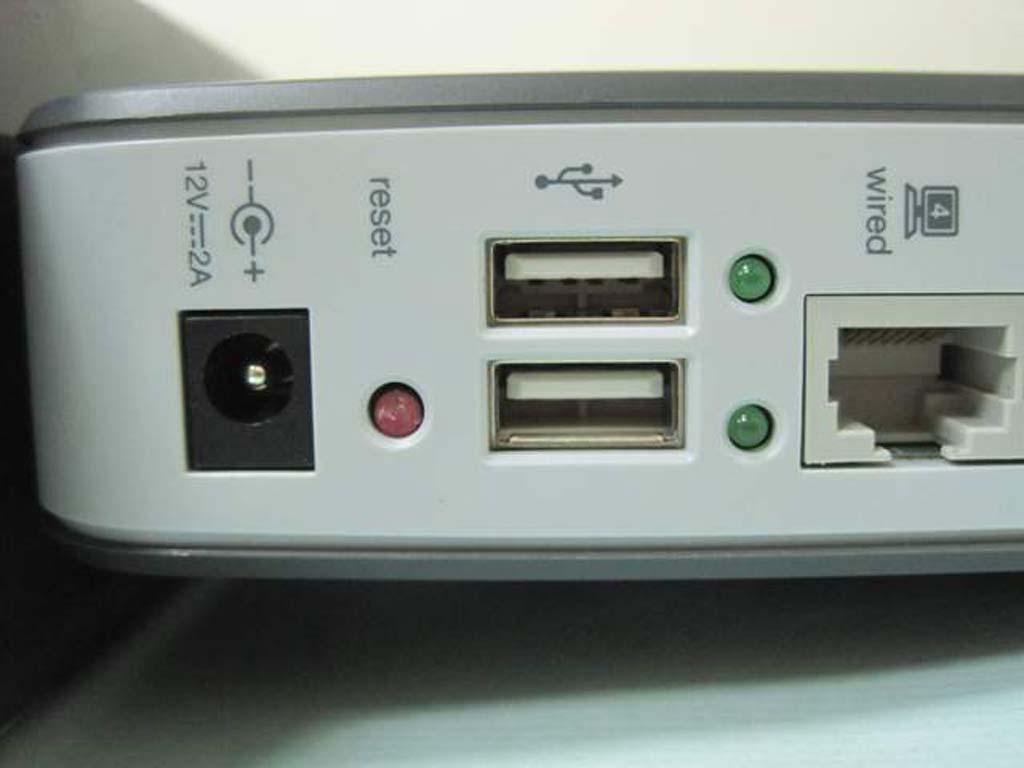

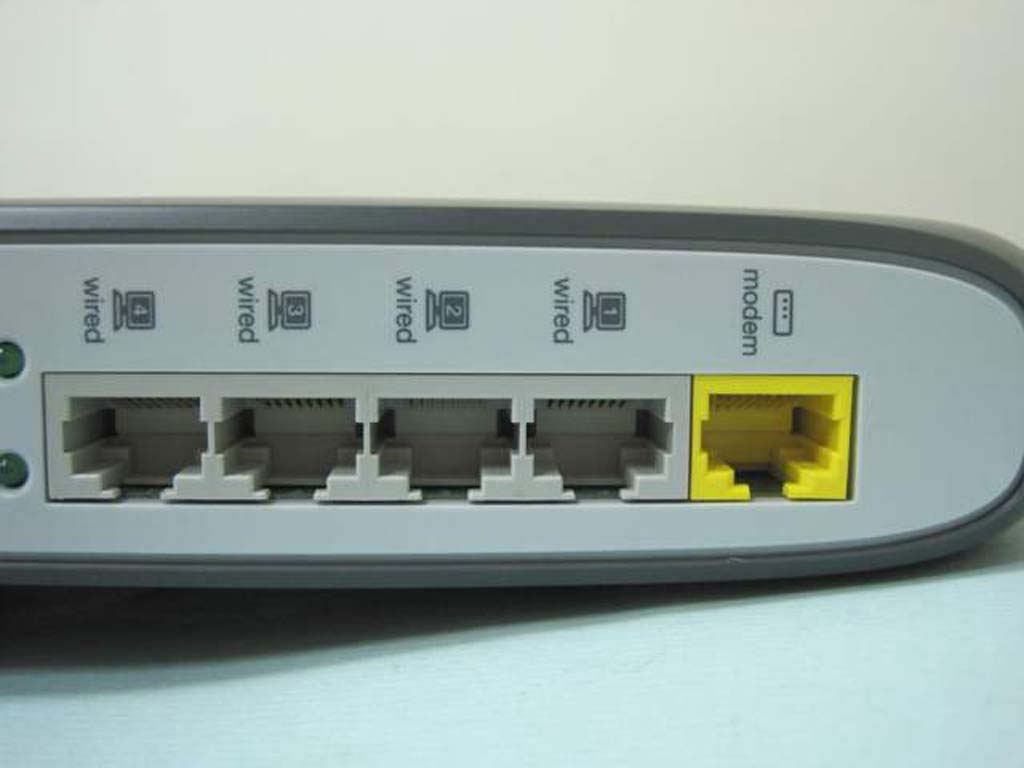

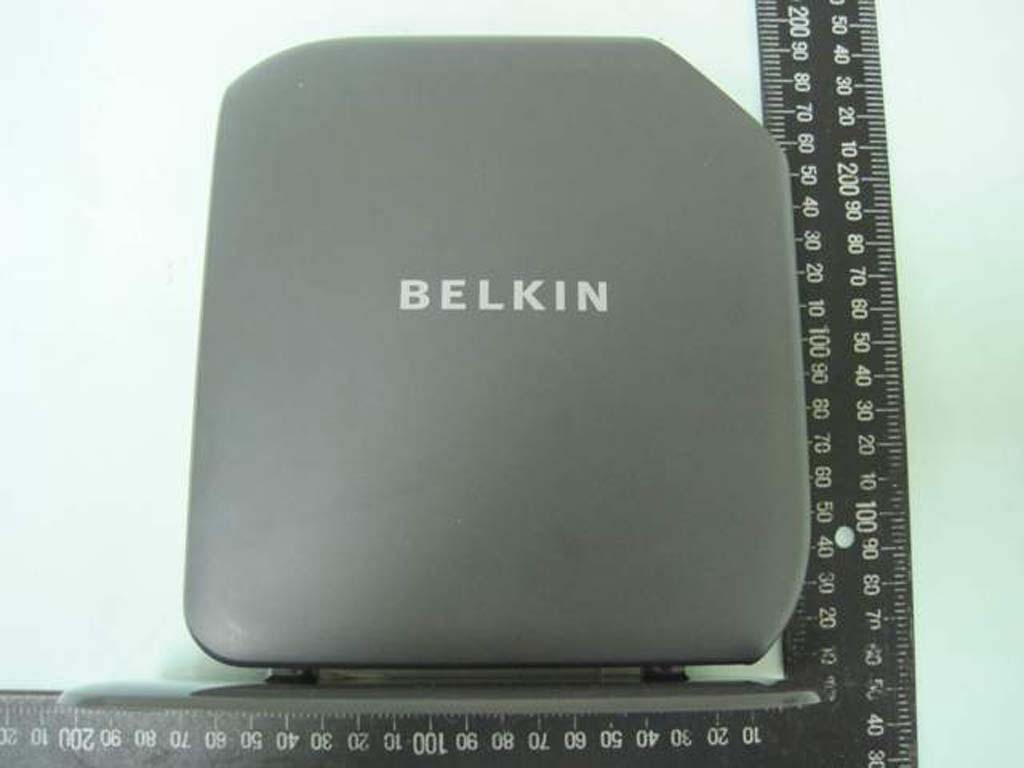

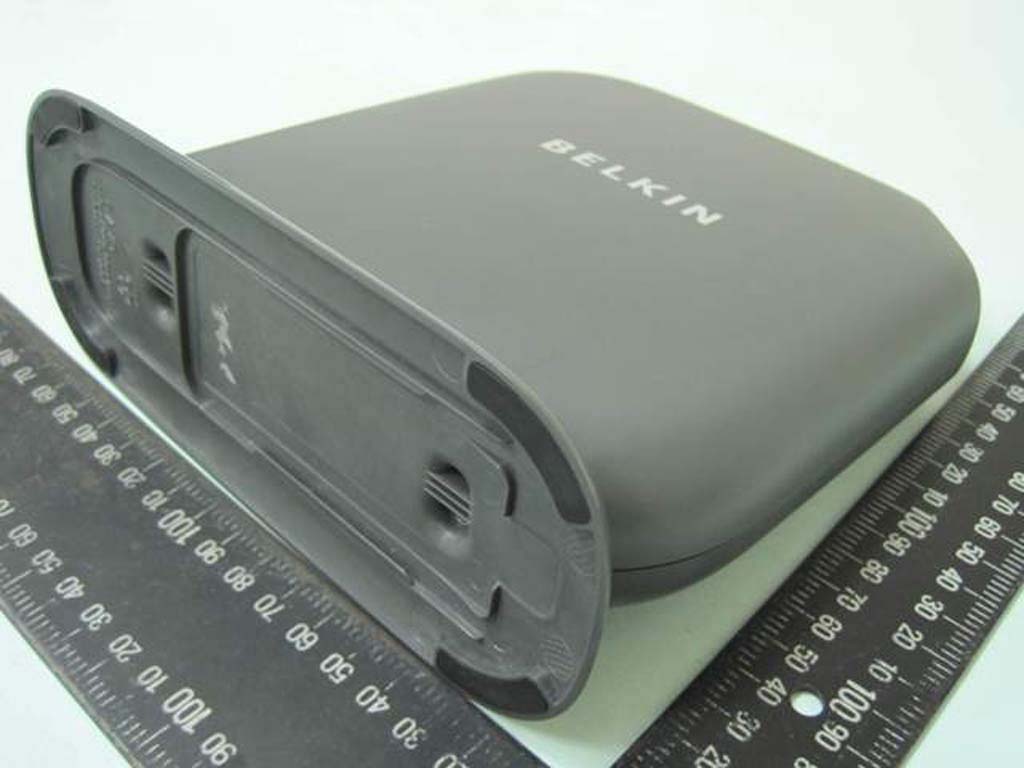

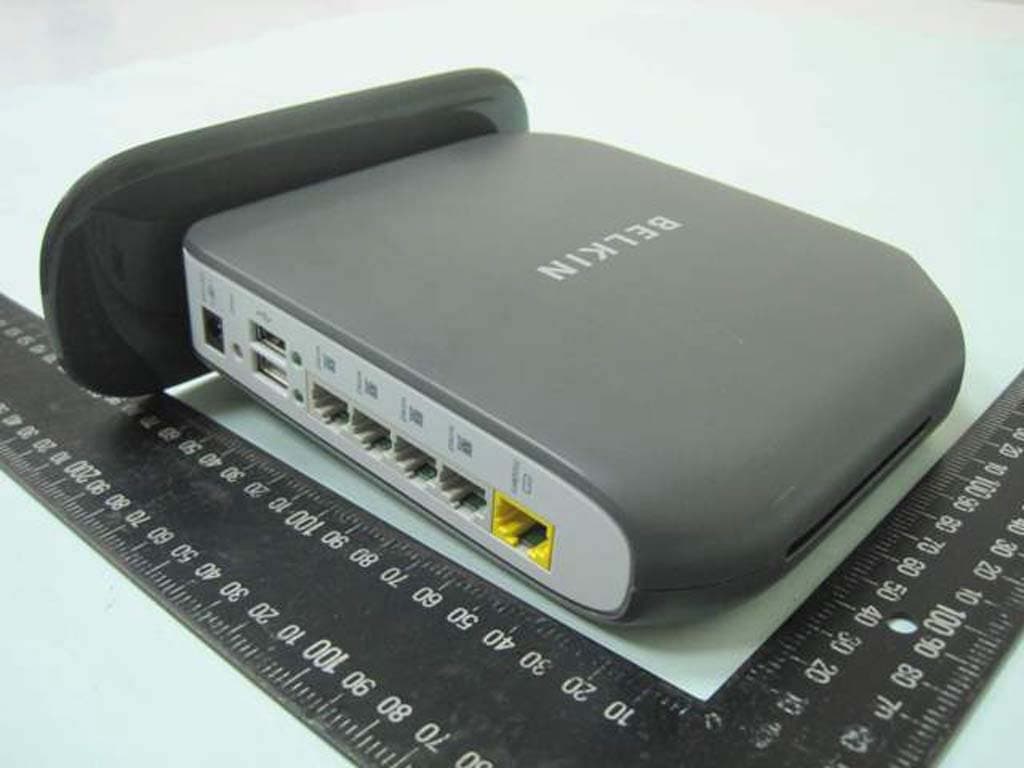

SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2010 FAX : 886-2-2696-2255 Adapter 2 Brand Name: LEADER Model No.: MU24-B120200-A1 SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2010 FAX : 886-2-2696-2255 Adapter 2 Brand Name: DVE Model No.: DSA-24PFD-15 FUS 120200 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2010 FAX : 886-2-2696-2255

Label size: 88*32mm

SPORTON International Inc. PAGE NUMBER : A1 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2010 FAX : 886-2-2696-2255

Report No.: FR011916 FCC ID: K7SF7D4301V1 Page No. : C1 of C4 Appendix C. Maximum Permissible Exposure Report No.: FR011916 FCC ID: K7SF7D4301V1 Page No. : C2 of C4 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.25m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR011916 FCC ID: K7SF7D4301V1 Page No. : C3 of C4 1.3. Calculated Result and Limit 1.3.1. For 5GHz Band: For UNII Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 11a Ant. A : 16.95 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 16.9500 49.5450 0.015630 1 Complies For ISM Band: Antenna Type : PIFA Antenna Max Conducted Power for 11a IEEE 802.11n MCS0 40MHz Ant. A + Ant. B : 27.41 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 27.4149 551.4242 0.173955 1 Complies 1.3.2. For 2.4GHz Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11n MCS0 20MHz Ant. A + Ant. B: 25.73 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 25.7263 373.7924 0.117918 1 Complies Report No.: FR011916 FCC ID: K7SF7D4301V1 Page No. : C4 of C4 1.3.3. For 5GHz & 2.4GHz Band (Co-Location): For ISM Band: Antenna Type : PIFA Antenna Max Conducted Power for 11a IEEE 802.11n MCS0 40MHz Ant. A + Ant. B : 27.41 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 27.4149 551.4242 0.173955 1 Complies For 2.4GHz / UNII Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11n MCS0 20MHz Ant. A + Ant. B : 25.73 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 25.7263 373.7924 0.117918 1 Complies CONCULSION: Both of the 5GHz and 2.4GHz can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.173955 / 1 + 0.078334 / 1 = 0.252329, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR011916 FCC ID: K7SF7D4301V1 Page No. : D1 of D6 Appendix D. Co-location Test Report Report No.: FR011916 FCC ID: K7SF7D4301V1 Page No. : D2 of D6 1.1. Co-Location Measurement 1.1.1. Limit The emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 1.1.2. Measuring Instruments and Setting Please refer to section 5 of equipments list in this report. The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Attenuation Auto Start Frequency 1000 MHz Stop Frequency 40 GHz RB / VB (Emission in restricted band) 1MHz / 1MHz for Peak, 1 MHz / 10Hz for Average RB / VB (Emission in non-restricted band) 1MHz / 1MHz for peak Report No.: FR011916 FCC ID: K7SF7D4301V1 Page No. : D3 of D6 1.1.3. Test Procedures 1. The EUT was placed on the top of the turntable 0.8 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The horn antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. For emissions above 1GHz, use 1MHz VBW and RBW for peak reading. Then 1MHz RBW and 10Hz VBW for average reading in spectrum analyzer. 6. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum value. 7. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. Report No.: FR011916 FCC ID: K7SF7D4301V1 Page No. : D4 of D6 1.1.4. Test Setup Layout For radiated emissions above 1000MHz Above 10 GHz shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade form 3m to 1.5m. Distance extrapolation factor = 20 log (specific distance [3m] / test distance [1.5m]) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor [6 dB]. 1.1.5. Test Deviation There is no deviation with the original standard. 1.1.6. EUT Operation during Test The EUT was programmed to be in continuously transmitting mode. 3 or 1.5m Report No.: FR011916 FCC ID: K7SF7D4301V1 Page No. : D5 of D6 2. Results of Radiated Emissions for Co-located Temperature 23°C Humidity 54% Test Engineer Allen Liu Configurations 2.4GHz + 5 GHz TX Normal Link Test Result Pass Horizontal Report No.: FR011916 FCC ID: K7SF7D4301V1 Page No. : D6 of D6 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Belkin International, Inc. Applicant Address 12045 East Waterfront Drive, Playa Vista, CA 90094, USA FCC ID K7SF7D4301V1 Product Name Belkin Router Brand Name Belkin Model Name F7D4301 v1 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Jan. 15, 2010 Final Test Date Mar. 10, 2010 Submission Type Original Equipment Statement Test result included is only for the 802.11n, 802.11b/g part and 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR011916AB Report Format Version: 01 Page No. : i of ii FCC ID: K7SF7D4301V1 Issued Date : Mar. 15, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................8 3.5. Table for Test Modes ...........................................................................................................................................................................9 3.6. Table for Testing Locations................................................................................................................................................................10 3.7. Table for Supporting Units .................................................................................................................................................................11 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................11 3.9. Test Configurations ...........................................................................................................................................................................13 4. TEST RESULT ................................................................................................................................................... 19 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................19 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................25 4.3. Power Spectral Density Measurement ..............................................................................................................................................38 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................45 4.5. Radiated Emissions Measurement ....................................................................................................................................................59 4.6. Band Edge Emissions Measurement .................................................................................................................................................87 4.7. Antenna Requirements .....................................................................................................................................................................99 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 100 6. TEST LOCATION............................................................................................................................................ 102 7. TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 103 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A10 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B7 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE......................................................................................... C1 ~C 4 APPENDIX D. CO-LOCATION TEST REPORT ....................................…

Text truncated - open the document above for the full version.

Report No.: FR011916 FCC ID: K7SF7D4301V1 Page No. : 1 of 7 Appendix B. Test Photos Report No.: FR011916 FCC ID: K7SF7D4301V1 Page No. : 2 of 7 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR011916 FCC ID: K7SF7D4301V1 Page No. : 3 of 7 Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR011916 FCC ID: K7SF7D4301V1 Page No. : 4 of 7 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR011916 FCC ID: K7SF7D4301V1 Page No. : 5 of 7 30MHz~1GHz Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR011916 FCC ID: K7SF7D4301V1 Page No. : 6 of 7 Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR011916 FCC ID: K7SF7D4301V1 Page No. : 7 of 7 Above 1GHz FRONT VIEW REAR VIEW
