K7SF7D4402V1Play Wireless Modem Router

Product Requirements Document F7D4402 v1000 Play Wireless Modem-Router Belkin International Confidential Networking Group 1 Document Number 1.00.01 Created By Martin Worth Play Wireless Modem Router Product Requirements Document Purpose of a Product Requirements Document The purpose this document is to describe: 1. The business case for the new function/product/feature 2. How the new function/product/feature fits strategically with company objectives 3. The competitive landscape and how this new function/product/feature compares to the competition 4. The functional requirements, including transition/upgrade requirements and customer usability requirements The Product Requirements Document is intended for internal Belkin use only. A separate sanitized version may be needed for projects requiring customer use and approval. Product Description The Belkin F7D4402 Play Wireless is a router with built-in ADSL2+ modem and access point (AP), which operates on 2.4GHz and 5GHz frequencies, conforms to the IEEE 802.11b/g/n wireless standards. The modem is compatible with ADSL, ADSL2, and ADSL2+ lines for connecting to the Internet. The modem combines a NAT router for sharing and a firewall for security. The integrated Wireless N radio operates on 2.4GHz frequencies, which conforms to the IEEE 802.11b/g/n wireless standards. Reviewers Department Name/Title Product Manager SW Engineering (if needed) HW Engineering (if needed) Mechanical Engineering Industrial Design User Experience Branding Product Requirements Document F7D4402 v1000 Play Wireless Modem-Router Belkin International Confidential Networking Group 2 Marketing Operations Compliance Finance Customer Support Quality The departments and/or individuals listed above should be notified in advance and given a sufficient time period to review this document. The Project Team determines requirements for approval according to the scope of the project. Indicate N/A for products not requiring full approvals. Modification History Revision Date Originator Comments 1.00.00 01/08/10 Martin Worth Initial draft based on Play Max MR PRD 1.00.01 12/05/10 Martin Worth Revised Channels for APAC to Jeff’s confirmed. Product Requirements Document F7D4402 v1000 Play Wireless Modem-Router Belkin International Confidential Networking Group 3 A revision would be changes related to findings during the development process that may be caused by a number of factors – engineering changes, market shifts, customer requirements, etc. Product Requirements Document F7D4402 v1000 Play Wireless Modem-Router Belkin International Confidential Networking Group 4 Table of Contents Play Wireless Router................................................................................................................... 1 Product Requirements Document............................................................................................. 1 The Belkin F7D4402 Play Wireless is a router/access point (AP), which operates on 2.4GHz and 5GHz frequencies, conforms to the IEEE 802.11a/b/g wireless standards and IEEE 802.11n specification. Reviewers........................................................................... 1 Modification History...................................................................................................................... 2 Table of Contents..................................................................................................................... 4 1. Introduction...............................................................................................................................5 2. Product Overview..................................................................................................................... 5 2.1 Features.............................................................................................................................. 5 2.2 System Requirements...................................................................................................... 7 2.3 EZ Install Wizard System Requirements:...................................................................... 7 3. Router Hardware Specification.............................................................................................. 9 3.3.2 Front panel - Network Status Display / LED Indicators / WPS PBC.................... 16 3.3.3 “Fix-it” (TBC) Button...................................................................錯誤! 尚未定義書籤。 3.4 System Reset................................................................................................................... 17 4. Performance Requirements................................................................................................ 20 5. Router Firmware Features.................................................................................................. 23 5.1 Overview........................................................................................................................... 23 6.2 Firmware User Interface (FW UI).................................................................................. 24 6.3 Protocol Supported.......................................................................................................... 58 6.4 ISP Protocol Supported Regions (TBC)...................................................................... 59 6.5 VPN Pass-thru Support.................................................................................................. 66 6.6 Firewall............................................................................................錯誤! 尚未定義書籤。 6.7 Virtual Servers................................................................................錯誤! 尚未定義書籤。 7. Package Contents (TBC).................................................................................................... 66 8. Regulatory Certifications / Compliance............................................................................. 67 9. Intended Markets............................…

Text truncated - open the document above for the full version.

Belkin International, Inc. 12045 East Waterfront Drive, Playa Vista, CA 90094 Tel: 1 (310) 751-5100 Fax: 1 (310) 751-5912 Power of Attorney Date: 2010/6/18 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Belkin / F7D4402 v1 FCC ID: K7SF7D4402V1 Product name: Play Wireless Modem Router FCC Grantee contact person information. Applicant’s company name : Belkin International, Inc. Applicant’s company address : 12045 East Waterfront Drive, Playa Vista, CA 90094 Signature : _____________________________ Job Title and Dept. : Daniel Wesey / EMC Regulatory Compliance Engineer E-Mail : [email protected] Tel. : 1 (310) 751-2816

Belkin International, Inc. 12045 East Waterfront Drive, Playa Vista, CA 90094 Tel: 1 (310) 751-5100 Fax: 1 (310) 751-5912 Date: 2010/6/18 To Whom it may concern, We, as the grantee of this project FCC ID: K7SF7D4402V1, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Applicant’s company name : Belkin International, Inc. Applicant’s company address : 12045 East Waterfront Drive, Playa Vista, CA 90094 Signature : _____________________________ Job Title and Dept. : Daniel Wesey / EMC Regulatory Compliance Engineer E-Mail : [email protected] Tel. : 1 (310) 751-2816

Belkin International, Inc. 12045 East Waterfront Drive, Playa Vista, CA 90094 Tel: 1 (310) 604-2448 Fax: 1 (310) 631-3629 Confidential Letter Date: 2010/6/18 Federal Communications Commission Authorization and Evaluation Division FCC ID：K7SF7D4402V1 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, FCC Grantee contact person information. Applicant’s company name : Belkin International, Inc. Applicant’s company address : 12045 East Waterfront Drive, Playa Vista, CA 90094 Signature : _____________________________ Job Title and Dept. : Daniel Wesey / EMC Regulatory Compliance Engineer E-Mail : [email protected] Tel. : 1 (310) 751-2816

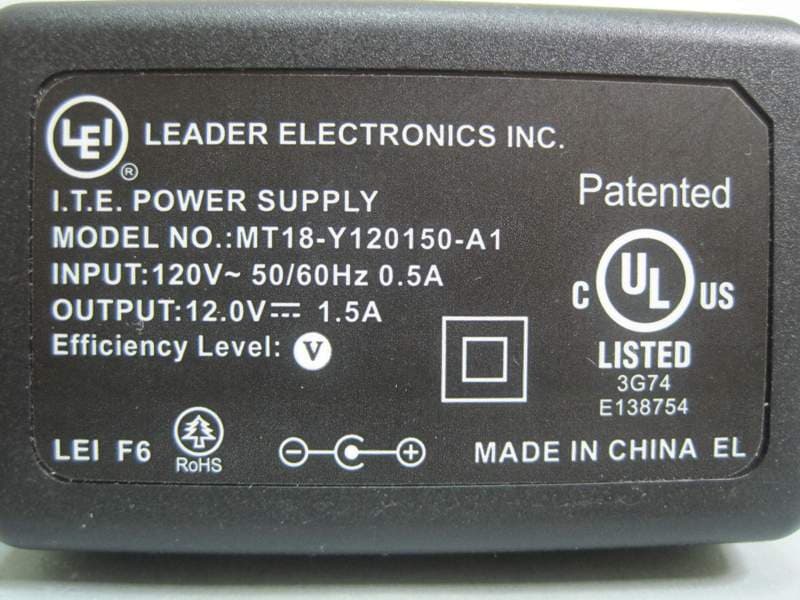

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 27, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 27, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 27, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 27, 2010 FAX : 886-2-2696-2255

Label size: 88mm*32mm

SPORTON International Inc. PAGE NUMBER : A1 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 27, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 27, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 27, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 27, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 27, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 27, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 27, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 27, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 27, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 27, 2010 FAX : 886-2-2696-2255

Report No.: FR061006 FCC ID: K7SF7D4402V1 Page No. : C1 of C4 Appendix C. Maximum Permissible Exposure Report No.: FR061006 FCC ID: K7SF7D4402V1 Page No. : C2 of C4 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR061006 FCC ID: K7SF7D4402V1 Page No. : C3 of C4 1.3. Calculated Result and Limit 1.3.1. For 5GHz Band: For UNII Band: Antenna Type : PIFA Antenna Max Conducted Power for 11a IEEE 802.11n MCS0 20MHz Ant. A + Ant. B : 16.98 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.15 2.0654 16.9813 49.9038 0.020516 1 Complies For ISM Band: Antenna Type : PIFA Antenna Max Conducted Power for 11a IEEE 802.11n MCS0 20MHz Ant. A + Ant. B : 23.11 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.15 2.0654 23.1068 204.4924 0.084067 1 Complies 1.3.2. For 2.4GHz Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11n MCS0 20MHz Ant. A + Ant. B : 24.96 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.35 1.7179 24.9607 313.3801 0.107157 1 Complies Report No.: FR061006 FCC ID: K7SF7D4402V1 Page No. : C4 of C4 1.3.3. For 5GHz & 2.4GHz Band (Co-Location): For 5GHz Band: Antenna Type : PIFA Antenna Max Conducted Power for 11a IEEE 802.11n MCS0 20MHz Ant. A + Ant. B : 23.11 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.15 2.0654 23.1068 204.4924 0.084067 1 Complies For 2.4GHz Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11n MCS0 20MHz Ant. A + Ant. B : 24.96 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.35 1.7179 24.9607 313.3801 0.107157 1 Complies CONCULSION: Both of the 5GHz and 2.4GHz can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.084067 / 1 + 0.107157 / 1 = 0.191224, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Belkin International, Inc. Applicant Address 12045 East Waterfront Drive Playa Vista, CA 90094 FCC ID K7SF7D4402V1 Product Name Play Wireless Modem Router Brand Name Belkin Model Name F7D4402 v1 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Jun. 10, 2010 Final Test Date Jul. 12, 2010 Submission Type Original Equipment Statement Test result included is for the 802.11n and 802.11a (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR061006AA Report Format Version: 01 Page No. : i of ii FCC ID: K7SF7D4402V1 Issued Date : Jul. 27, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Supporting Units ...................................................................................................................................................................8 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................9 3.9. Test Configurations ...........................................................................................................................................................................10 4. TEST RESULT ................................................................................................................................................... 14 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................14 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................18 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................25 4.4. Power Spectral Density Measurement ..............................................................................................................................................32 4.5. Peak Excursion Measurement ...........................................................................................................................................................37 4.6. Radiated Emissions Measurement ....................................................................................................................................................41 4.7. Band Edge Emissions Measurement .................................................................................................................................................55 4.8. Frequency Stability Measurement ....................................................................................................................................................59 4.9. Antenna Requirements .....................................................................................................................................................................61 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 62 6. TEST LOCATION.............................................................................................................................................. 64 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 65 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A14 APPENDIX B. TES…

Text truncated - open the document above for the full version.

Report No.: FR061006 FCC ID: K7SF7D4402V1 Page No. : D1 of D6 Appendix D. Co-location Test Report Report No.: FR061006 FCC ID: K7SF7D4402V1 Page No. : D2 of D6 1.1. Co-Location Measurement 1.1.1. Limit The emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 1.1.2. Measuring Instruments and Setting Please refer to section 5 of equipments list in this report. The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Attenuation Auto Start Frequency 1000 MHz Stop Frequency 40 GHz RB / VB (Emission in restricted band) 1MHz / 1MHz for Peak, 1 MHz / 10Hz for Average RB / VB (Emission in non-restricted band) 1MHz / 1MHz for peak Report No.: FR061006 FCC ID: K7SF7D4402V1 Page No. : D3 of D6 1.1.3. Test Procedures 1. The EUT was placed on the top of the turntable 0.8 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The horn antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. For emissions above 1GHz, use 1MHz VBW and RBW for peak reading. Then 1MHz RBW and 10Hz VBW for average reading in spectrum analyzer. 6. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum value. 7. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. Report No.: FR061006 FCC ID: K7SF7D4402V1 Page No. : D4 of D6 1.1.4. Test Setup Layout For radiated emissions above 1000MHz Above 10 GHz shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade form 3m to 1.5m. Distance extrapolation factor = 20 log (specific distance [3m] / test distance [1.5m]) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor [6 dB]. 1.1.5. Test Deviation There is no deviation with the original standard. 1.1.6. EUT Operation during Test The EUT was programmed to be in continuously transmitting mode. 3 or 1.5m Report No.: FR061006 FCC ID: K7SF7D4402V1 Page No. : D5 of D6 2. Results of Radiated Emissions for Co-located Temperature 21°C Humidity 51% Test Engineer Sean Ku Configurations 2.4GHz + 5 GHz TX Normal Link Test Result Pass Horizontal Report No.: FR061006 FCC ID: K7SF7D4402V1 Page No. : D6 of D6 Vertial

Report No.: FR061006 FCC ID: K7SF7D4402V1 Page No. : 1 of 6 Appendix B. Test Photos Report No.: FR061006 FCC ID: K7SF7D4402V1 Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR061006 FCC ID: K7SF7D4402V1 Page No. : 3 of 6 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR061006 FCC ID: K7SF7D4402V1 Page No. : 4 of 6 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR061006 FCC ID: K7SF7D4402V1 Page No. : 5 of 6 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW Report No.: FR061006 FCC ID: K7SF7D4402V1 Page No. : 6 of 6 Test Configuration: Co-location FRONT VIEW REAR VIEW
