K7SF7D4550VideoLink Wireless

User's manual_BVADT revise.doc WIRELESS DUAL-BAND N+ ROUTER N600 DB USER MANUAL 8820-00777 F7D4550 Ok mk 1/12/11 TABLE OF CONTENTS Getting Started What’s in the Box Initial Setup Advanced Tools & Settings The Belkin Router Manager Manual Setup Using Your Browser Adding Computers to Your Network Adding USB Devices Bundled Software Additional Capabilities Getting to Know Your Router Front Panel Back Panel Technical Details Technical Features System Requirements Using Your Router Enabling Auto Update on Your Router Updating Your Router via Your System Tray Updating the Router’s Firmware via the Web Interface Resetting the Router Restoring your Router to Factory Defaults Restoring the Router to Default Settings Using the Web Interface Troubleshooting, Support, and Warranty Troubleshooting Technical Support Belkin International, Inc., Limited 2-Year Product Warranty Regulatory Information FCC Statement User's manual_BVADT revise.doc Getting Started What’s in the Box N600 DB Wireless Dual-Band N+ Router Ethernet cable (attached to router) Power supply (attached to router) Network information card (attached to router) Belkin Setup CD with User Manual Initial Setup Where to Place Your Router For the best results, place the Router next to your modem in an open location away from large metal objects and magnets such as those found in speakers. Raising the Router above floor level can improve the strength of your wireless signal. How to Set It Up [R SETUP DIAGRAM r N600 DB setup.ai] 1) Connect your Router’s Ethernet cable to your modem’s Ethernet port (on the back of your modem). This port might be labeled differently on your particular modem. If you are adding a Router for the first time, this port may be connected to your computer by an Ethernet cable. It is OK to disconnect your computer and plug the Router into the modem instead. 2) Plug the Router’s power supply into a wall outlet. 3) Put the CD into your computer. If the CD doesn’t open automatically, please browse to your CD drive and double- click on the Belkin Setup CD icon. [SCREENSHOT OF SETUP MENU setup menu.png] 4) Click the Setup icon on the CD menu. User's manual_BVADT revise.doc [SCREENSHOT OF NETWORK INFO CARD SCREEN setup netinfo card.png] 5) After a brief installation, the setup software will ask you for the network name and password from the network information card that is attached to your Router. Store the card under the base of your Router for future reference. [SCREENSHOT OF SUCCESS setup success.png] 6) A progress screen will appear while additional software is installed. This may take a few minutes to complete. Once finished, a “Success” message will appear indicating that you are connected to the Internet via your new Belkin Router. During setup you may be asked for additional information. You may need to enter a username and password provided by your ISP. This username and password is likely to be found on materials that came from your ISP when you signed up for service. If necessary, you may need to contact your ISP to retrieve your username and password. If you have a static IP address, you may need to enter additional information also provided by your ISP. If your computer doesn’t have a wireless adapter, or the setup software is unable to control it, you may be asked to connect your computer to the Router with a network cable. Advanced Tools & Settings [SCREENSHOT OF ADVANCED MENU setup advanced2.png] After the initial setup is complete, you have the option to change settings like your network name, security type, and password. To make these changes and others, click on the Advanced Tools icon at the CD Setup menu and select one of the following settings that you would like to change: Network Name & Security Personalize your network name (SSID), password, and strength of wireless security. User's manual_BVADT revise.doc Internet Service Provider & Login Settings Have you moved or changed Internet Service Providers? If you’d like to change these settings without running through the setup process again, this is the place. The Belkin Router Manager [N600 SCREENSHOT OF TRAY APP MENU (TBD)] The Belkin Router Manager appears in your system tray (Windows) or menu bar (Mac). Its icon indicates the current status of your Router and also allows you to access your Router’s settings to make changes. It also provides quick access to software that came bundled with your Router. To access the Router settings, click on the icon and select from the menu that appears. The status of your Router is shown by the Belkin Router Manager icon, which closely mimics the light on the front of the Router. Blue: You are connected to your Belkin Router and it is connected to the Internet. Amber: You are connected to your Belkin Router, but it is not connected to the Internet. User's manual_BVADT revise.doc Manual Setup Using Your Browser [ZOOMED SCREENSHOT OF ADDRESS BAR address bar.png] In your browser, type “http://router” (you do not need to type in anything else such as “www”). Then press the Enter key. If you’re still having trouble running the manual setup option, type “192.168.2.1” in your browser (you do not need to type in anything else such as “http://” or “www”). Then press the Enter key. Adding Computers to Your Network Wireless devices such as computers, network printers, and gaming systems can connect to your Router with a few simple steps. Using the CD 1) Put the Setup CD into your computer. If the CD doesn’t open automatically, browse to your CD drive and open the Belkin Setup CD icon. 2) Click the Setup icon on the CD menu. 3) After a brief installation, the setup software will ask you for the network name and password from the network information card that came with your Router. This card is most likely now located underneath the foot of your Router in the provided card slot. 4) A progress screen will appear while additional software is installed. This may take a few minutes to complete. Once finished, a “Success” message will ap…

Text truncated - open the document above for the full version.

B e l k i n I n t e r n a t i o n a l , I n c . 12045 East Waterfront Drive, Playa Vista, CA 90094 Date: 2011/5/27 G E N E R A L D E C L A R A T I O N We, Belkin International, Inc. declares that device does not have “Ad Hoc on non-US frequencies ” and/or “on DFS frequencies” while applying for the follow product. FCC ID: K7SF7D4550 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! -------------------------------------------------------------------------------------- Daniel Wesey / EMC Regulatory Compliance Engineer Belkin International, Inc. TEL: 1 (310) 751-2816 FAX: 1 (310) 751-5912 Email: [email protected]

Belkin International, Inc. 12045 East Waterfront Drive, Playa Vista, CA 90094 2011/5/27 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: K7SF7D4550 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------- Daniel Wesey / EMC Regulatory Compliance Engineer Belkin International, Inc. TEL: 1 (310) 751-2816 FAX: 1 (310) 751-5912 Email: [email protected]

Belkin International, Inc. 12045 East Waterfront Drive, Playa Vista, CA 90094 Power of Attorney 2011/5/27 To whom it may concern: We, the undersigned Belkin International, Inc. hereby authorize Bureau Veritas Consumer Product Service (Hong Kong) Limited, Taoyuan Branch of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15 approval and any communication needed with the national authority. Any and all acts carried out by Bureau Veritas Consumer Product Service (Hong Kong) Limited, Taoyuan Branch on our behalf shall have the same effects as acts of our own. This authorization is limited to the following products ： FCC ID: K7SF7D4550 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------------- Daniel Wesey / EMC Regulatory Compliance Engineer Belkin International, Inc. TEL: 1 (310) 751-2816 FAX: 1 (310) 751-5912 Email: [email protected]

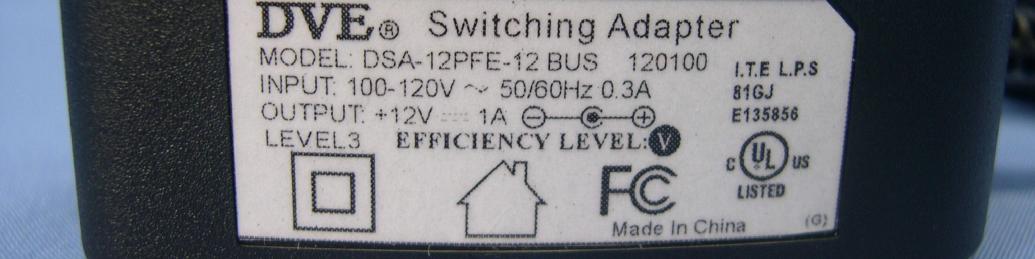

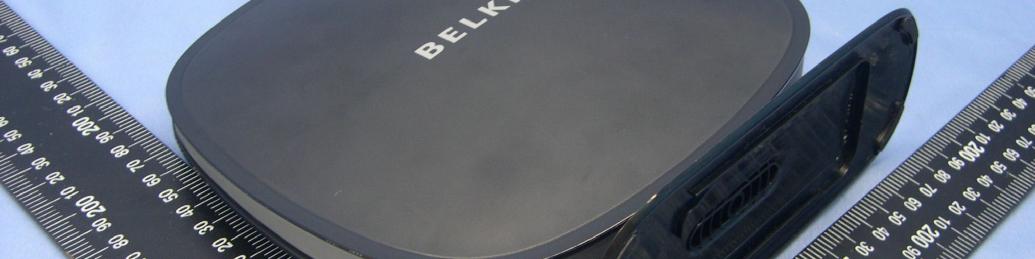

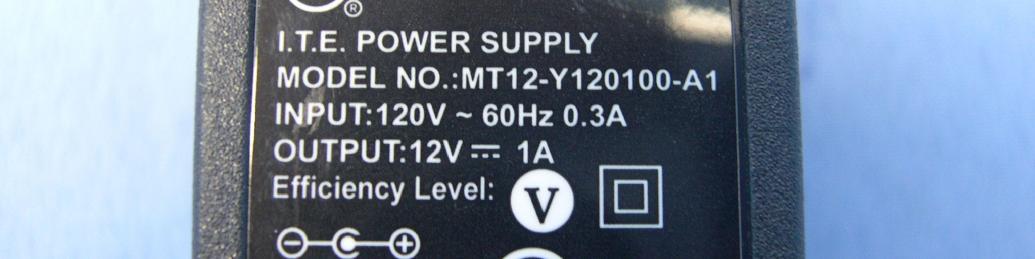

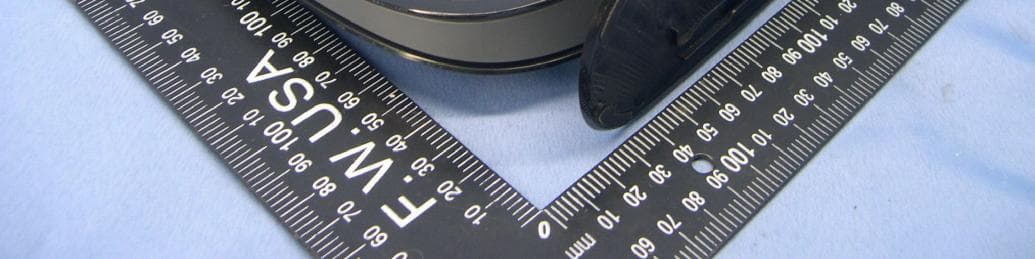

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 8 Adapter: DSA-12PFE-12 BUS 120100 Page 9 Page 10 Adapter: MT12-Y120100-A1 Page 11

FCC ID： ：： ：K7SF7D4550 LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 3 Page 4 Page 5 Page 6 Page 7

Report No.: SA110107E07D Report Format Version 4.0.0 Reference No.:110518E03 1 RF EXPOSURE REPORT REPORT NO.: SA110107E07D MODEL NO.: F7D4550 FCC ID: K7SF7D4550 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Belkin International, Inc. ADDRESS: 12045 East Waterfront Drive, Playa Vista, CA 90094 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA110107E07D Report Format Version 4.0.0 Reference No.:110518E03 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA110107E07D Report Format Version 4.0.0 Reference No.:110518E03 3 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For 15.247(2.4GHz): FREQUENCY BAND (MHz) CONDUCTED POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 27.8 7.3 20 0.650 1.00 For 15.247(5GHz): FREQUENCY BAND (MHz) CONDUCTED POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745-5825 25.8 7.7 20 0.442 1.00 For 15.407(5GHz): FREQUENCY BAND (MHz) CONDUCTED POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180-5240 16.2 5.21 20 0.028 1.00 --- END ---

Report No.: RF110107E07D 1 Report Format Version 4.0.0 Reference No.:110518E03 FCC TEST REPORT (15.247) REPORT NO.: RF110107E07D MODEL NO.: F7D4550 FCC ID: K7SF7D4550 RECEIVED: Jan. 05, 2011 TESTED: Jan. 12 to Feb. 08, 2011 and May 19, 2011 ISSUED: June 02, 2011 APPLICANT: Belkin International, Inc. ADDRESS: 12045 East Waterfront Drive, Playa Vista, CA 90094 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 123 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110107E07D 2 Report Format Version 4.0.0 Reference No.:110518E03 Table of Contents RELEASE CONTROL RECORD..............................................................................5 1. CERTIFICATION...........................................................................................6 2. SUMMARY OF TEST RESULTS...................................................................7 2.1 MEASUREMENT UNCERTAINTY................................................................9 3. GENERAL INFORMATION.........................................................................10 3.1 GENERAL DESCRIPTION OF EUT............................................................10 3.2 DESCRIPTION OF TEST MODES..............................................................13 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............14 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................18 3.4 DESCRIPTION OF SUPPORT UNITS........................................................19 3.5 CONFIGURATION OF SYSTEM UNDER TEST.........................................20 4. TEST TYPES AND RESULTS (802.11b & g, 2400 ~ 2483.5MHz Band).....21 4.1 CONDUCTED EMISSION MEASUREMENT..............................................21 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................21 4.1.2 TEST INSTRUMENTS................................................................................21 4.1.3 TEST PROCEDURES.................................................................................22 4.1.4 DEVIATION FROM TEST STANDARD.......................................................22 4.1.5 TEST SETUP..............................................................................................23 4.1.6 EUT OPERATING CONDITIONS................................................................23 4.1.7 TEST RESULTS (With adapter 1)...............................................................24 4.1.8 TEST RESULTS (With adapter 2)...............................................................26 4.2 RADIATED EMISSION MEASUREMENT...................................................28 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................28 4.2.2 TEST INSTRUMENTS................................................................................29 4.2.3 TEST PROCEDURES.................................................................................31 4.2.4 DEVIATION FROM TEST STANDARD.......................................................31 4.2.5 TEST SETUP..............................................................................................32 4.2.6 EUT OPERATING CONDITIONS................................................................32 4.2.7 TEST RESULTS..........................................................................................33 4.3 6dB BANDWIDTH MEASUREMENT..........................................................62 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................62 4.3.2 TEST INSTRUMENTS................................................................................62 4.3.3 TEST PROCEDURE...................................................................................62 4.3.4 DEVIATION FROM TEST STANDARD.......................................................62 4.3.5 TEST SETUP..............................................................................................62 4.3.6 EUT OPERATING CONDITIONS................................................................62 4.3.7 TEST RESULTS..........................................................................................63 Report No.: RF110107E07D 3 Report Format Version 4.0.0 Reference No.:110518E03 4.4 MAXIMUM PEAK OUTPUT POWER..........................................................67 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........67 4.4.2 INSTRUMENTS..........................................................................................67 4.4.3 TEST PROCEDURES.................................................................................67 4.4.4 DEVIATION FROM TEST STANDARD.......................................................67 4.4.5 TEST SETUP..............................................................................................67 4.4.6 EUT OPERATING CONDITIONS................................................................67 4.4.7 TEST RESULTS..........................................................................................68 4.5 POWER SPECTRAL DENSITY MEASUREMENT......................................70 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...................70 4.5.2 TEST INSTRUMENTS................................................................................70 4.5.3 TEST PROCEDURE........................…

Text truncated - open the document above for the full version.

Report No.: RF110107E07D-1 1 Report Format Version 4.0.0 Reference No.:110518E03 FCC TEST REPORT (15.407) REPORT NO.: RF110107E07D-1 MODEL NO.: F7D4550 FCC ID: K7SF7D4550 RECEIVED: Jan. 05, 2011 TESTED: Jan. 12 to Feb. 15, 2011 and May 19, 2011 ISSUED: June 02, 2011 APPLICANT: Belkin International, Inc. ADDRESS: 12045 East Waterfront Drive, Playa Vista, CA 90094 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 81 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110107E07D-1 2 Report Format Version 4.0.0 Reference No.:110518E03 Table of Contents RELEASE CONTROL RECORD........................................................................................4 1. CERTIFICATION....................................................................................................5 2. SUMMARY OF TEST RESULTS............................................................................6 2.1 MEASUREMENT UNCERTAINTY..........................................................................7 3. GENERAL INFORMATION.....................................................................................8 3.1 GENERAL DESCRIPTION OF EUT.......................................................................8 3.2 DESCRIPTION OF TEST MODES.......................................................................11 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.......................12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................15 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................16 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................17 4. TEST TYPES AND RESULTS..............................................................................18 4.1 CONDUCTED EMISSION MEASUREMENT........................................................18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................18 4.1.2 TEST INSTRUMENTS..........................................................................................18 4.1.3 TEST PROCEDURES..........................................................................................19 4.1.4 DEVIATION FROM TEST STANDARD.................................................................19 4.1.5 TEST SETUP.......................................................................................................20 4.1.6 EUT OPERATING CONDITIONS.........................................................................20 4.1.7 TEST RESULTS (WITH ADAPTER 1)..................................................................21 4.1.8 TEST RESULTS (WITH ADAPTER 2)..................................................................23 4.2 RADIATED EMISSION MEASUREMENT.............................................................25 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................25 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS..........26 4.2.3 TEST INSTRUMENTS..........................................................................................27 4.2.4 TEST PROCEDURES..........................................................................................29 4.2.5 DEVIATION FROM TEST STANDARD.................................................................29 4.2.6 TEST SETUP.......................................................................................................30 4.2.7 EUT OPERATING CONDITION............................................................................30 4.2.8 TEST RESULTS...................................................................................................31 4.3 PEAK TRANSMIT POWER MEASUREMENT......................................................52 4.3.1 LIMITS OF PEAK TRANSMIT POWER MEASUREMENT....................................52 4.3.2 TEST INSTRUMENTS..........................................................................................52 4.3.3 TEST PROCEDURE.............................................................................................53 4.3.4 DEVIATION FROM TEST STANDARD.................................................................53 4.3.5 TEST SETUP.......................................................................................................53 4.3.6 EUT OPERATING CONDITIONS.........................................................................53 4.3.7 TEST RESULTS...................................................................................................54 4.4 PEAK POWER EXCURSION MEASUREMENT...................................................60 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT.................................60 Report No.: RF110107E07D-1 3 Report Format Version 4.0.0 Reference No.:110518E03 4.4.2 TEST INSTRUMENTS..........................................................................................60 4.4.3 TEST PROCEDURE.............................................................................................60 4.4.4 DEVIATION FROM TEST STANDARD.................................................................60 4.4.5 TEST SETUP.......................................................................................................61 4.4.6 EUT OPERATING…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
